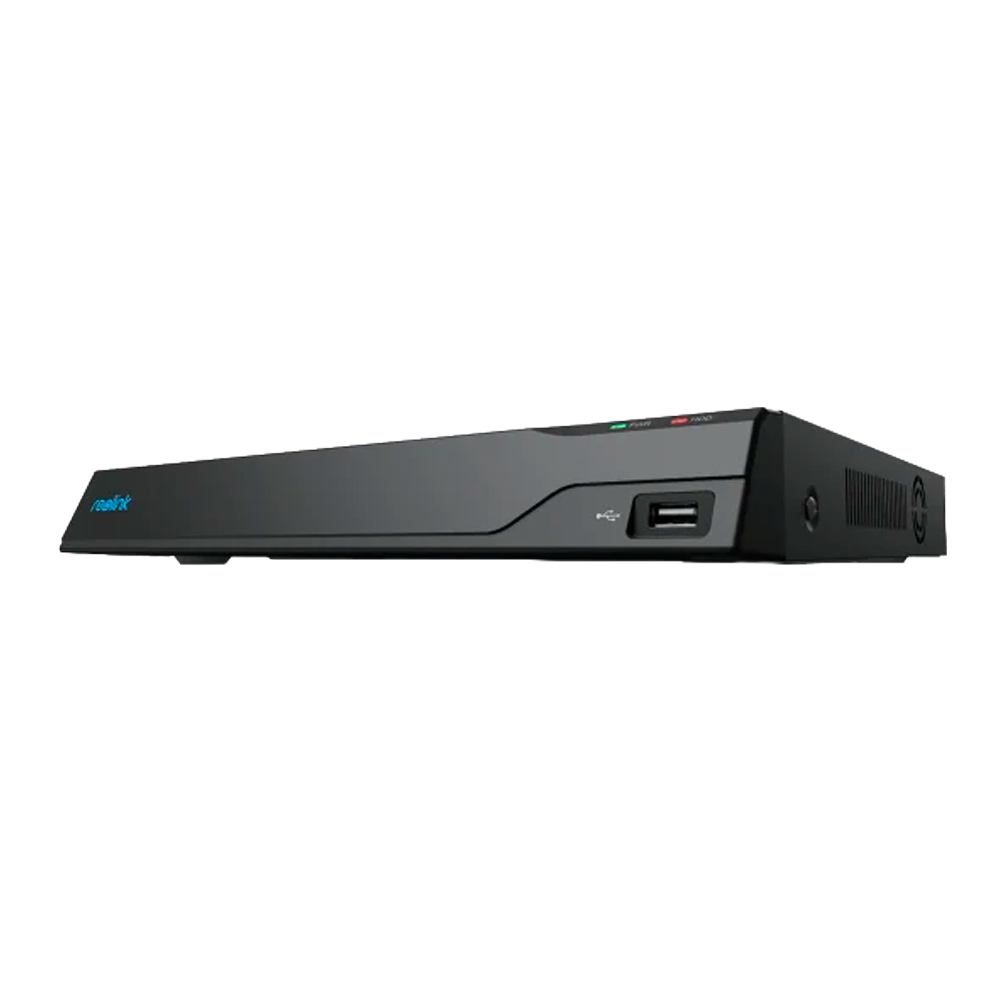

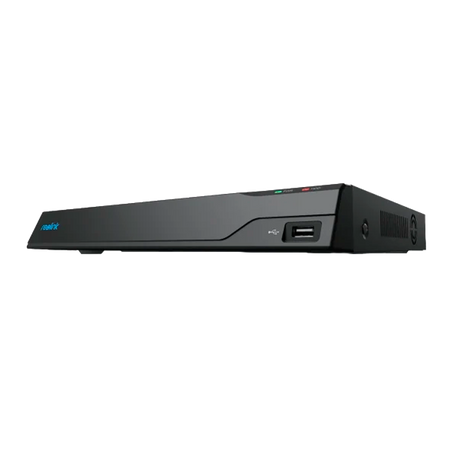

Reolink 12-channel PoE NVR
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Reolink 12-channel PoE NVR - Supports cameras up to 16MP - Up to 12 IP cameras - Person / Pet / Vehicle detection - Up to 32TB HDD (2 x 16TB) - Suitable for indoor use
📋 SPECIFICATIONS:
• Brand: Reolink
• Model: RP-PN8
• Resolution: Up to 16 MP
• Audio / video input: 12CH x PoE IP Camera (with audio)
• Audio and video output: HDMI output; (3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768); VGA output; (1920x1080, 1280x1024, 1280x720, 1024x768); Audio output; 1 channel RCA
• Video format: H.264, H.265
• Storage: SATA; 1 x SATA interface; Capacity; Up to 32TB (2 x 16TB per hard drive); Includes; 4TB (installed)
• External interface: USB interface; 2 x USB 2.0; Network interface; 1 x RJ-45 10/100 Mbps LAN/WAN; 8 x RJ-45 10/100 Mbps PoE for IP cameras
• POE: Max power output per port 25W; IEEE 802.3af/at standard supported
• Network communication: Supported protocols; (HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP); Supported OS; PC: Windows, Mac OS; smartphone: iOS, Android; Supported browsers; Edge, Firefox, Chrome, Safari
• Power supply: Power adapter; DC 53V/3.77A, PoE (IEEE 802.3af/at, 25W per port)
• Operating temp: -10 ~ 45° C
• Dimensions: 255 x 49.5 x 232 mm
• Weight: 1.4 Kg
📦 INCLUDED:
• 1 Video recorder • 1 Power adapter • 1 Network cable • 1 HDMI cable • 1 Quick start guide
| Model | RP-PN8 |
|---|---|
| Resolution | Up to 16 MP |
| Audio / Video Input | 12CH x PoE IP Camera (with audio) |
| Audio and Video Output | HDMI output (3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768) VGA output (1920x1080, 1280x1024, 1280x720, 1024x768) 1-channel RCA audio output |
| Video Format | H.264, H.265 |
| Storage | SATA 1 x SATA interface Capacity up to 32TB (2 x 16TB per hard drive) Includes 4TB (installed) |
| External Interface | - USB interface 2 x USB 2.0 - Network interface 1 x RJ-45 10/100 Mbps LAN/WAN 8 x RJ-45 10/100 Mbps PoE for IP cameras |
| POE | Maximum output per port 25W IEEE 802.3af/at standard supported |
| Network Communication | - Supported protocols (HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP) - Supported OS PC: Windows, Mac OS; smartphone: iOS, Android - Supported browsers Edge, Firefox, Chrome, Safari |
| Power Supply | DC 53V/3.77A power adapter, PoE (IEEE 802.3af/at, 25W per port) |
| Operating Temp. | -10 ~ 45° C |
| Dimensions | 255 x 49.5 x 232 mm |
| Weight | 1.4 Kg |
