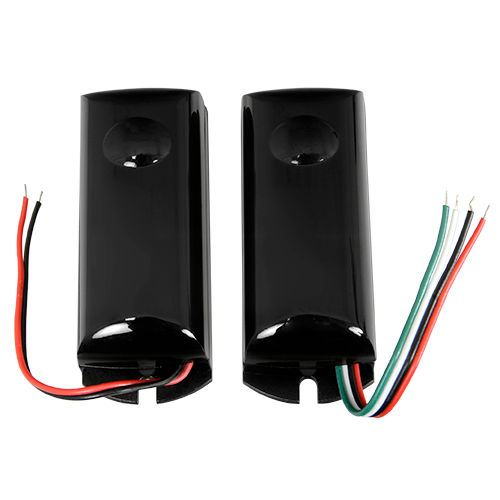

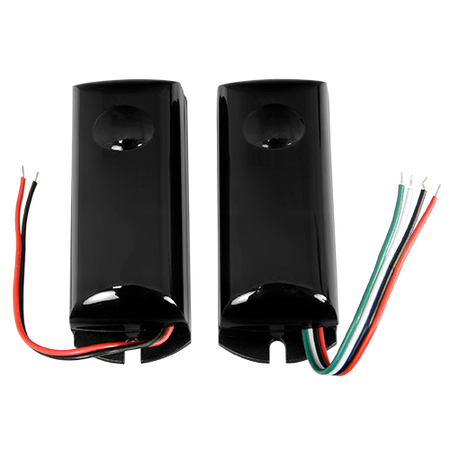

Infrared beam detector
Regular price
€11,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Infrared beam detector - Wired | 1 beam - Max. detection distance 10 / 20 m - Small size and easy installation - Relay output - Power supply 9~16VDC/VAC
- Single-beam infrared barrier for outdoor use
- Wired
- Maximum transmitter/receiver detection 20 m (indoor) and 10 m (outdoor)
- Compact size
- 4 operating frequencies
- Power supply 9-16 VDC/VAC
Technical datasheet
| Detection range | 20m indoor / 10 m outdoor |
| Number of beams | 1 |
| Detection method | Infrared beam interruption |
| Frequency channels | 4 different channels via DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 36VDC/VAC, 1A) |
| Adjustment method | Via LED |
| Operating temperature | -25ºC ~ +55ºC |
| Power supply | 9~16 VDC/VAC, 20 mA max. |
| Dimensions | 69.5 (W) x 26.4 (H) x 22.5 (D) mm |
Technical features
- Wired infrared barrier | 1 beam
- Max. detection distance 10 / 20 m
- Small size and easy installation
- Relay output. Power supply 9~16VDC/VAC
| Detection range | 20m indoor / 10m outdoor |
|---|---|
| Number of beams | 1 |
| Detection method | Infrared beam interruption |
| Frequency channels | 4 different channels via DIP switch |
| Alarm outputs | 1 relay NO/NC (max. 36VDC/VAC, 1A) |
| Adjustment method | Via LED |
| Operating temperature | -25ºC ~ +55ºC |
| Power supply | 9~16 VDC/VAC, 20 mA max. |
| Dimensions | 69.5 (W) x 26.4 (H) x 22.5 (D) mm |
