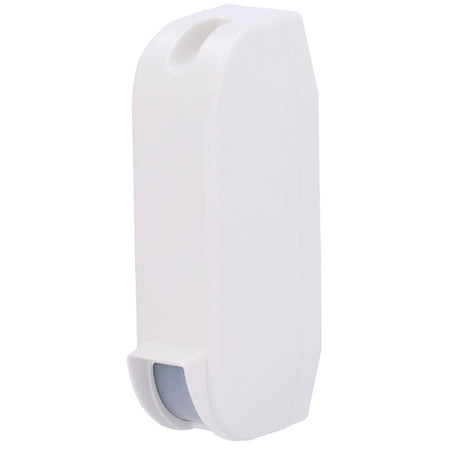

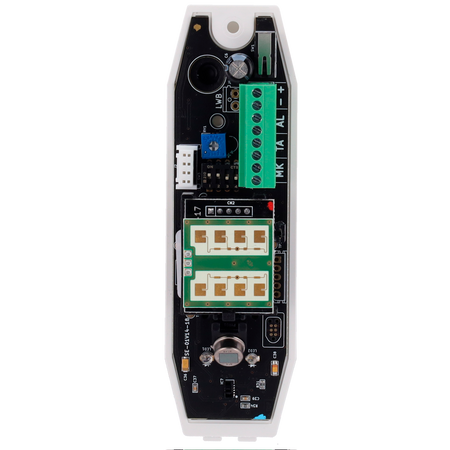

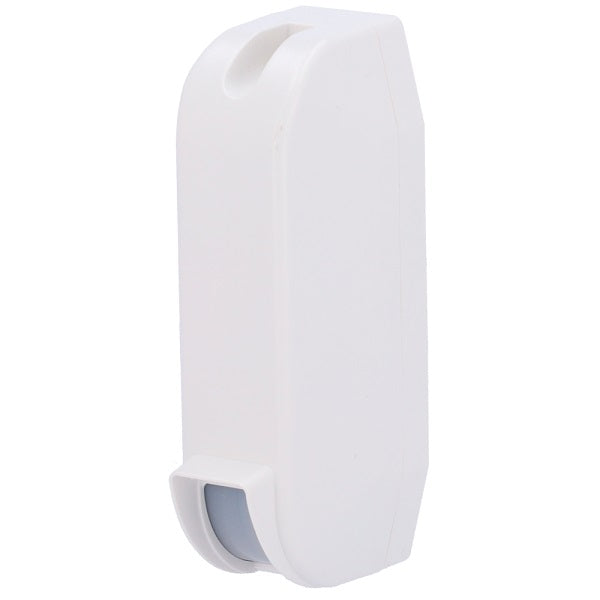

Duevi wired outdoor detector - Curtain PIR and microwave (24 GHz) - Detection range 12 m / Antimasking - Power supply 9.6 ~ 14.5 VDC - Compatible with wired alarm systems - Outdoor IP54
- Duevi
- Wired outdoor curtain detector
- Dual technology: Curtain PIR and microwave (24 GHz)
- Antimasking technology
- Detection: Range 12 m / 7.5º
- Motion detection indicator
- Anti-opening tamper
- Power supply 9.6~14.5 VDC
- Compatible with wired alarm systems
- Outdoor use
- IP54 protection rating
Technical sheet
| Model | Kapture F |
| Technology | Dual technology: microwave (24 GHz) and curtain PIR |
| Detection field | Configurable: from 3 m to 12 m (depending on installation) / PIR 7.5º / Microwave 30º |
| Pet immunity | Not available |
| Installation height | Recommended 2.2 m (from 2 to 4 meters) |
| Masking | Available |
| Sensitivity | Adjustable (potentiometer from 30% to 100% or via App) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LED indication | Alarm (blue). IR detection (red) and Walk test (red: IR / blue: alarm confirmation) |
| DIP Switch configuration | Walk-test (On/Off), Antimasking (On/Off), App programming (On/Off), Alarm unification on a single output (On/Off) |
| Additional App configuration | Anti-shadow function to avoid false alarms (4 levels) / Independent IR and microwave sensitivity adjustment |
| Configuration via App | DV-BTLINK module required and download View Sensor App (Android) |
| Wired outputs | Alarm, tamper and antimasking |
| Power supply | 9.6 to 14.5 VDC |
| Operating temp. | -20 ºC ~ +60 ºC |
| Protection rating | IP54 |

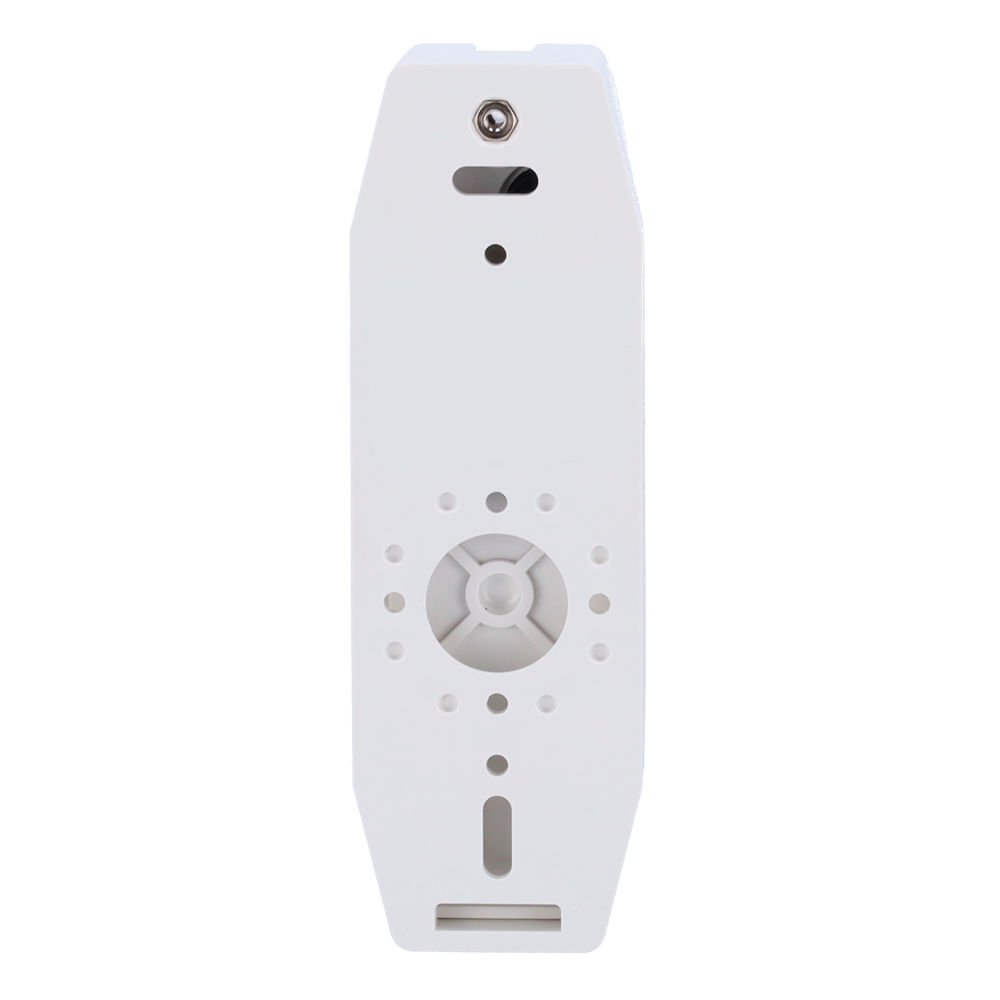

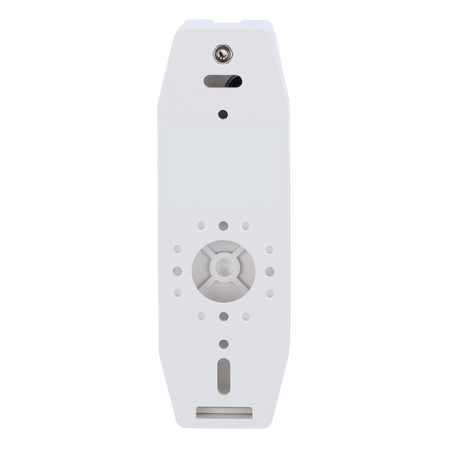

| Bracket | Includes wall bracket and L-bracket |
| Dimensions | 128 (H) x 41 (W) x 48 (D) mm |
Technical features
- Wired Duevi outdoor detector
- Curtain PIR and microwave (24 GHz)
- Detection range 12 m / Antimasking
- Power supply 9.6 ~ 14.5 VDC. Outdoor use IP54
| Model | Kapture F |
|---|---|
| Technology | Dual technology: microwave (24 GHz) and curtain PIR |
| Detection range | Configurable: from 3 m to 12 m (depending on installation) / PIR 7.5º / Microwave 30º |
| Pet immunity | Not available |
| Installation height | Recommended 2.2 m (from 2 to 4 meters) |
| Masking | Available |
| Sensitivity | Adjustable (potentiometer from 30% to 100% or via App) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LED indication | Alarm (blue). IR detection (red) and Walk test (red: IR / blue: alarm confirmation) |
| DIP Switch configuration | Walk-test (On/Off), Anti-masking (On/Off), Programming via App (On/Off), Alarm unification on a single output (On/Off) |
| Additional configuration on App | Anti-shadow function to avoid false alarms (4 levels) / Independent IR and microwave sensitivity adjustment |
| Configuration via App | Requires DV-BTLINK module and downloading the View Sensor App (Android) |
| Wired outputs | Alarm, tamper and anti-masking |
| Power supply | 9.6 to 14.5 VDC |
| Operating temp. | -20 ºC ~ +60 ºC |
| Protection rating | IP54 |
| Bracket | Includes wall bracket and L-bracket |
| Dimensions | 128 (H) x 41 (W) x 48 (D) mm |
- User manual Link
