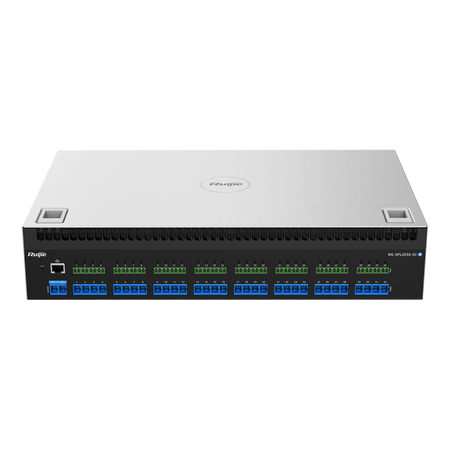

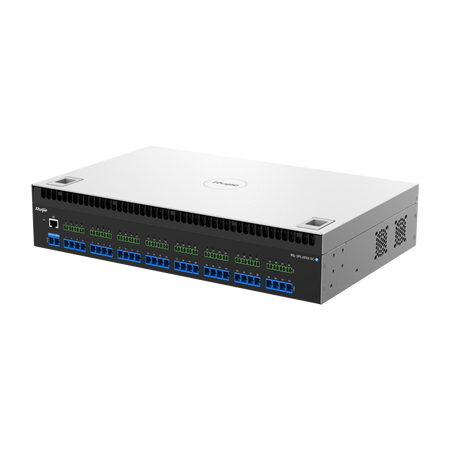

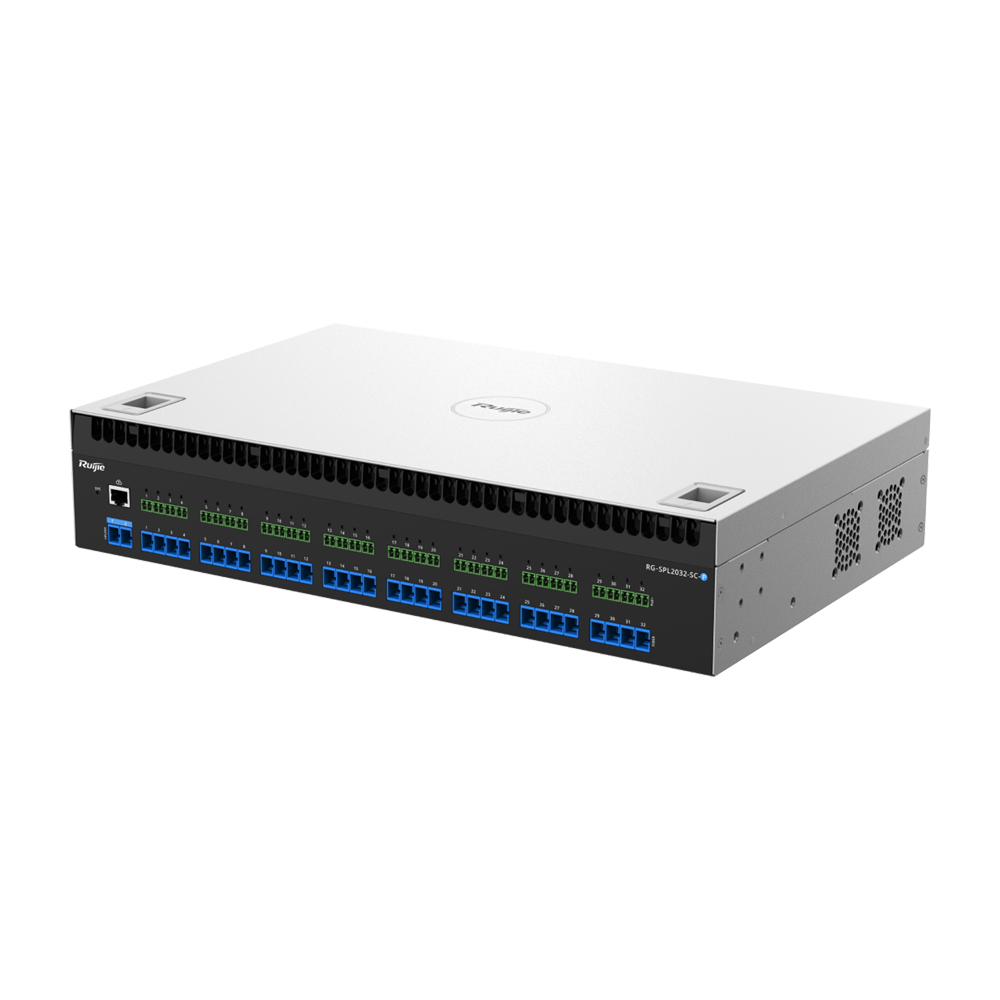

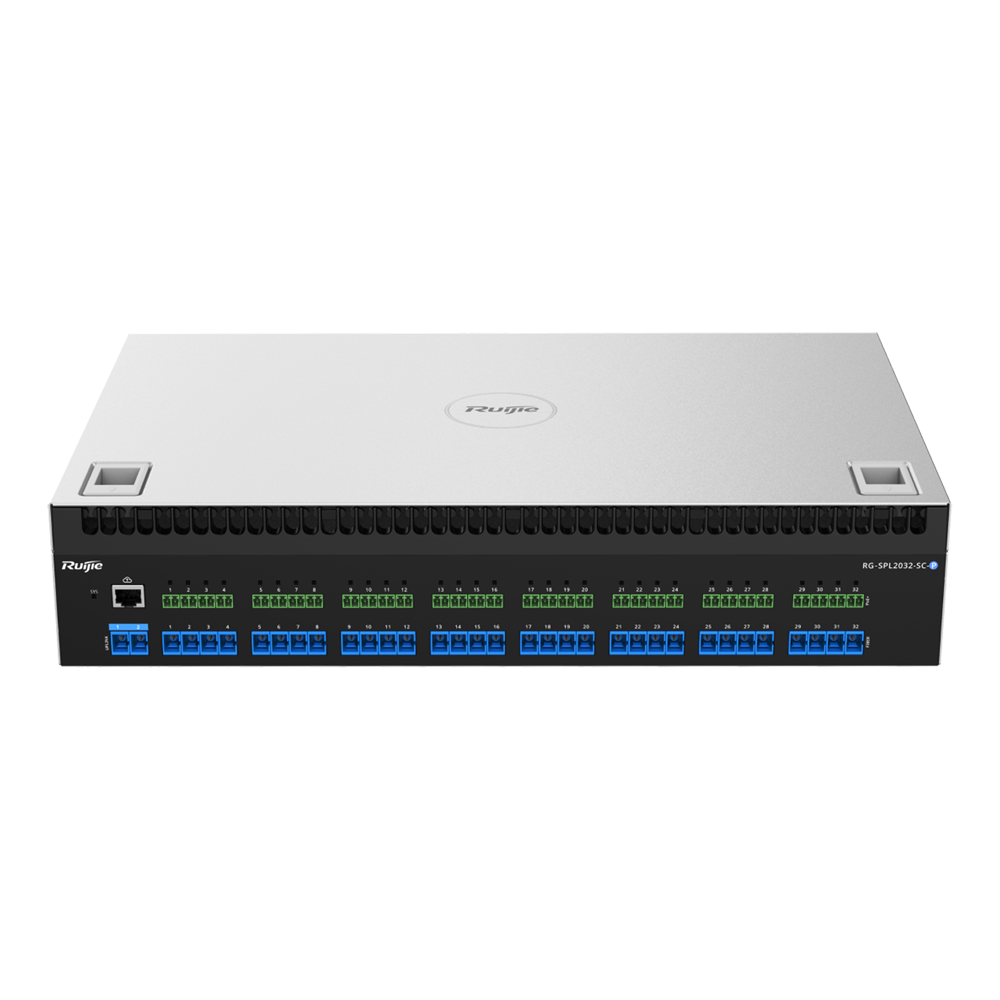

Reyee e-Lighten active optical splitter with 2 inputs and 32 outputs
Reyee e-Lighten active optical splitter with 2 inputs and 32 outputs
Regular price
€534,54
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
e-Lighten active optical splitter with 2 inputs and 32 outputs - Compatible with hybrid PoF cables for remote power supply - Power link protection and overload protection - All-in-one design with splicing tray and cable management - Supports up to 32 SC optical outputs and 32 PoF ports - Intelligent management and real-time power monitoring
📋 SPECIFICATIONS:
• Interface: 2 SC input ports; 32 SC output ports; 32 PoF power ports (Phoenix); 1 RJ45 management port
• Port speed: Transparent optical distribution compatible with 2.5 Gbps links
• PON functionality: 2:32 active splitter; Power link protection; Overload protection per PoF port; Integrated PoF watchdog; Supports hot-swapping
• Maximum PoF distance: Up to 360m at RG-AWG0.5 (PoE Out disabled); Up to 200m at RG-AWG0.5 (PoE Out enabled); Up to 300m at RG-APF2260(MG)
• PoF budget: 380 W total; Up to 30 W per PoF port
• PoF standards: Compatible with IEEE 802.3af/at
• Network protocols and technologies: Static/automatic power management; Port fault isolation; Total PoF overload protection
• Redundancy control: Power link protection via 2 SC optical inputs
• Management protocols: RJ45 local management port; Remote management and monitoring via Ruijie Cloud
• Surge protection: 6 kV on service and power ports
• Power supply: AC 100 V - 240 V (50/60 Hz); 6 A rated current
• Consumption: 409 W (at full PoF load); 10 W (no PoF load)
• Operating temperature: 0° C - 40° C
• Dimensions: 440 mm x 280 mm x 88 mm (2U)
• Weight: 8.86 Kg (including packaging)
📦 INCLUDED:
• 1 x RG-SPL2032-SC-P active optical splitter• 2 x Rack mount brackets• 1 x Cable management and splice tray accessory kit• 1 x User manual and Warranty certificate
| Interface | 2 SC input ports, 32 SC output ports, 32 PoF (Phoenix) power ports, 1 RJ45 management port |
|---|---|
| Port Speed | Transparent optical distribution compatible with 2.5 Gbps links |
| PON Features | 2:32 active splitter, power link protection, overload protection per PoF port, integrated PoF watchdog, hot-swapping support |
| Maximum PoF Distance | 360m at RG-AWG0.5 (PoE Out disabled), 200m at RG-AWG0.5 (PoE Out enabled), 300m at RG-APF2260(MG) |
| PoF Budget | 380 W total, up to 30 W per PoF port |
| PoF Standards | IEEE 802.3af/at compatible |
| Network Protocols and Technologies | Static/automatic power management, per-port fault isolation, total PoF overload protection |
| Redundancy Control | Power link protection via 2 SC optical inputs |
| Management Protocols | Local RJ45 management port, remote management and monitoring via Ruijie Cloud |
| Surge Protection | 6 kV on service and power ports |
| Power Supply | AC 100 V - 240 V (50/60 Hz), 6 A rated current |
| Consumption | 409 W (at full PoF load), 10 W (without PoF load) |
| Operating Temperature | 0° C - 40° C |
| Dimensions | 440 mm x 280 mm x 88 mm (2U) |
| Weight | 8.86 kg (including packaging) |
