Reyee Passive Optical Splitter - 32 x SC Connectors for ONU
Reyee Passive Optical Splitter - 32 x SC Connectors for ONU
Regular price
€140,00
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

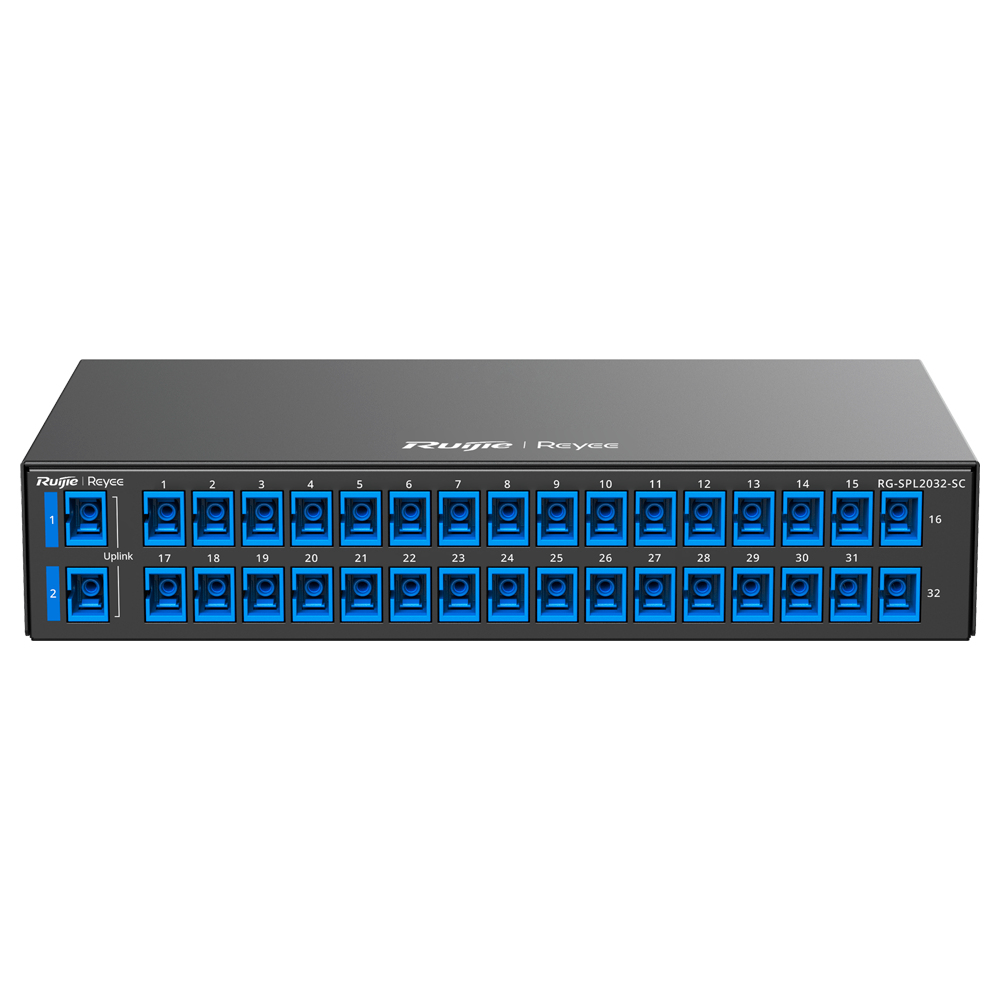

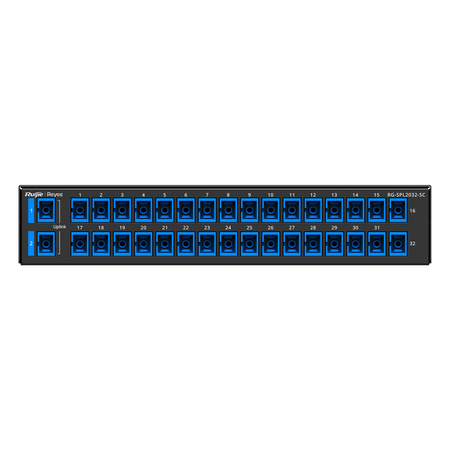

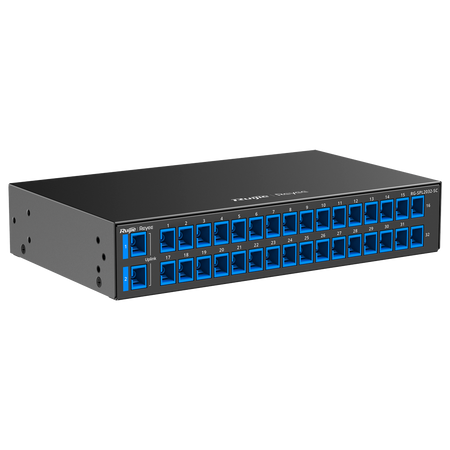

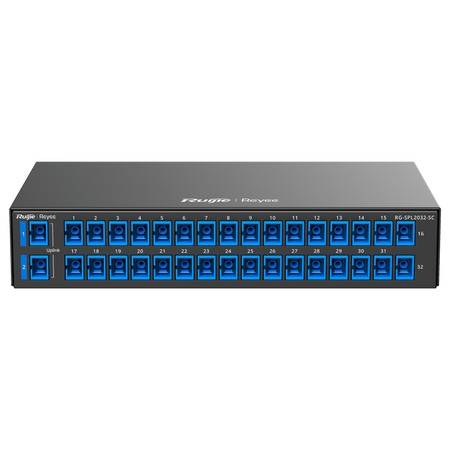

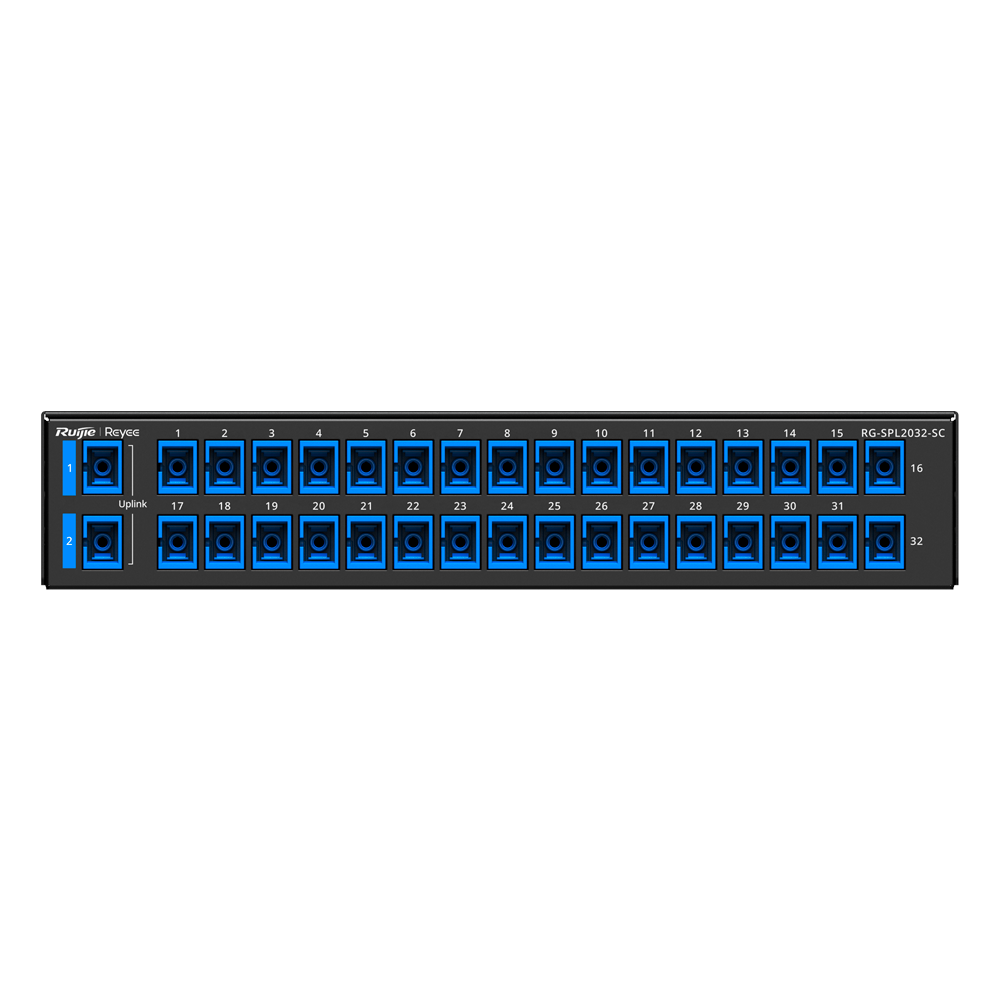

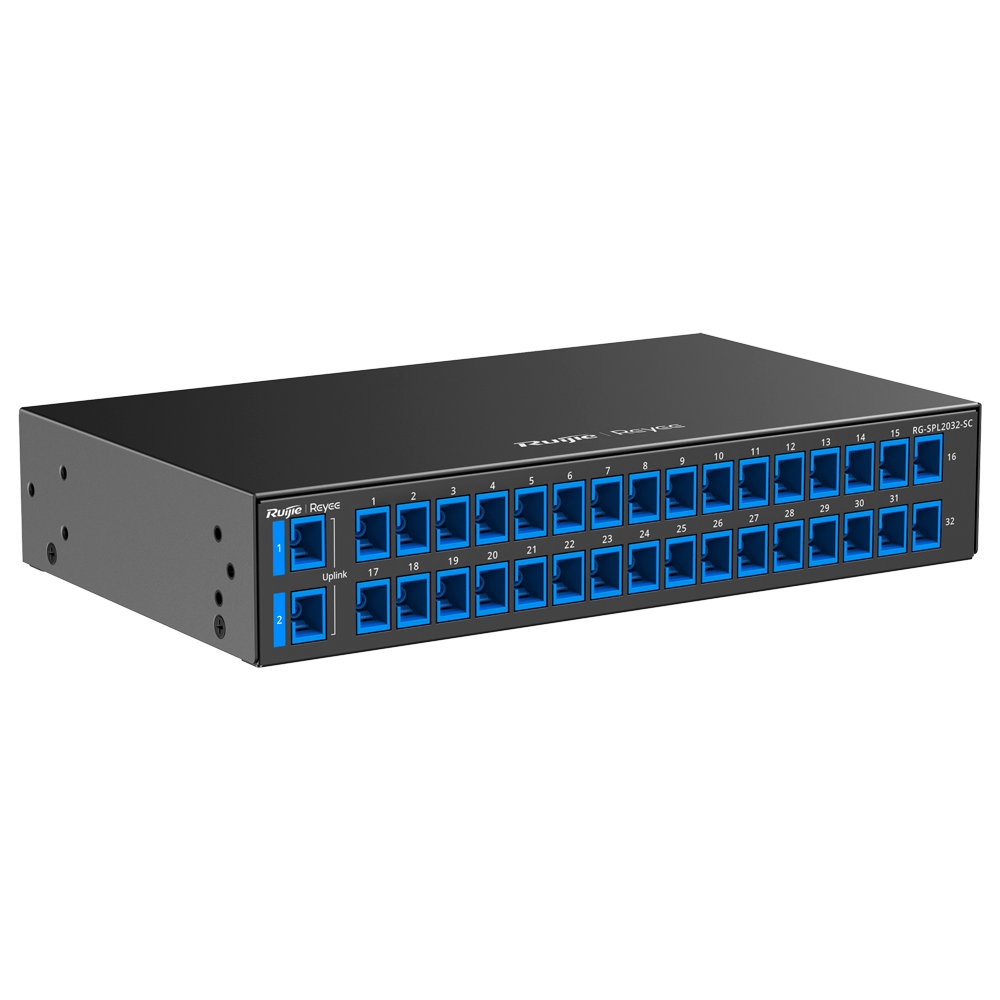

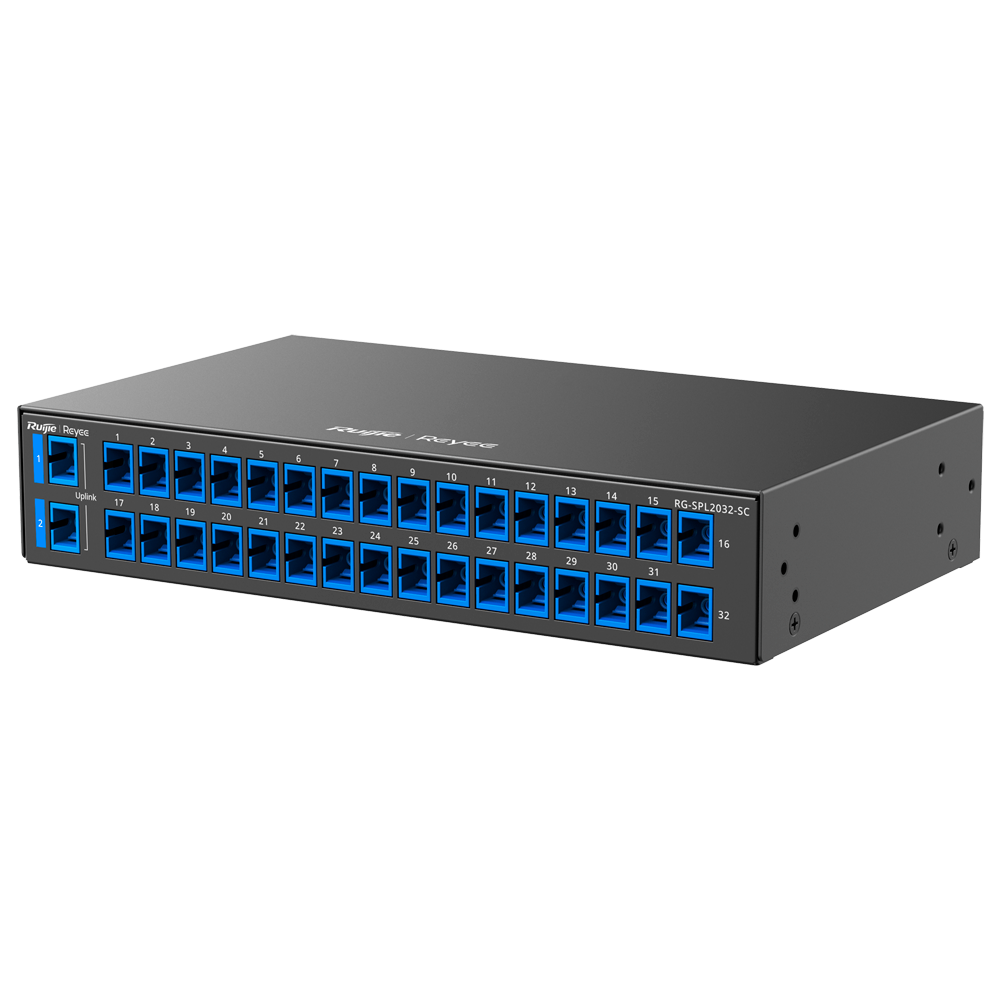

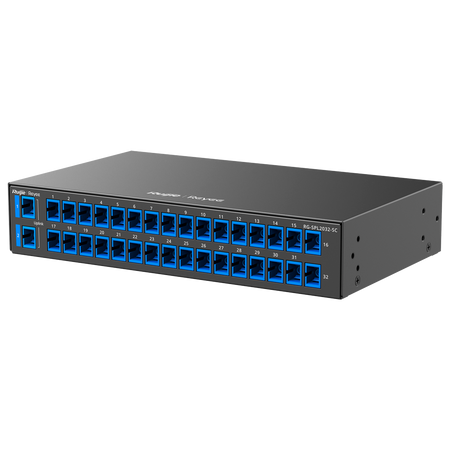

Reyee Passive Optical Splitter - Wavelength from 1260 nm to 1650nm - Compatible with Reyee e-Lighten solution - 2 x SC uplink connectors - 32 x SC connectors for ONU - Rack and wall mounting
📋 SPECIFICATIONS:
• Allowed wavelength: From 1260 nm to 1650nm
• Fiber type: PON
• Connector type: SC
• Basic specifications: Plug and Play; Multiple installation methods; High splitting reliability; Compact dimensions
• PON specifications: Temperature-dependent loss (dB) ≤ 0.3; Wavelength-dependent loss (dB) 0.4 (1310 + 40), 0.4 (1550 + 40); Insertion loss (dB) ≤ 17.7; Port insertion uniformity loss (dB) ≤ 1.5; Return loss (dB) ≥ 50; Polarization-dependent loss (dB) ≤ 0.3; Maximum input power (mW) 500
• Material: Metallic
• Power consumption: No power consumption (it is a passive element)
• Operating temperature: -40° C ~ 85° C
• Dimensions: 42 (W) x 220 (H) ×130 (D) mm
• Weight: 0.98 kg
📦 INCLUDED:
• Splitter• Rack anchors
| Operating wavelength | 1260 nm to 1650 nm |
|---|---|
| Fiber type | PON |
| Connector type | SC |
| Basic specifications | Plug and Play, Multiple installation methods, High splitting reliability, Compact dimensions |
| PON specifications | Temperature dependent loss (dB) ≤ 0.3, Wavelength dependent loss (dB) 0.4 (1310 + 40), 0.4 (1550 + 40), Insertion loss (dB) ≤ 17.7, Port insertion uniformity loss (dB) ≤ 1.5, Return loss (dB) ≥ 50, Polarization dependent loss (dB) ≤ 0.3, Maximum input power (mW) 500 |
| Material | Metal |
| Power consumption | No power consumption (it is a passive element) |
| Operating temperature | -40° C ~ 85° C |
| Dimensions | 42 (W) x 220 (H) x 130 (D) mm |
| Weight | 0.98 kg |
