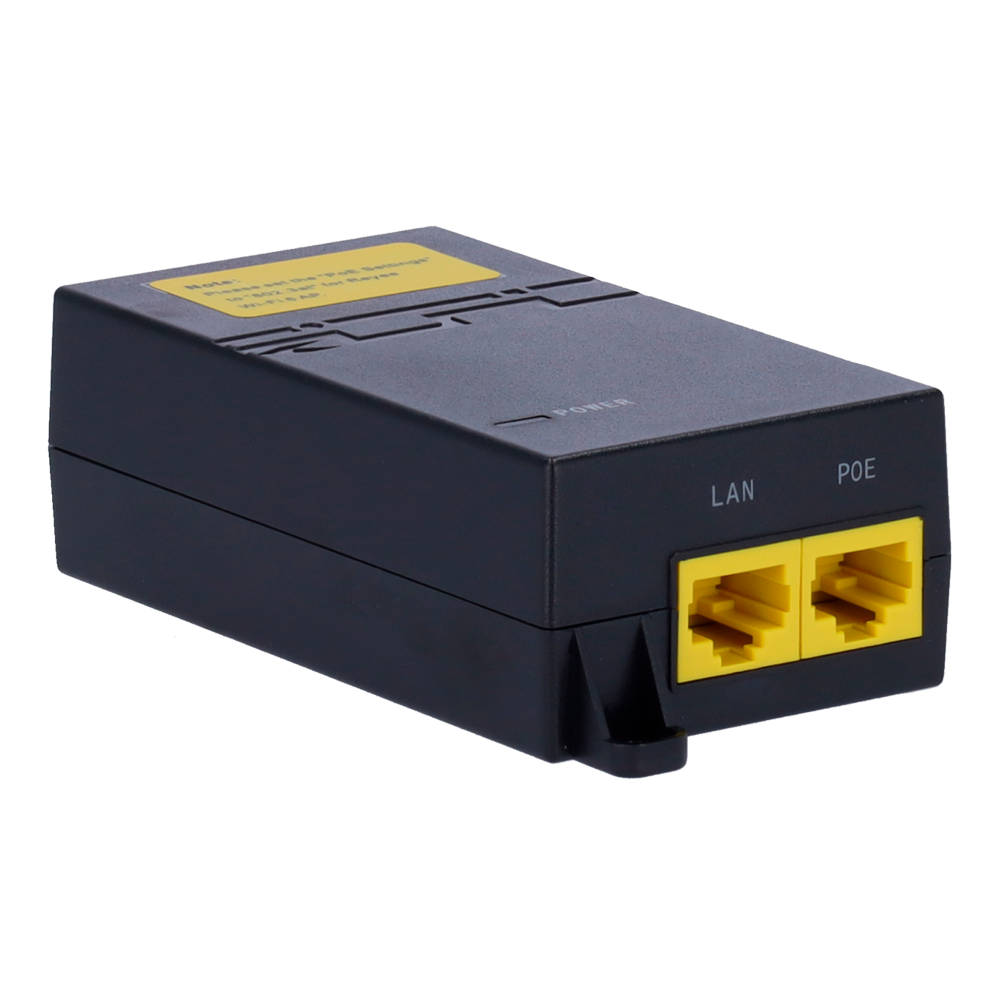

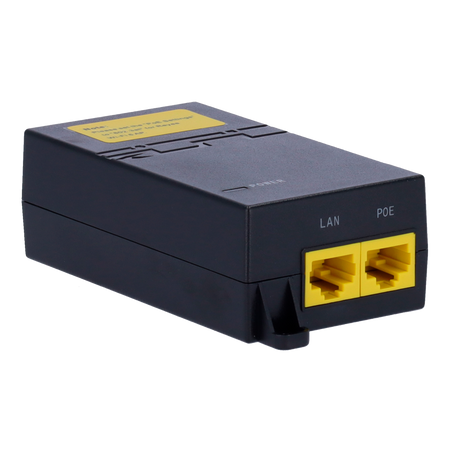

Ruijie High-Power Passive PoE Injector
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Ruijie high-power passive PoE injector. - Compatibility with 52V passive PoE technology. - Features 2 shielded RJ45 ports. - Stable power supply up to 31.2 W. - 10/100/1000M Gigabit data transfer. - Integrated surge protection.
📋 SPECIFICATIONS:
• Device type: Passive PoE injector

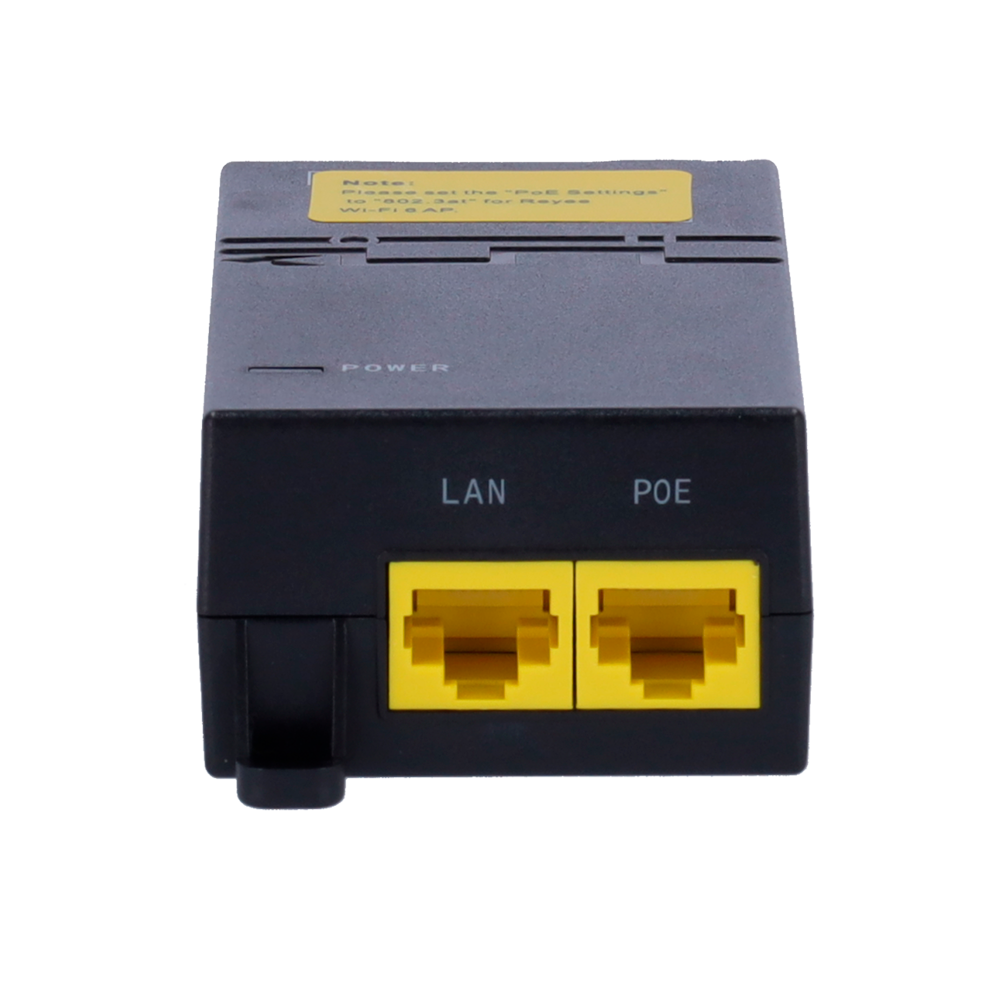

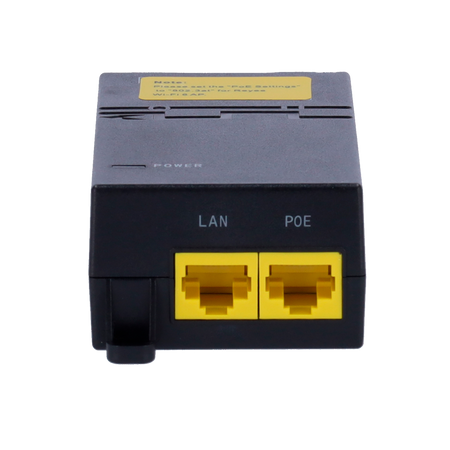

• Network interface: 1x Data IN port (RJ45) + 1x POE port (RJ45)
• Transfer speed: 10 / 100 / 1000 Mbps (Gigabit Ethernet)
• PoE standard: Passive PoE (52V, 31.2W)
• Maximum output power: 31.2 W
• Output voltage: 52 V ± 5% @ 0.60A
• AC input voltage: 100 - 240 Vac (50/60 Hz)
• Input current: 0.7 A (max.)
• Inrush current: 100A @ 230Vac
• Efficiency: 87.06%
• Output ripple: ≤ 200mVp-p
• Switching frequency: 65 KHz
• Line / Load regulation: ≤ 5% / ≤ 5%
• PoE power: 2 pairs (Pins 4, 5 + / Pins 7, 8 -)

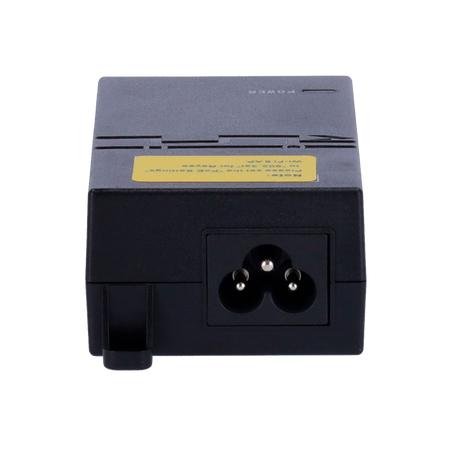

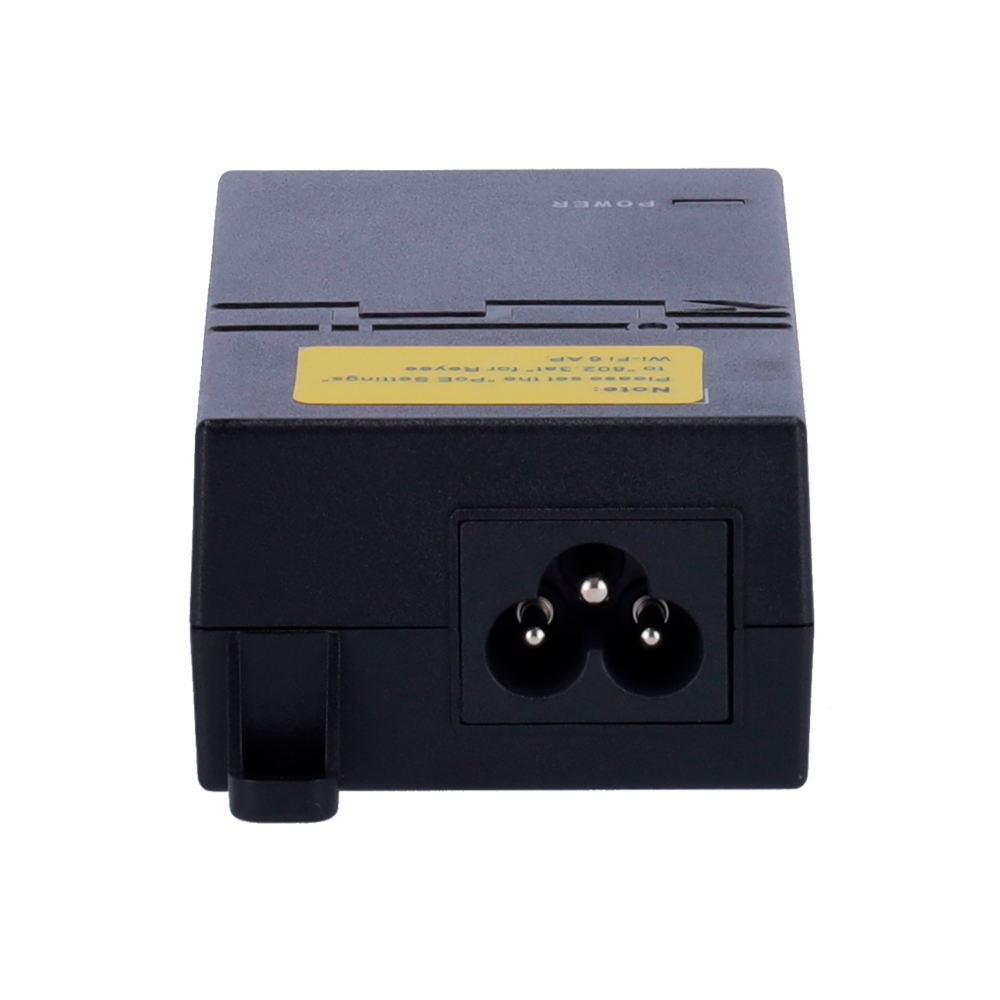

• AC connector type: IEC-320 C6
• Data connector type: Shielded RJ45 sockets
• Surge protection: Differential mode and common mode
• Maximum surge discharge: 2000A (8/20 μs) Power
• Peak pulse current: 36A (10/1000 μs) Data
• Shunt capacitance: <5 pF data
• Response time: <1 ns
• Operating temperature: -10°C to ~ 45°C
• Storage temperature: -40°C to ~ 70°C
• Operating humidity: 5% to 95% RH (non-condensing)
• Physical dimensions: 33.2 x 52.2 x 95.2 mm
• Net product weight: 145 g
📦 INCLUDED:

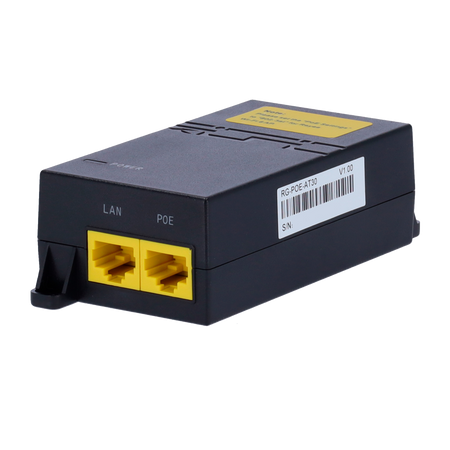

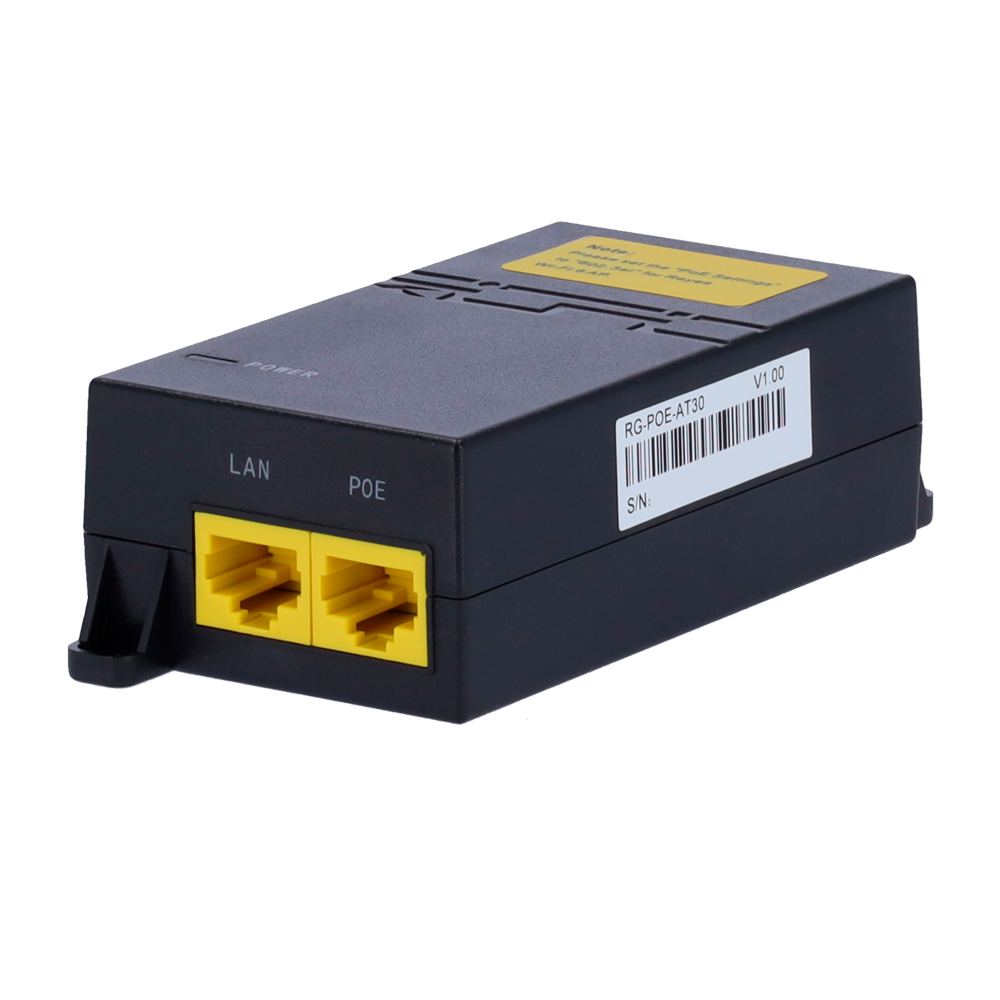

• 1x Passive PoE Injector RG-POE-AT30
• 1x Power cable
• 1x Manuals and instructions
| Device type | Passive PoE injector |
|---|---|
| Network interface | 1x Data IN port (RJ45) + 1x PoE port (RJ45) |
| Transfer speed | 10 / 100 / 1000 Mbps (Gigabit Ethernet) |
| PoE standard | Passive PoE (52V, 31.2W) |
| Maximum output power | 31.2 W |
| Output voltage | 52 V ± 5% @ 0.60A |
| AC input voltage | 100 - 240 Vac (50/60 Hz) |
| Input current | 0.7 A (max.) |
| Inrush current | 100A @ 230Vac |
| Efficiency | 87.06% |
| Output ripple | ≤ 200mVp-p |
| Switching frequency | 65 KHz |
| Line / load regulation | ≤ 5% / ≤ 5% |
| PoE power | 2 pairs (Pins 4, 5 + / Pins 7, 8 -) |
| AC connector type | IEC-320 C6 |
| Data connector type | Shielded RJ45 sockets |
| Surge protection | Differential mode and common mode |
| Maximum surge discharge | 2000A (8/20 μs) Power |
| Peak pulse current | 36A (10/1000 μs) Data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Operating temperature | -10°C to ~ 45°C |
| Storage temperature | -40°C to ~ 70°C |
| Operating humidity | 5% to 95% RH (non-condensing) |
| Physical dimensions | 33.2 x 52.2 x 95.2 mm |
| Net product weight | 145 g |
- User manual Link
