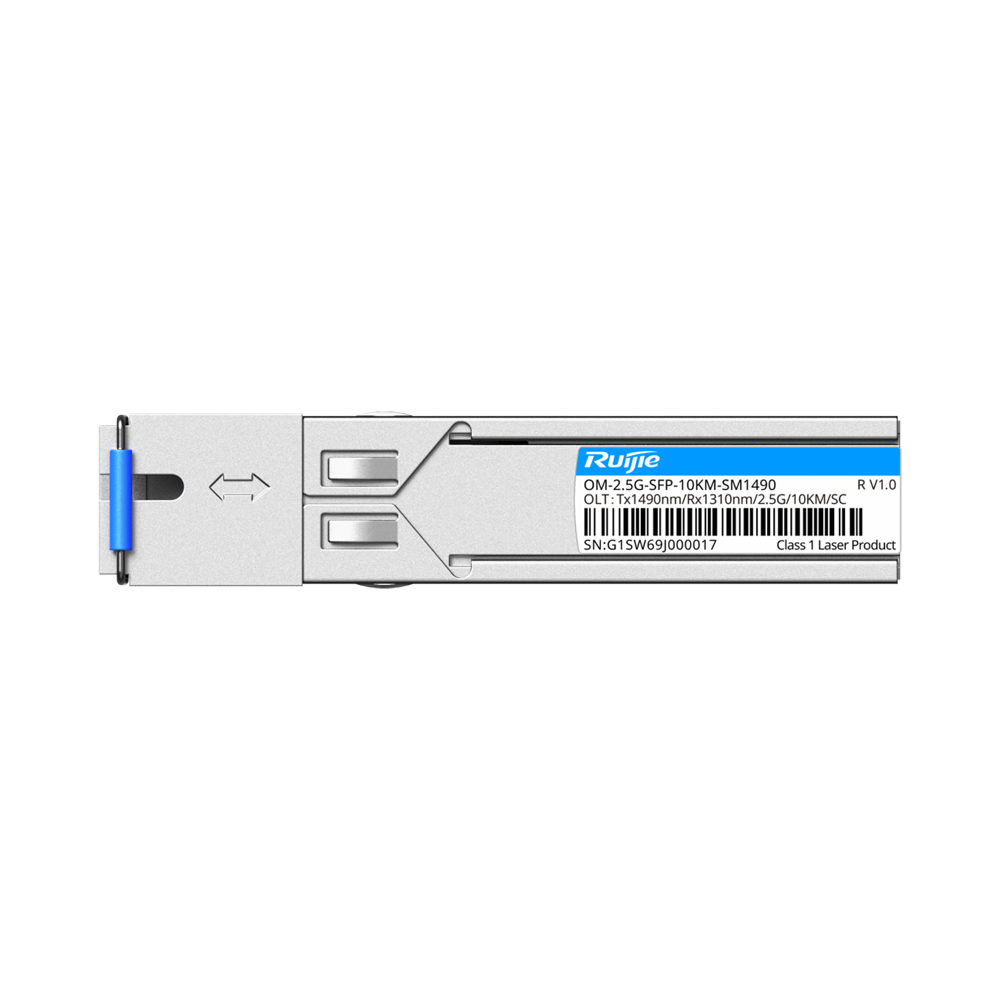

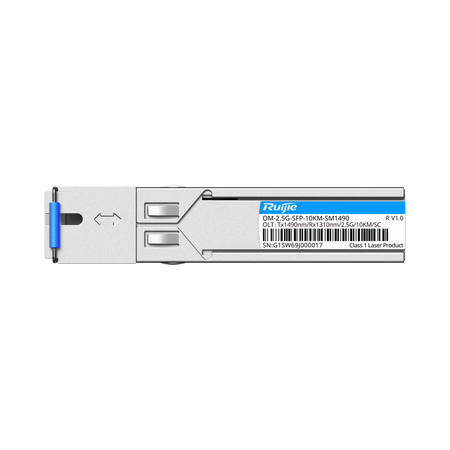

Reyee e-Lighten 2.5G optical transceiver
Reyee e-Lighten 2.5G optical transceiver
Regular price
€92,16
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

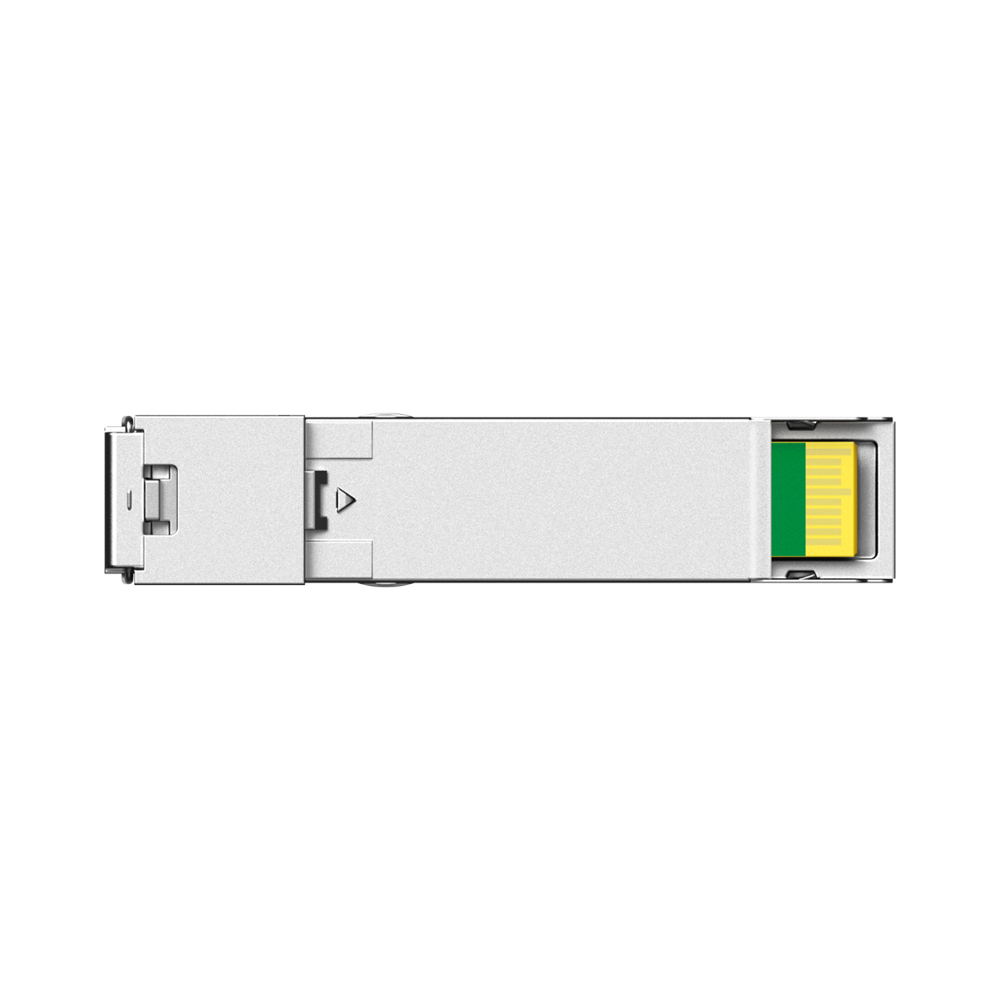

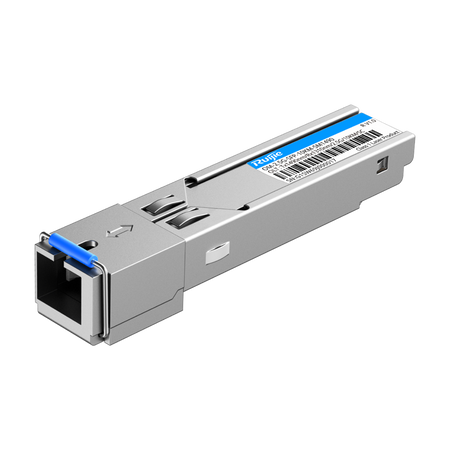

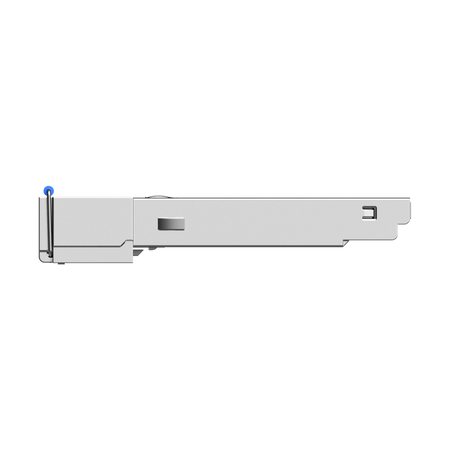

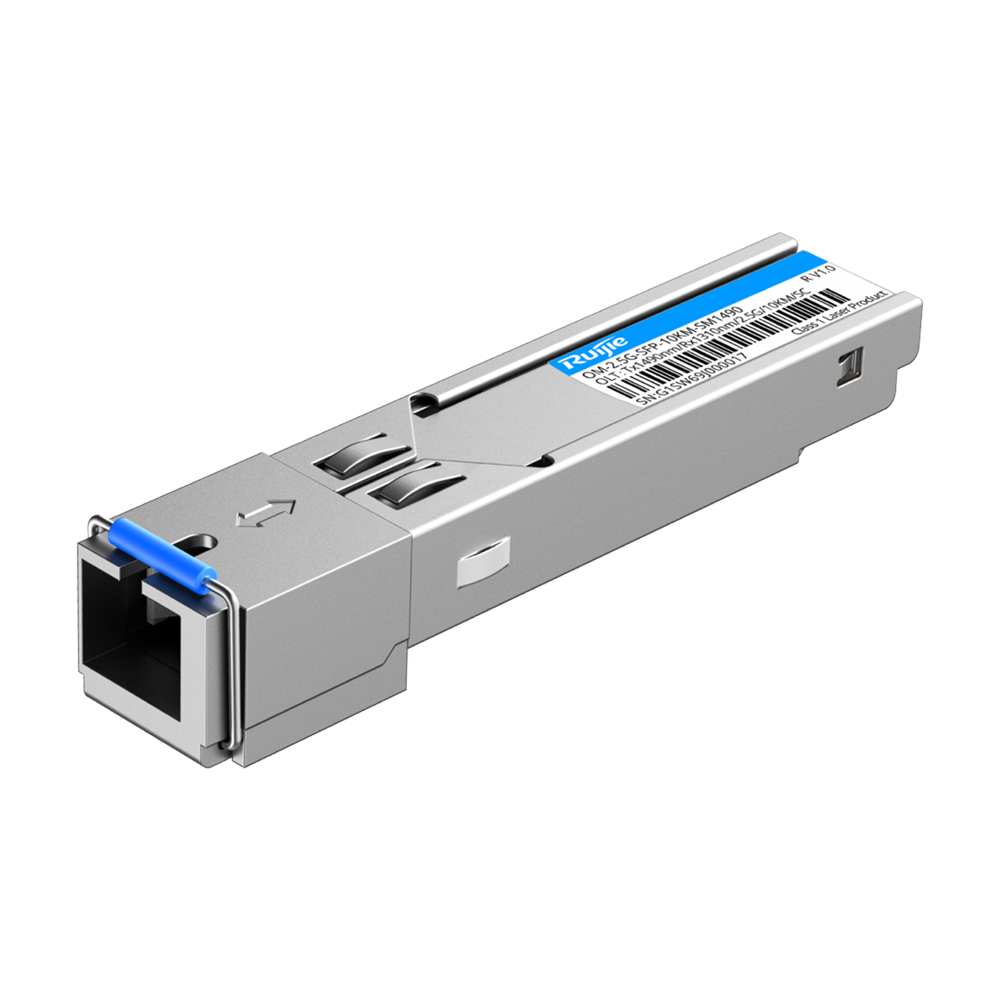

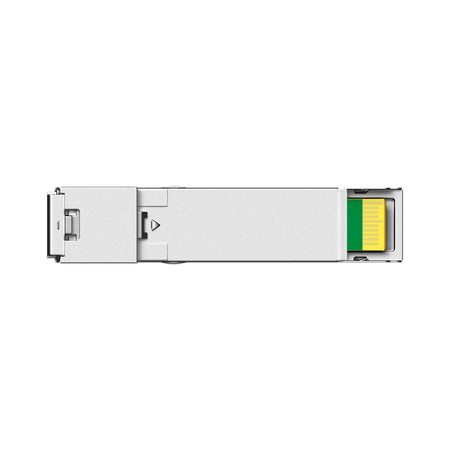

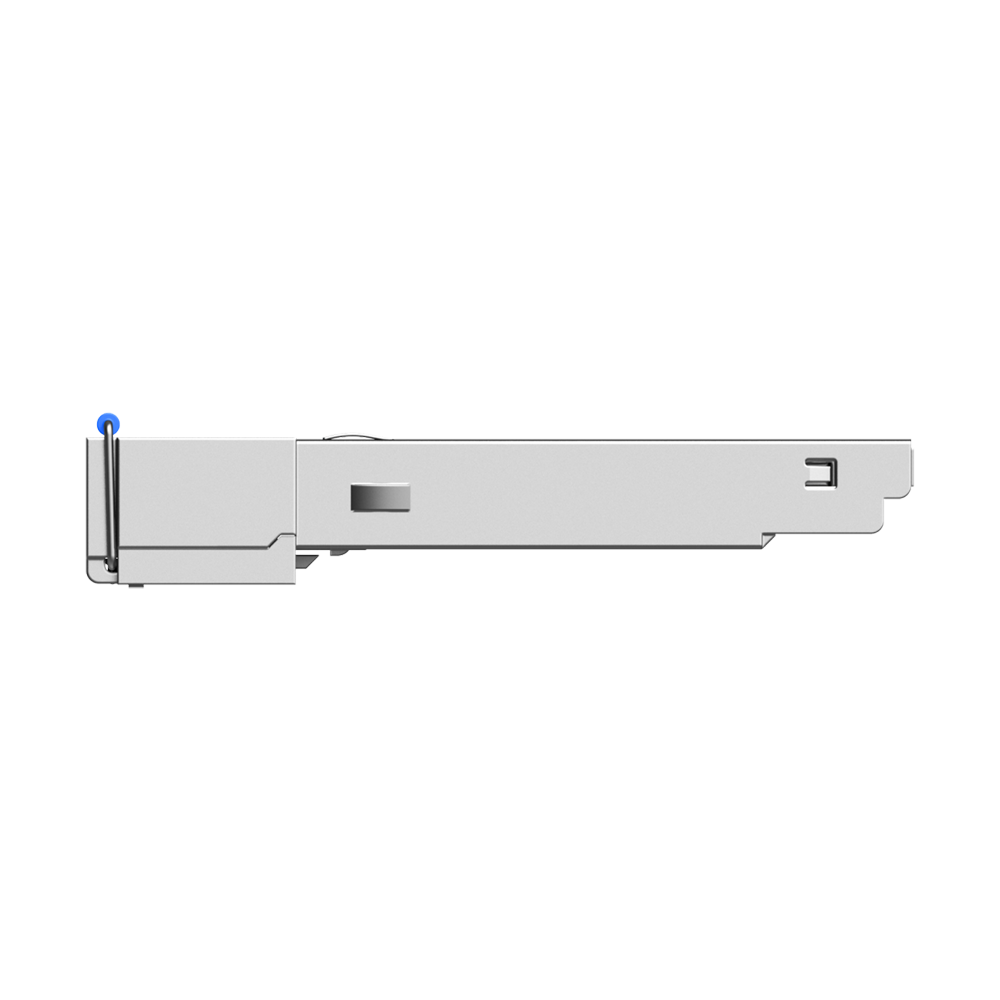

e-Lighten 2.5G optical transceiver - Single-mode, single-fiber design for 10km distances - Ideal for university campuses, hotels, and small to medium-sized businesses - SC/UPC connector for passive optical solutions - Power consumption under 1W - Compatible with the full Ruijie e-Lighten solution
📋 SPECIFICATIONS:

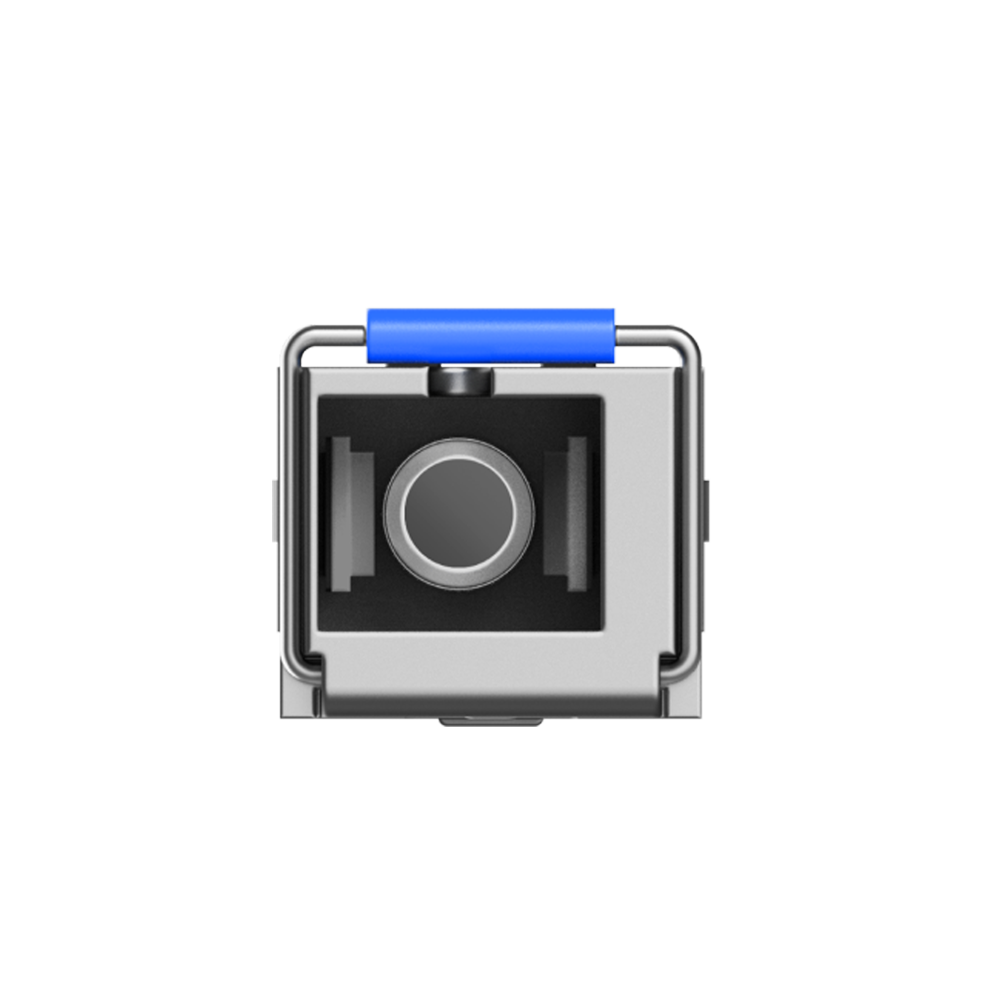

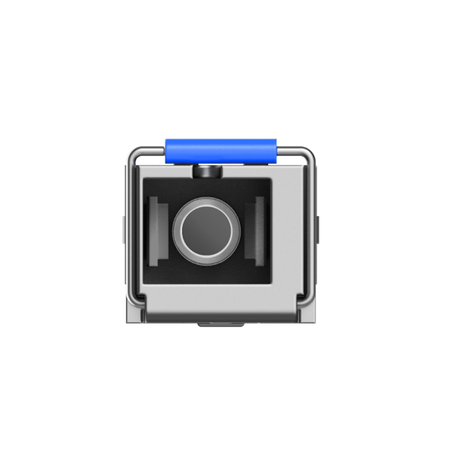

• Interface: SFP with SC/UPC connector; Tx 1490nm / Rx 1310nm; Single-mode fiber (SMF)
• Port speed: 2.5 Gbps (Tx/Rx transmission speed up to 1.25 Gbps per channel)
• PON features: Transceiver auto-negotiation; Digital Diagnostic Monitoring (DDM); Maximum distance 10 km; Average Tx power 3-7 dBm; Receiver sensitivity -32 dBm; Rx power overload -12 dBm
• Data transmission rate up to: Optimized for symmetrical e-Lighten data transfer
• Forwarding rate: Low-latency transmission for Triple-Play services
• Network Protocols and Technologies: IEEE 802.3z; SFP MSA; DDM (Digital Diagnostic Monitoring); Low power consumption <1W
• Redundancy control: Compatible with PON architectures and passive splitters
• Management protocols: Management and monitoring via OLT and Ruijie Cloud
• Power supply: DC 3.14V - 3.46V (Operating voltage 3.3V)
• Consumption: 1W (Maximum)
• Operating temperature: 0° C - 70° C
• Dimensions: Compact standard SFP format
• Weight: Lightweight for industrial optical modules
📦 INCLUDED:
• 1 x OM-2.5G-SFP-10KM-SM1490 optical transceiver
• 1 x Quick installation guide and Warranty
| Interface | SFP with SC/UPC connector Tx 1490nm / Rx 1310nm Single-mode fiber (SMF) |
|---|---|
| Port speed | 2.5 Gbps (Tx/Rx transmission speed up to 1.25 Gbps per channel) |
| PON functionality | Transceiver auto-negotiation, Digital Diagnostic Monitoring (DDM), Maximum distance 10 km, Average Tx power 3-7 dBm, Receiver sensitivity -32 dBm, Rx power overload -12 dBm |
| Data transmission speed up to | Optimized for e-Lighten symmetric data transfer |
| Forwarding rate | Low-latency transmission for Triple-Play services |
| Network protocols and technologies | IEEE 802.3z SFP MSA DDM (Digital Diagnostic Monitoring), Low power consumption <1W |
| Redundancy control | Compatible with PON architectures and passive splitters |
| Management protocols | Management and monitoring via OLT and Ruijie Cloud |
| Power supply | DC 3.14V - 3.46V (Operating voltage 3.3V) |
| Consumption | 1W (Maximum) |
| Operating temperature | 0° C - 70° C |
| Dimensions | Compact standard SFP format |
| Weight | Lightweight for industrial optical modules |
