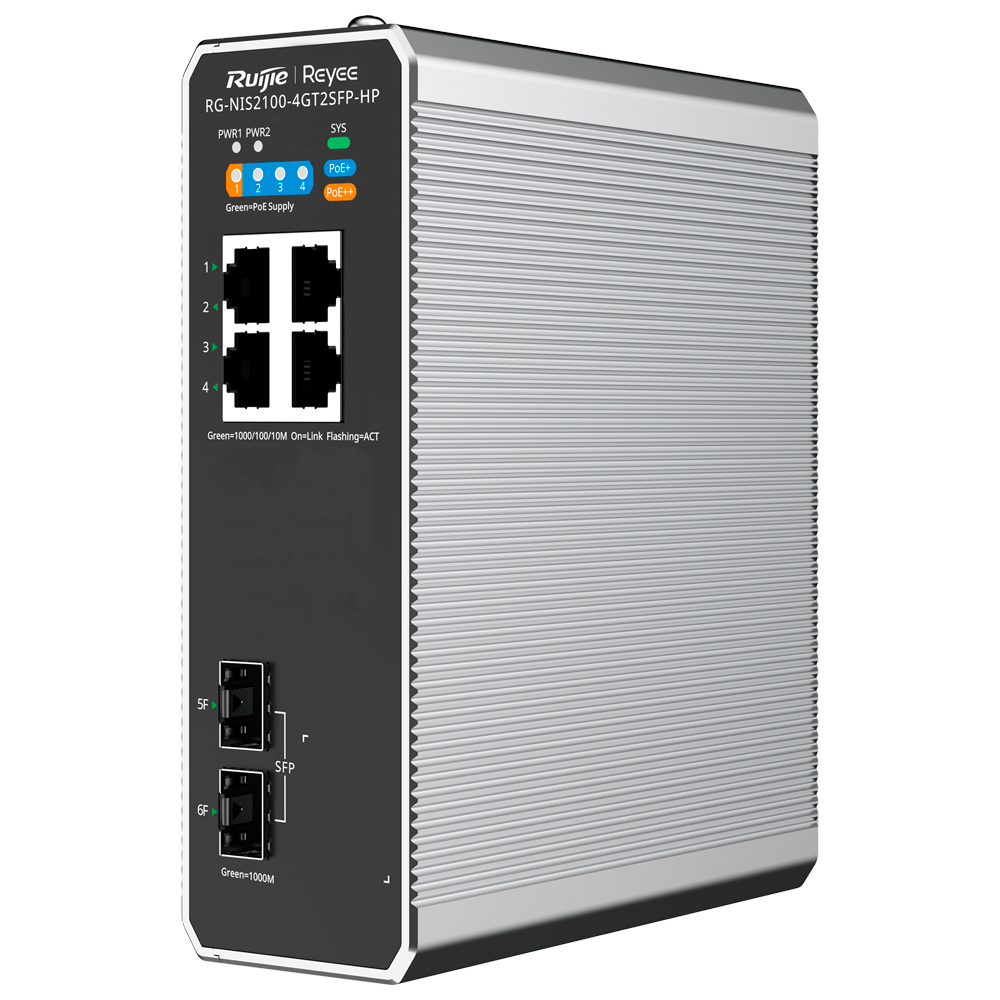

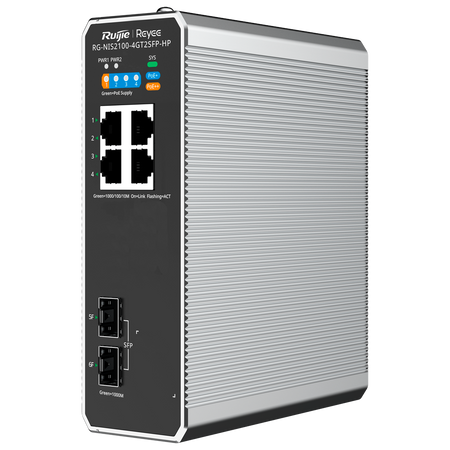

Ruijie Cloud Managed Industrial L2 Switch Reyee - 6 total ports (4 GE / 2 Uplink 1G SFP)

Ruijie Cloud Managed Industrial L2 Switch - 6 total ports (4 GE / 2 Uplink 1G SFP) - Fanless industrial design, salt-spray resistant - 90W PoE++ power on the main port - Extreme thermal tolerance from -40°C to +75°C - Forever-free Ruijie Cloud management

📋 SPECIFICATIONS:
• Brand: Ruijie
• Product category: Industrial-grade managed switch for edge networks (Layer 2)

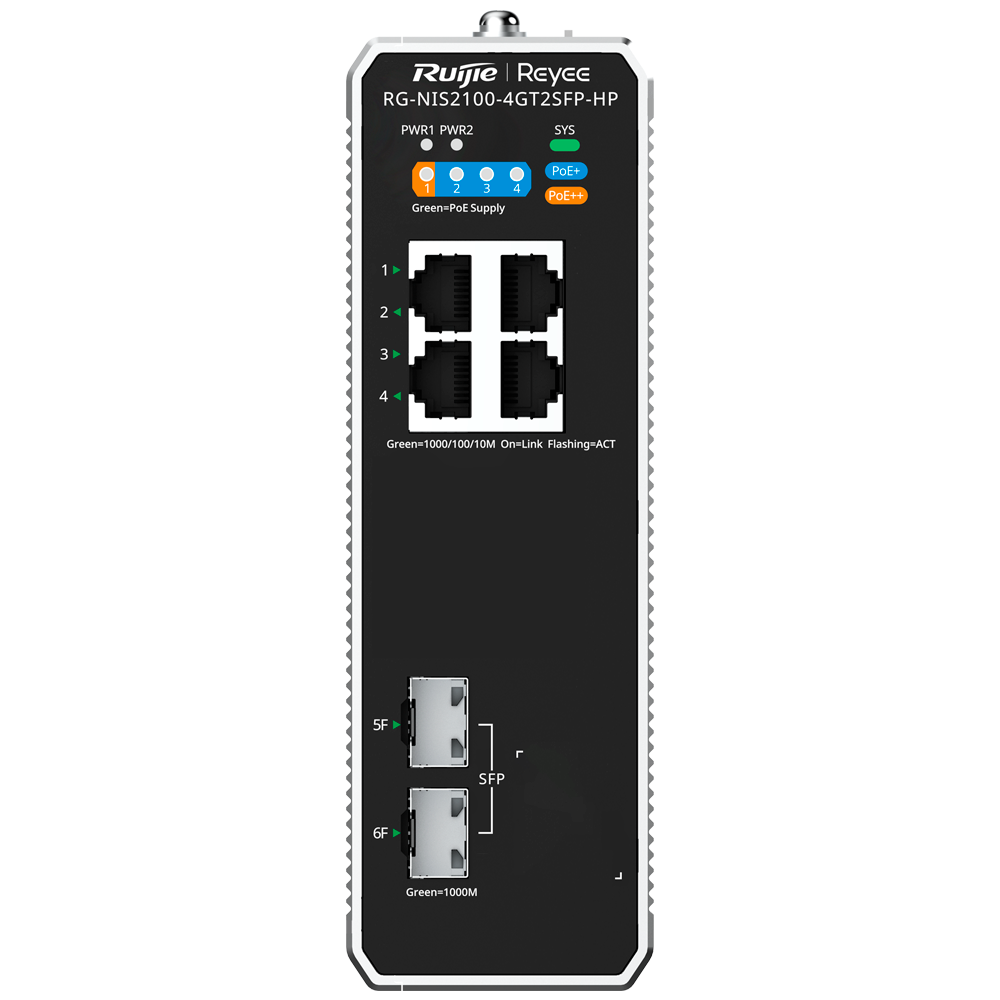

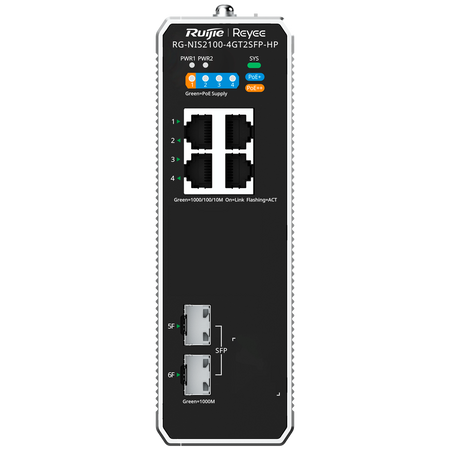

• Fixed network interfaces: 4 × 10/100/1000BASE-T RJ45, 2 × 1GE SFP (independent fiber optic slots)
• Supported PoE standards: Port 1: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) / Ports 2 to 4: PoE/PoE+ (IEEE 802.3af/at)
• Base PoE power: Default: 108 W / Configurable via web interface adjustable up to a maximum of 180 W
• Maximum power output: Port 1: Up to 90 W (4-pair assignment) / Ports 2 to 4: Up to 30 W via interface
• PoE power pins: Port 1: 1–2 (+), 3–6 (-), 4–5 (+), 7–8 (-) / Ports 2 to 4: 1–2 (+), 3–6 (-)

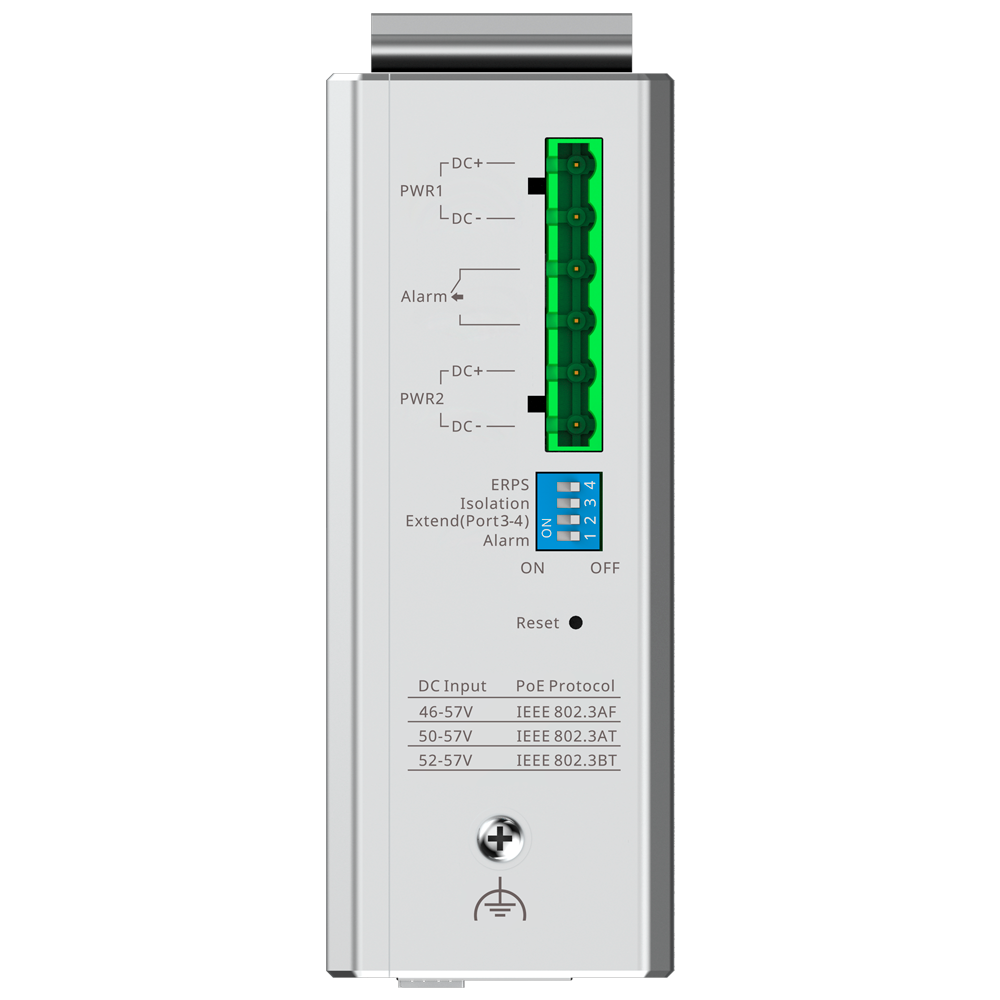

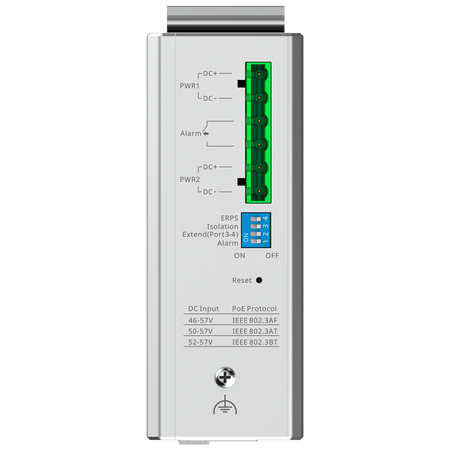

• Hardware modes (DIP Switch): ERPS (Loop) / Isolation (Up-down isolation) / Extend (200m at 10 Mbps) / Alarm (Power)
• Ultra-long range: Native support on copper ports 3 to 4 (up to 200 meters with Cat5e cable)
• Switching capacity: 12 Gbps (bit/s)
• Packet forwarding rate: 8.9 Mpps
• System Flash memory: 8 MB
• MAC address table: 8,000 entries (Supports static address configuration)
• Full VLAN configuration: IEEE 802.1Q VLAN, maximum support for up to 16 simultaneous VLANs per LAN port
• Jumbo Frame size (MTU): 10,000 bytes maximum length for heavy traffic
• Intelligent PoE functions: Integrated PoE Watchdog (automatic software detection and reboot of frozen cameras)
• Layer 2 network resilience: Hardware-based ERPS ring network protocol (Enable ERPS ring network)
• Basic IP services: Integrated DNS client and DHCP client
• Cybersecurity ecosystem: CPU Protection Policy (CPP), DHCP Snooping, Port Isolation, Storm Control
• Quality of Service (QoS): Interface flow control and Inbound/Outbound traffic rate limiting
• Maintenance and diagnostics: Cable test, Port mirroring, Automatic client detection, IP camera detection
• Management platforms: Forever-free Ruijie Cloud, local eWeb (HTTP access), Ruijie Reyee App for mobile devices
• Smart network technology: SON (Self-Organizing Network) for automatic Plug and Play edge deployments
• Energy efficiency: Native support for IEEE 802.3az (Energy Efficient Ethernet)
• Enclosure material: High-mechanical-strength shielded metal housing
• Corrosion type: Certified resistance and tolerance to salt environments (Salt Tolerance)

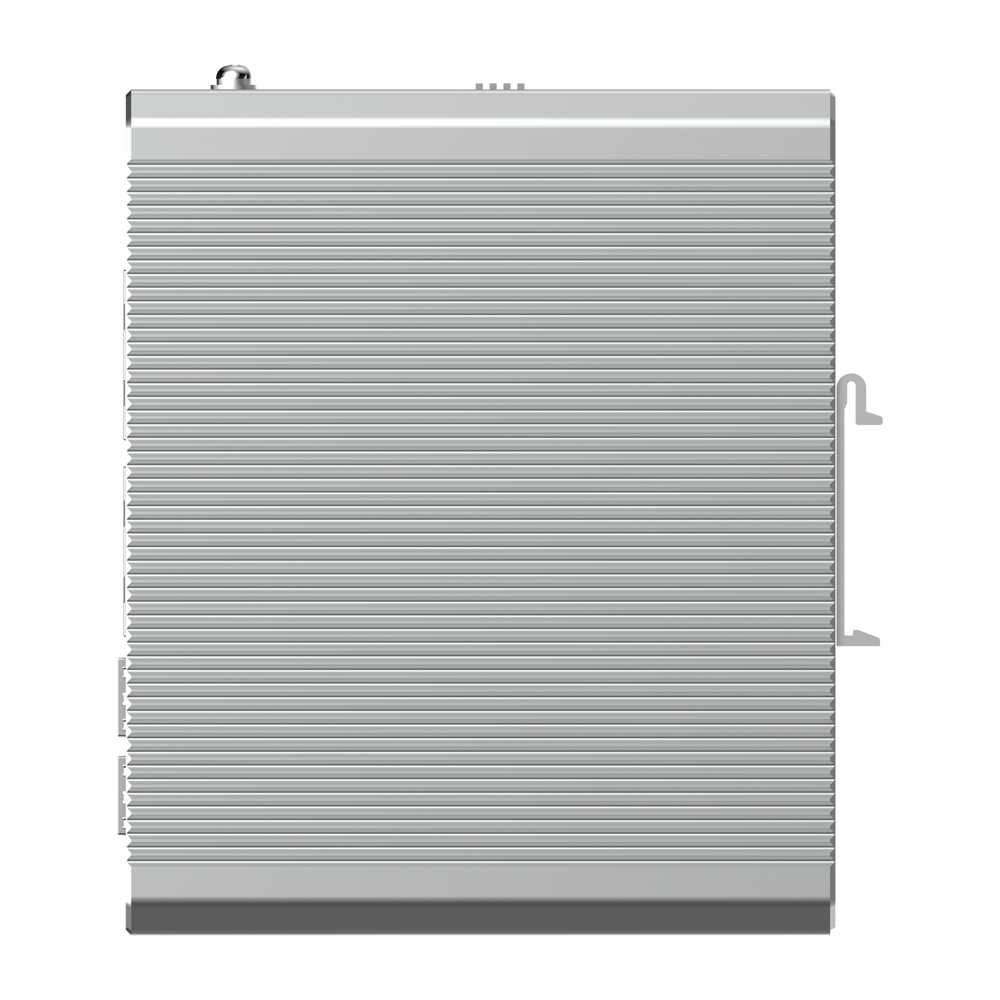

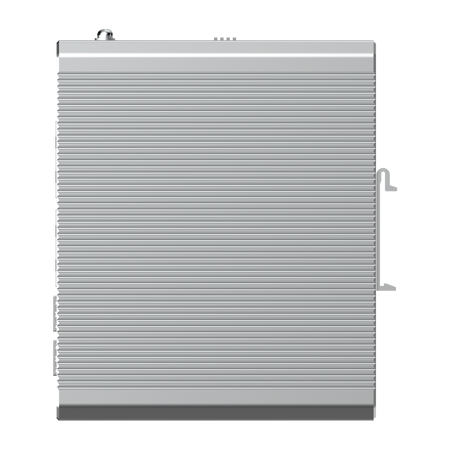

• Dissipation mechanism: Fully passive fanless design based on an industrial chassis with natural thermal convection

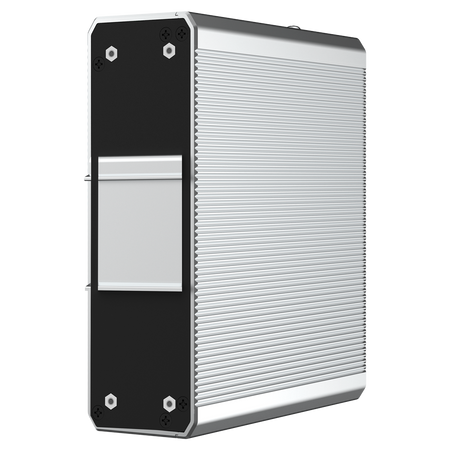

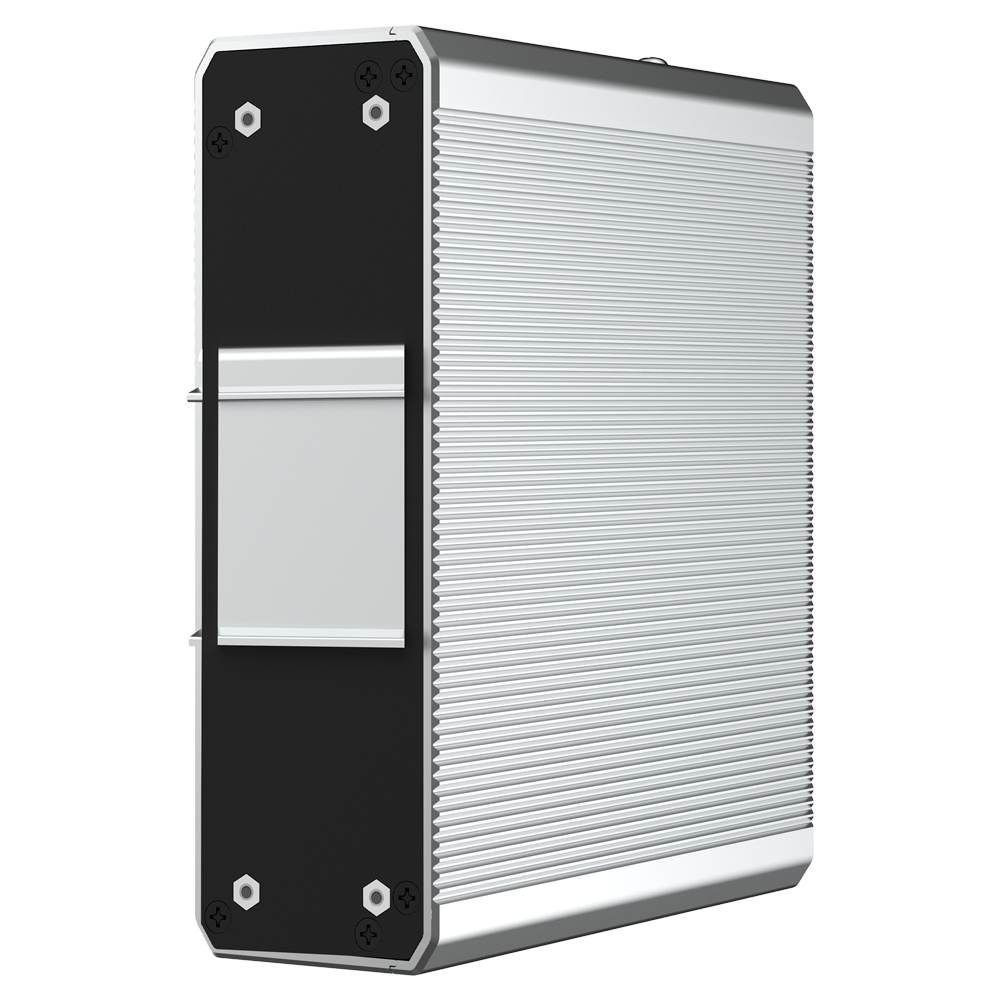

• Installation options: Integrated standard DIN rail mount or direct wall installation
• Real-time connectivity: Full support for Hot-Swap functionality for network cables on service ports and power connectors
• Hardware reliability: MTBF of 200,000 hours of continuous operation in harsh industrial environments
• Lightning protection: Air-gap ESD: 15 kV / Contact discharge: 8 kV
• Surge protection: Service interfaces (Telecom): ±6 kV in common mode / Power connector: ±4 kV common and ±2 kV differential
• DC power input: Industrial terminal block for external DC input (Nominal range: 46 V DC to 57 V DC, rated current: 4.2 A)
• Power consumption: Basic electronic device consumption: 12 W (without PoE load) / Absolute maximum consumption: 192 W (Full PoE load)
• Operating temperature: -40 °C to +75 °C (-40 °F to +167 °F), ideal for outdoor cabinets exposed to sun
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 10% to 90% RH (without condensation on internal electronic components)
• Switch dimensions (W×D×H): 50 mm x 155 mm x 130 mm (ultra-narrow 1.97-inch width to optimize rail space)
• Net weight of the device: 0.77 kg (1.70 lbs)

📦 INCLUDED:
• 1x Smart Cloud Managed Industrial L2 Switch RG-NIS2100-4GT2SFP-HP• 2x Rack-mount brackets• 4x Countersunk cross-head screws (M3 x 6 mm)• 1x Quick start guide and user manual• 1x Official manufacturer warranty certificate• (Note: External modular power supplies for DIN rail, such as models RG-NIS-PA120-54 or RG-NIS-PA240-54, are not included in the standard factory package and must be purchased separately based on the total required PoE power).
