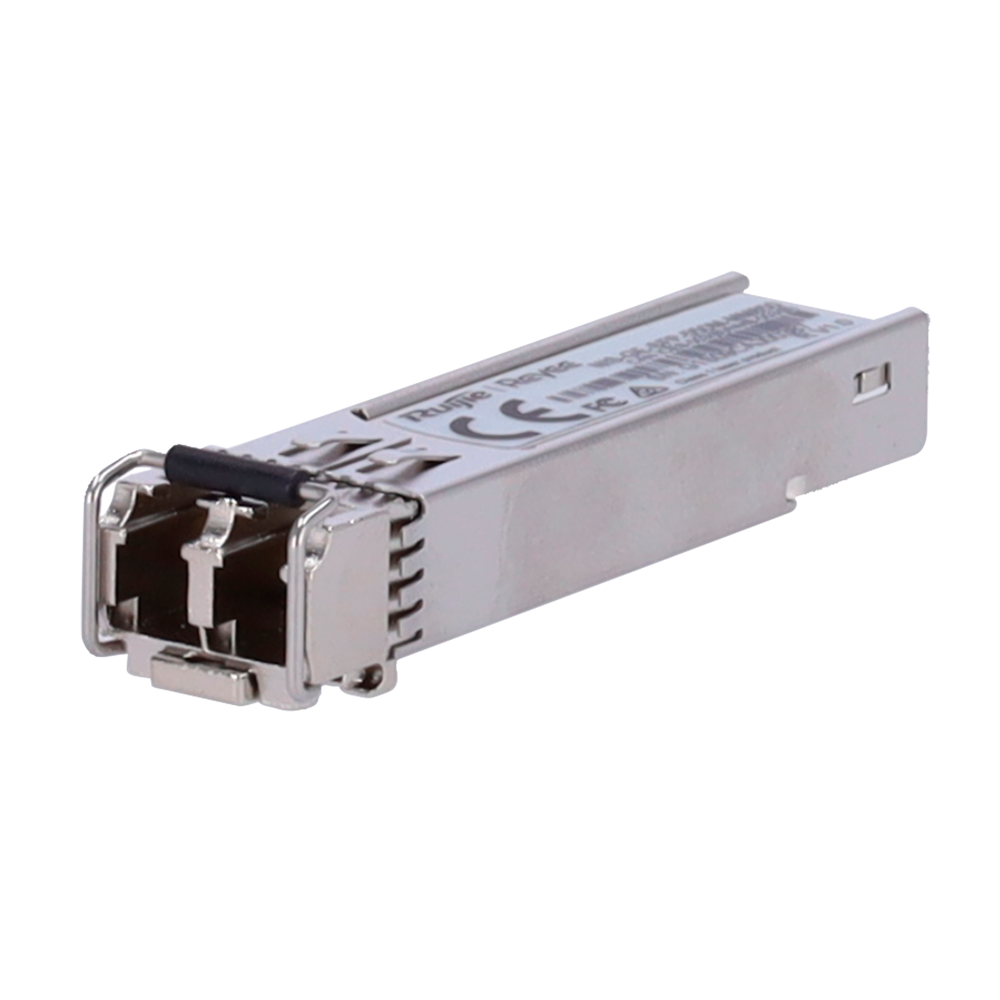

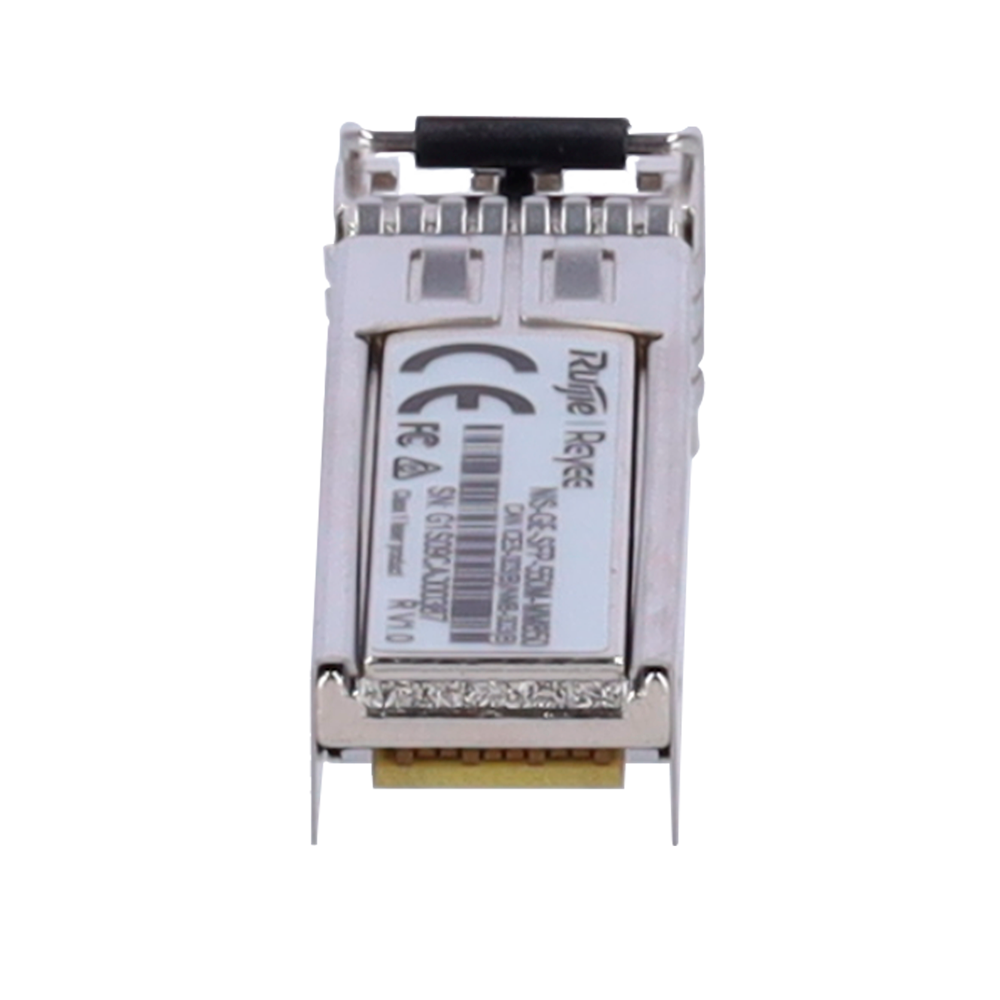

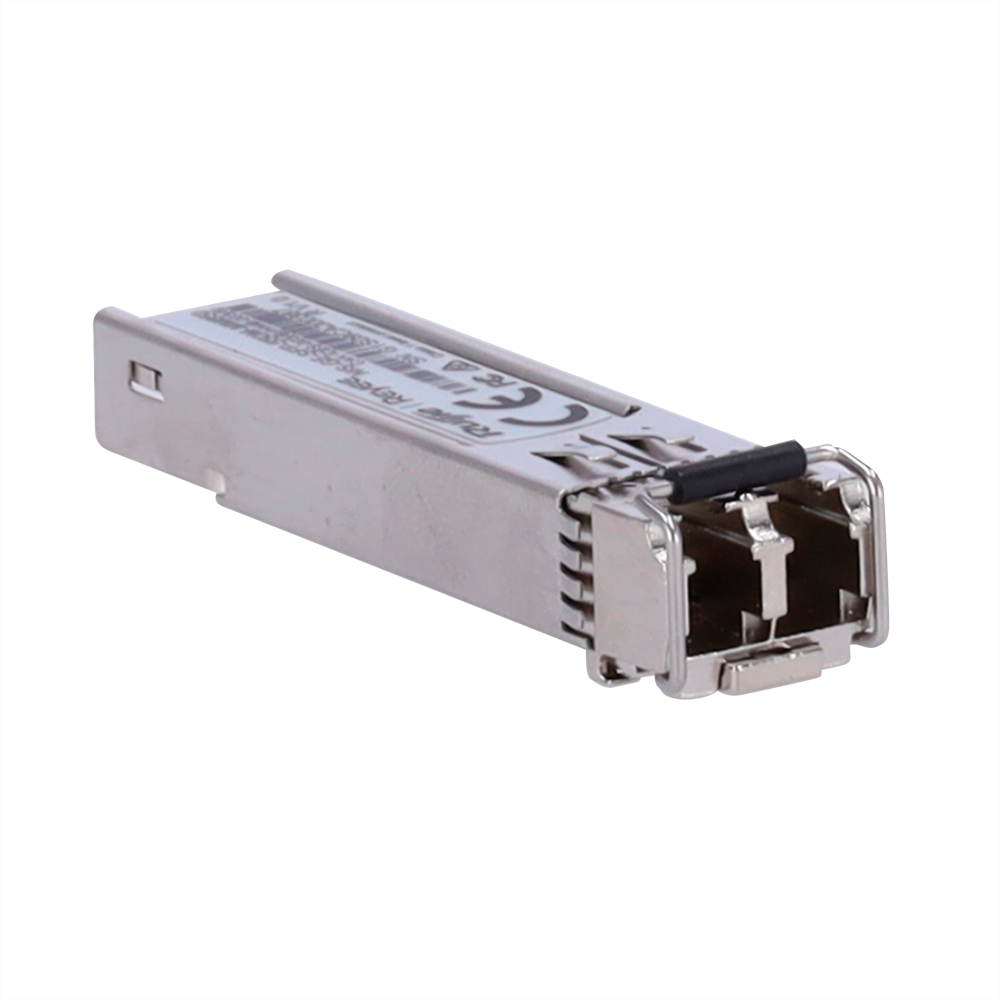

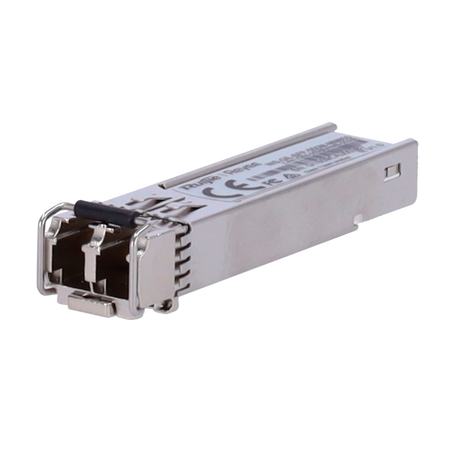

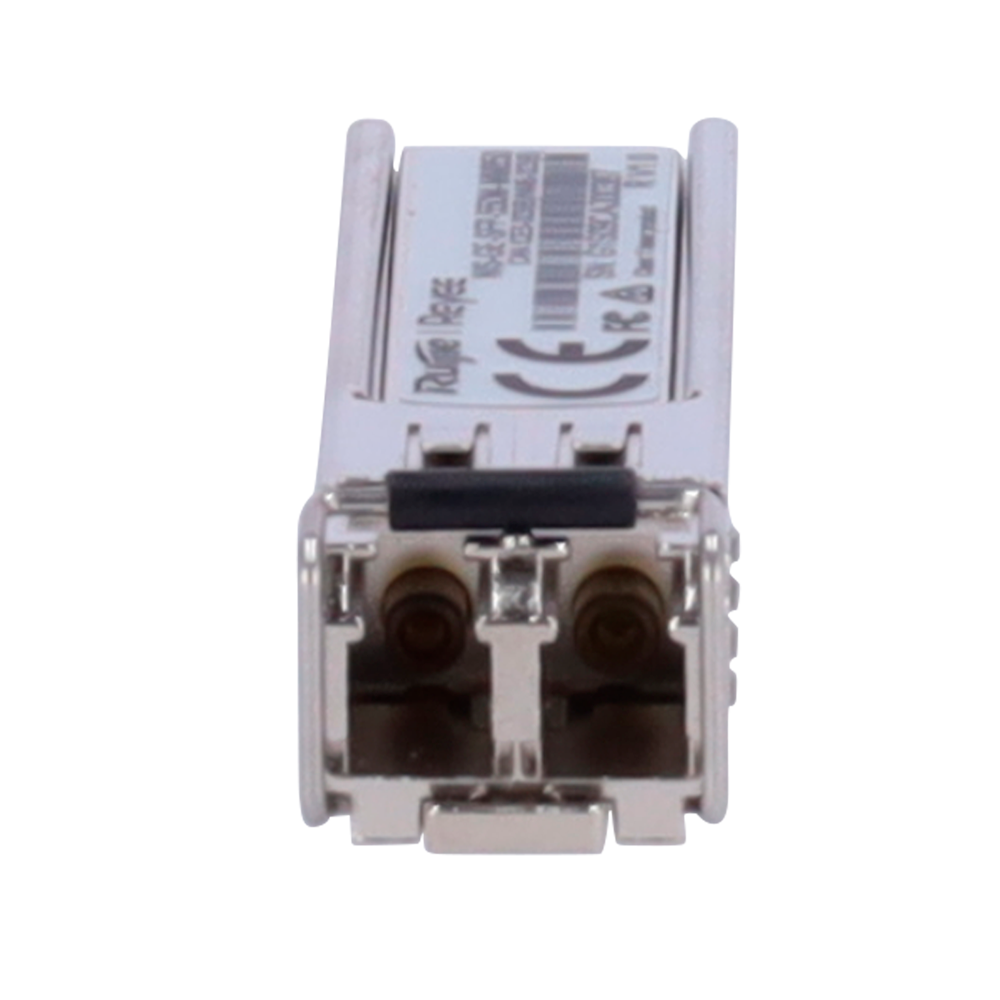

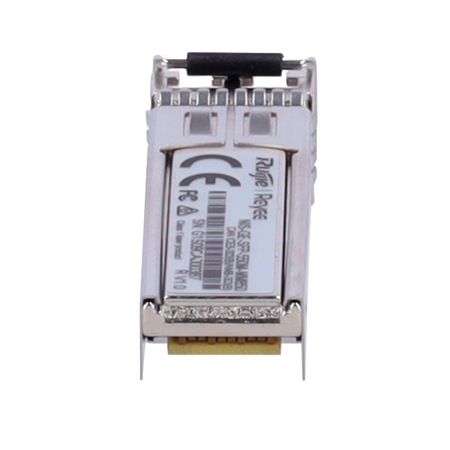

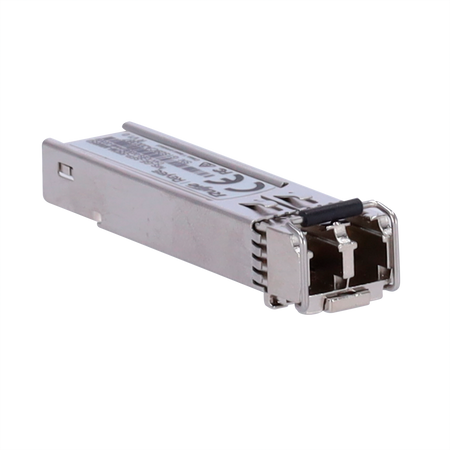

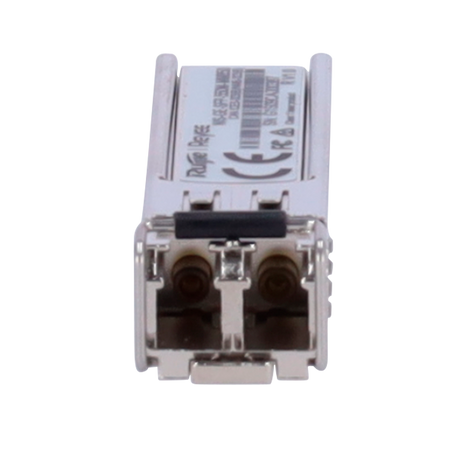

Reyee Industrial SFP Transceiver Module - 850 nm wavelength
Reyee Industrial SFP Transceiver Module - 850 nm wavelength
Regular price
€46,24
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Reyee Industrial SFP transceiver module - 850 nm wavelength - Multimode fiber - LC connector - Maximum distance 550m - 1Gb/s - 1000Base-SX
📋 SPECIFICATIONS:
• Manufacturer: Reyee
• Compatibility: NIS series industrial switches
• Form factor: SFP
• Ethernet standard: 1000Base-SX (Short wavelength)
• Fiber type: Multimode (MMF)
• Fiber core diameter: 50/125 um
• Connector type: LC
• Data rate: Up to 1.00 Gbps (1000 Mbps)
• Operating distance: Up to 550 m
• Central wavelength: 850 nm
• DDM function (Digital Diagnostics Monitoring): Yes
• Minimum transmit power (TX Min.): -9.5 dBm
• Maximum transmit power (TX Max.): -3 dBm
• Minimum receive sensitivity (RX Min.): -17 dBm
• Maximum receive sensitivity (RX Max.): 0 dBm
• Operating temperature: -40 to 85 °C
• Storage temperature: -40 to 85 °C
• Permitted relative humidity: 10% to 90% RH (non-condensing)
📦 INCLUDED:
• SFP transceiver
| Manufacturer | Reyee |
|---|---|
| Compatibility | NIS series industrial switches |
| Form factor type | SFP |
| Ethernet standard | 1000Base-SX (Short wavelength) |
| Fiber type | Multimode (MMF) |
| Fiber core diameter | 50/125 um |
| Connector type | LC |
| Data rate | Up to 1.00 Gbps (1000 Mbps) |
| Operating distance | Up to 550 m |
| Central wavelength | 850 nm |
| DDM function (Digital Diagnostics Monitoring) | Yes |
| Minimum transmission power (TX Min.) | -9.5 dBm |
| Maximum transmission power (TX Max.) | -3 dBm |
| Minimum reception sensitivity (RX Min.) | -17 dBm |
| Maximum reception sensitivity (RX Max.) | 0 dBm |
| Operating temperature | -40 to 85 °C |
| Storage temperature | -40 to 85 °C |
| Permitted relative humidity | 10% to 90% RH (non-condensing) |
