Reyee Industrial SFP Transceiver Module - BIDI 1310nm Transmit / 1550nm Receive
Reyee Industrial SFP Transceiver Module - BIDI 1310nm Transmit / 1550nm Receive
Regular price
€87,00
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

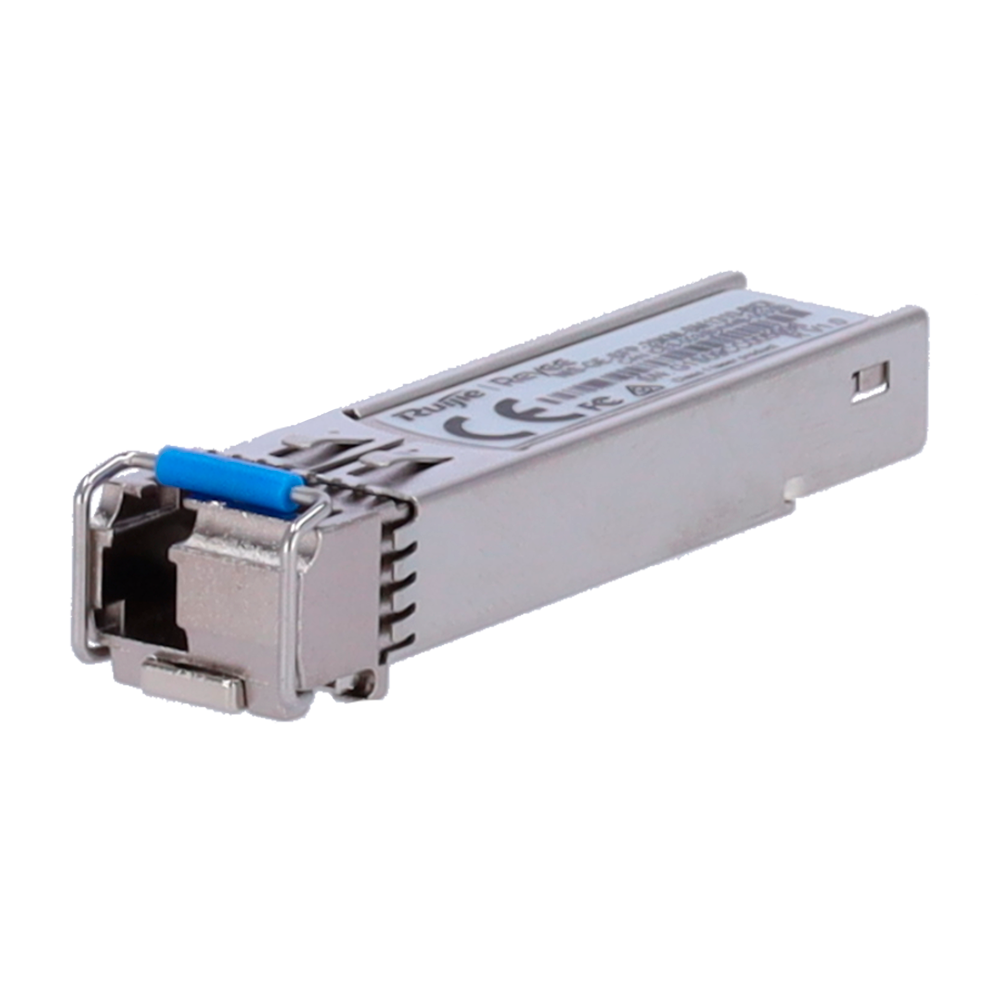

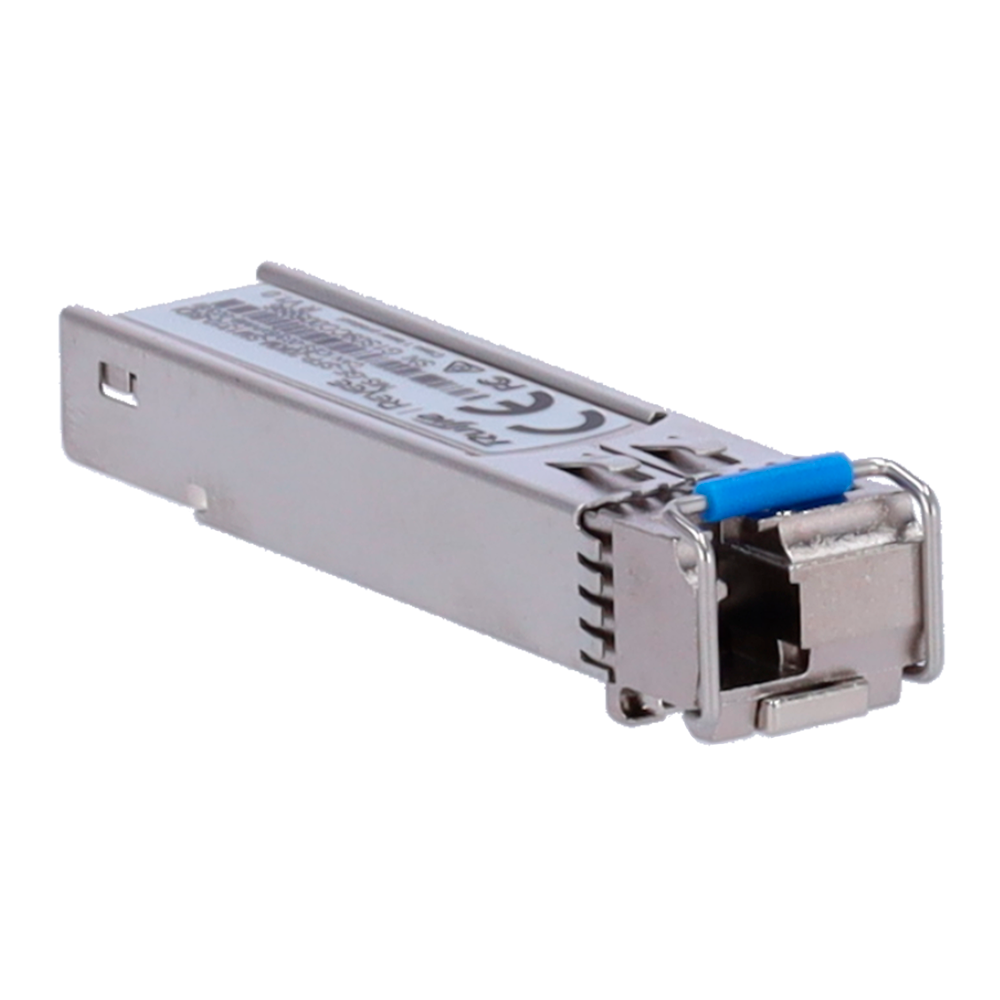

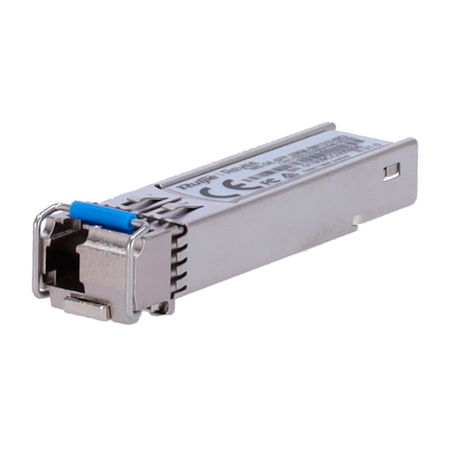

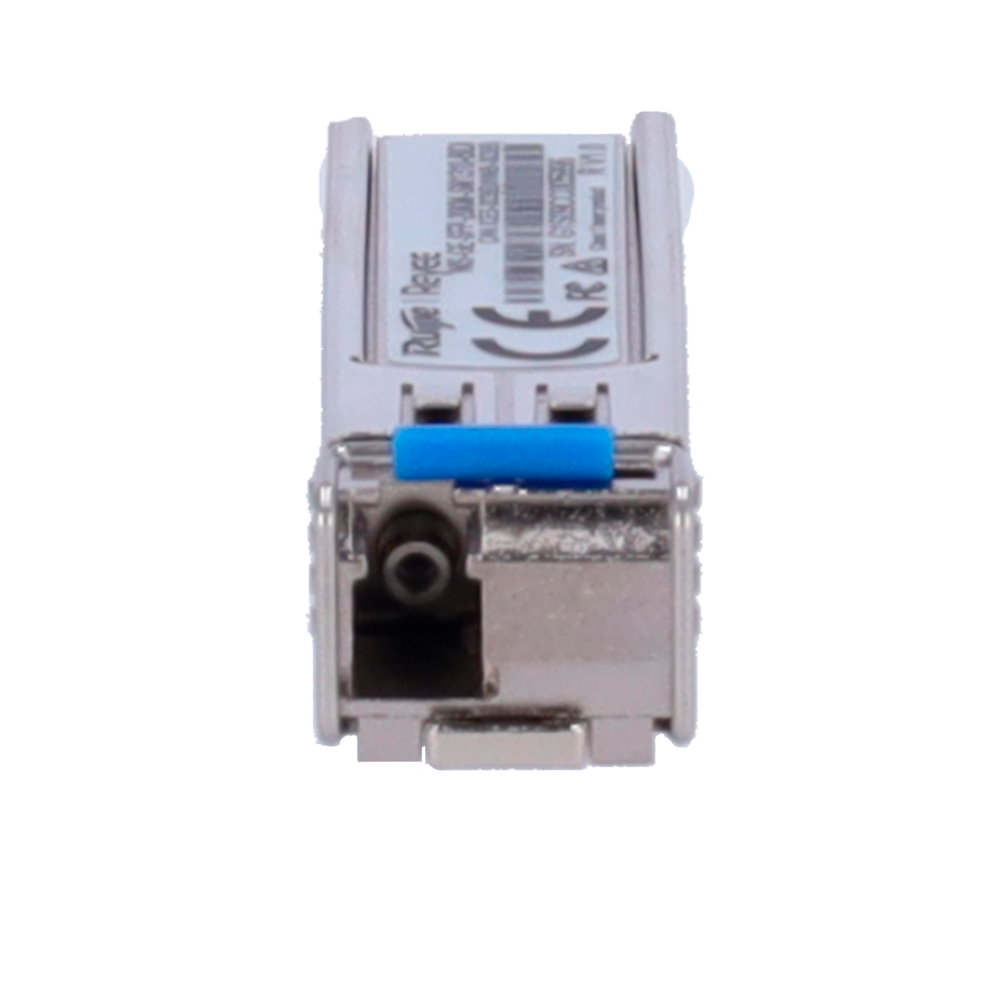

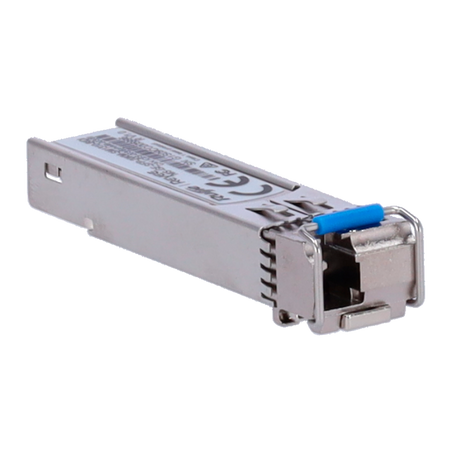

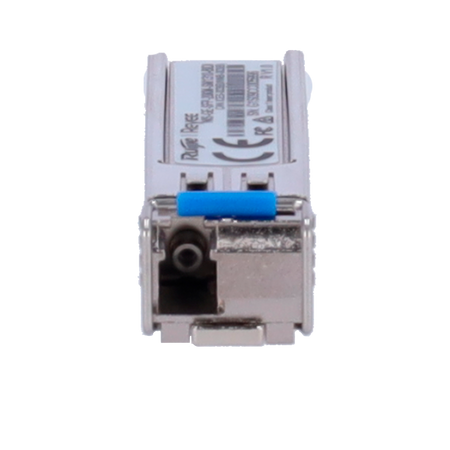

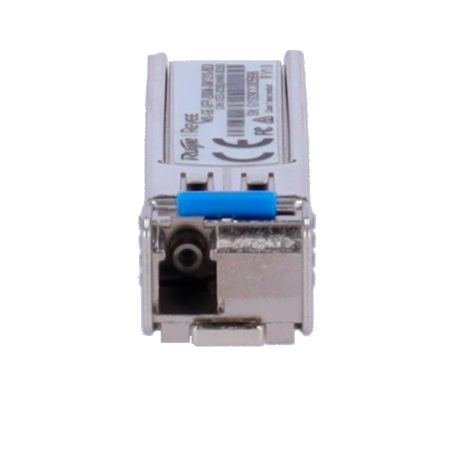

Reyee Industrial SFP transceiver module - BIDI Transmit 1310nm / Receive 1550nm - Single-mode Fiber - LC connector - Maximum distance 20 km - 1Gb/s - 1000Base-LX
📋 SPECIFICATIONS:
• Manufacturer: Reyee
• Compatibility: NIS series industrial switches
• Form factor: SFP
• Ethernet standard: 1000Base-BX (Long wavelength BiDi)
• Fiber type: Single-mode (SMF)
• Fiber core diameter: 9/125 um
• Connector type: LC (Simplex)
• Data rate: Up to 1.00 Gbps (1000 Mbps)
• Operating distance: Up to 20 km
• Transmit wavelength (TX): 1310 nm
• Receive wavelength (RX): 1550 nm
• DDM function (Digital Monitoring): Yes
• Minimum transmit power (TX Min.): -9 dBm
• Maximum transmit power (TX Max.): -3 dBm
• Minimum receive sensitivity (RX Min.): -22 dBm
• Maximum receive sensitivity (RX Max.): -3 dBm
• Operating temperature: -40 to 85 °C
• Storage temperature: -40 to 85 °C
• Permissible relative humidity: 10% to 90% RH (non-condensing)
• Installation: For a fiber link, RG-NIS-GE-SFP-20KM-SM1310-BIDI will be used at one end and RG-NIS-GE-SFP-20KM-SM1550-BIDI at the other end.
📦 INCLUDED:
• SFP transceiver
| Manufacturer | Reyee |
|---|---|
| Compatibility | NIS series industrial switches |
| Form factor type | SFP |
| Ethernet standard | 1000Base-BX (Long wavelength BiDi) |
| Fiber type | Single-mode (SMF) |
| Fiber core diameter | 9/125 um |
| Connector type | LC (Simplex) |
| Data rate | Up to 1.00 Gbps (1000 Mbps) |
| Operating distance | Up to 20 km |
| Transmission wavelength (TX) | 1310 nm |
| Reception wavelength (RX) | 1550 nm |
| DDM function (Digital Diagnostic Monitoring) | Yes |
| Minimum transmission power (TX Min.) | -9 dBm |
| Maximum transmission power (TX Max.) | -3 dBm |
| Minimum reception sensitivity (RX Min.) | -22 dBm |
| Maximum reception sensitivity (RX Max.) | -3 dBm |
| Operating temperature | -40 to 85 °C |
| Storage temperature | -40 to 85 °C |
| Permissible relative humidity | 10% to 90% RH (non-condensing) |
| Installation | For a fiber connection, use RG-NIS-GE-SFP-20KM-SM1310-BIDI at one end and RG-NIS-GE-SFP-20KM-SM1550-BIDI at the other. |
