Reyee Industrial SFP Transceiver Module - 1310 nm wavelength
Reyee Industrial SFP Transceiver Module - 1310 nm wavelength
Regular price
€51,76
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

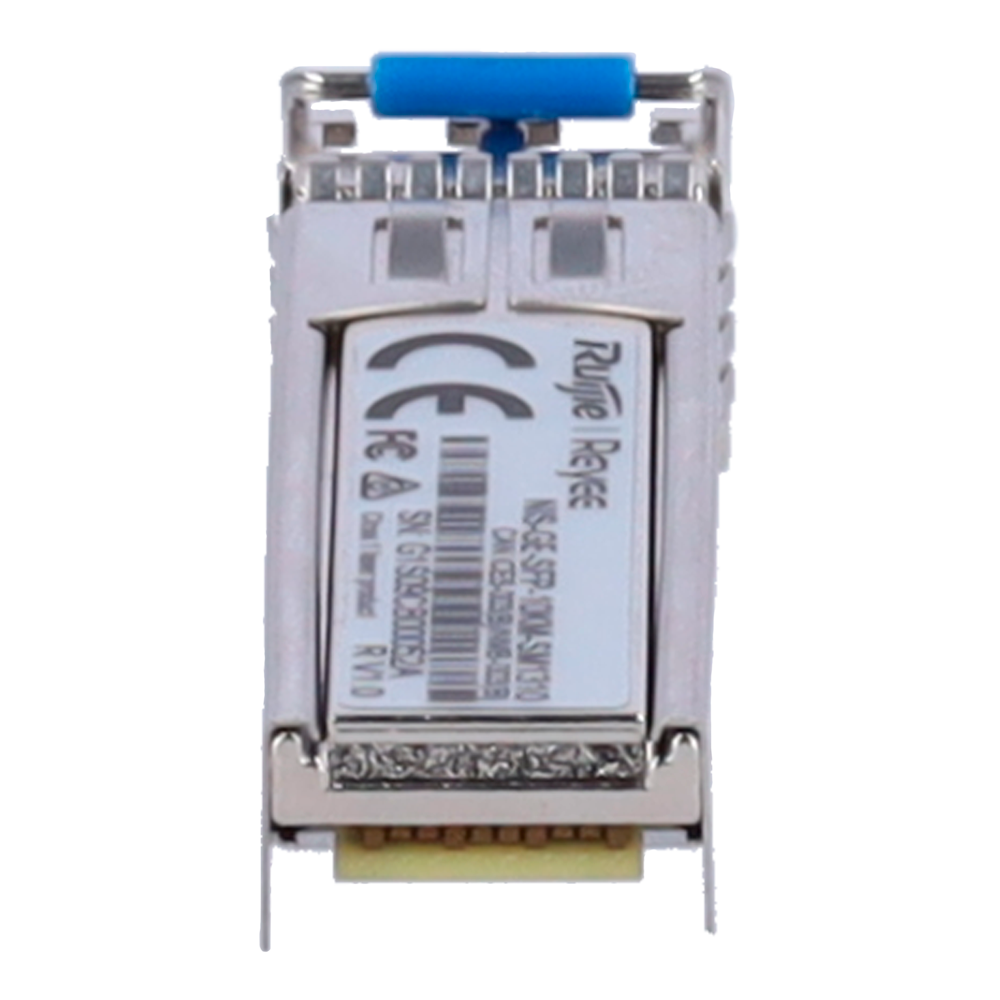

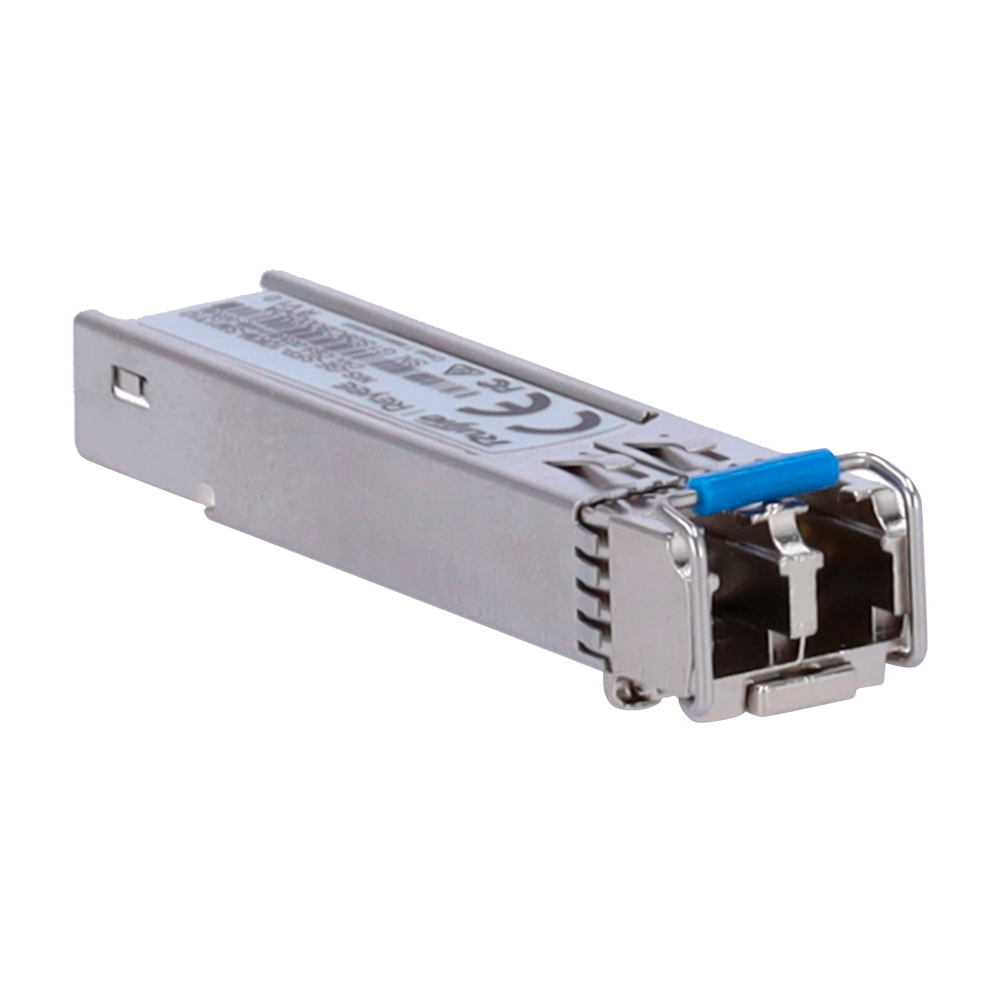

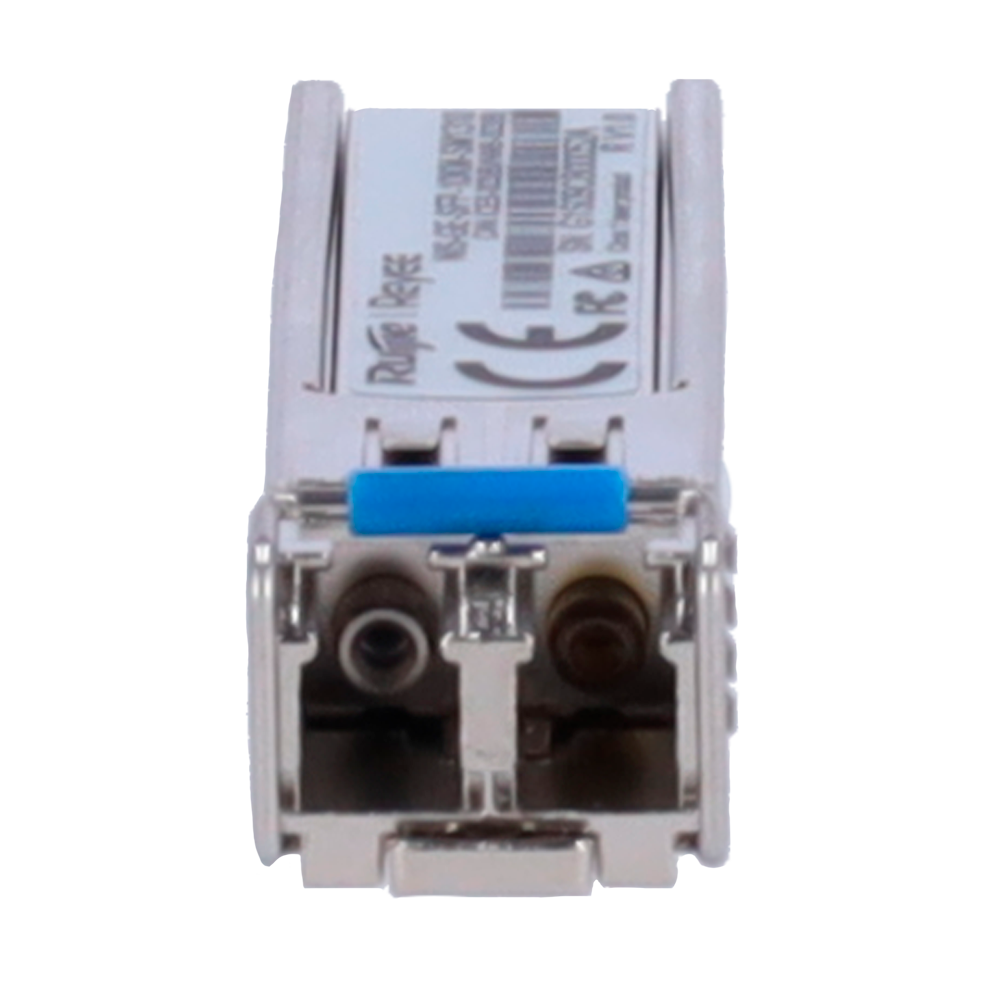

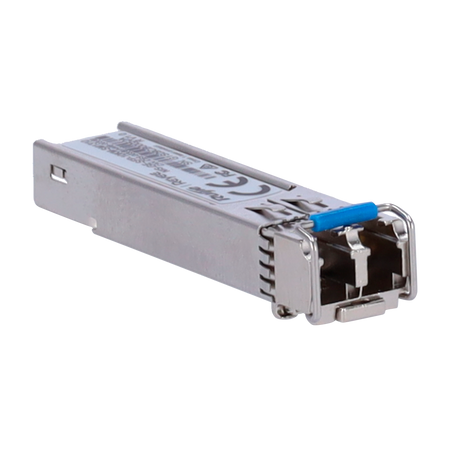

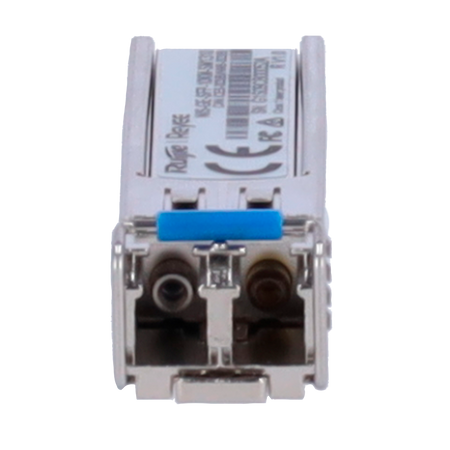

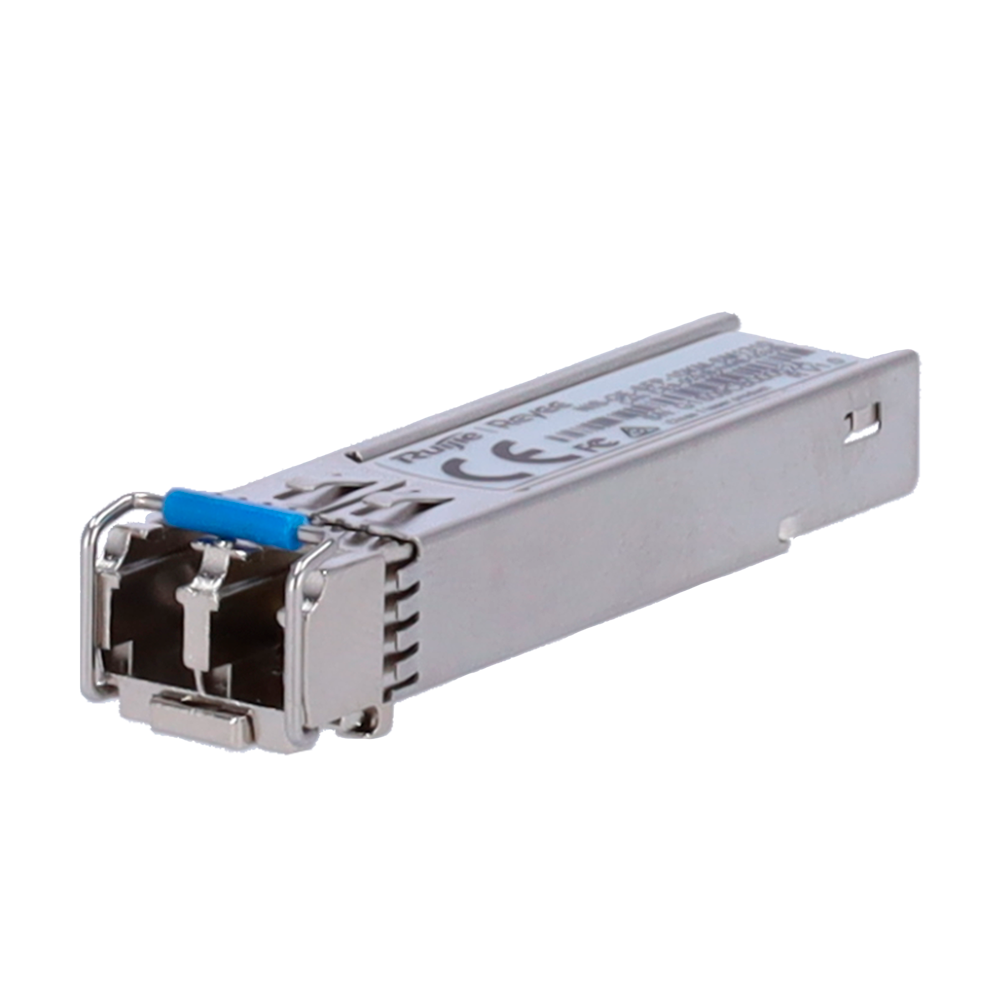

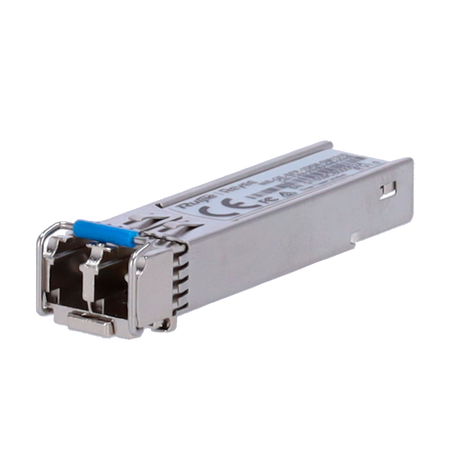

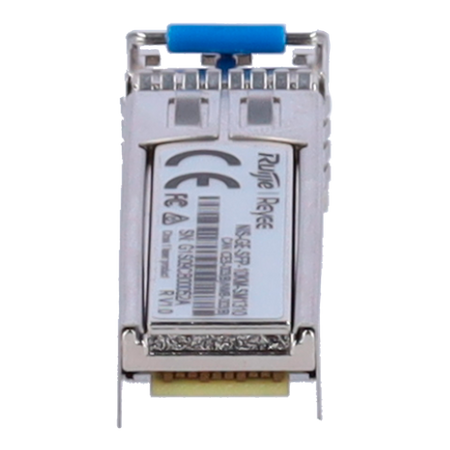

Reyee Industrial SFP transceiver module - 1310 nm wavelength - Single-mode fiber - LC connector - 10 km maximum distance - 1Gb/s - 1000Base-LX
📋 SPECIFICATIONS:
• Manufacturer: Reyee
• Compatibility: NIS series industrial switches
• Form factor: SFP
• Ethernet standard: 1000Base-LX (Long wavelength)
• Fiber type: Single-mode (SMF)
• Fiber core diameter: 9/125 um
• Connector type: LC
• Data rate: Up to 1.00 Gbps (1000 Mbps)
• Operating distance: Up to 10 km
• Central wavelength: 1310 nm
• DDM function (Digital Diagnostic Monitoring): Yes
• Minimum transmit power (TX Min.): -9.5 dBm
• Maximum transmit power (TX Max.): -3 dBm
• Minimum receive sensitivity (RX Min.): -20 dBm
• Maximum receive sensitivity (RX Max.): -3 dBm
• Operating temperature: -40 to 85 °C
• Storage temperature: -40 to 85 °C
• Permissible relative humidity: 10% to 90% RH (non-condensing)
📦 INCLUDED:
• SFP transceiver
| Manufacturer | Reyee |
|---|---|
| Compatibility | NIS series industrial switches |
| Form factor type | SFP |
| Ethernet standard | 1000Base-LX (Long wavelength) |
| Fiber type | Single-mode (SMF) |
| Fiber core diameter | 9/125 um |
| Connector type | LC |
| Data rate | Up to 1.00 Gbps (1000 Mbps) |
| Operating distance | Up to 10 km |
| Central wavelength | 1310 nm |
| DDM function (Digital Diagnostic Monitoring) | Yes |
| Minimum transmission power (TX Min.) | -9.5 dBm |
| Maximum transmission power (TX Max.) | -3 dBm |
| Minimum reception sensitivity (RX Min.) | -20 dBm |
| Maximum reception sensitivity (RX Max.) | -3 dBm |
| Operating temperature | -40 to 85 °C |
| Storage temperature | -40 to 85 °C |
| Allowable relative humidity | 10% to 90% RH (non-condensing) |
- User manual Link
