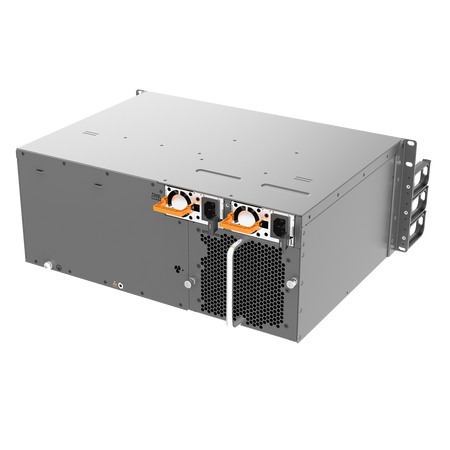

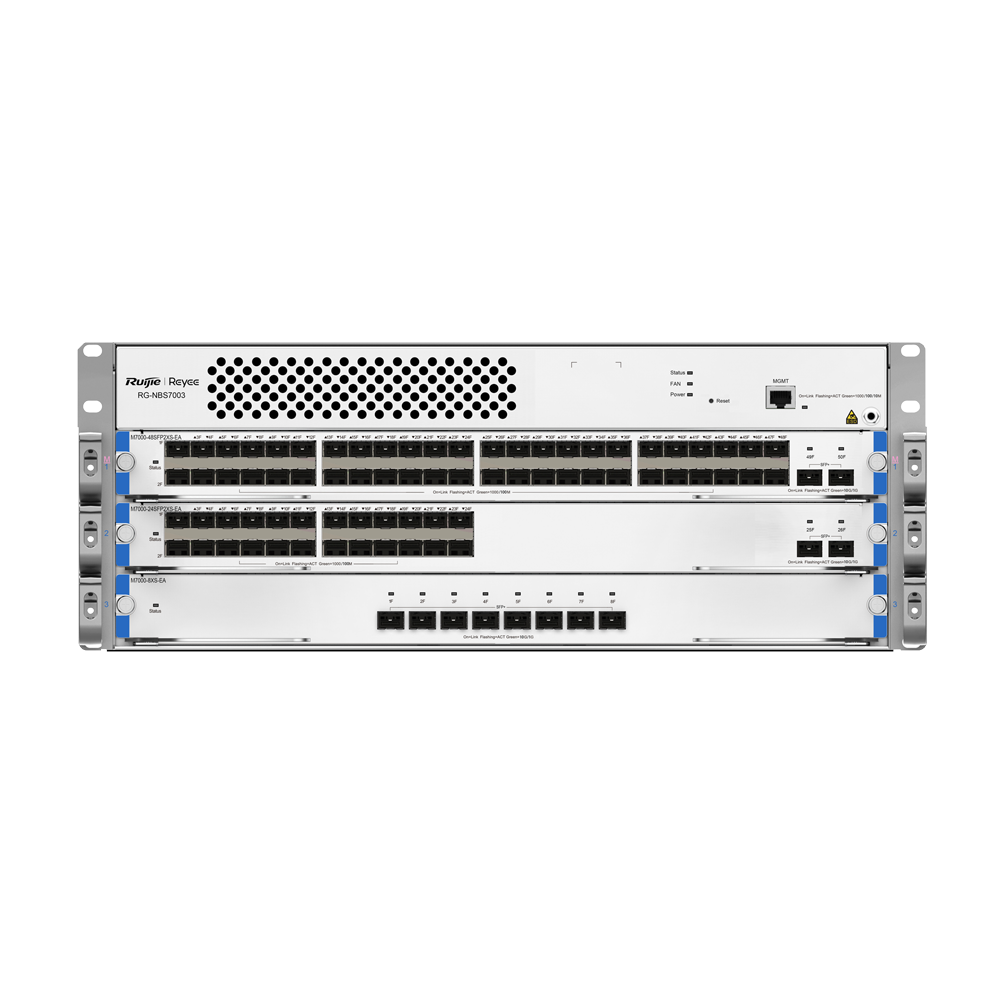

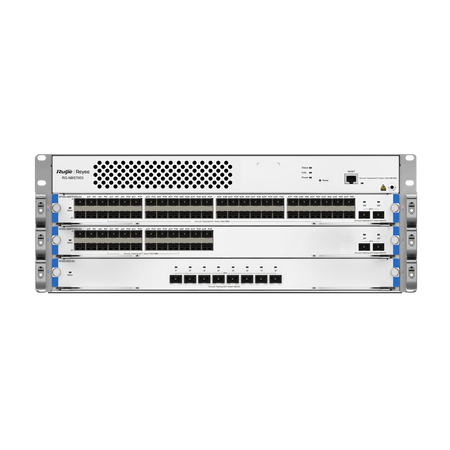

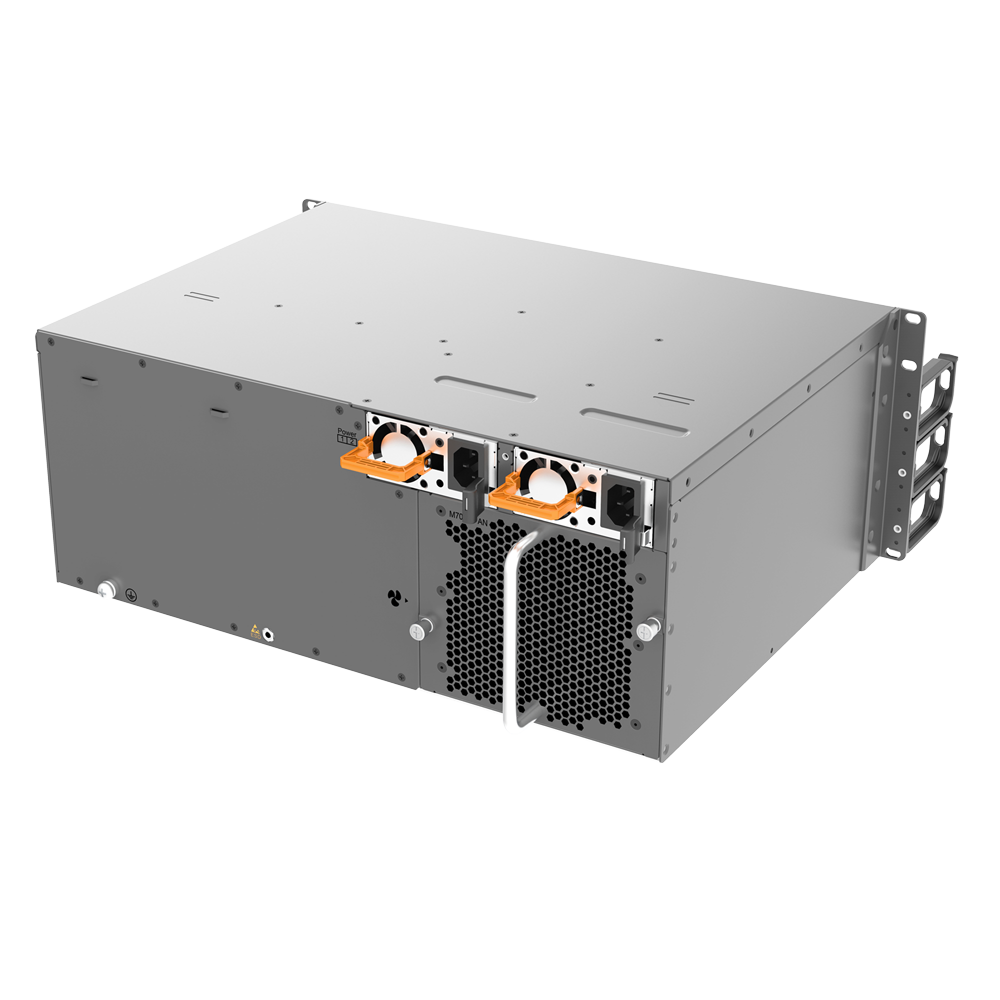

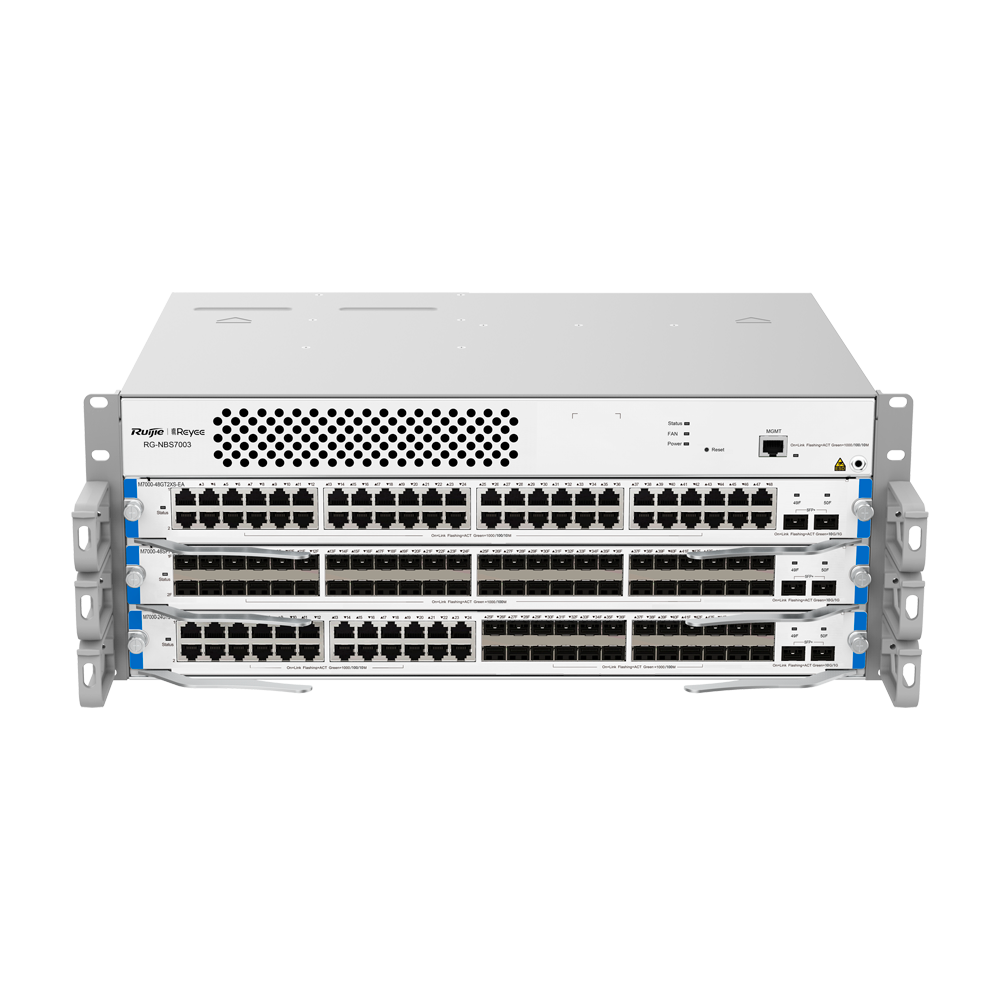

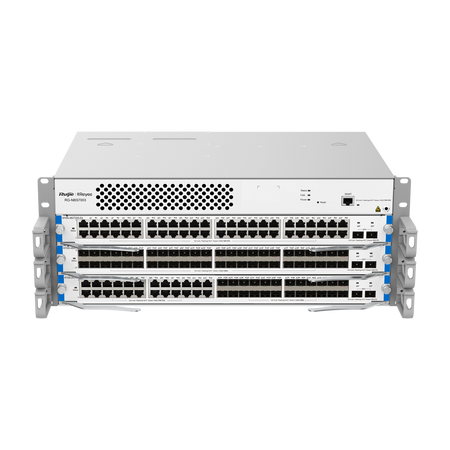

Ruijie Reyee Cloud Managed L3 Core Chassis - 960 Gbps core switching capacity
Ruijie Reyee Cloud Managed L3 Core Chassis - 960 Gbps core switching capacity
Regular price
€871,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Reyee Cloud Managed L3 Core Chassis - 960 Gbps core switching capacity - DHCP server and VCS virtual interconnection - 32K enterprise MAC address table - Robust structure with Hot-Swap ventilation - Free-for-life Ruijie Cloud management
📋 SPECIFICATIONS:
• Brand: Ruijie Reyee
• Device type: Core Switch Chassis / Central distribution
• Switching capacity: 960 Gbps (bit/s)
• Packet forwarding rate: 714.24 Mpps
• RAM memory: Per line card: 1 GB DDR3
• Flash memory: Supervisor module / Line card: 256 MB
• MAC address table: 32,000 entries (Supports static configuration and advanced filtering)
• Jumbo Frame size (MTU): 9216 bytes (in interface configuration mode)
• Layer 3 (L3) routing capacity: Static routing (IPv4/IPv6) adapted to the central chassis
• Routing and ARP tables: IPv4 static routes: 2000 / IPv6 static routes: 500 / IPv6 table (Network): 2000 / ARP entries: 8000
• Advanced IP services: DHCP Server (integrated DHCP server), DHCP Relay, DHCP Client, Complete ARP table copy
• Virtualization and high availability: VCS (Virtual Switching System for up to 2 redundant logical chassis)
• VLAN configuration: IEEE 802.1Q VLAN, Voice VLAN, maximum support for up to 4094 simultaneous VLANs
• Spanning Tree protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
• Reliability system: Dual operating system backup (ReyeeOS) and dual backup partition in Uboot
• Intelligent network technology: SON (Self-Organizing Network), Automatic network client detection, Autonomous IP camera detection
• Recommended capacity for CCTV systems: Per installed line card: Up to 400 2MP H.265 cameras or 200 4MP H.265 cameras
• Quality of Service (QoS): Classification based on 802.1p and DSCP, output queues, SP, WRR and SP+WRR algorithms, global QoS
• Security and authentication: Radius, 802.1X (Port/MAC-based), Guest VLAN, ACL (Inbound up to 1900 ACE rules), IP-MAC-Port binding
• Attack mitigation and control: ARP Anti-spoofing, IP Source Guard, DHCP Snooping, CPU Protection Policy, Traffic spike management
• Network maintenance: Port Mirroring, Syslog, Loop alarm, Cable Test, IP diagnosis (Ping/Traceroute v4/v6)
• Management platforms: Ruijie Cloud lifetime (Web/App), local eWeb (HTTP/HTTPS login), Ruijie Reyee App, SNMP v1/v2c/v3
• Structure material: Metal (industrial shielded chassis)

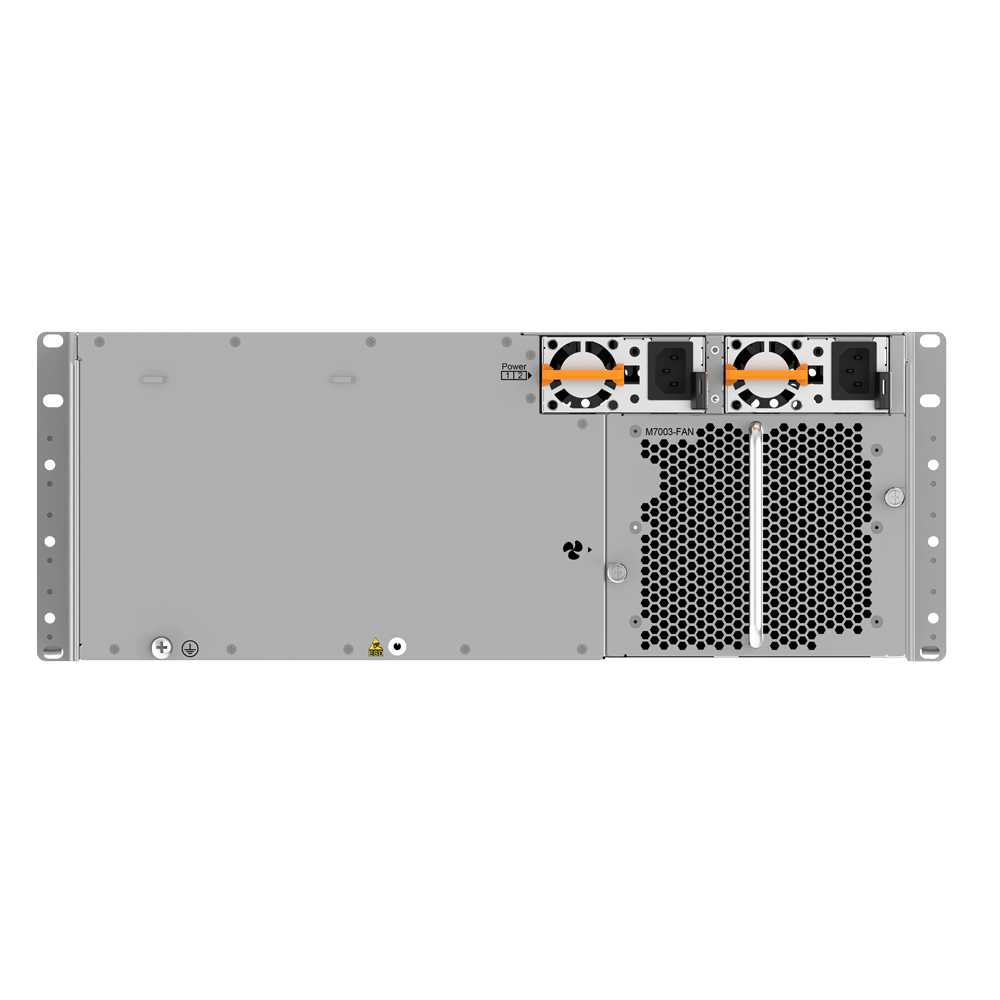

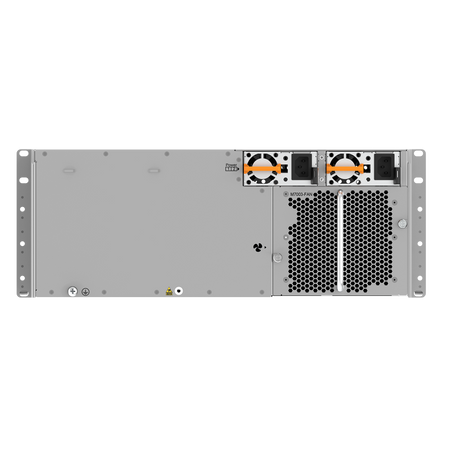

• Cooling system: Forced air via 1 × removable smart fan module (Front/Left/Right-to-Rear airflow)
• Hot-Swap components: Native support for hot-swapping the ventilation module, power connectors, and interfaces
• Noise level: 50 dB at 35 °C / 60 dB at 50 °C (Optimized for data center and telecommunications room environments)
• Mounting options: Standard telecommunications rack installation
• Reliability (MTBF): 400,000 hours of continuous operation
• Electrostatic discharge (ESD) protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Surge protection: Service ports: ±6 kV (common mode) / Power connector: ±6 kV (common and differential mode)
• Power supply: Modular plug-in power supply units (Models RG-PA300I-F / RG-PA460I-FS / RG-PA460I-F)
• AC power range: 100-240 V AC, 50/60 Hz (Maximum operating voltage: 90-264 V AC, 47-63 Hz)
• Chassis power consumption: Maximum base consumption of chassis electronics 50 W
• Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Chassis dimensions (W×D×H): 442 mm x 313 mm x 175 mm (excluding power cable)
• Net weight of base chassis: 9.6 kg (Chassis with one standard installed ventilation module)
📦 INCLUDED:
• 1x Modular L3 Core Chassis RG-NBS7003 (Base chassis)• 1x Integrated standard ventilation module• 2x Heavy-duty metal rack-mount brackets• 12x Rack mounting screws (M6 x 16 mm)• 12x Cage nuts (M6)• 8x Line card screws (M3 x 10 mm)• 1x Extended industrial grounding cable (2 m)• 1x Quick start guide and user manual• 1x Official manufacturer's warranty certificate
| Device Type | Core Switch Chassis / Central Distribution |
|---|---|
| Switching Capacity | 960 Gbps (bit/s) |
| Packet Forwarding Rate | 714.24 Mpps |
| RAM | Per line card: 1 GB DDR3 |
| Flash Memory | Supervisor module / Line card: 256 MB |
| MAC Address Table | 32,000 entries (Supports static configuration and advanced filtering) |
| Jumbo Frame Size (MTU) | 9216 bytes (in interface configuration mode) |
| Layer 3 (L3) Routing Capacity | Static routing (IPv4/IPv6) adapted to the central chassis |
| Routing and ARP Tables | IPv4 static routes: 2000 / IPv6 static routes: 500 / IPv6 table (Network): 2000 / ARP entries: 8000 |
| Advanced IP Services | DHCP Server (integrated), DHCP Relay, DHCP Client, Full ARP table copy |
| Virtualization and High Availability | VCS (Virtual Switching System for up to 2 redundant logical chassis) |
| VLAN Configuration | IEEE 802.1Q VLAN, Voice VLAN, maximum support for up to 4094 simultaneous VLANs |
| Spanning Tree Protocols | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) |
| Reliability System | Dual operating system backup (ReyeeOS) and dual backup partition in Uboot |
| Intelligent Networking Technology | SON (Self-Organizing Network), Automatic network client detection, Autonomous IP camera detection |
| Recommended Capacity for CCTV Systems | Per installed line card: Up to 400 2MP H.265 cameras or 200 4MP H.265 cameras |
| Quality of Service (QoS) | Classification based on 802.1p and DSCP, egress queues, SP, WRR, and SP+WRR algorithms, global QoS |
| Security and Authentication | Radius, 802.1X (Port/MAC-based), Guest VLAN, ACL (Inbound up to 1900 ACE rules), IP-MAC-Port binding |
| Attack Mitigation and Control | ARP Anti-spoofing, IP Source Guard, DHCP Snooping, CPU Protection Policy, Traffic peak management |
| Network Maintenance | Port Mirroring, Syslog, Loop alarm, Cable Test, IP diagnostics (Ping/Traceroute v4/v6) |
| Management Platforms | Ruijie Cloud forever (Web/App), eWeb local (HTTP/HTTPS login), Ruijie Reyee App, SNMP v1/v2c/v3 |
| Structure Material | Metal (shielded industrial chassis) |
| Cooling System | Forced air via 1 × removable smart fan module (Front/Left/Right-to-Rear airflow) |
| Component Hot-Swap | Native support for hot-swapping the ventilation module, power connectors, and interfaces |
| Noise Level | 50 dB at 35 °C / 60 dB at 50 °C (Optimized for data center and telecommunications rooms) |
| Mounting Options | Standard telecommunications rack installation |
| Reliability (MTBF) | 400,000 hours of continuous operation |
| Electrostatic Discharge (ESD) Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge Protection | Service ports: ±6 kV (common mode) / Power connector: ±6 kV (common and differential mode) |
| Power Supply | Plug-in modular power supplies (Models RG-PA300I-F / RG-PA460I-FS / RG-PA460I-F) |
| AC Power Input | 100-240 V AC, 50/60 Hz (Maximum operating voltage: 90-264 V AC, 47-63 Hz) |
| Chassis Power Consumption | Maximum base consumption of chassis electronics 50 W |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Chassis Dimensions (W×D×H) | 442 mm x 313 mm x 175 mm (power cable excluded) |
| Net Weight of Base Chassis | 9.6 kg (Chassis with one standard ventilation module installed) |
