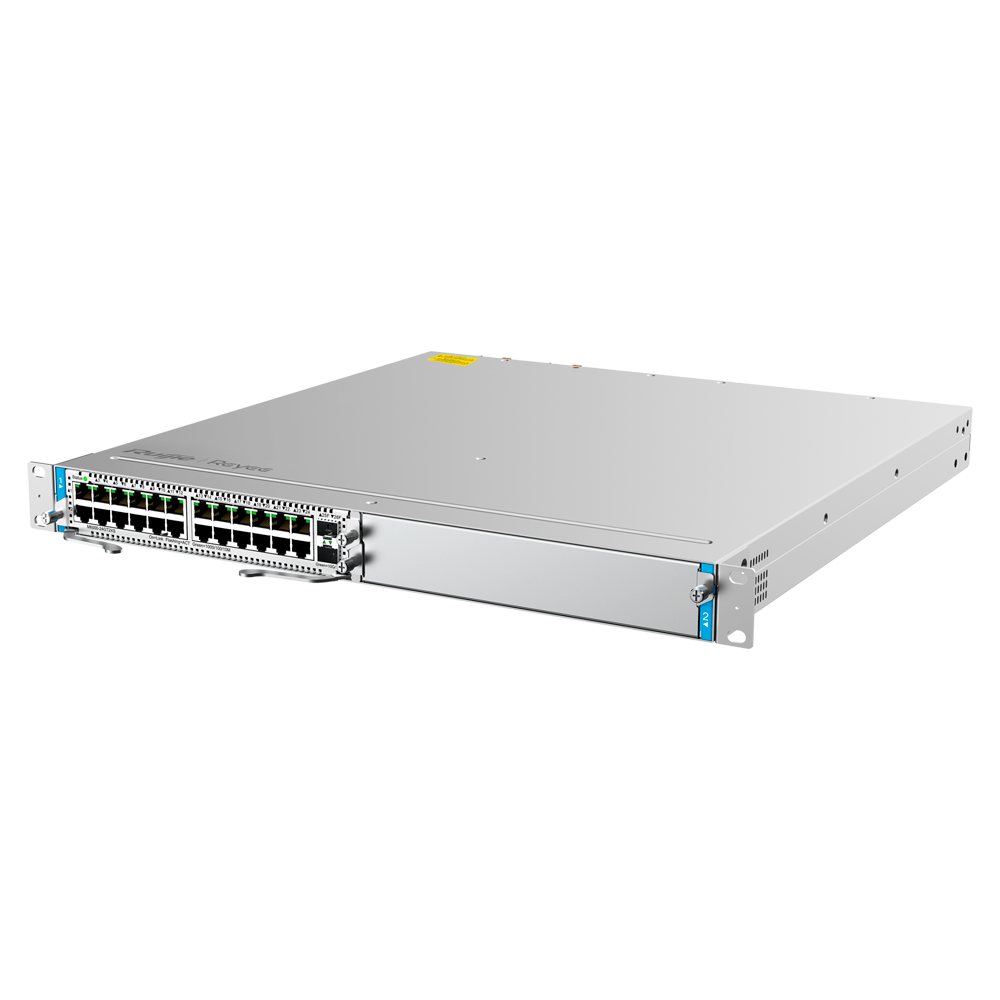

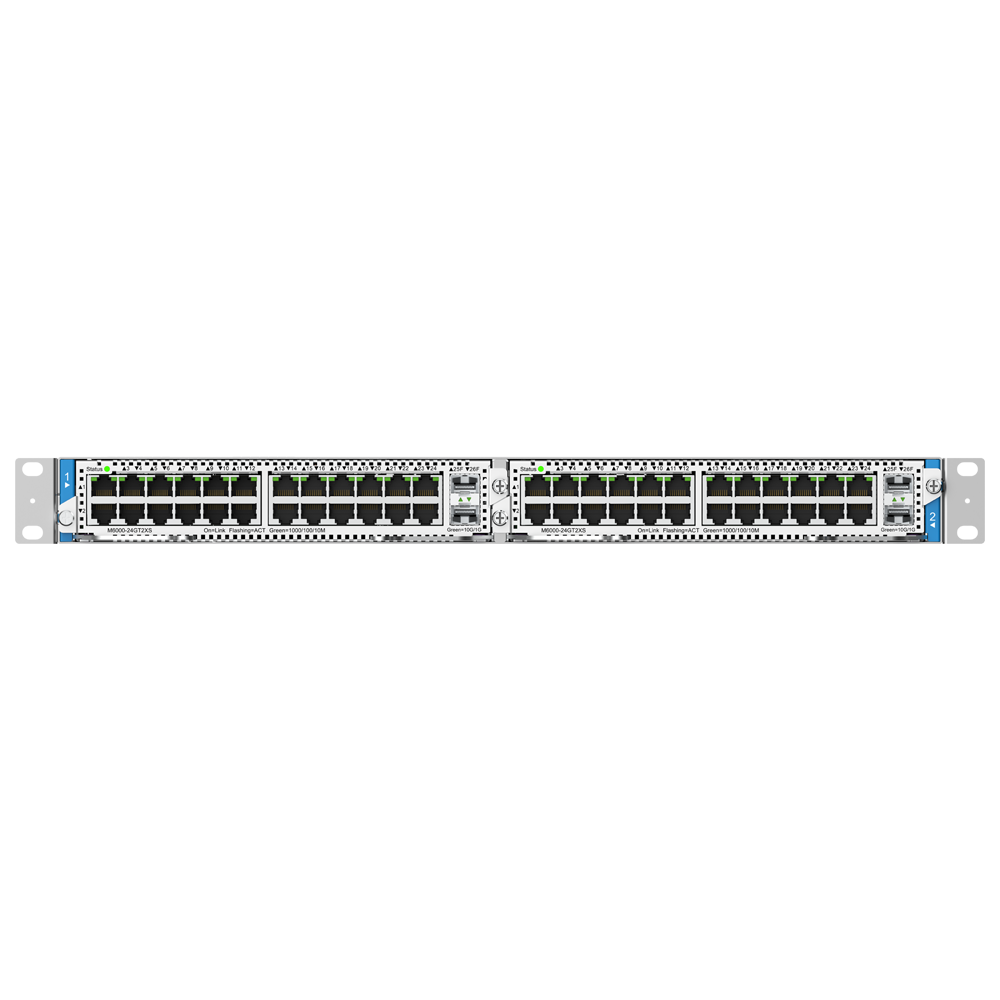

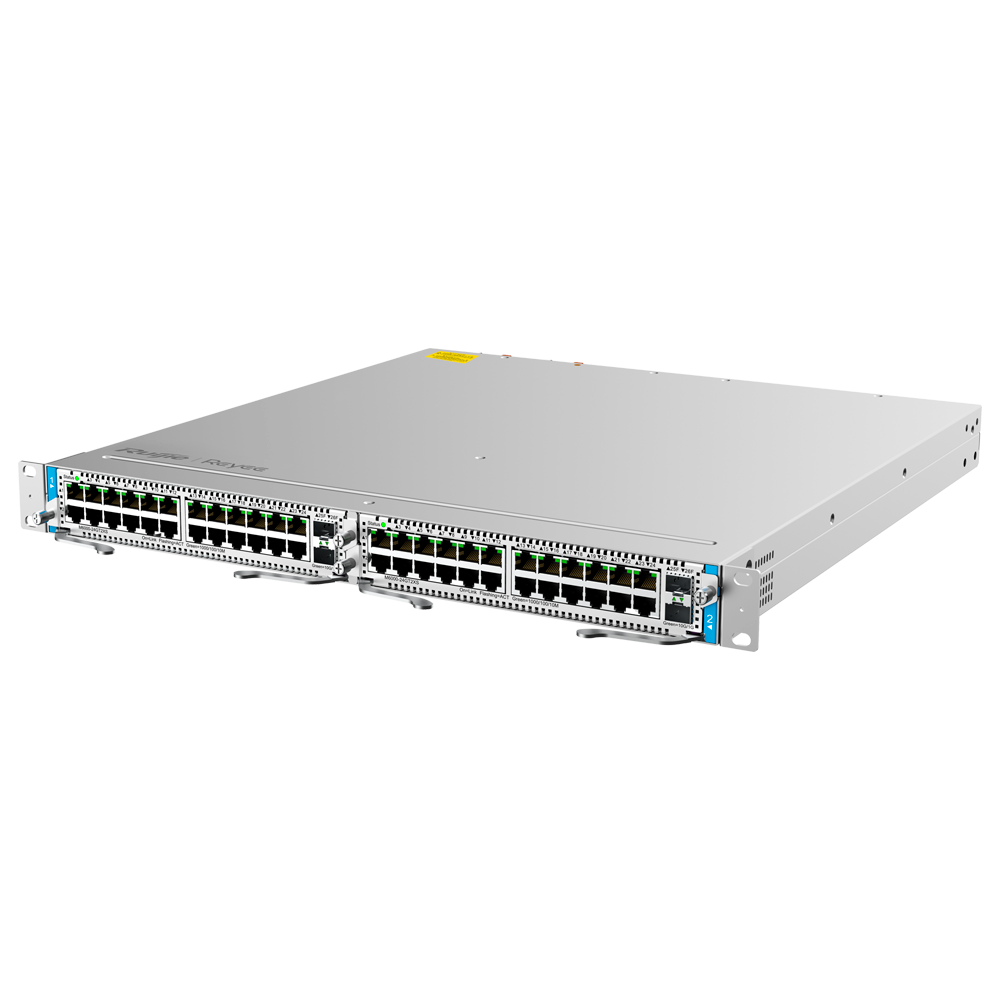

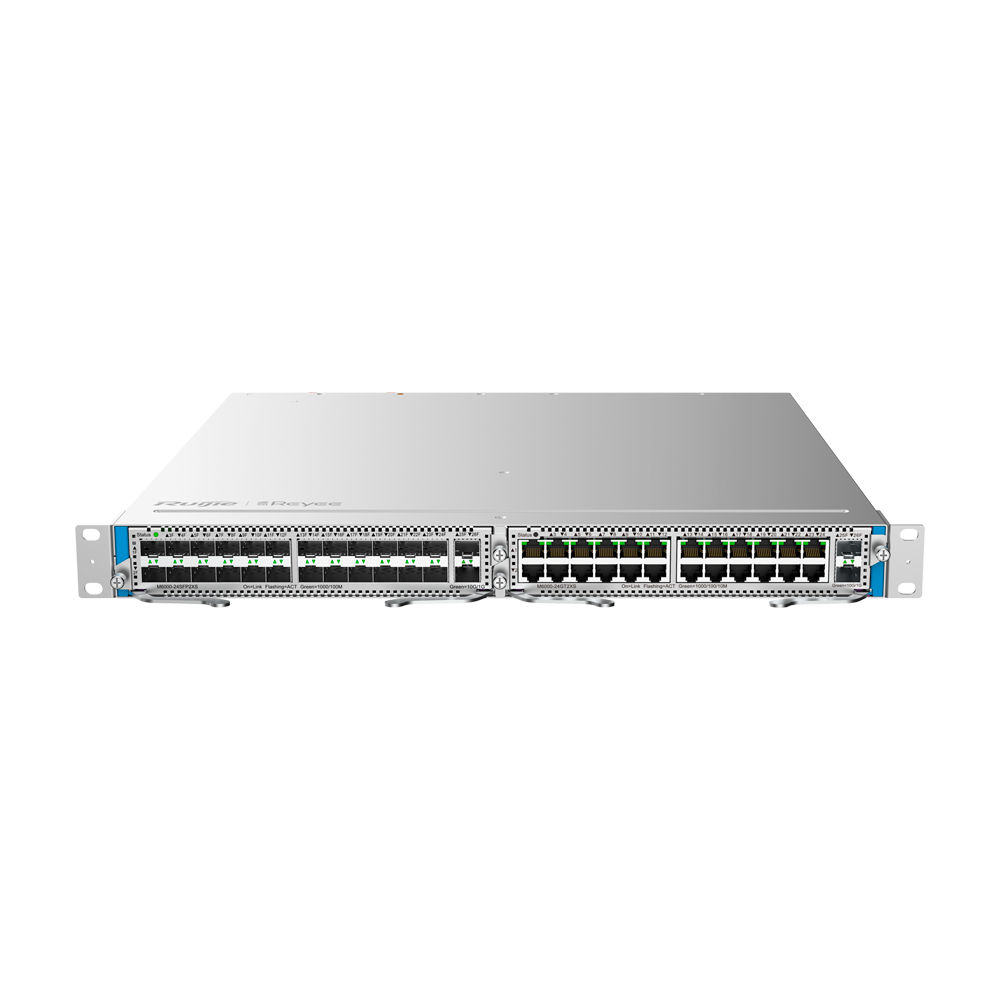

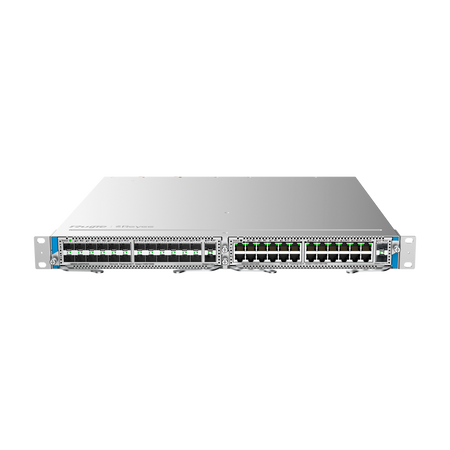

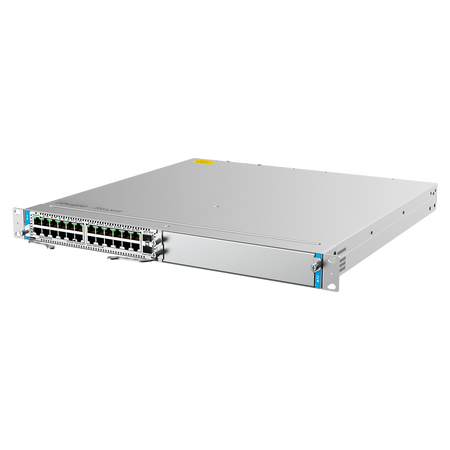

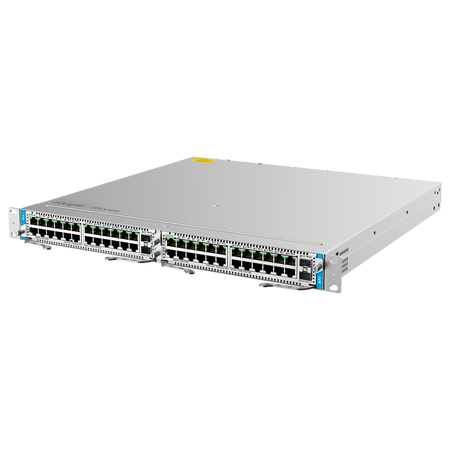

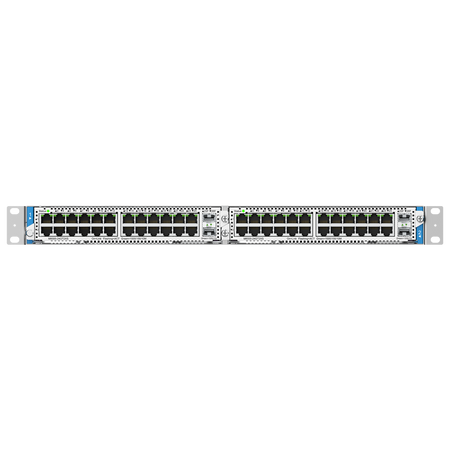

Ruijie Reyee Cloud Managed L3 Chassis Switch
Regular price
€563,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Reyee Cloud Managed L3 Chassis Switch - DHCP server and VCS virtual interconnection - 32K high-density MAC address table - Dual firmware backup redundancy system - Free lifetime Ruijie Cloud management
📋 SPECIFICATIONS:
• Brand: Ruijie Reyee
• Device type: Modular data switch
• Switching capacity: 176 Gbps
• Packet forwarding rate: 130.94 Mpps
• RAM memory: 1 GB (1024 MB)
• Flash memory: 256 MB
• MAC address table: 32,000 entries (supports static configuration and address filtering)
• Jumbo Frame size (MTU): 9216 bytes (in interface configuration mode)
• Layer 3 (L3) routing capacity: Chassis-adapted static routing (IPv4/IPv6)
• Routing and ARP tables: IPv4/IPv6 static routes: Up to 500 / IPv4 table (Host route): 12,000 / ARP entries: Max. 4,000
• Advanced IP services: DHCP Server (integrated DHCP server), DHCP Relay, DHCP Client, full ARP table copy
• Virtualization and high availability: VCS (Virtual Switching System up to 2 logical chassis units)
• VLAN configuration: IEEE 802.1Q VLAN, Voice VLAN, maximum support for up to 4094 simultaneous VLANs
• Spanning Tree protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
• Reliability system: Dual operating system backup (ReyeeOS 2.320 or later) and dual Uboot backup partition
• Intelligent network technology: SON (Self-Organizing Network), automatic network client detection, autonomous IP camera detection
• Recommended capacity for CCTV systems: Up to 520 200W (2MP) H.265 cameras or 260 400W (4MP) H.265 cameras
• Quality of Service (QoS): 802.1p and DSCP-based classification, egress queues, SP, WRR and SP+WRR algorithms, global QoS
• Security and authentication: Radius, 802.1X (Port/MAC-based), Guest VLAN, ACL (Inbound up to 1900 ACE rules), IP-MAC-Port binding
• Attack mitigation and control: ARP Anti-spoofing, IP Source Guard, DHCP Snooping, CPU Protection Policy, traffic burst management
• Network maintenance: Port Mirroring, Syslog, Loop alarm, Cable Test, IP diagnostics (Ping/Traceroute v4/v6)
• Management platforms: Lifetime Ruijie Cloud (Web/App), local eWeb (HTTP/HTTPS login), Ruijie Reyee App, SNMP v1/v2c/v3
• Chassis material: Metal (high-strength chassis)

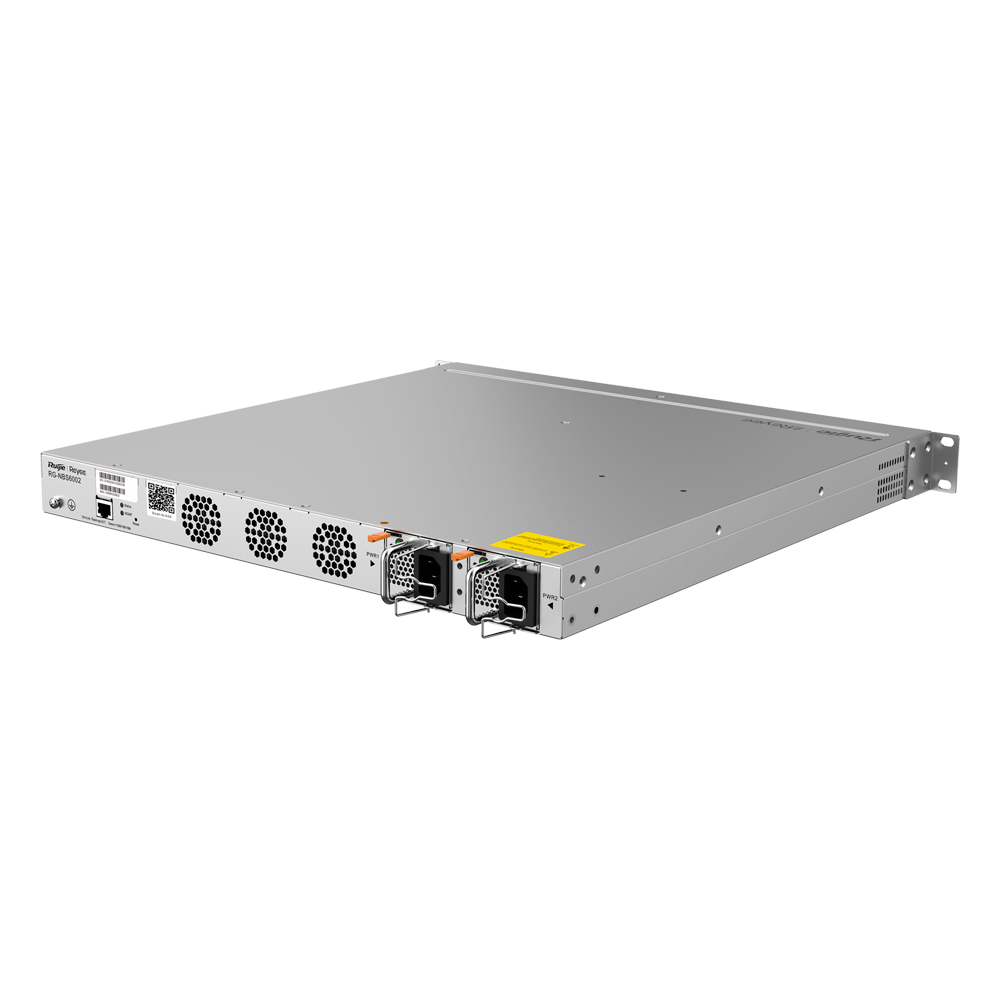

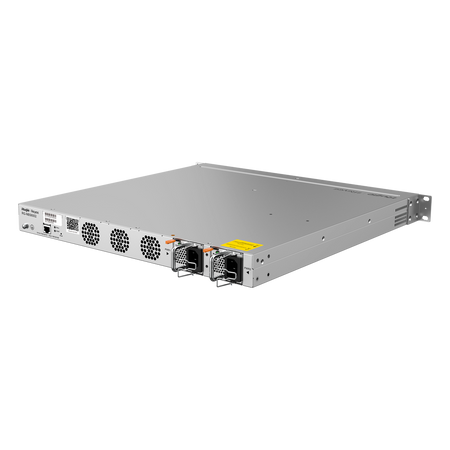

• Cooling system: Forced air via 3 × fixed fans (front-to-rear cross-thermal flow in the chassis)
• Noise level: 68 dB at 25 °C (Industrial design for server rooms and data centers)
• Mounting options: Standard rack installation (1U high chassis) or desktop
• Reliability (MTBF): 400,000 hours of continuous operation
• Electrostatic discharge (ESD) protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Surge protection: Service ports: ±6 kV (common mode) / Power connector: ±6 kV (common and differential mode)
• Chassis power consumption: Maximum operating power of 75.6 W (base chassis)
• Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × D × H): 442 mm x 460 mm x 44 mm
• Net weight of chassis: 5.4 kg
📦 INCLUDED:
• 1x RG-NBS6002 L3 chassis switch• 2x Metal rack-mount brackets (ears)• 8x Screws for bracket attachment (M4 x 8 mm)• 1x Additional mounting screw (M4 x 10 mm)• 1x Extended grounding cable (2 m)• 4x Rubber pads for desktop use• 1x Quick guide and user manual• 1x Official manufacturer's warranty certificate
| Device type | Modular data switch |
|---|---|
| Switching capacity | 176 Gbps |
| Packet forwarding rate | 130.94 Mpps |
| RAM memory | 1 GB (1024 MB) |
| Flash memory | 256 MB |
| MAC address table | 32,000 entries (supports static configuration and address filtering) |
| Jumbo Frame size (MTU) | 9216 bytes (in interface configuration mode) |
| Layer 3 (L3) capability (Routing) | Static routing (IPv4/IPv6) adapted to the chassis |
| Routing and ARP tables | IPv4/IPv6 static routes: Up to 500 / IPv4 table (Host route): 12,000 / ARP entries: Max. 4,000 |
| Advanced IP services | DHCP Server (integrated), DHCP Relay, DHCP Client, Full ARP table copy |
| Virtualization and high availability | VCS (Virtual Switching System up to 2 logical chassis units) |
| VLAN configuration | IEEE 802.1Q VLAN, Voice VLAN, maximum support for up to 4,094 concurrent VLANs |
| Spanning Tree protocols | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) |
| Reliability system | Dual operating system backup (ReyeeOS 2.320 or later) and dual backup partition in Uboot |
| Intelligent network technology | SON (Self-Organizing Network), Automatic network client detection, Autonomous IP camera detection |
| Recommended capacity for CCTV systems | Up to 520 2MP (H.265, 200W) cameras or 260 4MP (H.265, 400W) cameras |
| Quality of Service (QoS) | Classification based on 802.1p and DSCP, egress queues, SP, WRR, and SP+WRR algorithms, global QoS |
| Security and authentication | Radius, 802.1X (Port/MAC-based), Guest VLAN, ACL (Inbound up to 1,900 ACE rules), IP-MAC-Port binding |
| Attack mitigation and control | ARP Anti-spoofing, IP Source Guard, DHCP Snooping, CPU Protection Policy, Traffic peak management |
| Network maintenance | Port Mirroring, Syslog, Loop alarm, Cable Test, IP diagnostics (Ping/Traceroute v4/v6) |
| Management platforms | Ruijie Cloud forever (Web/App), eWeb local (HTTP/HTTPS login), Ruijie Reyee App, SNMP v1/v2c/v3 |
| Chassis material | Metal (high-strength chassis) |
| Cooling system | Forced air via 3 × fixed fans (front-to-rear thermal cross-flow in the chassis) |
| Noise level | 68 dB at 25 °C (Industrial design for server rooms and data centers) |
| Mounting options | Standard rack installation (1U chassis height) or desktop |
| Reliability (MTBF) | 400,000 hours of continuous operation |
| Electrostatic Discharge (ESD) protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge protection | Service ports: ±6 kV (common mode) / Power connector: ±6 kV (common and differential mode) |
| Chassis power consumption | Maximum operating power of 75.6 W (base chassis) |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × D × H) | 442 mm x 460 mm x 44 mm |
| Chassis net weight | 5.4 kg |
