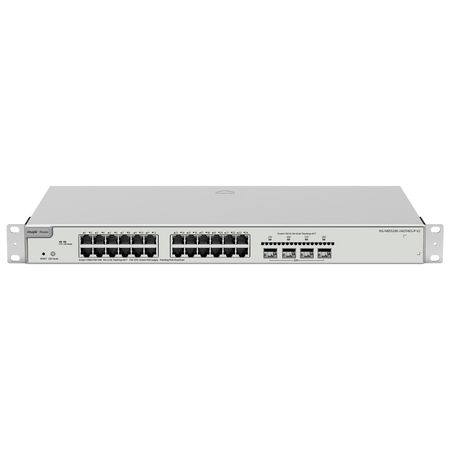

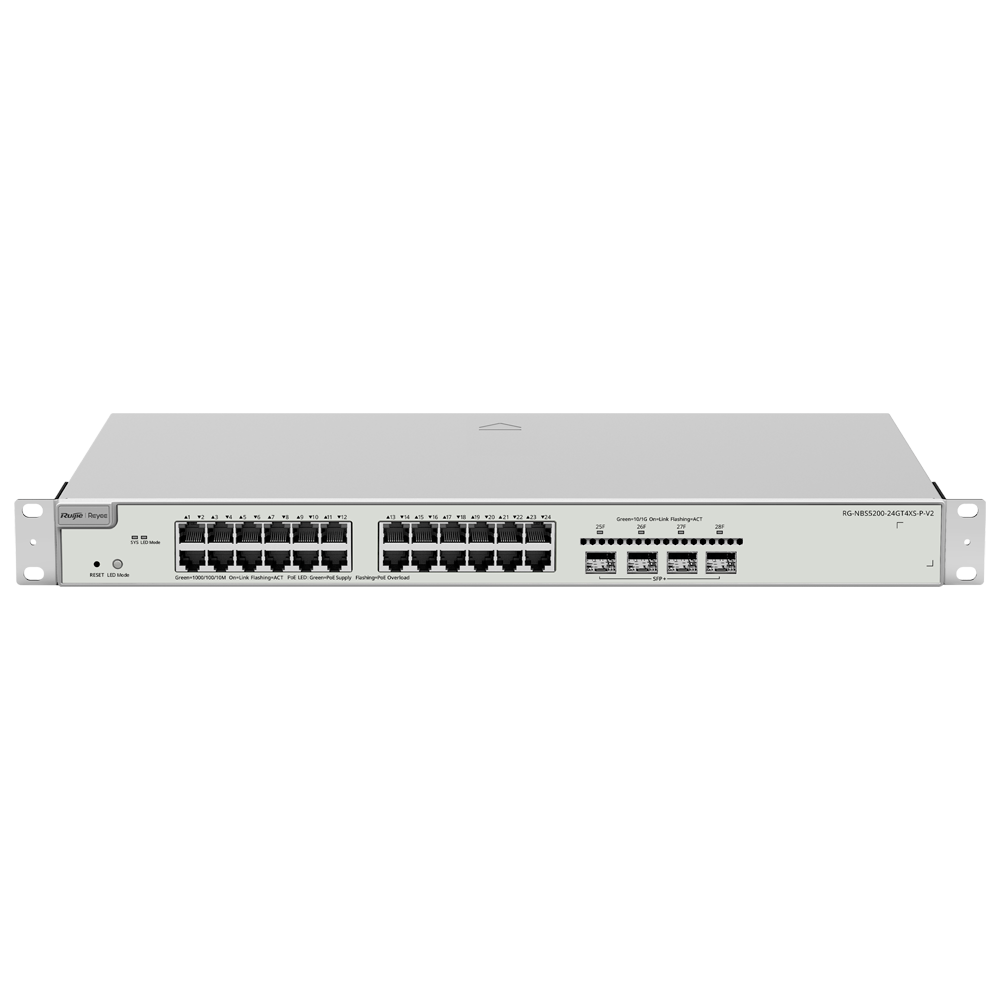

Ruijie Reyee Cloud Managed L3 Switch V2 - 28 Total ports (24 PoE+ / 4 Uplink 10G SFP+) - Ultra-fast 10 Gbps fiber optic connections - Stable 30W PoE+ power / 370W budget - DHCP server and VCS virtual interconnection - Optimized V2 design with a 5-year warranty
📋 SPECIFICATIONS:
• Brand: Ruijie Reyee
• Total network interfaces: 24 × 1GE SFP (fiber slots), 8 × 10/100/1000BASE-T RJ45 (combo ports), 4 × 10GE SFP+ (independent uplink)
• Combo configuration: 8 Combo ports (logically assignable between RJ45 copper or 1 Gbps SFP fiber optics)
• Switching capacity: 128 Gbps
• Packet forwarding rate: 95.23 Mpps
• RAM: 512 MB
• Flash memory: 256 MB
• MAC address table: 16,000 entries (supports static configuration and filtering)
• Jumbo Frame size (MTU): 9216 bytes (in interface configuration mode)
• L3 routing capacity: Native support for IPv4 and IPv6 static routing (up to 64 static routes for each type)
• Routing tables: IPv4 table size (Host route): 6000 / IPv6 table size (Network route): 128
• VLAN configuration: IEEE 802.1Q VLAN, Voice VLAN, supports up to 4094 VLANs
• Spanning Tree protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
• High availability protocols: ERPS (Ethernet Ring Protection Switching)
• Reliability system: Dual system backup (ReyeeOS) and dual Uboot partition (single flash memory)
• Intelligent network technology: SON (Self-Organizing Network), automatic client discovery, IP camera detection
• Advanced IP services: DHCP Relay, DHCP Client, Full ARP table copy, max. 1000 ARP entries
• Quality of Service (QoS): Classification based on 802.1p and DSCP, egress queues, SP, WRR, and SP+WRR algorithms, global QoS
• Security and authentication: Radius, 802.1X (Port/MAC-based), Guest VLAN, ACL (Inbound up to 1900 ACE rules), IP-MAC-Port binding
• Attack mitigation and control: ARP Anti-spoofing, IP Source Guard, DHCP Snooping, CPU Protection Policy, Storm control
• Network maintenance: Port Mirroring, Syslog, Loop alarm, Cable Test, IP diagnostics (Ping/Traceroute v4/v6)
• Energy efficiency: Support for IEEE 802.3az (Energy Efficient Ethernet)
• Management platforms: Ruijie Cloud forever (Web/App), local eWeb (HTTP/HTTPS login), Ruijie Reyee App, SNMP v1/v2c/v3
• Housing material: Metal Casing
• Cooling system: Forced air via 2 × fixed fans (left-to-right airflow)
• Noise level: 45 dB at 25 °C
• Mounting options: Standard rack installation (1U height) or desktop
• Reliability (MTBF): 400,000 hours of continuous operation
• Electrostatic discharge (ESD) protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Surge protection: Service ports: ±6 kV (common mode) / Power connector: ±6 kV (common and differential mode)
• Power supply: Integrated AC power supply (Input: 100-240 V AC, 50/60 Hz, Max. 2 A)
• Power consumption: 41.8 W maximum
• Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × D × H): 440 mm x 267.5 mm x 43.6 mm
• Net weight: 3.35 kg
📦 INCLUDED:
• 1x Cloud Managed Switch RG-NBS5200-24GT4XS-P-V2
• 2x Metal rack-mount brackets (ears)
• 6x Bracket mounting screws (M4 x 8 mm)
• 1x Grounding cable (1 m)
• 1x AC power cord (1.5 m) with retaining clip
• 4x Rubber feet for desktop use
• 1x Quick start guide and user manual
• 1x Official manufacturer warranty certificate
| Total network interfaces | 24 × 1GE SFP (fiber slots), 8 × 10/100/1000BASE-T RJ45 (combo ports), 4 × 10GE SFP+ (independent uplink) |
|---|---|
| Combo configuration | 8 combo ports (logically assignable between RJ45 copper or 1 Gbps SFP fiber optic) |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 95.23 Mpps |
| RAM memory | 512 MB |
| Flash memory | 256 MB |
| MAC address table | 16,000 entries (supports static configuration and filtering) |
| Jumbo Frame size (MTU) | 9216 bytes (in interface configuration mode) |
| L3 routing capacity | Native support for static IPv4 and IPv6 routing (up to 64 static routes for each type) |
| Routing tables | IPv4 table size (Host route): 6000 / IPv6 table size (Network route): 128 |
| VLAN configuration | IEEE 802.1Q VLAN, Voice VLAN, Supports up to 4094 VLANs |
| Spanning Tree protocols | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) |
| High availability protocols | ERPS (Ethernet Ring Protection Switching) |
| Reliability system | Dual system backup (ReyeeOS) and dual Uboot partition (Single flash memory) |
| Intelligent network technology | SON (Self-Organizing Network), Auto-discovery of clients, IP camera detection |
| Advanced IP services | DHCP Relay, DHCP Client, Full ARP table copy, Max. 1000 ARP entries |
| Quality of Service (QoS) | 802.1p and DSCP-based classification, egress queues, SP, WRR, and SP+WRR algorithms, global QoS |
| Security and authentication | Radius, 802.1X (Port/MAC-based), Guest VLAN, ACL (Inbound up to 1900 ACE rules), IP-MAC-Port binding |
| Attack mitigation and control | ARP Anti-spoofing, IP Source Guard, DHCP Snooping, CPU Protection Policy, Storm control |
| Network maintenance | Port Mirroring, Syslog, Loop alarm, Cable Test, IP diagnosis (Ping/Traceroute v4/v6) |
| Energy efficiency | Support for IEEE 802.3az (Energy Efficient Ethernet) |
| Management platforms | Ruijie Cloud forever (Web/App), local eWeb (HTTP/HTTPS login), Ruijie Reyee App, SNMP v1/v2c/v3 |
| Housing material | Metal Casing |
| Cooling system | Forced air via 2 × fixed fans (left-to-right airflow) |
| Noise level | 45 dB at 25 °C |
| Mounting options | Standard rack installation (1U height) or desktop |
| Reliability (MTBF) | 400,000 hours of continuous operation |
| Electrostatic discharge (ESD) protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge protection | Service ports: ±6 kV (common mode) / Power connector: ±6 kV (common and differential mode) |
| Power supply | Integrated AC power supply (Input: 100-240 V AC, 50/60 Hz, Max. 2 A) |
| Power consumption | 41.8 W maximum |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × D × H) | 440 mm x 267.5 mm x 43.6 mm |
| Net weight | 3.35 kg |
