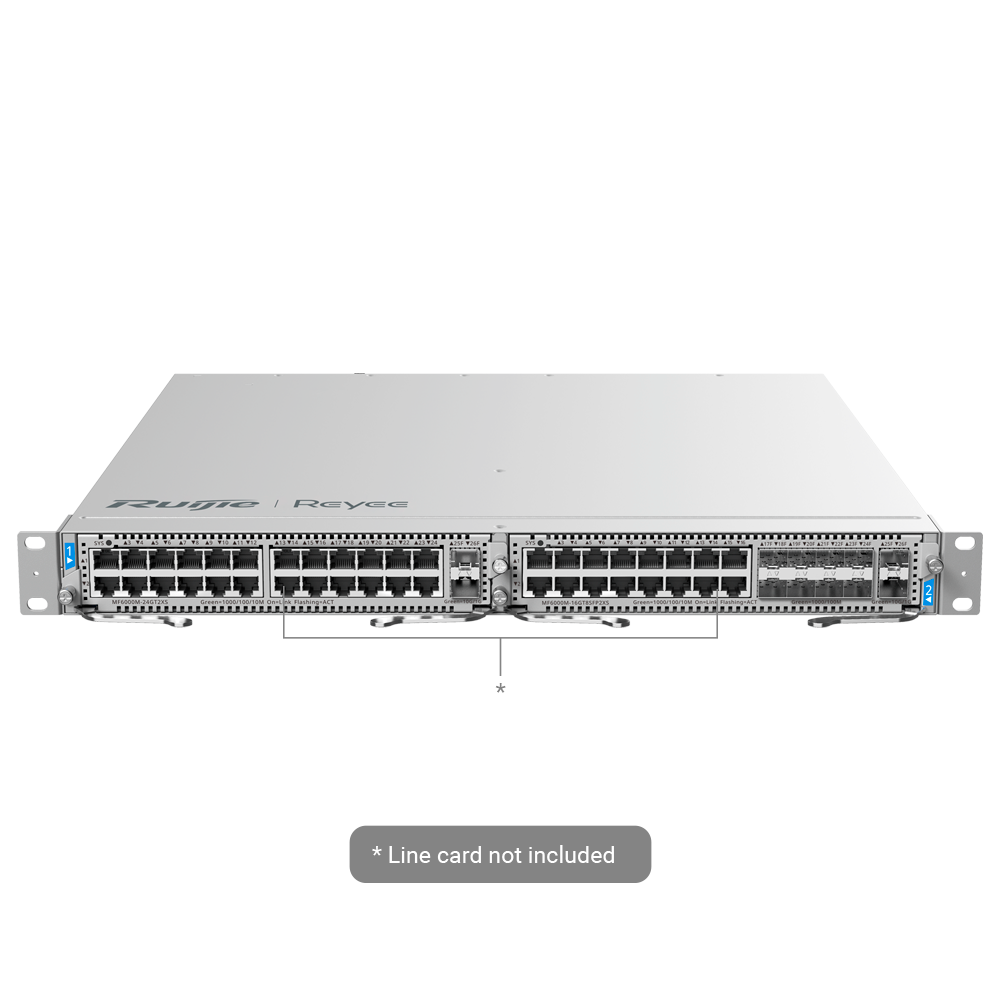

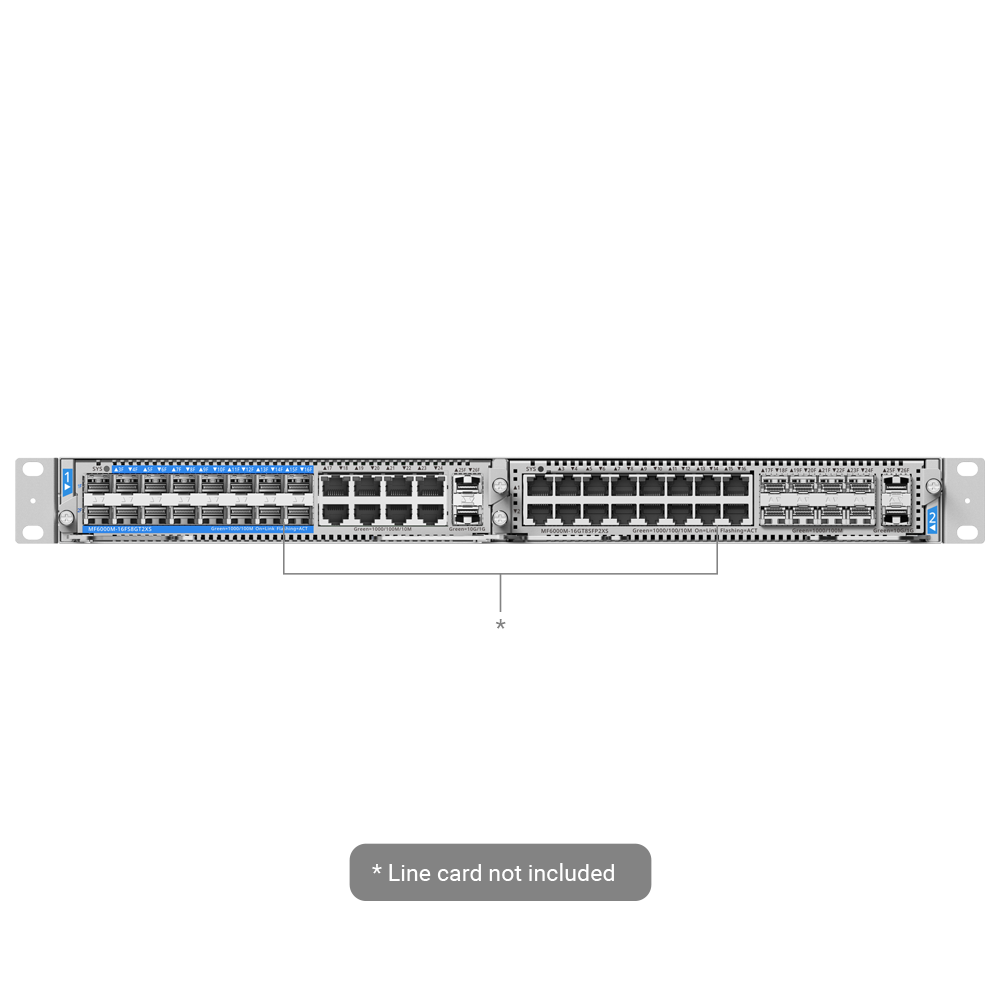

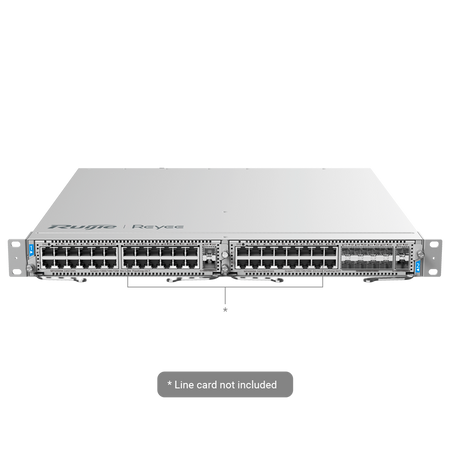

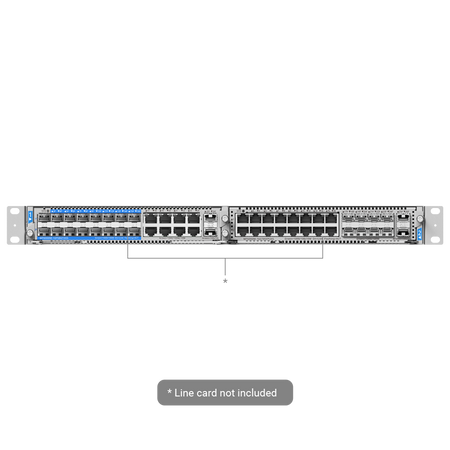

Reyee E-Lighten Layer 3 Modular Switch
Regular price
€992,50
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Reyee E-Lighten Layer 3 Modular Switch - 2 Expansion Slots (1U total size) - Up to 16 E-Lighten Splitting & Ethernet ports - Up to 48 RJ45 / 16 GE SFP / 4 SFP+ ports - Static LAG/DHCP Snooping/IGMP Snooping/Port Mirroring - DHCP Server/Static routes/RIP/OSPF/SNMP
📋 SPECIFICATIONS:
• Size: 1 Rack Unit

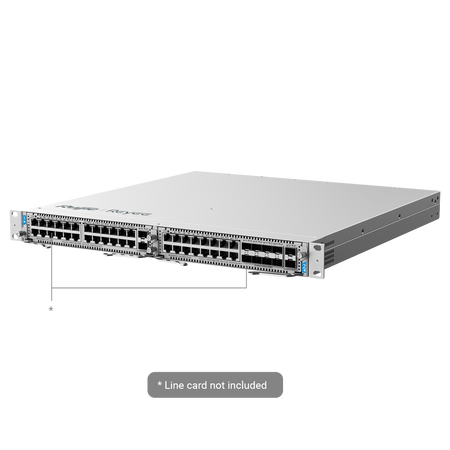

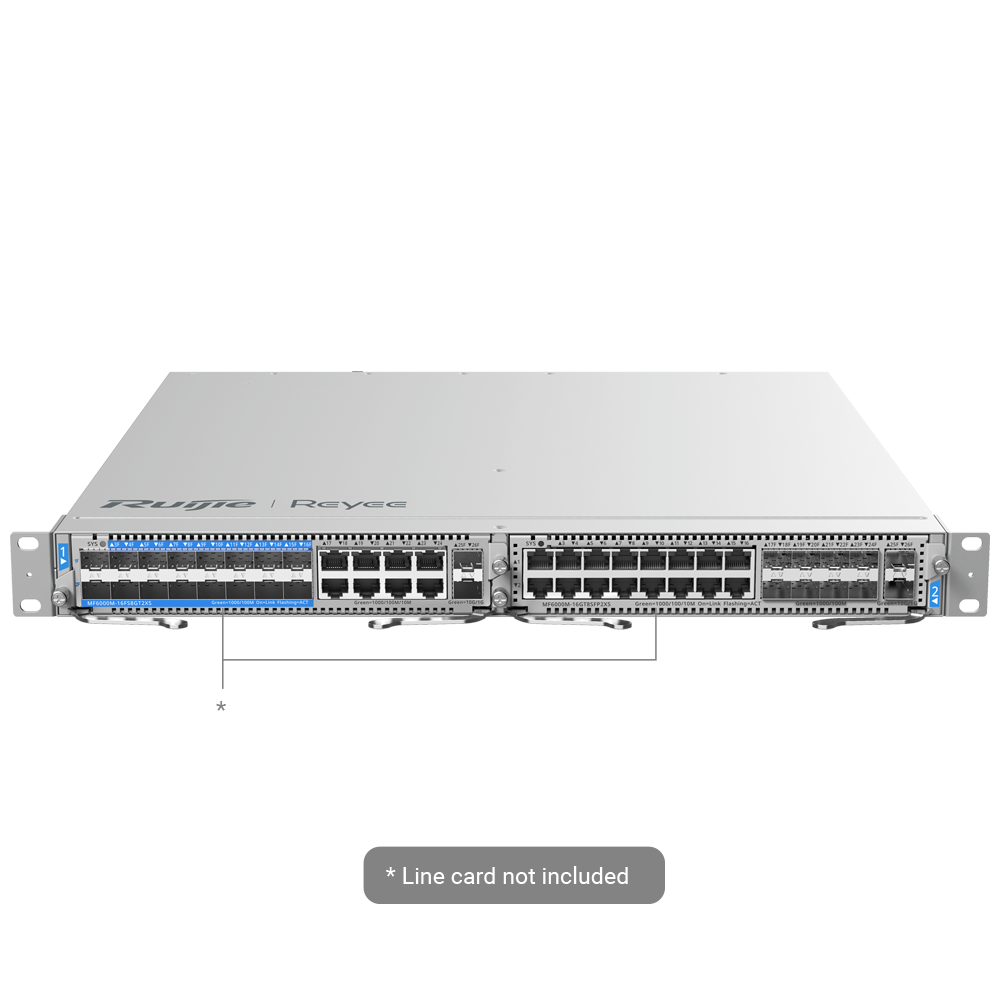

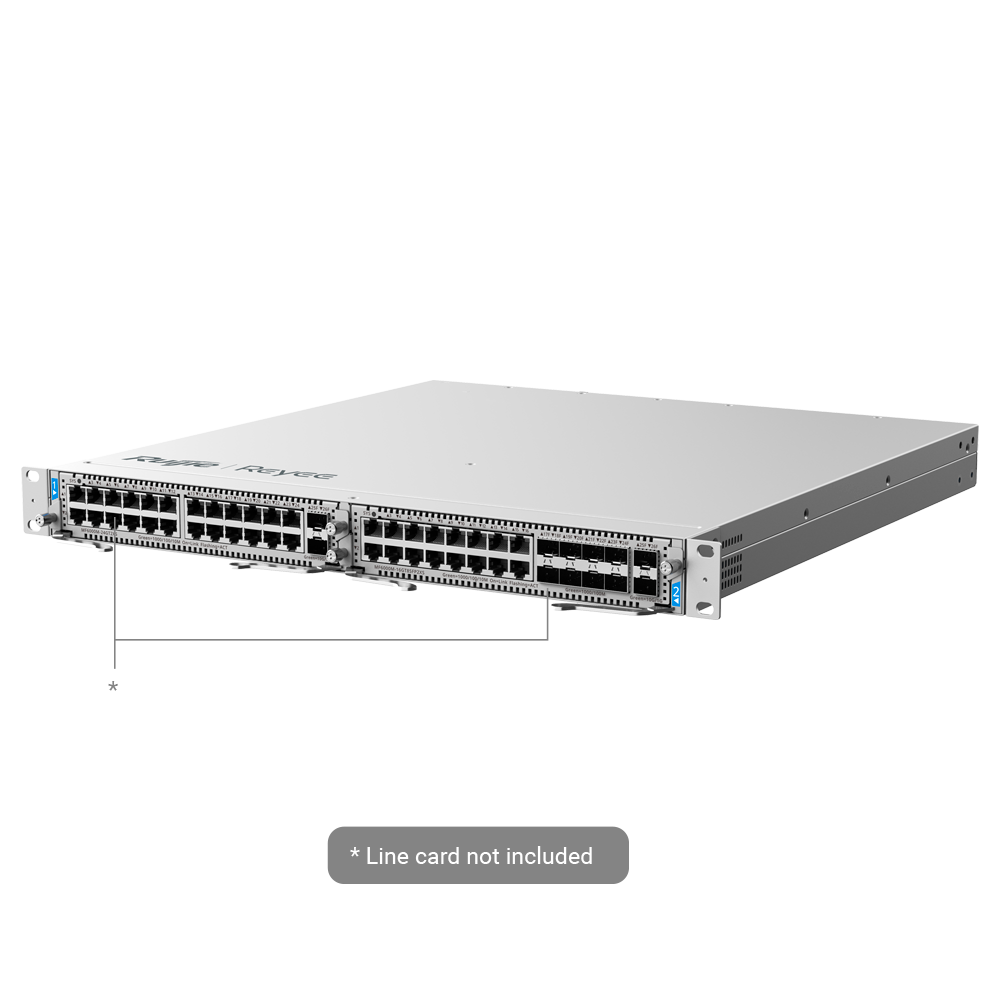

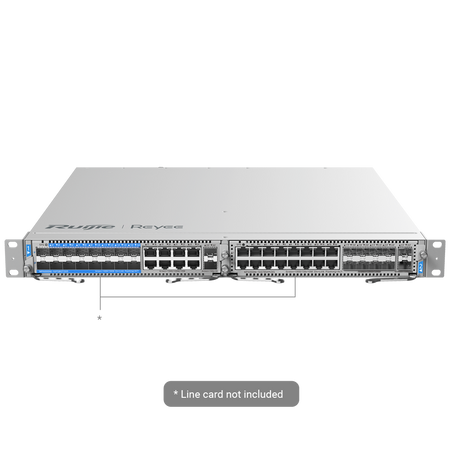

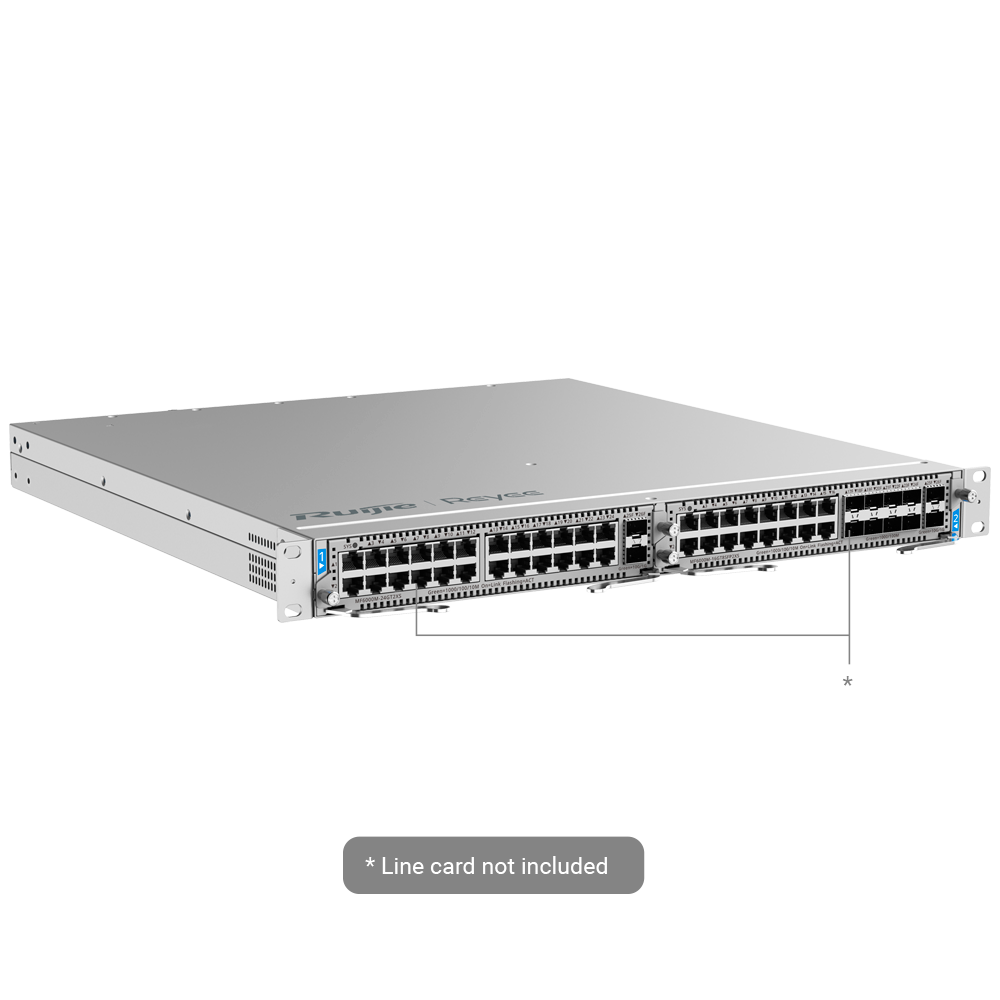

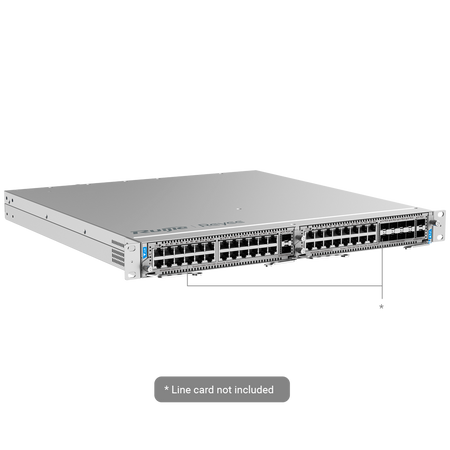

• Expansion slots: 2 slots for MF6000M cards; Compatible cards:; MF6000M-16FS8GT2XS; MF6000M-16GT8SFP2XS; MF6000M-24GT2XS
• Interfaces: Up to 48 RJ45 10/100/1000 Mbps ports; Up to 16 E-Lighten 1G SFP ports (PON ports can be used for passive splitting and as Ethernet SFP ports); Up to 16 SFP ports; Up to 4 10 Gbps SFP+ uplink ports; *One or more RG-MF6000M cards must be purchased, and the interfaces may vary depending on the cards chosen
• PON functionality: Automatic transceiver negotiation; Compatible with RG-OM-GE-SFP-10KM-SM1490; Maximum number of PON ports 16; Number of ONUs per PON port 32; Number of ONUs per device 320; Layer 2 isolation for ONUs connected to the same PON port; Static/dynamic bandwidth allocation for ONUs (SBA/DBA); Real-time OLT/ONU information on temperature, voltage, tx/rx, etc.; Alarms for ONU errors (temperature, voltage, tx/rx, etc.); Automatic ONU connection to the OLT
• Data transmission speed up to: 216 Gbps
• Forwarding rate: 132Mpps
• MAC table: 32K
• VLAN: Up to 4094
• Network Protocols and Technologies: Port aggregation (Maximum of 16 Layer 3); 802.1X authentication; Port Flow control; IGMP Snooping v1, v2, v3; CPU Protection Policy; IPv6; Port Mirroring; ACL
• Number of virtual interfaces: 64
• L3 protocols: RIP; OSPF; Static Routing
• VCS (Virtual Cluster Switch): Up to 2 units
• Redundancy control: Spanning Tree (STP, RTSP); RLDP
• Management Protocols: Web/Cloud/APP/SNMP
• Surge protection: 6 kV on power supply and ports

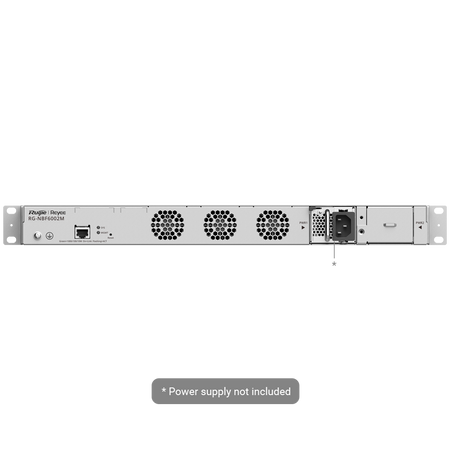

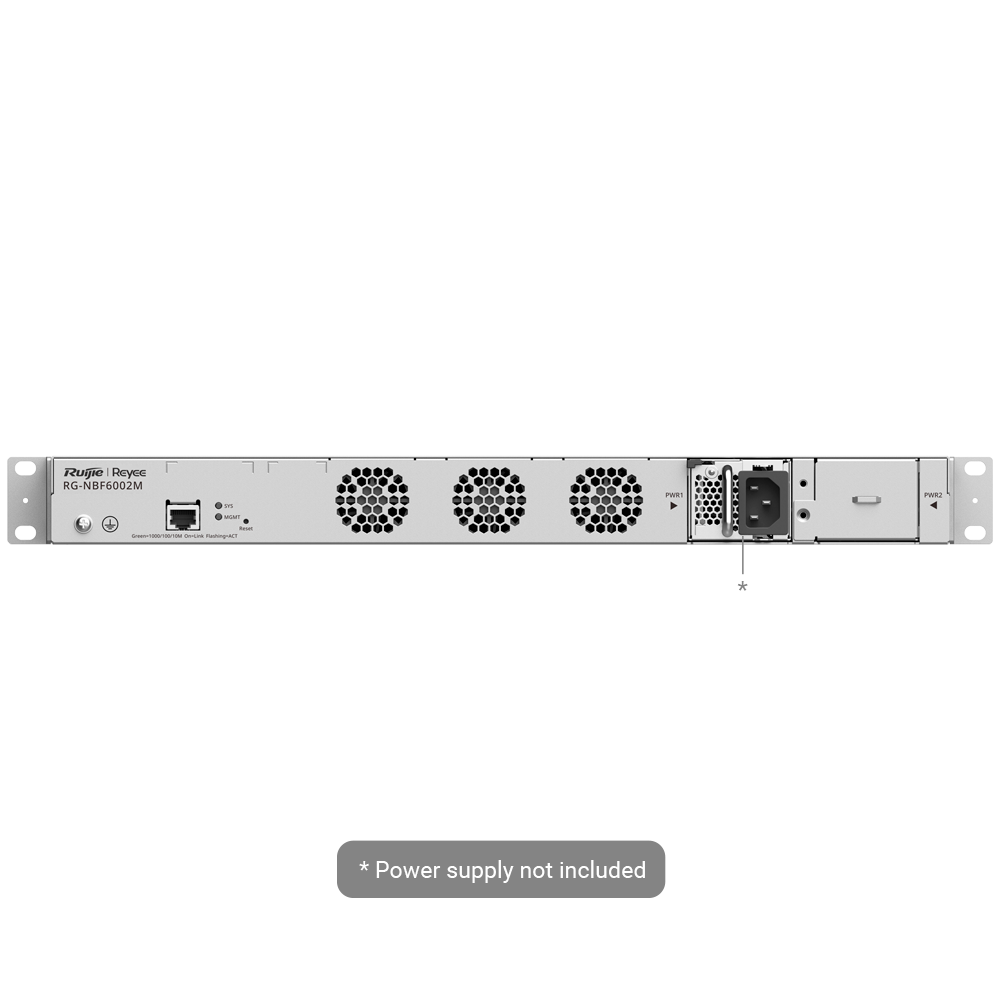

• Power supply: 2 redundant power supply slots. Compatible:; RG-PA150I-FS; (Power supply not included)
• Power consumption: 126W
• Operating temperature: 0° C - 50° C
• Cooling: 3x internal fans (fixed)
• Weight: 6.82 kg (with packaging)
• Dimensions: 460 (D) x 44 (H) x 442 (W) mm, 1U
📦 INCLUDED:
• Managed L3 Switch• AC power cord• User instructions• Rack mount brackets
| Dimensions | 1 Rack Unit |
|---|---|
| Expansion slots | 2 slots for MF6000M cards Compatible cards: MF6000M-16FS8GT2XS MF6000M-16GT8SFP2XS MF6000M-24GT2XS |
| Interfaces | Up to 48 10/100/1000 Mbps RJ45 ports Up to 16 1G E-Lighten SFP ports (PON ports can be used for passive splitting and as Ethernet SFP ports) Up to 16 SFP ports Up to 4 10 Gbps SFP+ uplink ports *One or more RG-MF6000M cards must be purchased, and the interfaces may vary depending on the chosen cards |
| PON features | Auto-negotiation of transceivers Compatible with RG-OM-GE-SFP-10KM-SM1490 Maximum number of PON ports 16 Number of ONUs per PON port 32 Number of ONUs per device 320 Layer 2 isolation for ONUs connected to the same PON port Static/dynamic bandwidth assignment for ONUs (SBA/DBA) Real-time OLT/ONU information on temperature, voltage, tx/rx, etc. Alarms for ONU errors (temperature, voltage, tx/rx, etc.) Automatic connection of ONU to OLT |
| Data transmission speed up to | 216 Gbps |
| Forwarding rate | 132Mpps |
| MAC table | 32K |
| VLAN | Up to 4094 |
| Network protocols and technologies | Port aggregation (Maximum number 16 Layer 3) 802.1X port authentication Flow control IGMP Snooping v1,v2,v3 CPU Protection Policy IPv6 Port Mirroring ACL |
| Number of virtual interfaces | 64 |
| L3 protocols | RIP OSPF Static Routing |
| VCS (Virtual Cluster Switch) | Up to 2 units |
| Redundancy control | Spanning Tree (STP, RTSP) RLDP |
| Management protocols | Web/Cloud/APP/SNMP |
| Surge protection | 6 kV on power supply and ports |
| Power supply | 2 redundant power supply slots. Compatible: RG-PA150I-FS (Power supply unit not included) |
| Consumption | 126W |
| Operating temperature | 0° C - 50° C |
| Cooling | 3x Internal fans (fixed) |
| Weight | 6.82 kg (with packaging) |
| Dimensions | 460 (D) x 44 (H) x 442 (W) mm, 1U |
