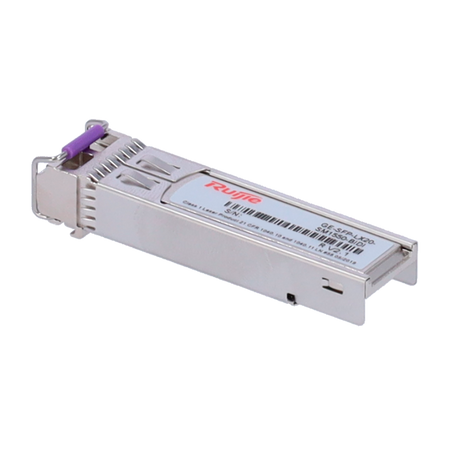

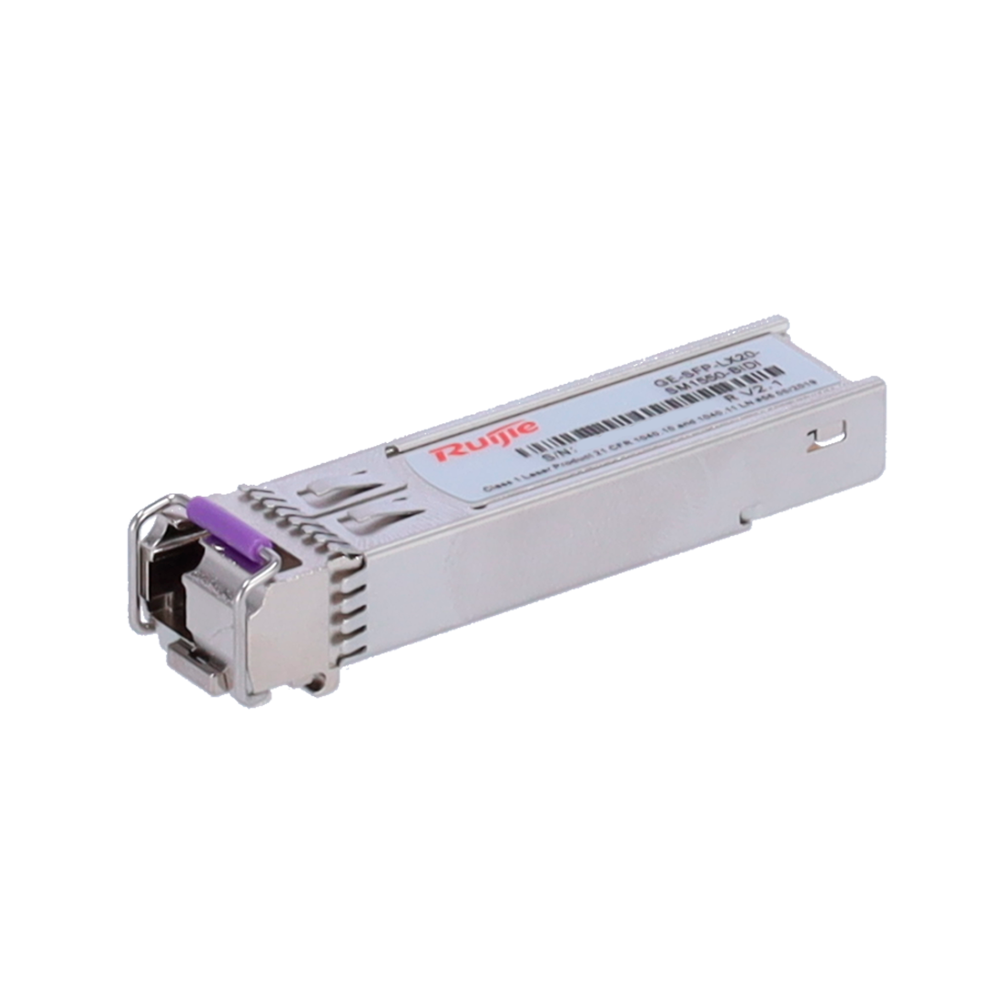

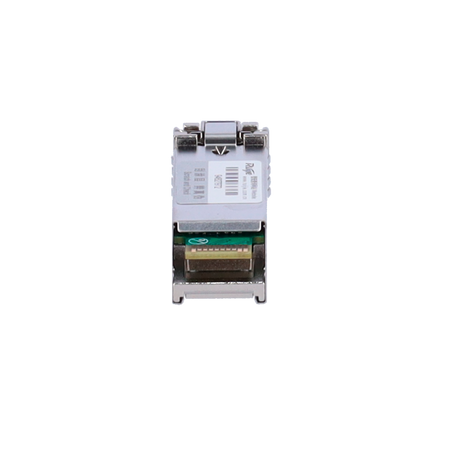

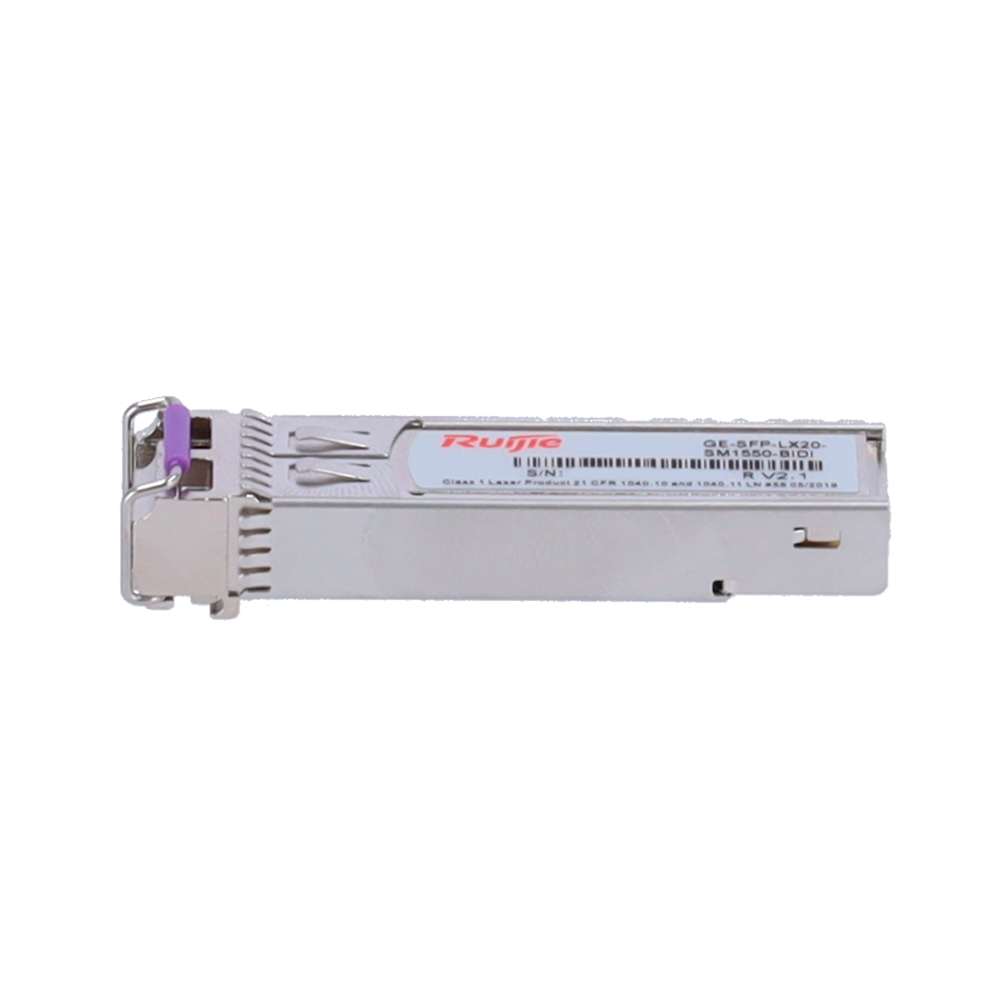

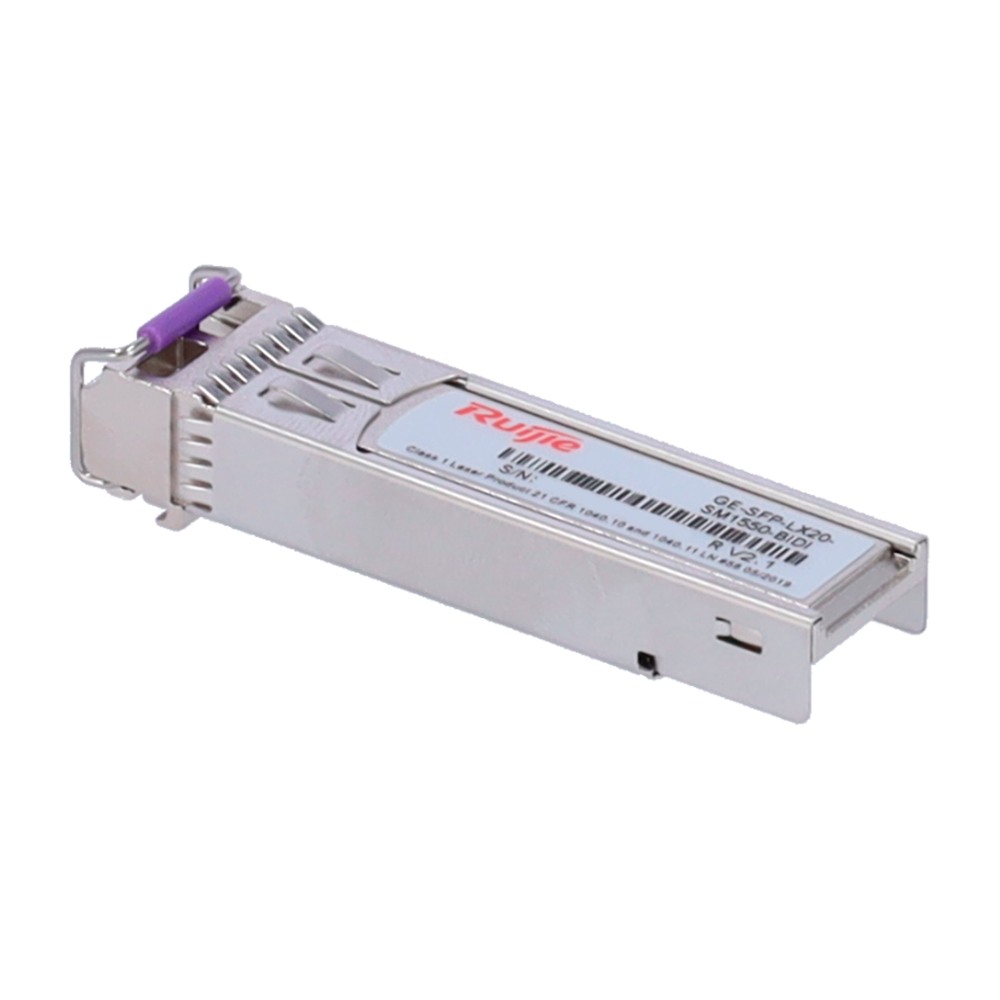

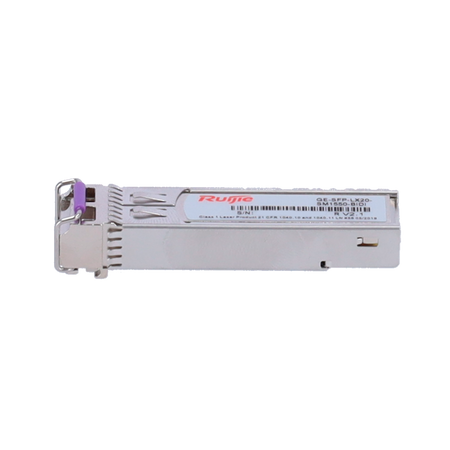

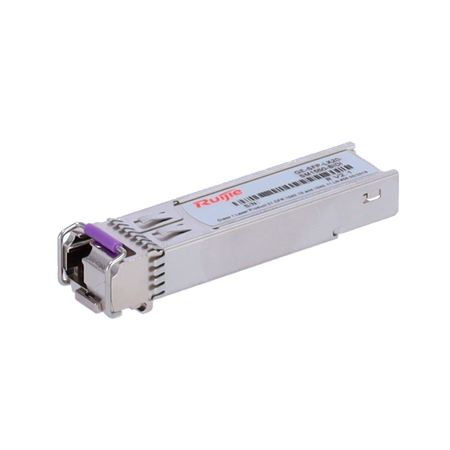

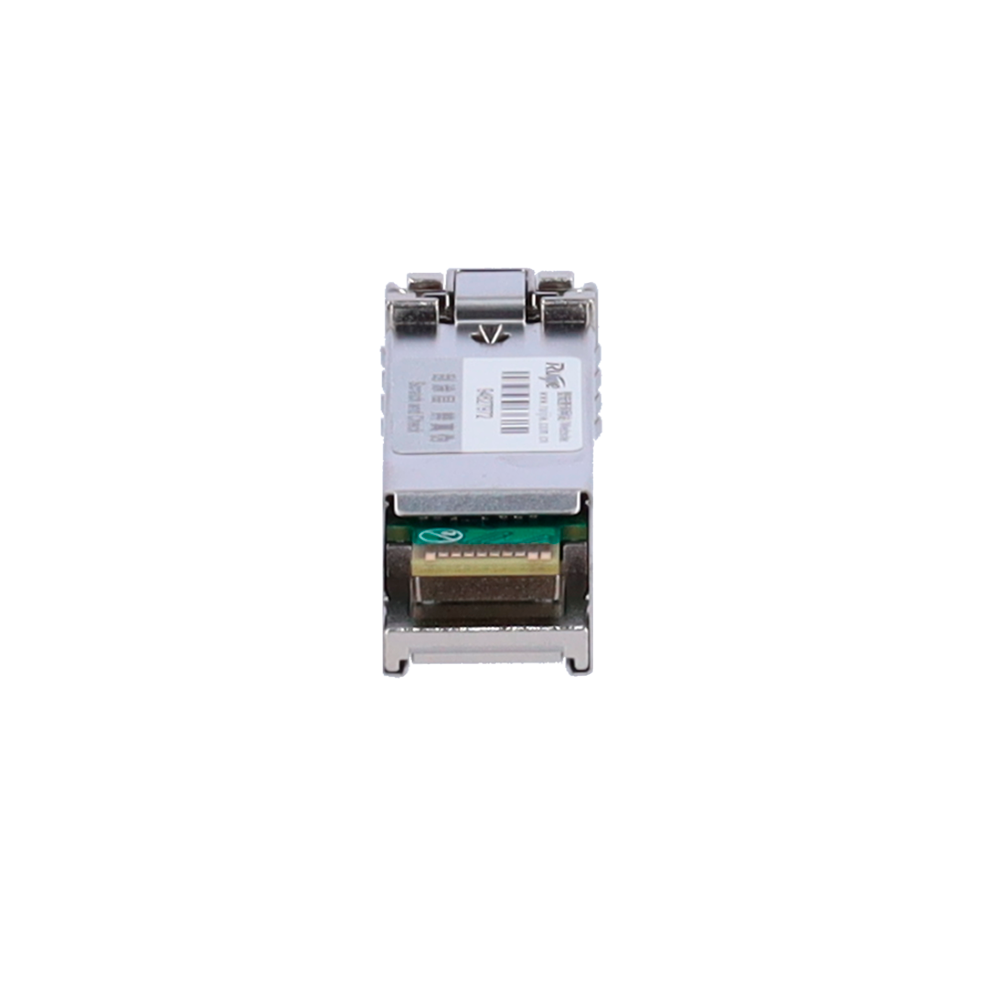

Ruijie BiDi SFP Transceiver Module - 1000Base-LX Ethernet Standard - 55
Regular price
€85,24
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie BiDi SFP transceiver module - 1000Base-LX Ethernet standard - Bidirectional simplex LC connector - Operating distance up to 20km - Dual wavelength Tx1550nm and Rx1310nm - Transfer speed up to 1.25 Gbps
📋 SPECIFICATIONS:
• Manufacturer: Ruijie
• Form factor type: SFP
• Ethernet standard: 1000Base-LX
• Fiber type: Single-mode (SMF)
• Connector type: BIDI LC (Simplex)
• Data rate: Up to 1.25 Gbps
• Operating distance: Up to 20 km
• Transmit wavelength (TX): 1550 nm
• Receive wavelength (RX): 1310 nm
• Laser type: DFB
• Receiver type: PIN
• DDM (Digital Diagnostics Monitoring) function: Yes
• Power consumption: ≤ 1.5 W
• Minimum transmit power (TX Min.): -9 dBm
• Maximum transmit power (TX Max.): -3 dBm
• Receiver sensitivity (OMA): < < < < -20 dBm
• Optical power overload: -3 dBm
• Operating temperature: 0 to 70 °C
• Storage temperature: -40 to 85 °C
• Operating humidity: 5% to 95% RH
• Dimensions (W x D x H): 56.5 mm x 13.5 mm x 8.5 mm
• Weight: 35 g
• Installation: For a fiber connection, use GE-SFP-LX20-SM1310-BIDI at one end and GE-SFP-LX20-SM1550-BIDI at the other.
📦 INCLUDED:
• 1x GE-SFP-LX20-SM1550-BIDI
| Manufacturer | Ruijie |
|---|---|
| Form factor | SFP |
| Ethernet standard | 1000Base-LX |
| Fiber type | Single-mode (SMF) |
| Connector type | BIDI LC (Simplex) |
| Data rate | Up to 1.25 Gbps |
| Operating distance | Up to 20 km |
| Transmit wavelength (TX) | 1550 nm |
| Receive wavelength (RX) | 1310 nm |
| Laser type | DFB |
| Receiver type | PIN |
| DDM function (Digital Diagnostic Monitoring) | Yes |
| Power consumption | ≤ 1.5 W |
| Minimum transmit power (TX Min.) | -9 dBm |
| Maximum transmit power (TX Max.) | -3 dBm |
| Receive sensitivity (OMA) | < -20 dBm |
| Optical power overload | -3 dBm |
| Operating temperature | 0 to 70 °C |
| Storage temperature | -40 to 85 °C |
| Operating humidity | 5% to 95% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm |
| Weight | 35 g |
| Installation | For a fiber link, GE-SFP-LX20-SM1310-BIDI will be used at one end and GE-SFP-LX20-SM1550-BIDI at the other end. |
