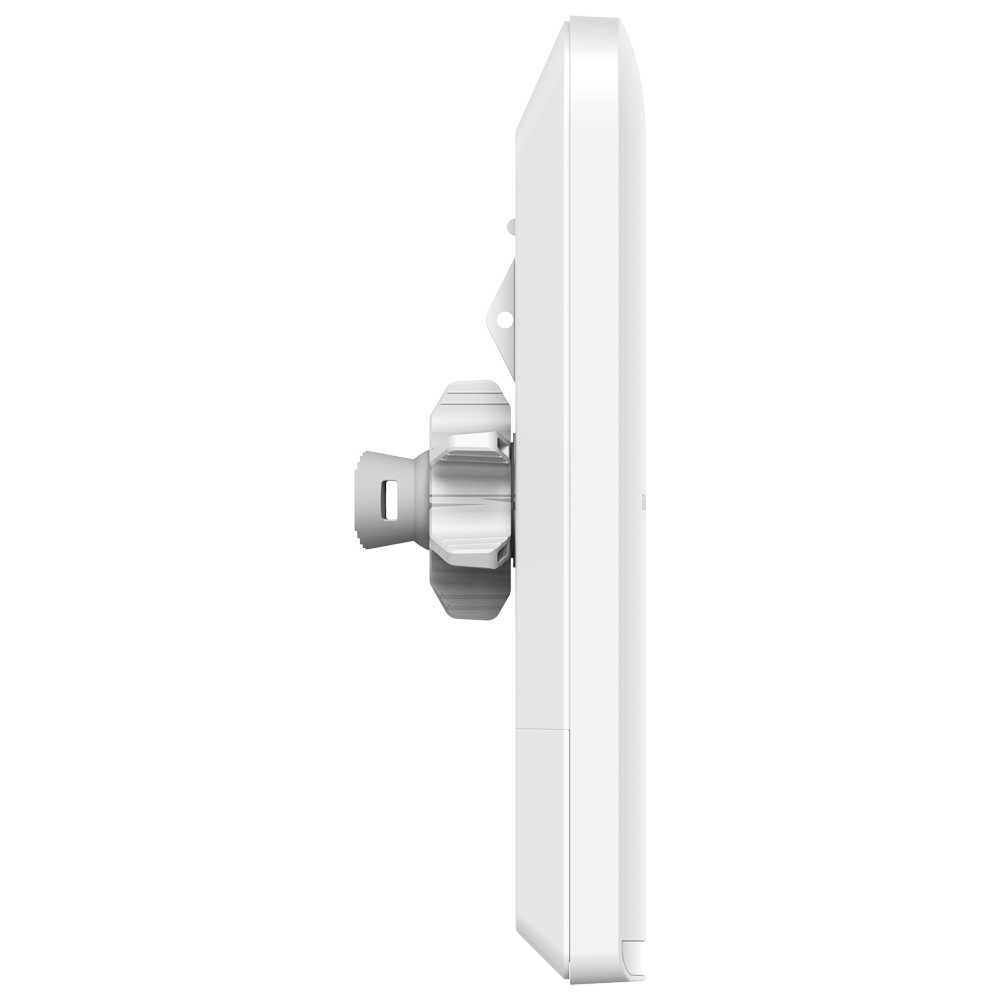

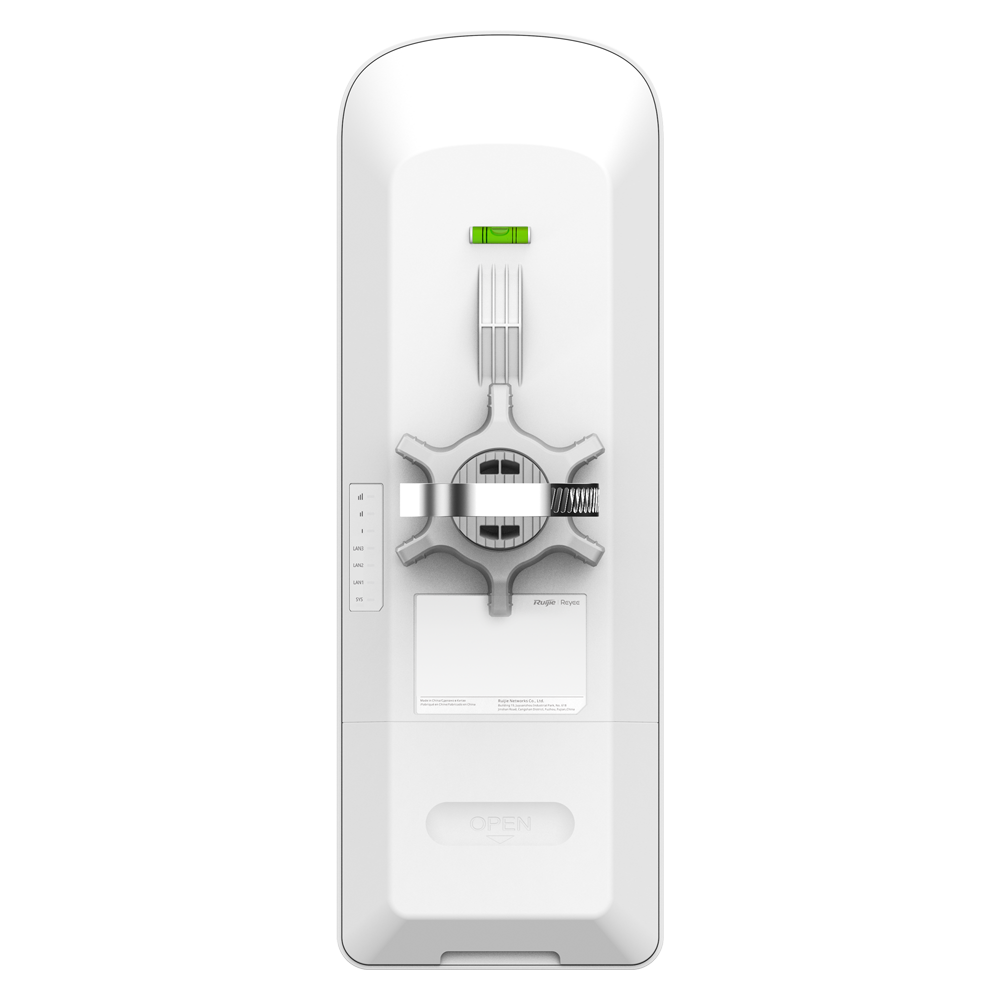

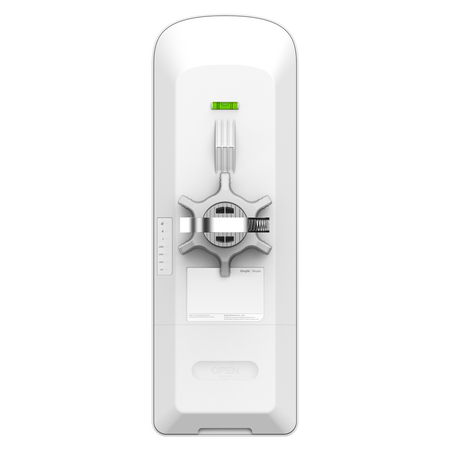

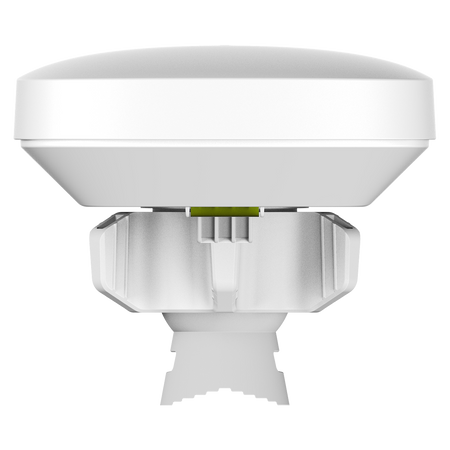

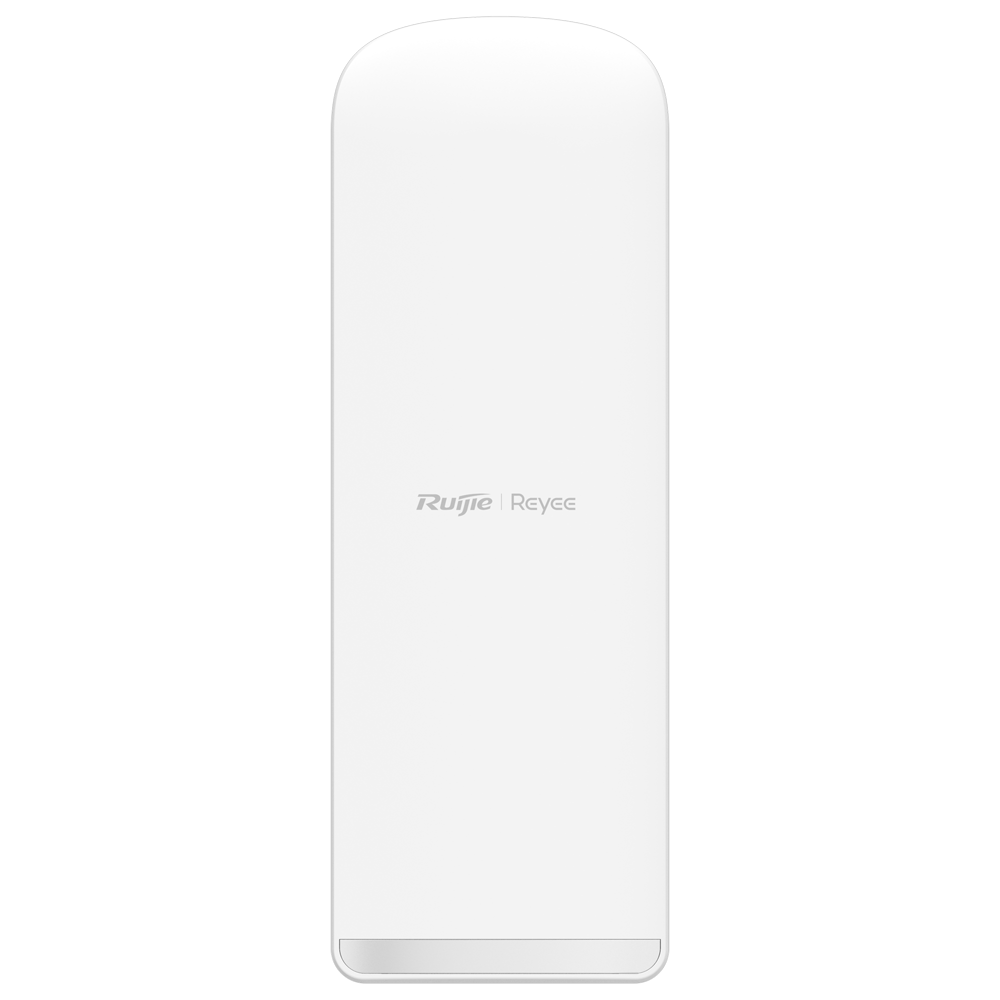

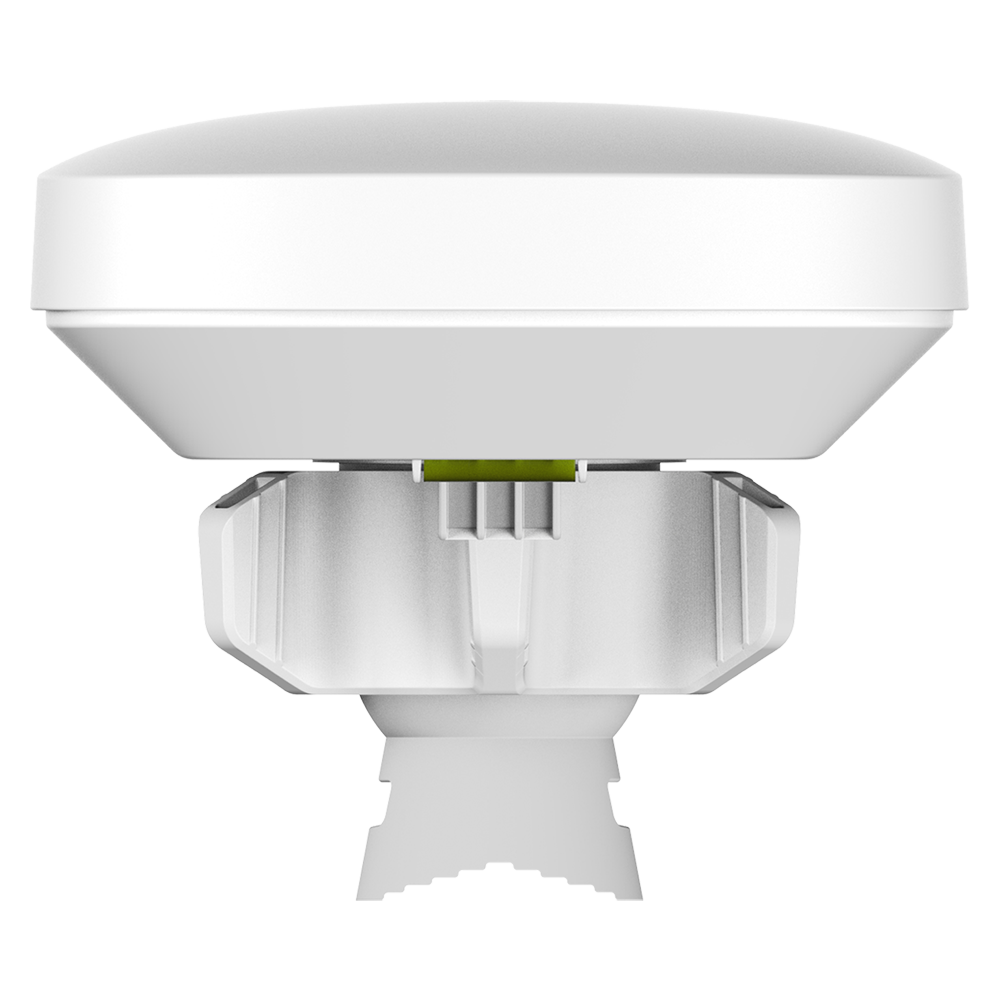

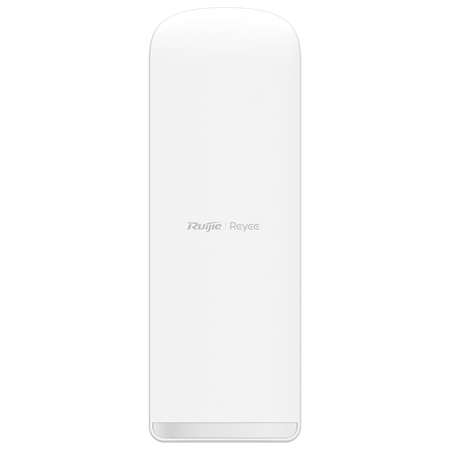

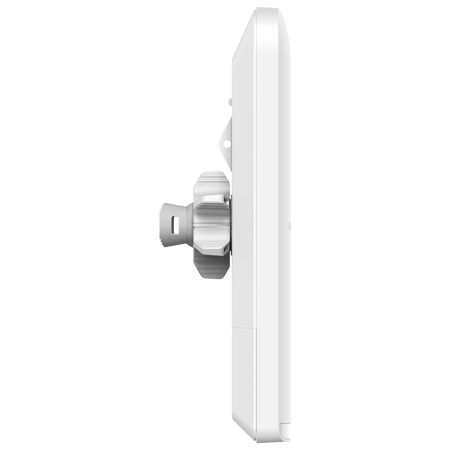

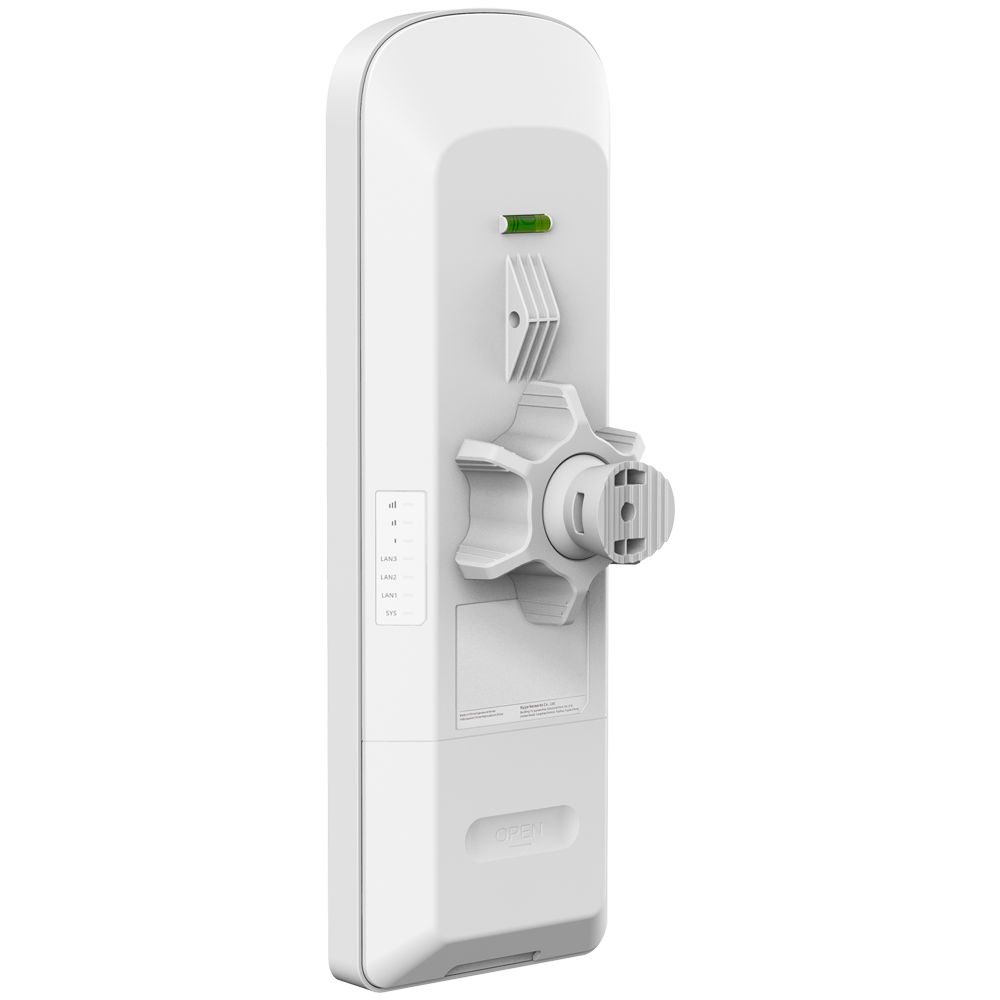

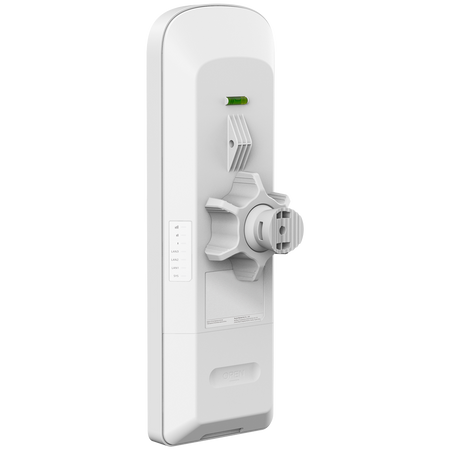

Reyee Wireless bridge up to 867Mbps - Wireless link up to 5 km - 4
Reyee Wireless bridge up to 867Mbps - Wireless link up to 5 km - 4
Regular price
€120,66
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Reyee Wireless bridge up to 867Mbps - Wireless connection up to 5 km - Frequency 5.15 GHz - 5.85 GHz - TDMA-based proprietary protocol - IP55, suitable for outdoor use - 1:16 base station (Up to 16 CPEs)
📋 SPECIFICATIONS:
• Brand: Reyee
• Wireless Standard: Proprietary Protocol
• Operating mode: Point-to-Point / Point-to-Multipoint (up to 16 CPEs)
• Frequencies: 5.15 GHz – 5.85 GHz and 2.412 GHz - 2.472 GHz (Management network)
• 5 GHz channel width: Auto/20/40/80 MHz
• 2.4 GHz channel width: Auto/20/40 MHz
• Distance: Up to 5 km under ideal conditions
• TDMA: Fixed Mode / Flexible Mode
• Maximum 2.4 GHz transmit power: 100 mW (20 dBm)
• Maximum 5 GHz transmit power: 400 mW (26 dBm)
• Integrated antenna: 15 dBi Dual directional

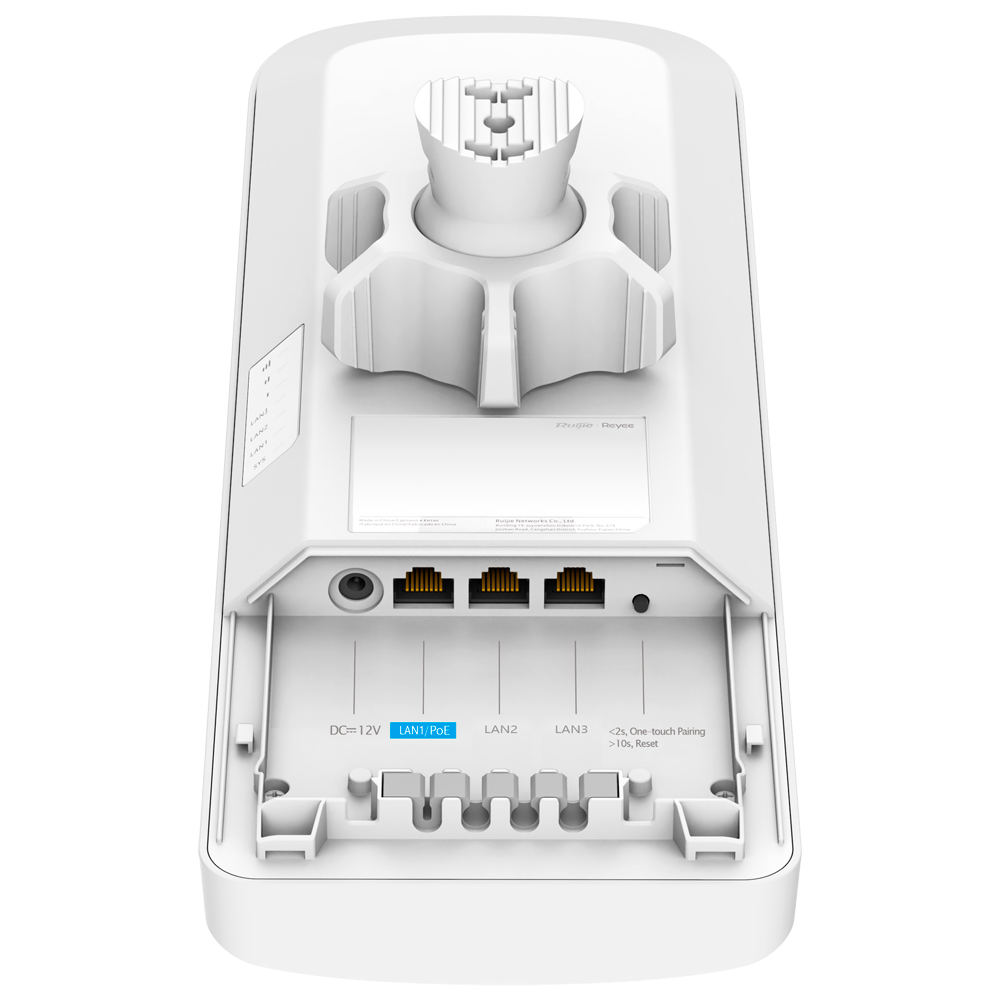

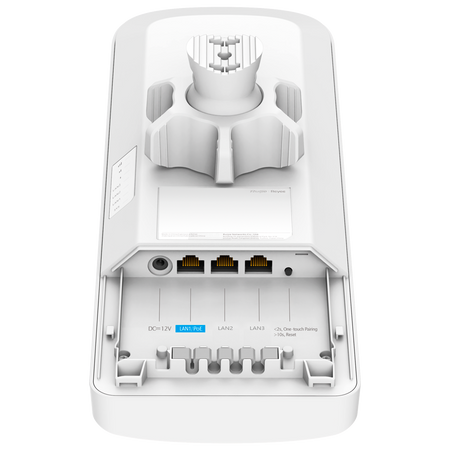

• Ports: 3 x 10/100/1000Base-T RJ45
• Management: Web interface configuration, one-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan and Link Optimisation, configuration via 2.4 GHz management radio
• Additional features: WPA2-PSK management security, internet access via management radio, hidden SSID, Spectrum Analysis, Alignment Tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, SNMP
• Power supply: 12 VDC and 24 VDC non-POE; PoE 802.3af/at
• Surge protection: Common mode: ±4 kV, Differential mode: ±2 kV
• Electrostatic Discharge Protection: Contact=8 kV, Air Discharge=15 kV
• Power consumption: < 12 W
• Operating temperature: -40 °C ~ 80 °C (When using the power adapter, the maximum operating temperature of the device and power adapter is 60º max)
• Dimensions: 355 × 124 × 48 mm (Without bracket)
• Weight: 830 g
📦 INCLUDED:
• RG-EST450G • Passive PoE Injector • DC power adapter • Installation kit • Instructions
| Wireless Standard | Proprietary Protocol |
|---|---|
| Operating mode | Point-to-Point / Point-to-Multipoint (up to 16 CPE) |
| Frequencies | 5.15 GHz – 5.85 GHz and 2.412 GHz – 2.472 GHz (Management network) |
| 5 GHz channel bandwidth | Auto/20/40/80 MHz |
| 2.4 GHz channel bandwidth | Auto/20/40 MHz |
| Distance | Up to 5 km in ideal conditions |
| TDMA | Fixed Mode / Flexible Mode |
| Maximum 2.4 GHz transmit power | 100 mW (20 dBm) |
| Maximum 5 GHz transmit power | 400 mW (26 dBm) |
| Integrated antenna | 15 dBi Dual directional |
| Ports | 3 x 10/100/1000Base-T RJ45 |
| Management | Web interface configuration, one-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan and Link Optimisation, configuration via 2.4 GHz management radio |
| Additional features | WPA2-PSK management security, internet access via management radio, hidden SSID, Spectrum Analysis, Alignment Tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, SNMP |
| Power supply | 12 VDC and 24 VDC non-POE PoE 802.3af/at |
| Surge protection | Common: ±4 kV Differential: ±2 kV |
| Electrostatic Discharge Protection | Contact=8 kV, Air Discharge=15 kV |
| Power consumption | < 12 W |
| Operating temperature | -40 °C ~ 80 °C (When using the power adapter, the maximum operating temperature of the device and power adapter is 60º max) |
| Dimensions | 355 × 124 × 48 mm (Without bracket) |
| Weight | 830 g |
- User manual Link
