Reyee wireless bridge up to 867Mbps - Wireless link up to 5 km - 3
Reyee wireless bridge up to 867Mbps - Wireless link up to 5 km - 3
Regular price
€220,06
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

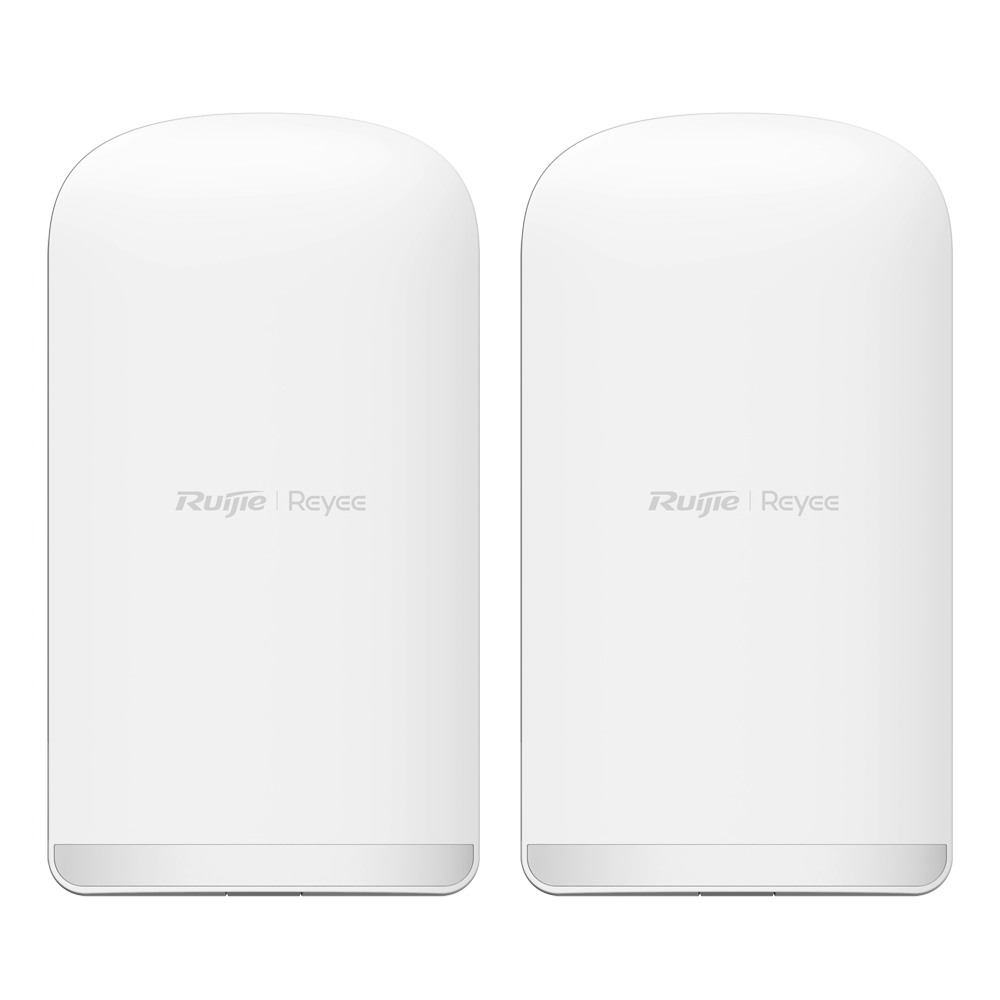

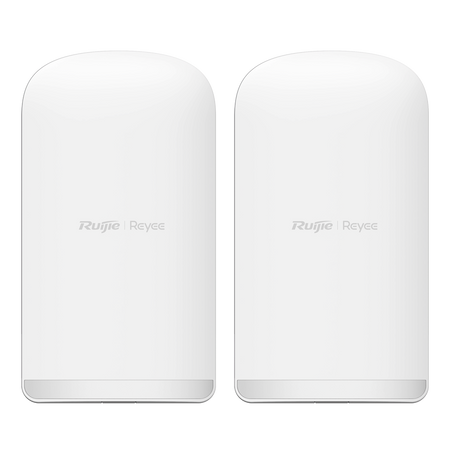

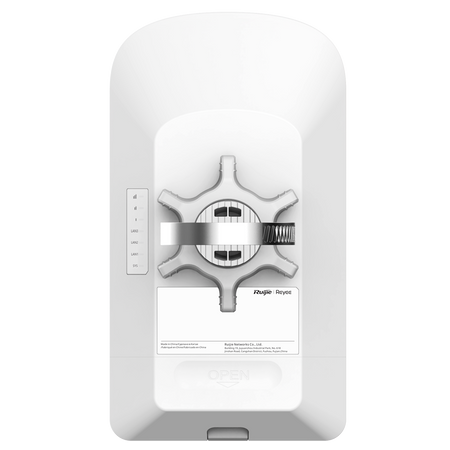

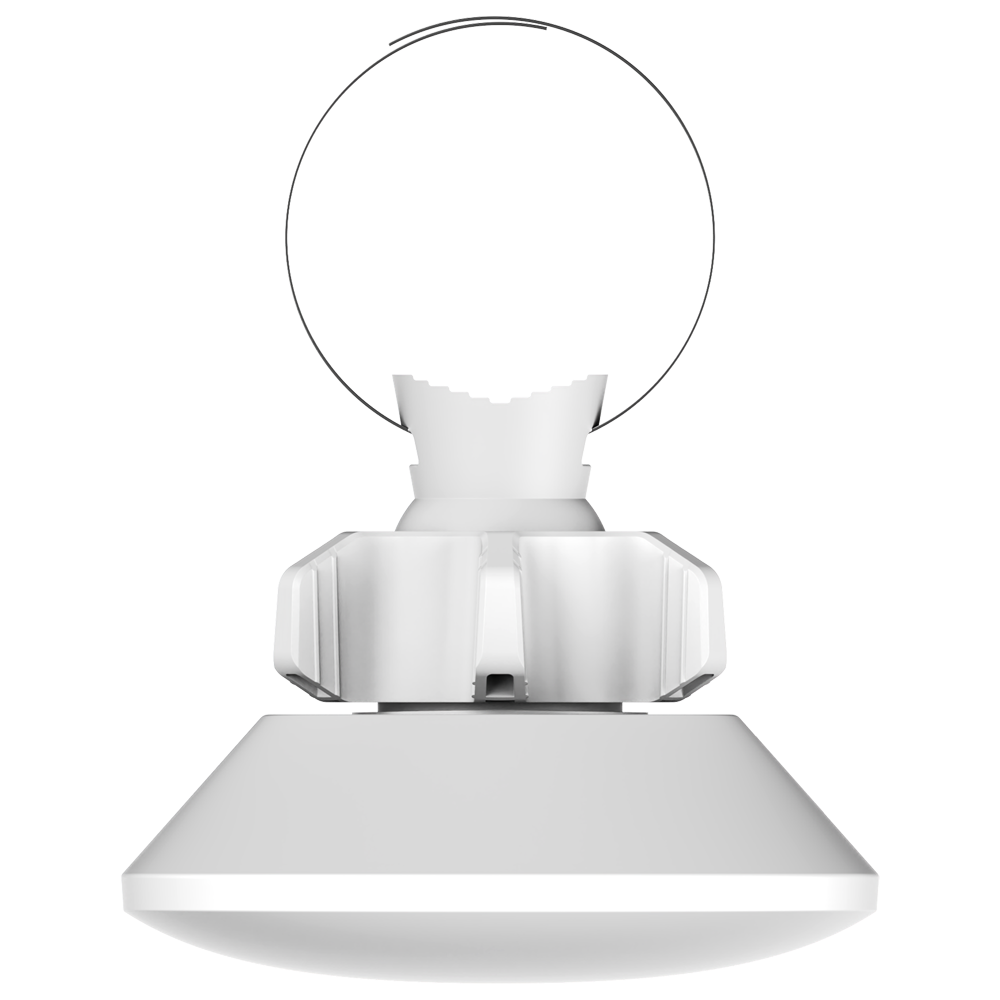

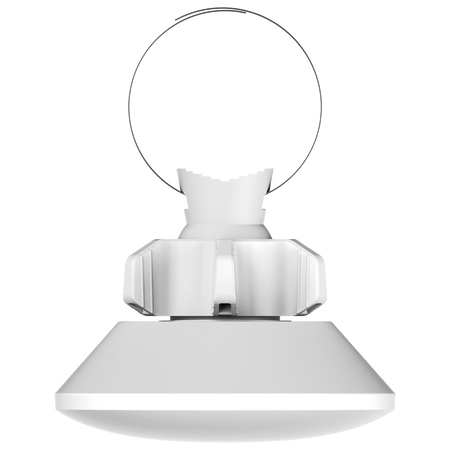

Reyee Wireless bridge up to 867Mbps - Wireless link up to 5 km - Frequency 5.15 GHz - 5.85 GHz - Proprietary protocol based on TDMA - IP55, suitable for outdoor use - 2 preconfigured units in point-to-point mode
📋 SPECIFICATIONS:
• Brand: Reyee
• Wireless Standard: Proprietary Protocol
• Operating modes: Point-to-Point / Point-to-Multipoint (up to 16 CPEs)
• Frequencies: 5.15GHz – 5.85 GHz and 2.412 GHz - 2.472 GHz (Management network)
• 5 GHz channel bandwidth: Auto/20/40/80 MHz
• 2.4 GHz channel bandwidth: Auto/20/40 MHz
• Distance: Up to 5 km under ideal conditions
• TDMA: Fixed mode / Flexible mode
• Maximum transmission power 2.4 GHz: 100 mW (20 dBm)
• Maximum transmission power 5 GHz: 400 mW (26 dBm)
• Integrated antenna: 16 dBi Dual direction; Horizontal polarization: 31º; Vertical polarization: 14º

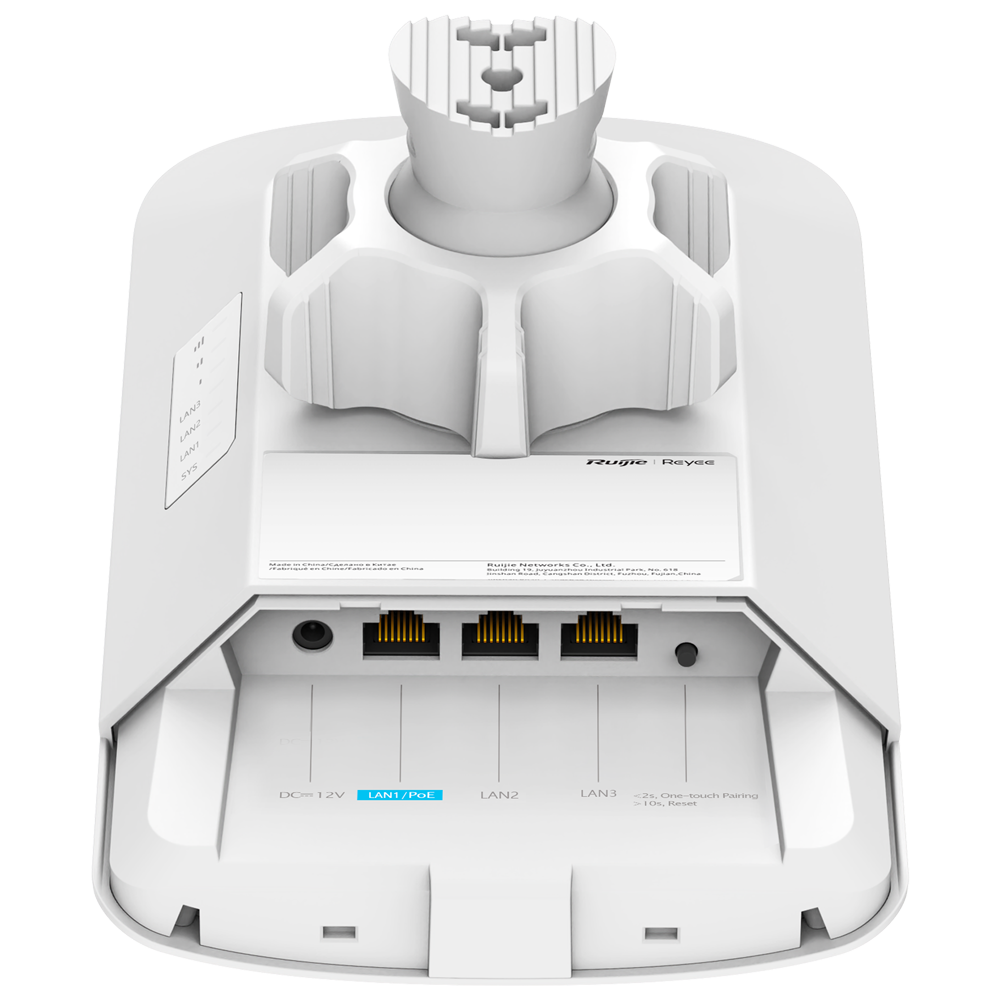

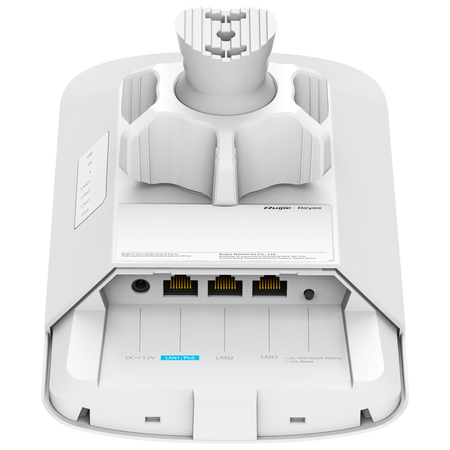

• Ports: 3 x 10/100/1000Base-T RJ45
• Management: Web interface configuration, one-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan and Link Optimisation, configuration via 2.4 GHz management radio
• Additional features: WPA2-PSK management security, internet access from management radio, hidden SSID, Spectrum Analysis, Alignment tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, SNMP
• Power supply: 12 VDC and 24 VDC non-POE; PoE 802.3af/at
• Surge protection: Common mode: ±4 kV; Differential mode: ±2 kV
• Electrostatic Discharge protection: Contact=8 kV, Air discharge=15 kV
• Power consumption: < 12 W
• Operating temperature: -40 °C ~ 80 °C (When using the power adapter, the maximum operating temperature of the device and power adapter is 60º max)
• Dimensions: 240 × 133 × 108 mm (Without bracket)
• Weight: 730 g
📦 INCLUDED:
• 2x RG-EST350G• 2x Passive PoE injectors• 2 x DC power adapters• 2 x Installation kits• Instructions
| Wireless Standard | Proprietary Protocol |
|---|---|
| Operating Mode | Point-to-Point / Point-to-Multipoint (up to 16 CPEs) |
| Frequencies | 5.15 GHz – 5.85 GHz and 2.412 GHz – 2.472 GHz (Management Network) |
| 5 GHz Channel Width | Auto/20/40/80 MHz |
| 2.4 GHz Channel Width | Auto/20/40 MHz |
| Distance | Up to 5 km under ideal conditions |
| TDMA | Fixed Mode / Flexible Mode |
| Maximum Transmit Power 2.4 GHz | 100 mW (20 dBm) |
| Maximum Transmit Power 5 GHz | 400 mW (26 dBm) |
| Integrated Antenna | 16 dBi Dual direction Horizontal Polarization: 31º Vertical Polarization: 14º |
| Ports | 3 x 10/100/1000Base-T RJ45 |
| Management | Web interface configuration, one-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan and Link Optimization, 2.4 GHz management radio configuration |
| Additional Features | WPA2-PSK management security, internet access from management radio, hidden SSID, Spectrum Analysis, Alignment Tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, SNMP |
| Power Supply | 12 VDC and 24 VDC non-PoE, PoE 802.3af/at |
| Surge Protection | Common: ±4 kV Differential: ±2 kV |
| ESD Protection | Contact=8 kV, Air Discharge=15 kV |
| Power Consumption | < 12 W |
| Operating Temperature | -40 °C ~ 80 °C (When using the power adapter, the maximum operating temperature of the device and the power adapter is 60º max) |
| Dimensions | 240 × 133 × 108 mm (Without bracket) |
| Weight | 730 g |
