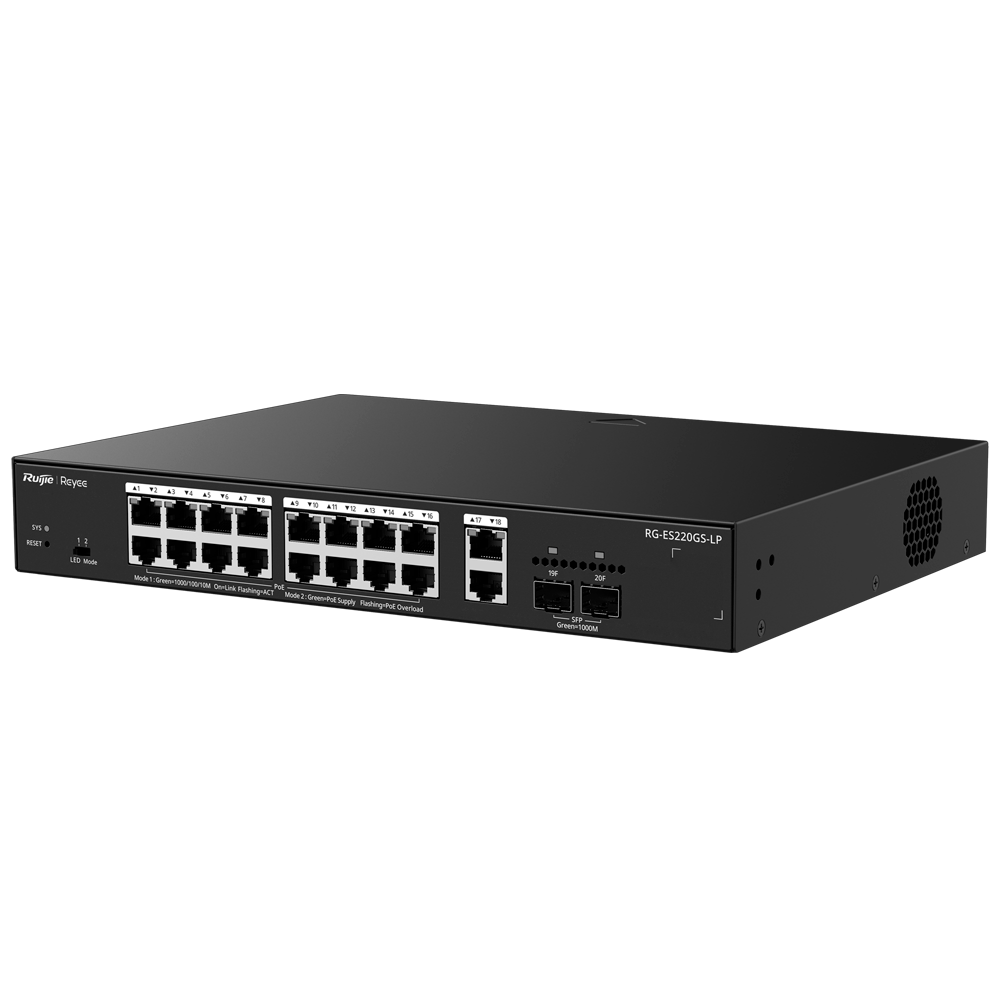

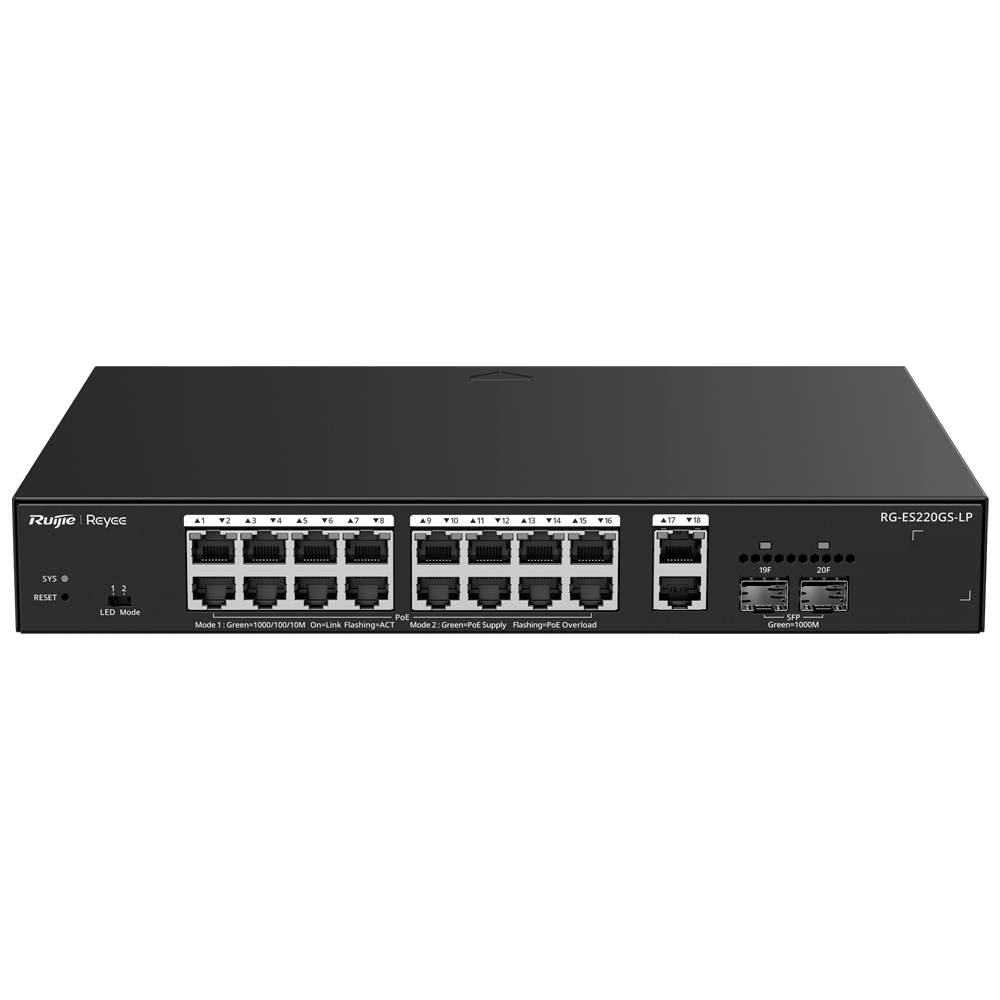

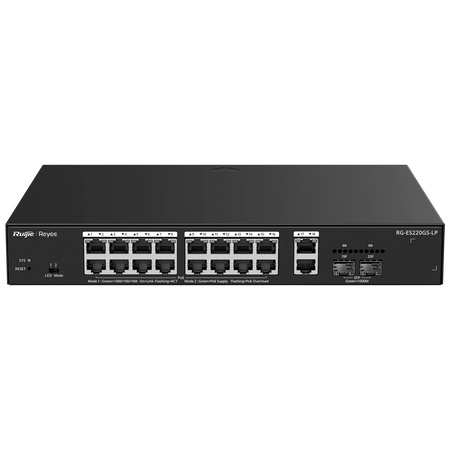

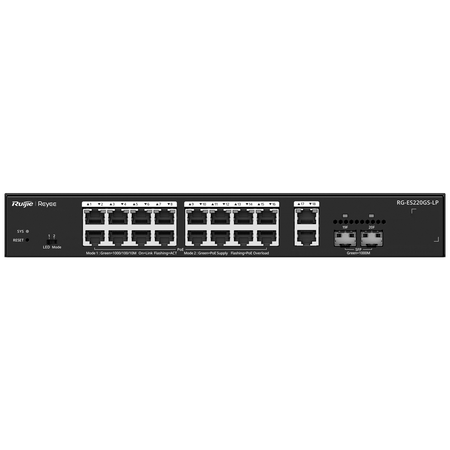

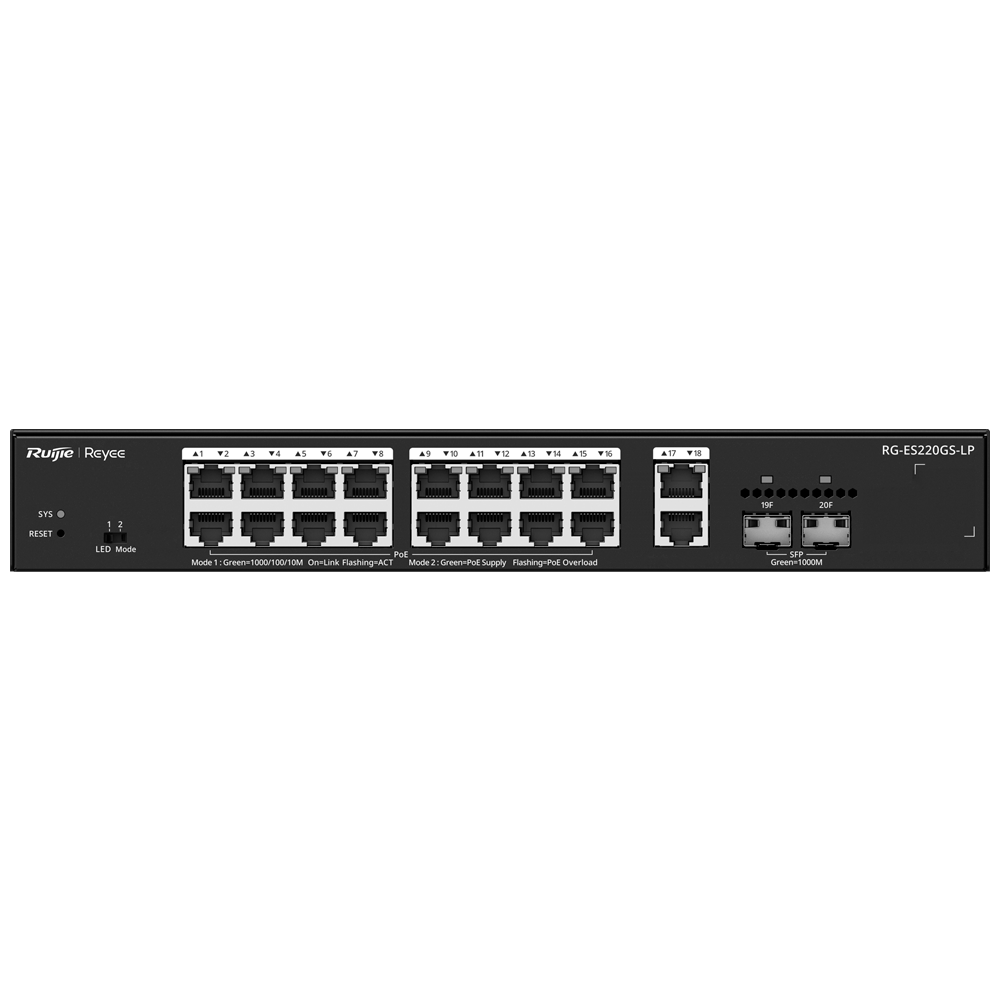

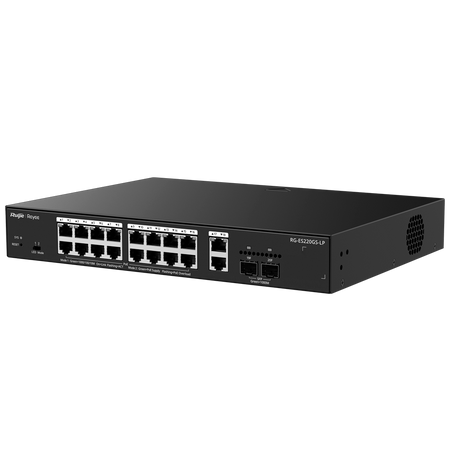

Ruijie Reyee Cloud Managed L2 Switch - 20 Total Ports (16 PoE+ / 2 Uplink / 2 SFP) - PoE Lite

Ruijie Reyee Cloud Managed L2 Switch - 20 Ports total (16 PoE+ / 2 Uplink / 2 SFP) - SFP fiber optic cables for long distances - Stable 30W PoE+ power / 130W total - PoE Watchdog system for automatic camera reboot - Free lifetime Ruijie Cloud management

📋 SPECIFICATIONS:
• Brand: Ruijie Reyee
• Network interfaces: 16 × 10/100/1000BASE-T PoE/PoE+ RJ45, 2 × 10/100/1000BASE-T Uplink RJ45, 2 × 1GE SFP (Uplink)
• PoE standard: IEEE 802.3af, IEEE 802.3at (PoE / PoE+)
• Total PoE budget: 130 W
• PoE power per port: Up to 30 W per port
• PoE power pins: 1–2 (+), 3–6 (-)
• Switching capacity: 40 Gbps
• Packet forwarding rate: 29.76 Mpps
• Flash memory: 8 MB
• MAC address table: 8000 entries (supports static configuration)
• Jumbo Frame size (MTU): 10000 bytes
• VLAN configuration: IEEE 802.1Q VLAN, LAN port assignment, Max. 16 VLANs
• Intelligent PoE functions: Integrated PoE Watchdog (automatic detection and reboot of frozen cameras)
• Intelligent network technology: SON (Self-Organizing Network for automatic deployment) and eWeb management
• Video and AI functions: IP Camera Recognition, Camera detection
• Recommended capacity for CCTV systems: Up to 80 200W (2MP) H.265 cameras or 40 400W (4MP) H.265 cameras
• Security and traffic control: Port isolation, Flow Control, ingress/egress rate limiting per interface
• Storm protection: Broadcast, Multicast, and unknown Unicast suppression
• Network maintenance: DHCP Client, DNS Client, Port Mirroring, Cable Test (wiring status check)
• System security: DHCP Snooping for secure environments, CPU Protection Policy
• Energy efficiency: IEEE 802.3az support (Energy Efficient Ethernet)
• Management platforms: Ruijie Cloud for life (Web/App), local eWeb (HTTP/HTTPS login), Ruijie Reyee App
• Housing material: Metal Casing
• Cooling system: Passive, Fanless design / Natural cooling
• Mounting options: Rack-mount (1U height) or Desk-mounted
• Cable support: Hot swapping (supported on service ports and power connector)
• Reliability (MTBF): 200,000 hours of continuous operation
• Electrostatic discharge (ESD) protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Surge protection: Service ports: ± 6 kV (common mode) / Power connector: ± 6 kV (common mode and differential mode)
• Power supply: Built-in AC power supply (Input: 100-240 V AC, 50/60 Hz, 3 A)
• Power consumption (without PoE): < 15 W (110 V) / < 14 W (220 V)
• Power consumption (full PoE): < 160 W (110 V) / < 157 W (220 V)
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × D × H): 300 mm x 223 mm x 43.6 mm
• Net weight: 2.10 kg

📦 INCLUDED:
• 1x RG-ES220GS-LP Smart Cloud Managed Switch
• 2x Metal rack-mount brackets (ears)
• 6x Screws for bracket attachment (M3 x 6 mm)
• 1x AC power cord (1.8 m) with retaining clip
• 4x Rubber feet for desk use
• 1x Quick start guide and user manual
• 1x Official manufacturer warranty certificate
