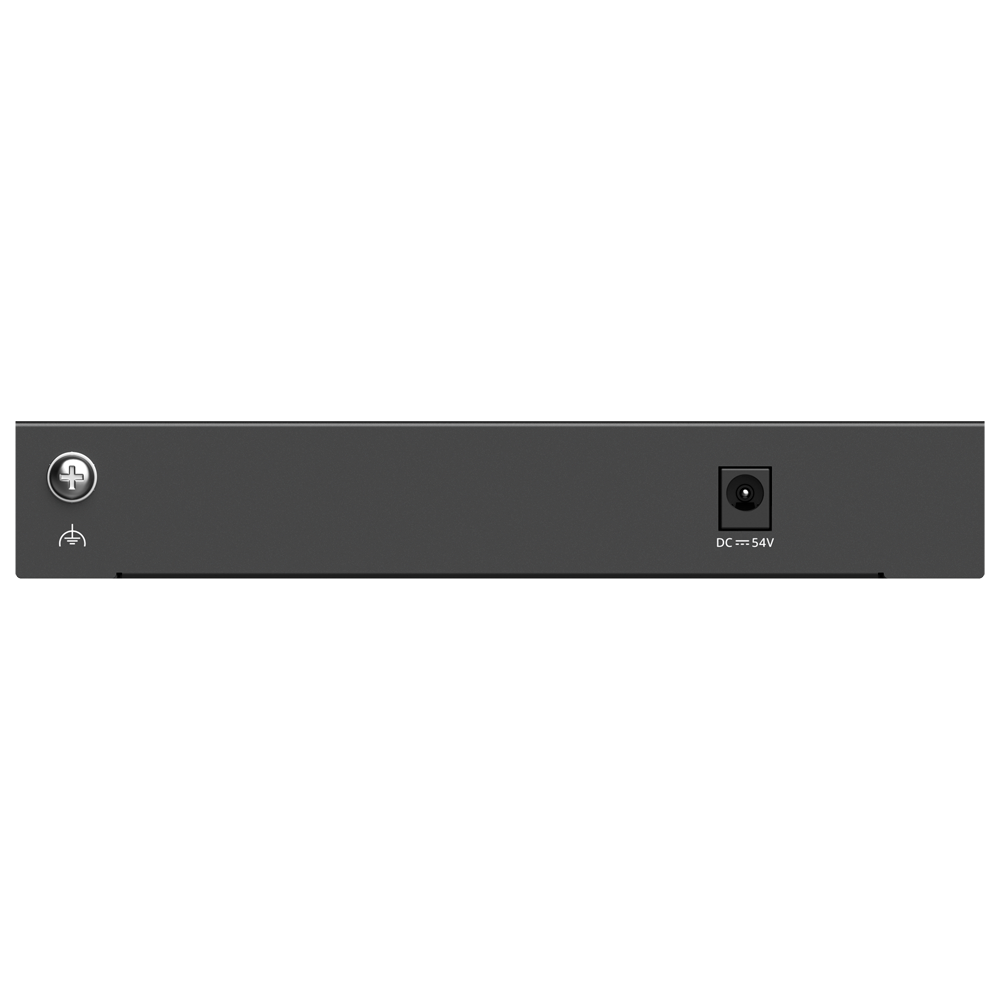

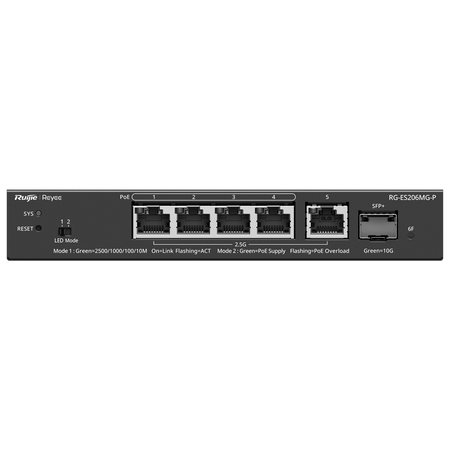

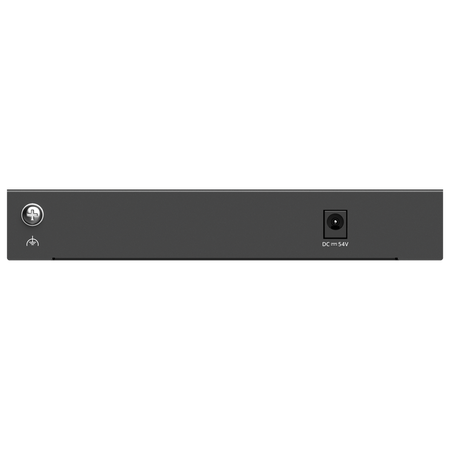

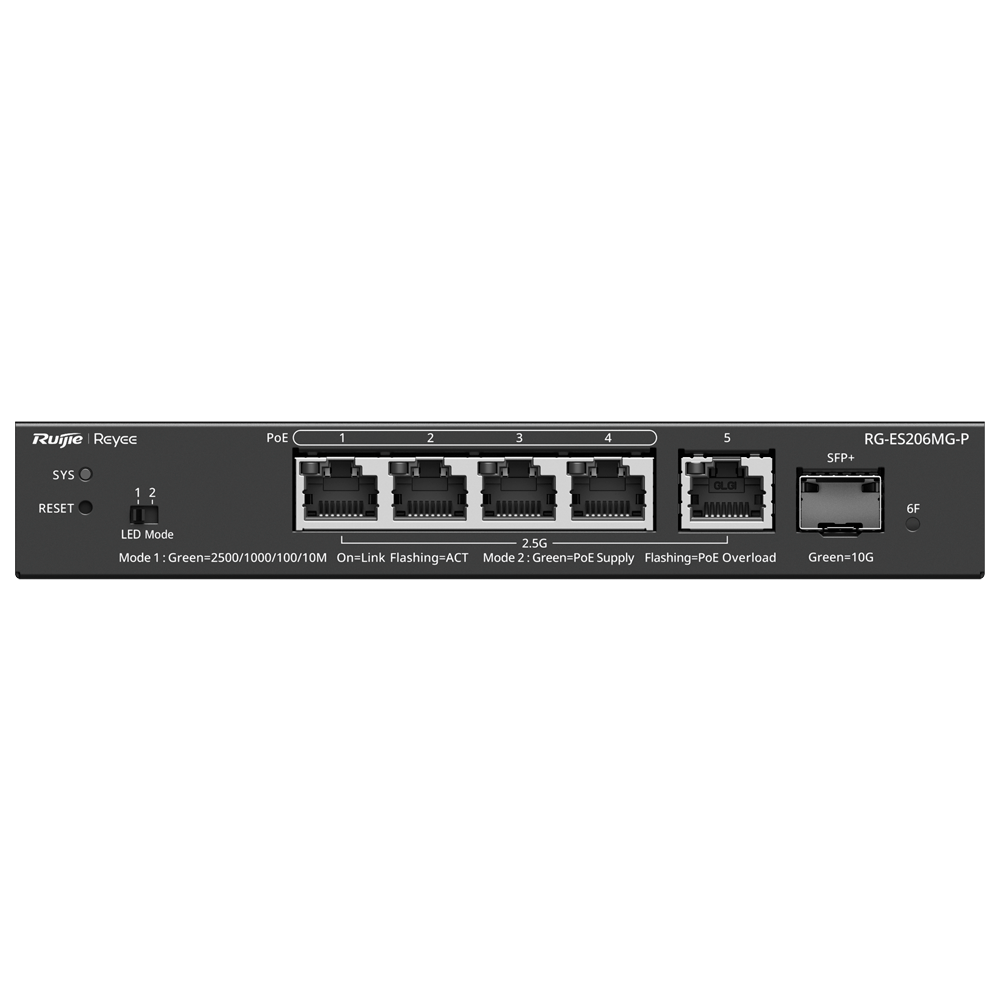

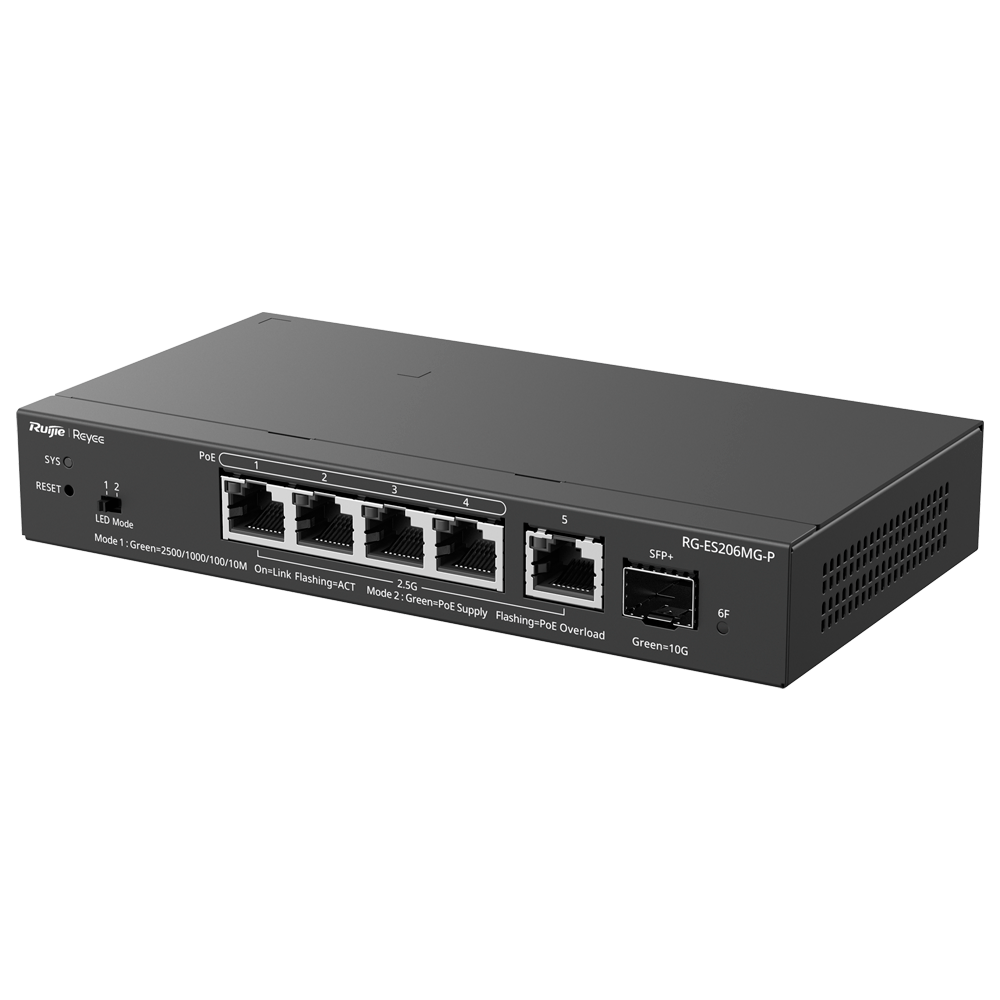

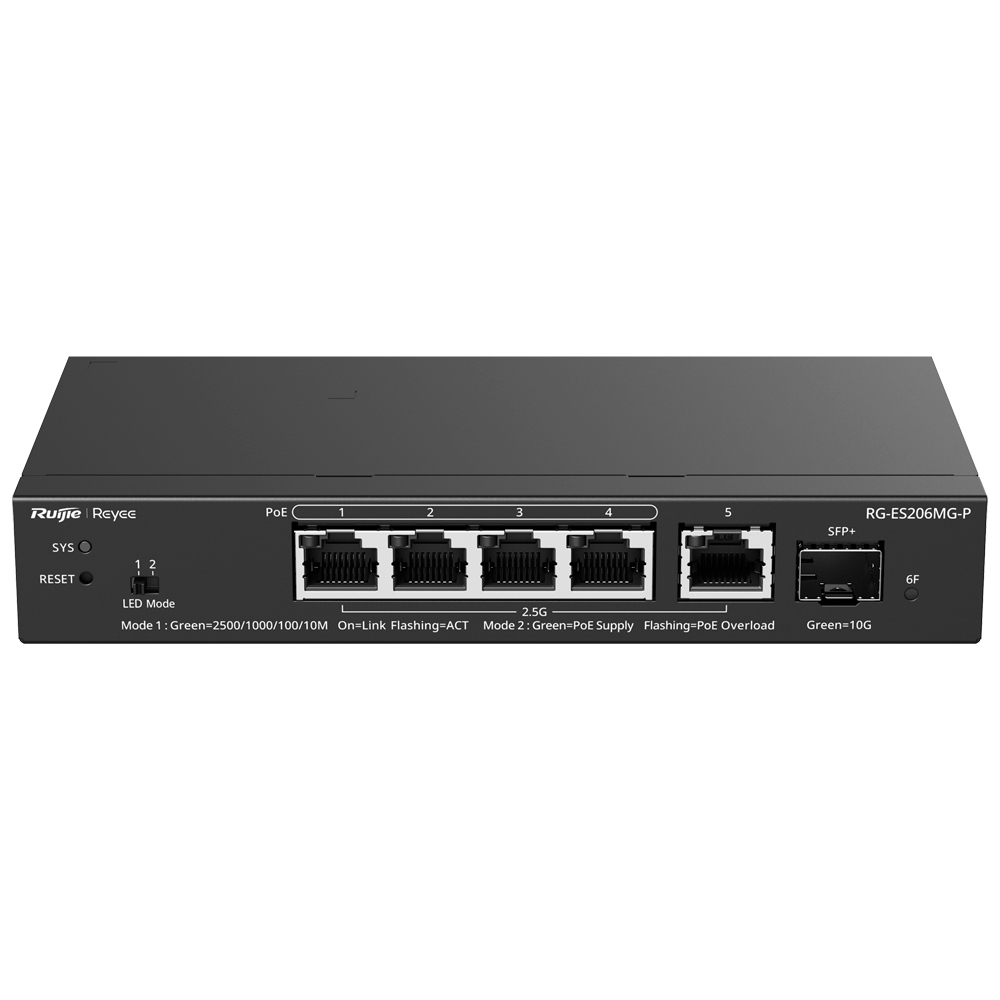

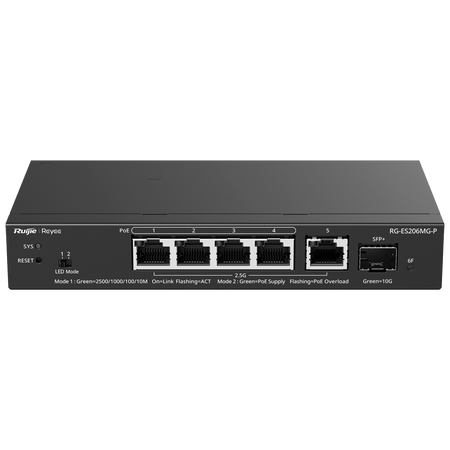

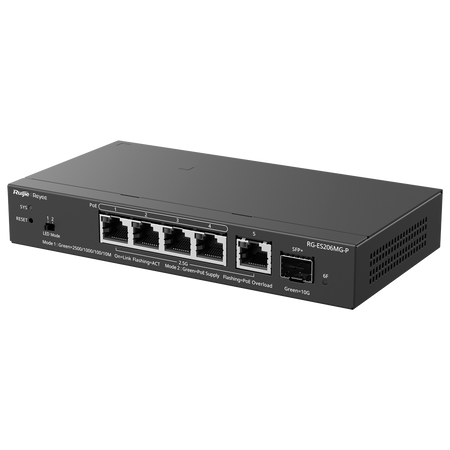

Ruijie Reyee Cloud Managed L2 Switch - 4 x 2.5G PoE/PoE+ Ports + 1 x 2.5G RJ45 Uplink

Ruijie Reyee Cloud Managed L2 Switch - 4 x 2.5G PoE/PoE+ Ports + 1 x 2.5G RJ45 Uplink - 1 x 10 Gbps SFP+ slot for optical fiber - 30W PoE+ power per port / 70W total - PoE Watchdog system for automatic camera reboot - Free Ruijie Cloud management for life

📋 SPECIFICATIONS:
• Brand: Ruijie Reyee
• Network interfaces: 4 × 10/100/1000/2500BASE-T PoE/PoE+ RJ45, 1 × 10/100/1000/2500BASE-T RJ45 (Uplink), 1 × 10GE SFP+ (Uplink)
• PoE Standard: IEEE 802.3af, IEEE 802.3at (PoE / PoE+)
• Total PoE Budget: 70 W
• PoE power per port: Up to 30 W per port
• PoE power pins: 1–2 (+), 3–6 (-)
• Switching capacity: 45 Gbps
• Packet forwarding rate: 33.75 Mpps
• Flash memory: 4 MB
• MAC address table: 4,000 entries (supports static configuration)
• Jumbo Frame size (MTU): 9216 bytes
• VLAN configuration: IEEE 802.1Q VLAN, LAN port assignment, Max. 16 VLANs
• Physical DIP switch: LED mode selector (Mode 1: Data transmission status / Mode 2: PoE status and overload monitoring)
• PoE intelligent functions: Built-in PoE Watchdog (automatic detection and reboot of frozen cameras)
• Intelligent network technology: SON (Self-Organizing Network for automatic deployment) and eWeb management
• Video and AI features: Automatic IP Camera Recognition, Camera discovery
• Recommended capacity for CCTV systems: Up to 70 H.265 200W (2MP) cameras or 35 H.265 400W (4MP) cameras
• Security and traffic control: Port isolation, Flow Control, Ingress/Egress rate limiting per interface, Static aggregation
• Storm protection: Broadcast, Multicast, and Unknown Unicast storm suppression
• Network maintenance: DHCP Client, DNS Client, Port Mirroring, Cable test (check cabling status)
• System security: DHCP Snooping for secure environments, CPU Protection Policy
• Energy efficiency: IEEE 802.3az support (Energy Efficient Ethernet)
• Management platforms: Ruijie Cloud forever (Web/App), local eWeb (HTTP login), Ruijie Reyee App
• Housing material: Metal Casing
• Cooling system: Passive, fanless design (Natural cooling)
• Mounting options: Wall-mounted or desk-mounted
• Cable support: Hot swapping (supported on service ports and power connector)
• Reliability (MTBF): 200,000 hours of continuous operation
• Electrostatic Discharge (ESD) protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Surge protection: Service ports: ± 4 kV (common mode) / Power connector: ± 4 kV (common mode and differential mode)
• Power supply: External DC adapter (Input: 100-240 V AC, 50/60 Hz, 1.5 A / Rated power: 54 V DC, 1.48 A)
• Power consumption (without PoE): Maximum 5.5 W
• Power consumption (full PoE): Maximum 75.5 W
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × D × H): 172 mm x 90.8 mm x 28 mm
• Net weight: 0.49 kg

📦 INCLUDED:
• 1x Smart Cloud Managed Switch RG-ES206MG-P• 1x DC Adapter (54 V / 1.48 A)• 1x AC Power Cord (1.8 m / 1.9 m)• 1x Quick Start Guide and User Manual• 1x Official Manufacturer Warranty Certificate
