Ruijie Reyee Cloud Managed L2 PoE Switch - 4 Gigabit PoE/PoE+ Ports + 1 GE Combo Link
Ruijie Reyee Cloud Managed L2 PoE Switch - 4 Gigabit PoE/PoE+ Ports + 1 GE Combo Link
Regular price
€96,40
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

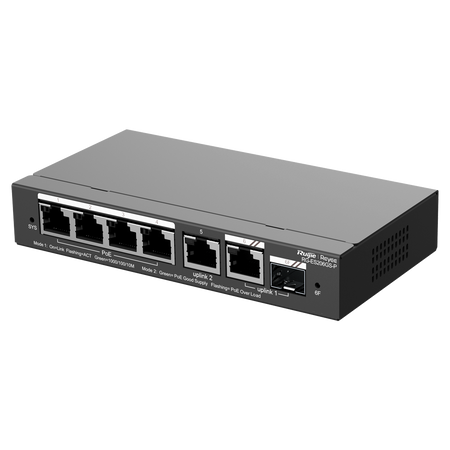

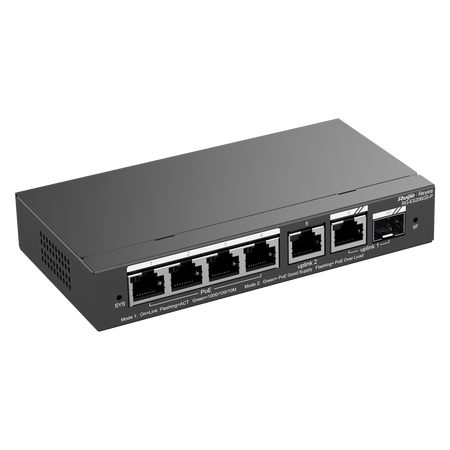

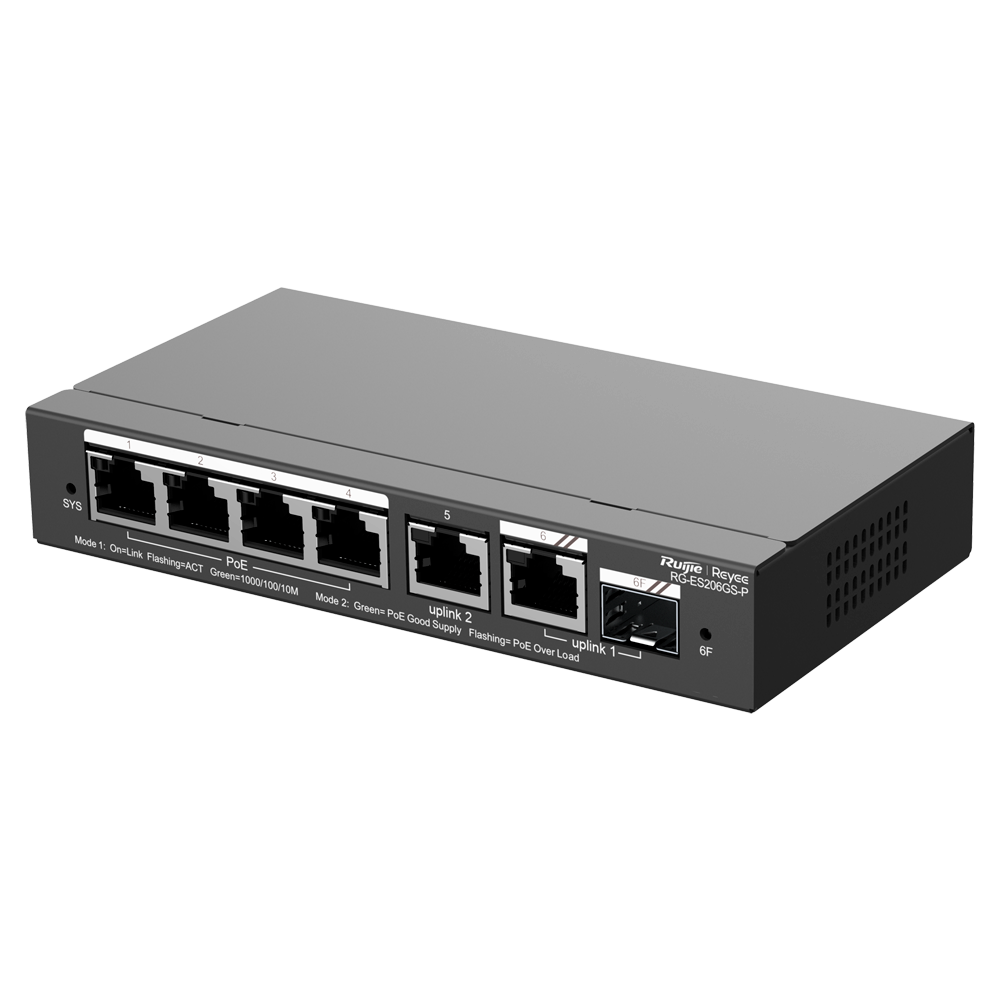

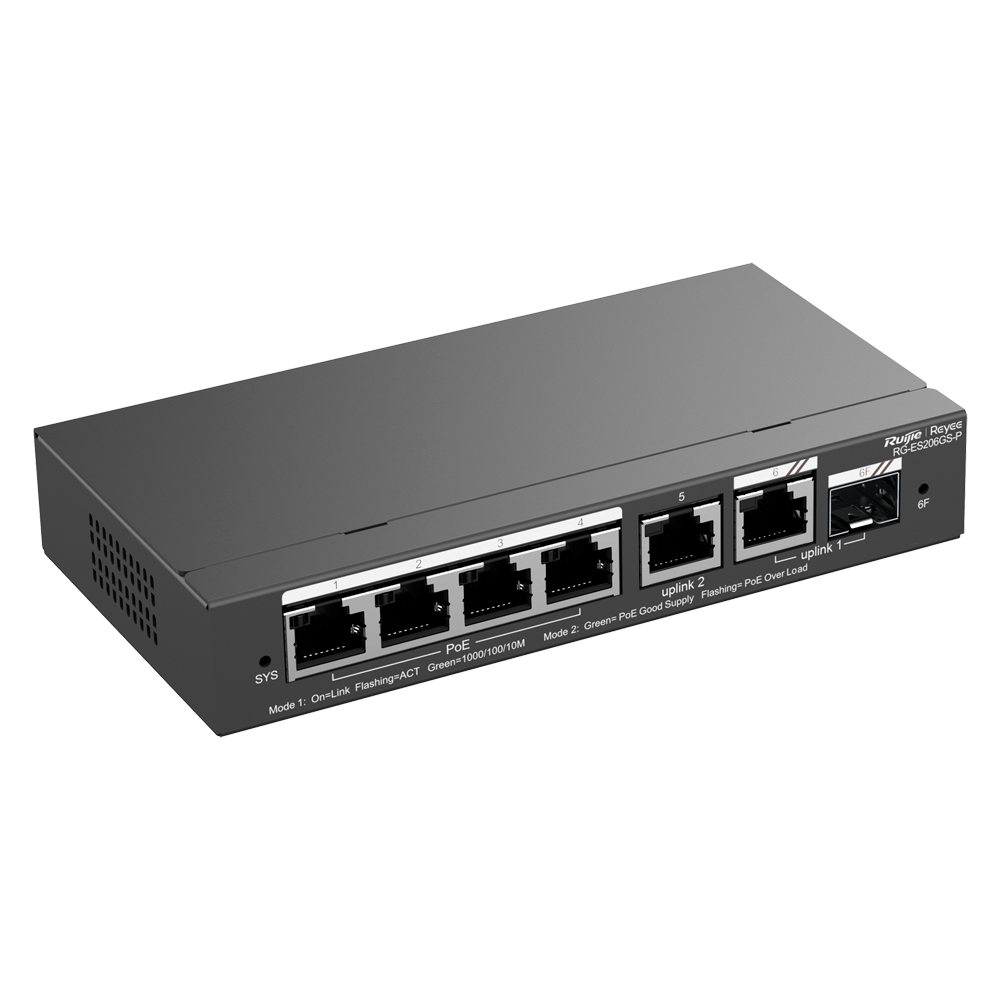

Ruijie Reyee Cloud Managed L2 PoE Switch - 4 Gigabit PoE/PoE+ ports + 1 GE combo uplink - Gigabit SFP slot for fiber optic connections - 30W PoE+ power per port / 54W total - PoE Watchdog system for automatic camera reboot - Free for life Ruijie Cloud management
📋 SPECIFICATIONS:
• Brand: Ruijie Reyee

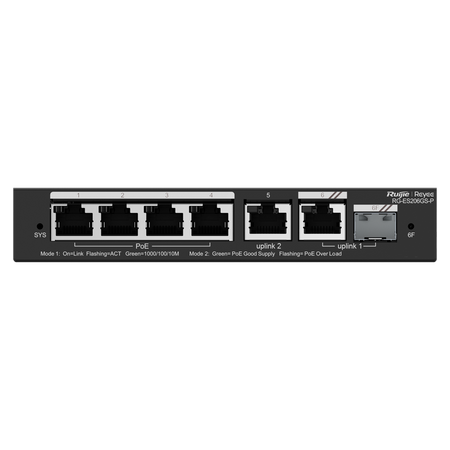

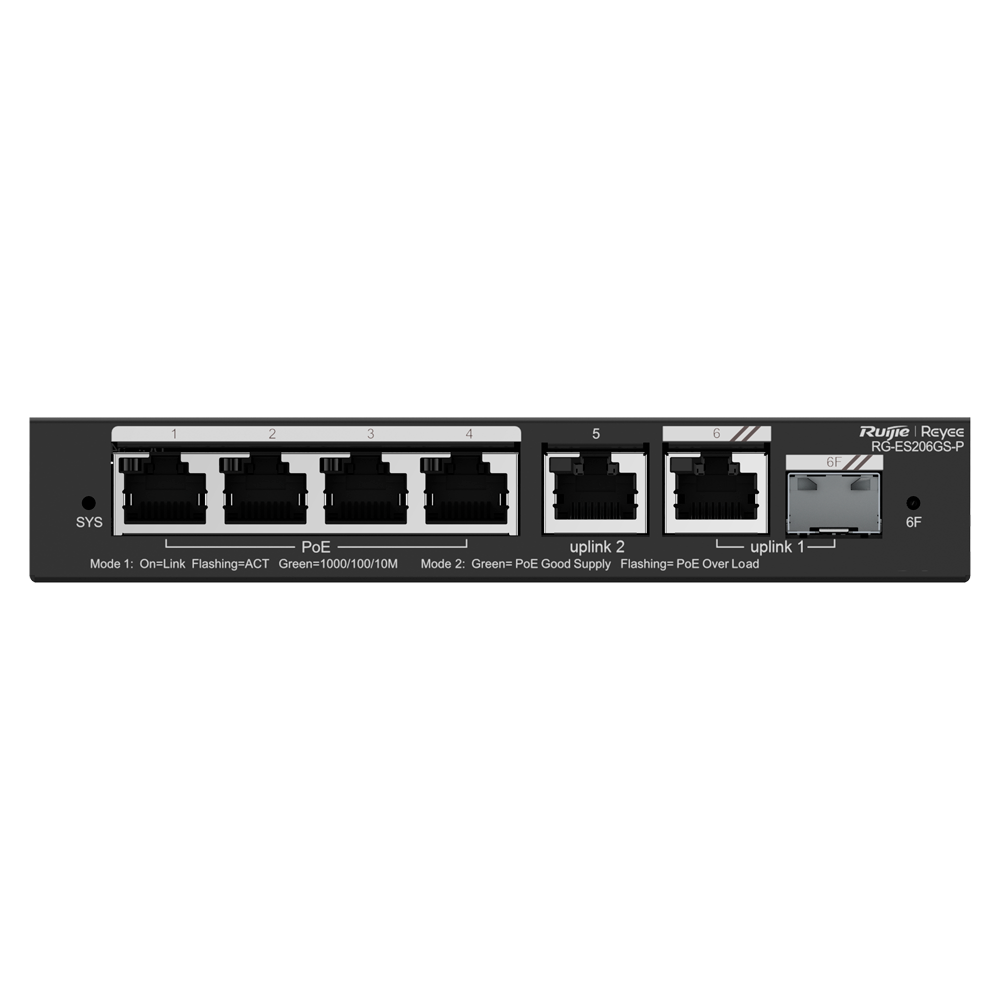

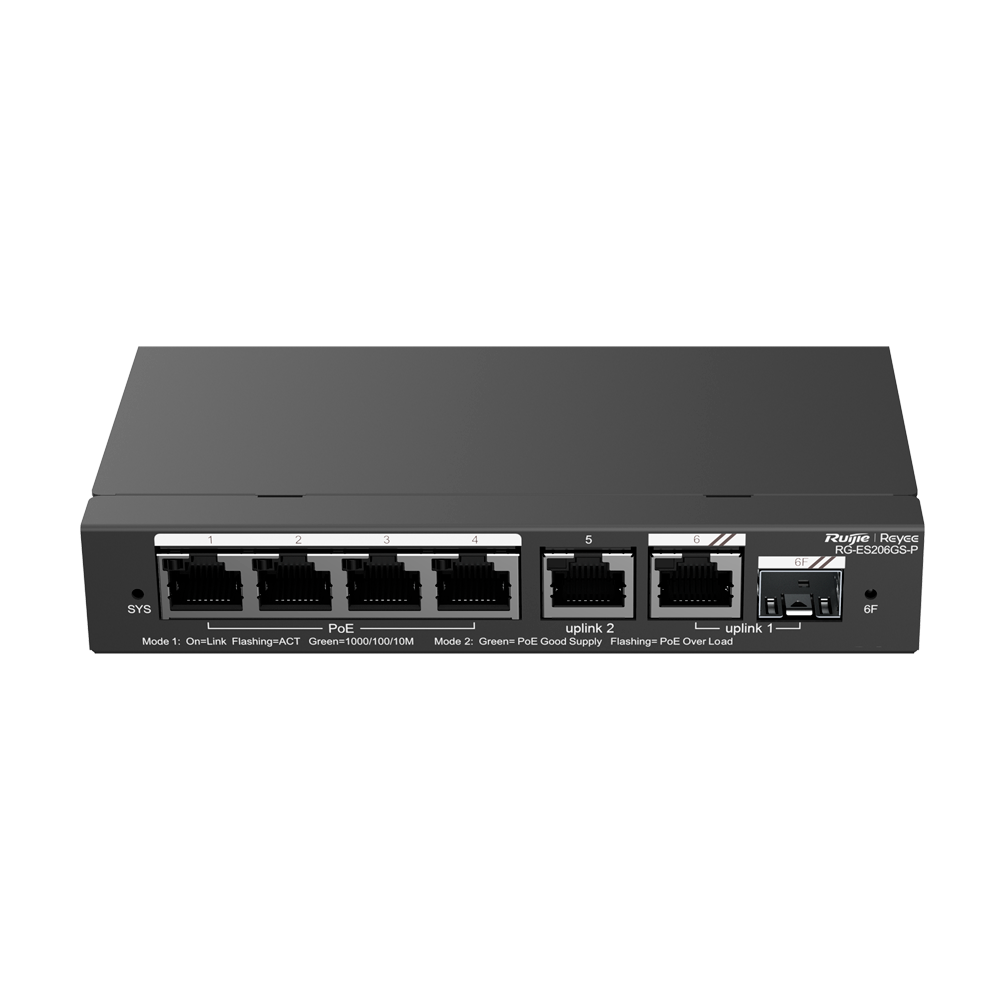

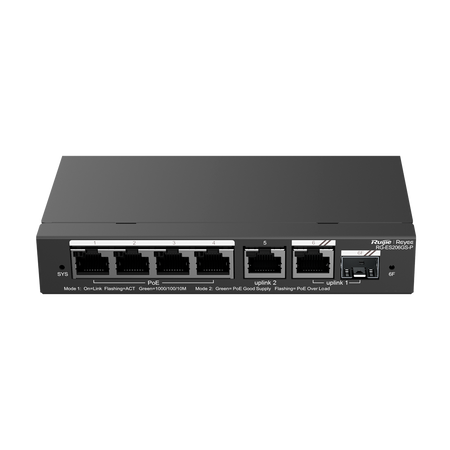

• Network interfaces: 4 × 10/100/1000BASE-T PoE/PoE+ RJ45, 1 × 10/100/1000BASE-T RJ45 (Uplink), 1 × 1GE SFP (Combo)
• PoE standards: IEEE 802.3af, IEEE 802.3at (PoE / PoE+)
• Total PoE budget: 54 W
• PoE power per port: Up to 30 W per port
• PoE power pins: 1–2 (+), 3–6 (-)
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.9 Mpps
• Flash memory: 4 MB
• MAC address table: 2000 entries (supports static configuration)
• Jumbo Frame size (MTU): 9216 bytes
• VLAN configuration: IEEE 802.1Q VLAN, LAN port assignment, Max. 16 VLANs

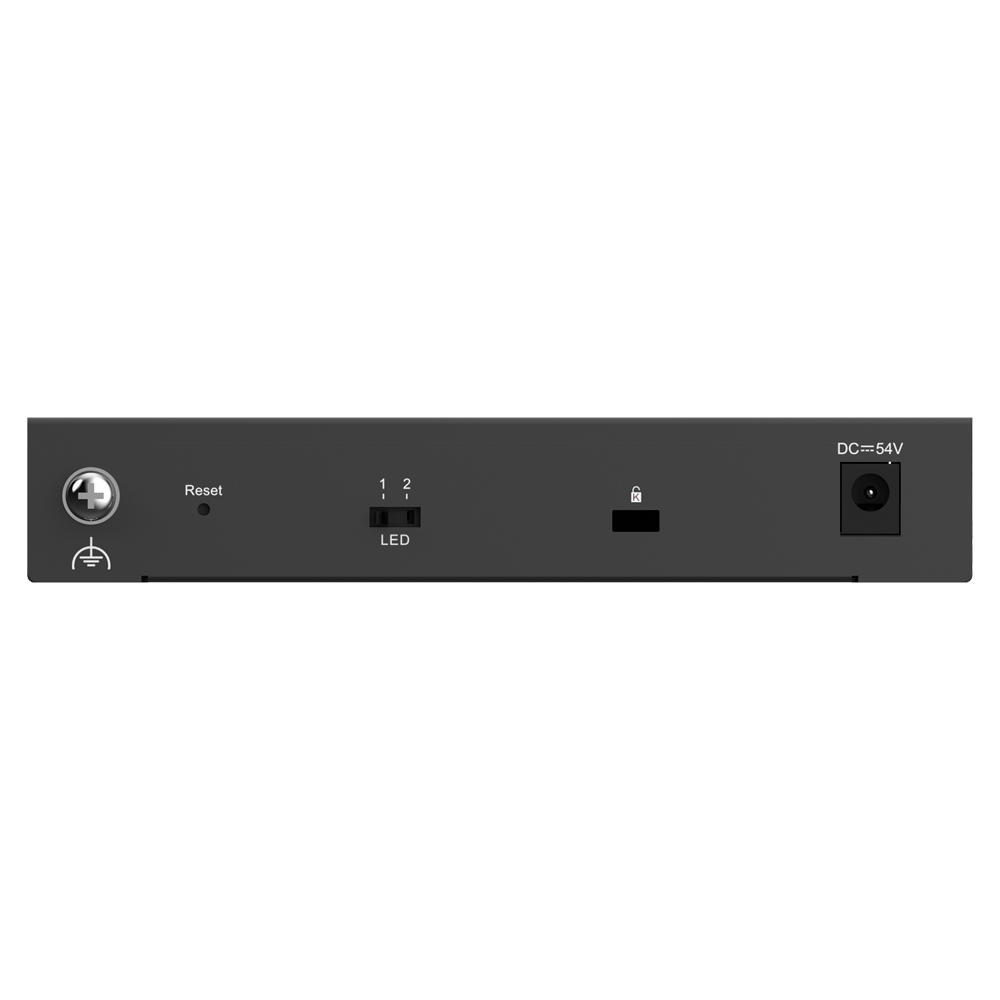

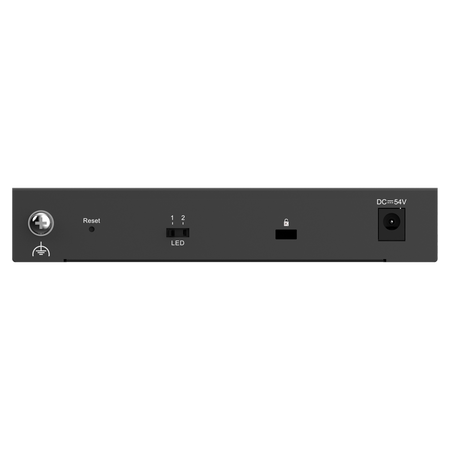

• Physical DIP switch: LED mode selector (Mode 1: Data transmission status / Mode 2: PoE status and overload monitoring)
• PoE smart functions: Integrated PoE Watchdog (automatic detection and reboot of frozen cameras)
• Smart networking technology: SON (Self-Organizing Network for automatic deployment) and eWeb management
• Video and AI features: Automatic IP Camera Recognition, Camera detection
• Recommended CCTV capacity: Up to 40 H.265 200W (2MP) cameras or 20 H.265 400W (4MP) cameras
• Security and traffic control: Port isolation, Flow Control, ingress/egress rate limiting per interface
• Storm protection: Broadcast, Multicast, and unknown Unicast suppression
• Network maintenance: DHCP Client, DNS Client, Port Mirroring, Cable Test (wiring status verification)
• System security: DHCP Snooping for secure environments, CPU Protection Policy
• Energy efficiency: Support for IEEE 802.3az (Energy Efficient Ethernet)
• Management platforms: Ruijie Cloud forever (Web/App), local eWeb (HTTP login), Ruijie Reyee App
• Housing material: Metal Casing
• Cooling system: Passive, Fanless design / Natural cooling
• Mounting options: Wall-mounted or Desk-mounted
• Cable support: Hot swapping (supported on service ports and power connector)
• Reliability (MTBF): 200,000 hours of continuous operation
• Electrostatic discharge (ESD) protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Surge protection: Service ports: ± 6 kV (common mode) / Power connector: ± 4 kV (common mode) and ± 2 kV (differential mode)
• Power supply: External DC adapter (Input: 100-240 V AC, 50/60 Hz, 1.5 A / Rated power: 54 V DC, 1.11 A)
• Power consumption: Max 6 W (no PoE load) / Max 60 W (full PoE load)
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × D × H): 148 mm x 78 mm x 26 mm
• Net weight: 0.31 kg
📦 INCLUDED:
• 1x Smart Cloud Managed Switch RG-ES206GS-P• 1x DC adapter (54 V / 1.11 A)• 1x Quick start guide and user manual• 1x Official manufacturer warranty certificate
| Network interfaces | 4 × 10/100/1000BASE-T PoE/PoE+ RJ45, 1 × 10/100/1000BASE-T RJ45 (Uplink), 1 × 1GE SFP (Combo) |
|---|---|
| PoE standards | IEEE 802.3af, IEEE 802.3at (PoE / PoE+) |
| Total PoE budget | 54 W |
| PoE power per port | Up to 30 W per port |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Switching capacity | 12 Gbps |
| Packet forwarding rate | 8.9 Mpps |
| Flash memory | 4 MB |
| MAC address table | 2000 entries (supports static configuration) |
| Jumbo Frame size (MTU) | 9216 bytes |
| VLAN configuration | IEEE 802.1Q VLAN, LAN port assignment, Max. 16 VLANs |
| Physical DIP switch | LED mode selector (Mode 1: Data transmission status / Mode 2: PoE status and overload monitoring) |
| Intelligent PoE functions | Built-in PoE Watchdog (automatic detection and reboot of frozen cameras) |
| Intelligent network technology | SON (Self-Organizing Network for automatic deployment) and eWeb management |
| Video and AI functions | IP Camera Recognition, camera detection |
| Recommended capacity for CCTV systems | Up to 40 200W (2MP) H.265 cameras or 20 400W (4MP) H.265 cameras |
| Security and traffic control | Port isolation, Flow Control, ingress/egress rate limiting per interface |
| Storm protection | Broadcast, Multicast, and Unknown Unicast suppression |
| Network maintenance | DHCP Client, DNS Client, Port Mirroring, cable testing (cabling status verification) |
| System security | DHCP Snooping for secure environments, CPU Protection Policy |
| Energy efficiency | Supports IEEE 802.3az (Energy Efficient Ethernet) |
| Management platforms | Ruijie Cloud forever (Web/App), eWeb local (HTTP login), Ruijie Reyee App |
| Housing material | Metal casing |
| Cooling system | Passive, fanless design (natural cooling) |
| Mounting options | Wall-mounted or desk-mounted |
| Cable support | Hot swapping (supported on service ports and power connector) |
| Reliability (MTBF) | 200,000 hours of continuous operation |
| Electrostatic discharge (ESD) protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge protection | Service ports: ± 6 kV (common mode) / Power connector: ± 4 kV (common mode) and ± 2 kV (differential mode) |
| Power supply | External DC adapter (Input: 100-240 V AC, 50/60 Hz, 1.5 A / Rated power: 54 V DC, 1.11 A) |
| Power consumption | Maximum 6 W (without PoE load) / Maximum 60 W (at full PoE load) |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × D × H) | 148 mm x 78 mm x 26 mm |
| Net weight | 0.31 kg |
- User manual Link
