Ruijie Reyee Cloud Managed L2 Switch - 5-Port High-Speed Gigabit Ethernet RJ45
Ruijie Reyee Cloud Managed L2 Switch - 5-Port High-Speed Gigabit Ethernet RJ45
Regular price
€39,26
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Reyee Cloud Managed L2 Switch - 5 High-speed Gigabit Ethernet RJ45 Ports - Intelligent IP Camera (CCTV) recognition - Automatic loop prevention - Forever free Ruijie Cloud management - Ultra-compact fanless metal design
📋 SPECIFICATIONS:
• Brand: Ruijie Reyee

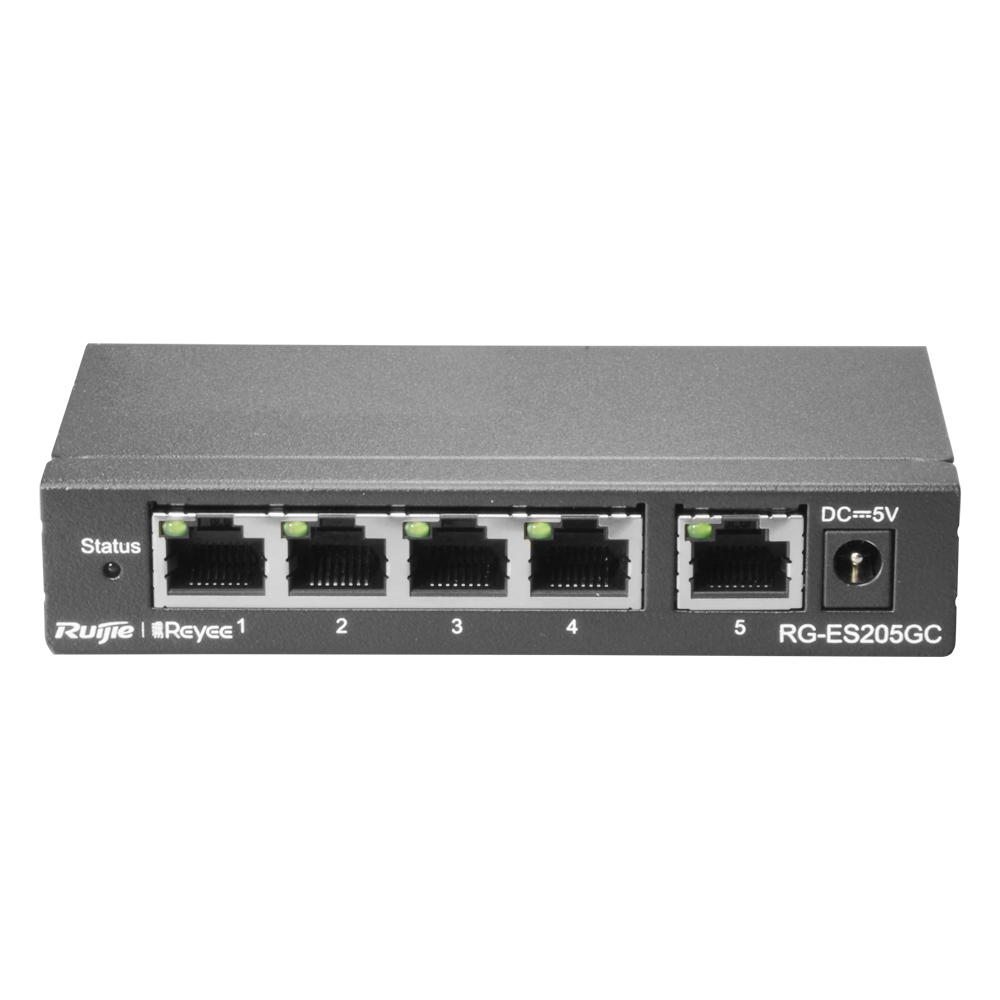

• Network interfaces: 5 × 10/100/1000BASE-T RJ45
• Switching capacity: 10 Gbps
• Packet forwarding rate: 7.4 Mpps
• Flash memory: 4 MB
• MAC address table: 2000 entries (supports static configuration)
• Jumbo Frame size (MTU): 9216 bytes
• VLAN configuration: IEEE 802.1Q VLAN, LAN port assignment, Max. 16 VLANs
• Intelligent network technology: SON (Self-Organizing Network for automated deployment) and eWeb management
• Video and AI functions: Automatic IP Camera recognition, Camera detection
• Recommended capacity for CCTV systems: Up to 40 200W (2MP) H.265 cameras or 20 400W (4MP) H.265 cameras
• Loop prevention: Automatic loop prevention (automatic detection and blocking to ensure service continuity)
• Security and traffic control: Port isolation, Flow Control, ingress/egress rate limiting per interface
• Storm protection: Suppression of unknown Broadcast, Multicast, and Unicast
• Network maintenance: DHCP Client, DNS Client, Port Mirroring, Cable test (cabling status verification)
• System security: DHCP Snooping for secure environments, CPU Protection Policy
• Energy efficiency: Supports IEEE 802.3az (Energy Efficient Ethernet)
• Management platforms: Forever free Ruijie Cloud (Web/App), local eWeb (HTTP login), Ruijie Reyee App
• Housing material: Metal Casing
• Cooling system: Passive, fanless design (natural cooling)
• Mounting options: Wall-mounted or desk-mounted
• Cable support: Hot swapping (supported on service ports and power connector)
• Reliability (MTBF): 200,000 hours of continuous operation
• Electrostatic discharge (ESD) protection: Air discharge: 4 kV / Contact discharge: 4 kV
• Surge protection: Service ports: ± 4 kV (common mode) / Power connector: ± 2 kV (common mode) and ± 1 kV (differential mode)
• Power supply: External DC adapter (Input: 100-240 V AC, 50/60 Hz, 0.3 A / Rated power: 5 V DC, 1 A)
• Power consumption: Maximum 5 W
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × D × H): 119 mm x 62 mm x 24 mm
• Net weight: 0.23 kg
📦 INCLUDED:
• 1x RG-ES205GC Smart Cloud Managed Switch• 1x DC Adapter (5 V / 1 A)• 1x Quick start guide and user manual• 1x Official manufacturer warranty certificate
| Network interfaces | 5 × 10/100/1000BASE-T RJ45 |
|---|---|
| Switching capacity | 10 Gbps |
| Packet forwarding rate | 7.4 Mpps |
| Flash memory | 4 MB |
| MAC address table | 2,000 entries (supports static configuration) |
| Jumbo Frame size (MTU) | 9216 bytes |
| VLAN configuration | IEEE 802.1Q VLAN, port-based VLAN assignment, max. 16 VLANs |
| Intelligent network technology | SON (Self-Organizing Network for automated deployment) and eWeb management |
| Video and AI functions | IP Camera Recognition, camera detection |
| Recommended capacity for CCTV systems | Up to 40 H.265 2MP cameras or 20 H.265 4MP cameras |
| Loop prevention | Automatic loop prevention (automatic detection and blocking to ensure service continuity) |
| Security and traffic control | Port isolation, flow control, ingress/egress rate limiting per interface |
| Storm control | Suppression of broadcast, multicast, and unknown unicast |
| Network maintenance | DHCP client, DNS client, port mirroring, cable testing |
| System security | DHCP snooping for secure environments, CPU protection policy |
| Energy efficiency | Supports IEEE 802.3az (Energy Efficient Ethernet) |
| Management platforms | Ruijie Cloud (Web/App), local eWeb (HTTP login), Ruijie Reyee App |
| Housing material | Metal casing |
| Cooling system | Passive, fanless design (natural cooling) |
| Mounting options | Wall-mounted or desk-mounted |
| Cable support | Hot swapping (supported on service ports and power connector) |
| Reliability (MTBF) | 200,000 hours of continuous operation |
| Electrostatic discharge (ESD) protection | Air discharge: 4 kV / Contact discharge: 4 kV |
| Surge protection | Service ports: ± 4 kV (common mode) / Power connector: ± 2 kV (common mode) and ± 1 kV (differential mode) |
| Power supply | External DC adapter (Input: 100-240 V AC, 50/60 Hz, 0.3 A / Rated power: 5 V DC, 1 A) |
| Power consumption | Maximum 5 W |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × D × H) | 119 mm x 62 mm x 24 mm |
| Net weight | 0.23 kg |
- User manual Link
