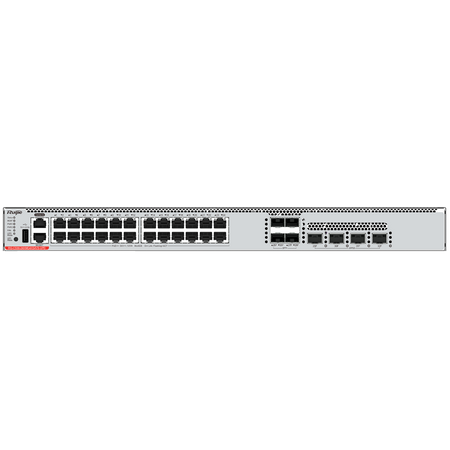

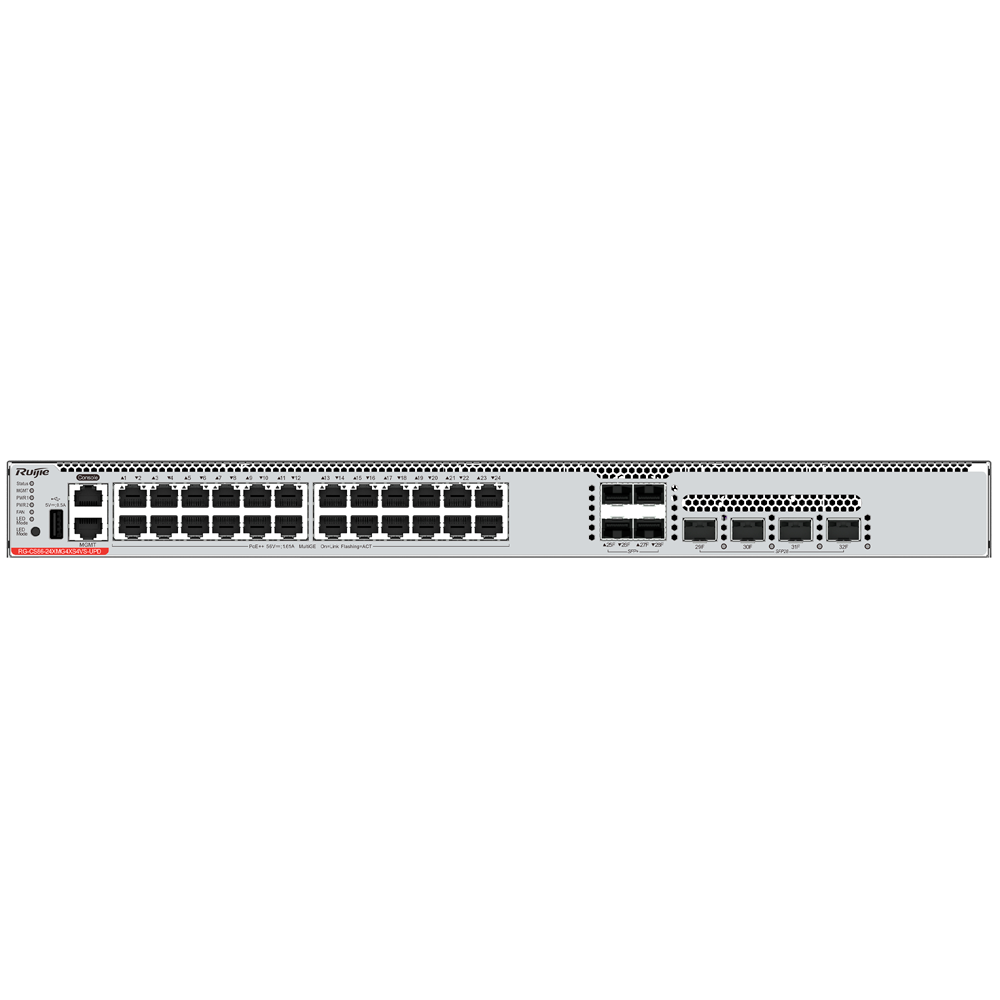

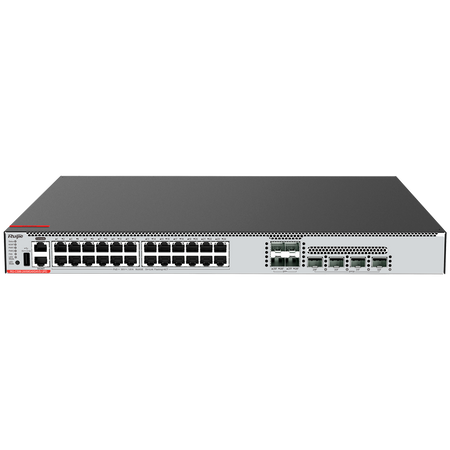

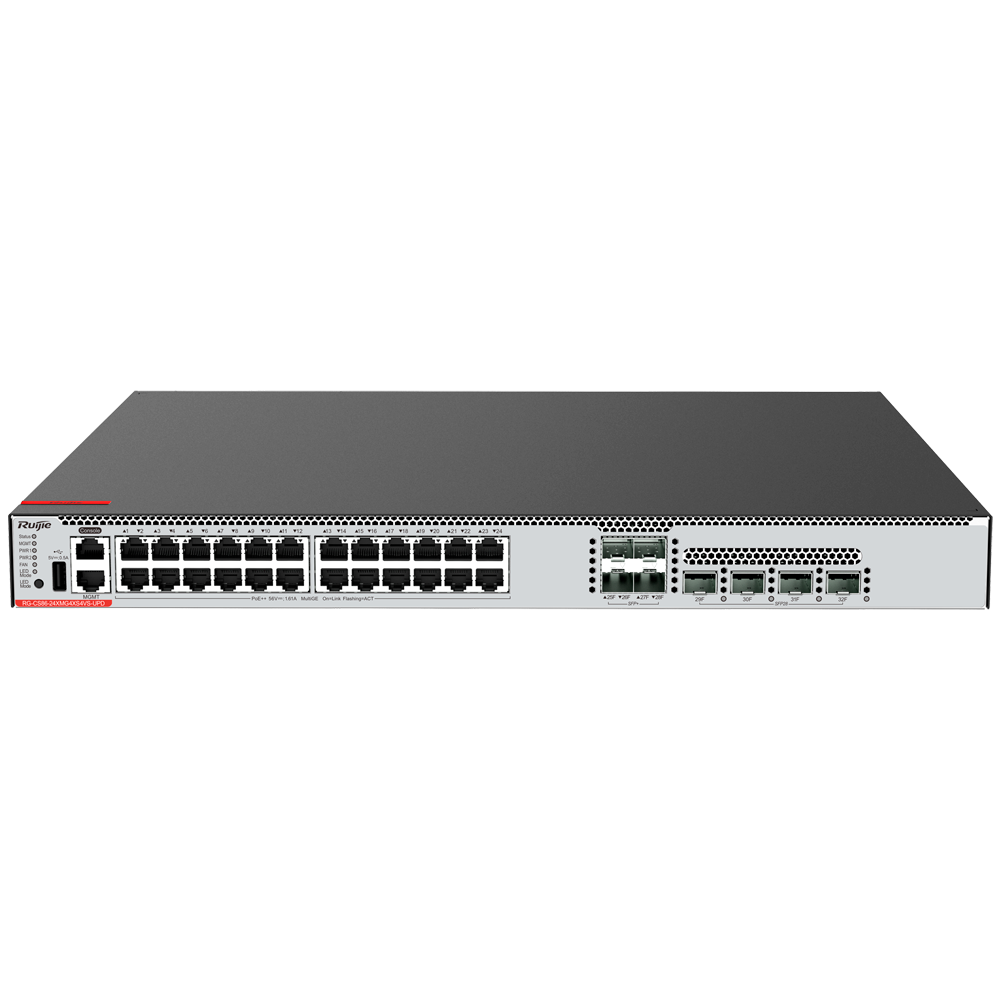

Ruijie Cloud Managed Multi-GE L3 Switch - 32 ports total (24 Multi-GE / 4 SFP+ / 4 SFP28)

Ruijie Cloud Managed Multi-GE L3 Switch - 32 Total ports (24 Multi-GE / 4 SFP+ / 4 SFP28) - Native 10 Gbps copper Multi-GE ports - Dual slots for Hot-Swap modular power supplies - Ultra PoE injection of 90W with massive power capacity - Forever free Ruijie Cloud management

📋 SPECIFICATIONS:
• Brand: Ruijie
• Fixed network interfaces: 24 × 100M/1G/2.5G/5G/10GBASE-T, 4 × 1GE/10GE SFP+, 4 × 10GE/25GE SFP28 (Total 32 ports)
• Supported PoE standards: Native IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (HPoE / PoE++)
• Maximum PoE power: Up to 1650 W (using 2 RG-PA1000I-P-F modular power supplies powered at 220V AC)
• Maximum power output: Each Multi-GE port provides up to 90 W of stable power per single interface (ports 1-24)
• PoE power pins: Power supply via four wire pairs (1-2, 3-6, 4-5, 7-8)
• Fixed management ports: 1 × RJ45 console port, 1 × RJ45 MGMT management port, 1 × USB port
• Switching capacity: 760 Gbps
• Packet Forwarding Rate: 327 Mpps
• CPU specifications: Integrated single-core processor with 1.25 GHz clock frequency
• System RAM: 2 GB operating memory (supported in V1.30 versions and later)
• Flash memory / BootROM: Flash memory: 1 GB / BootROM: 16 MB (1+1 redundant boot backup)
• Switch buffer: 4 MB dynamic packet buffer memory
• MAC address table: 32,768 high-density enterprise entries
• L3 table capabilities: ARP table: 16,000 / IPv4 Unicast routes: 16,000 / IPv6 Unicast routes: 16,000
• L3 multicast tables: IPv4 Multicast routes: 4,000 / IPv6 Multicast routes: 2,000
• Access Control Lists: ACE entries for hardware filtering: 2,500 inbound / 1,000 outbound
• Device virtualization: VSU (Virtual Switching Unit) technology with support for up to 2 members per logical cluster
• L2 redundancy protocols: STP, RSTP, MSTP, and ERPS (G.8032) ring protocol with millisecond convergence
• Routing and IP services: Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, BGP4/BGP4+, PBR, ECMP, VRRP, DHCP v4/v6
• Advanced multicast services: IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2, MLD snooping, PIM-DM/SM/SSM/v6, MSDP
• Cybersecurity ecosystem: CPP (CPU Protection Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, RPF/URPF
• Quality of Service (QoS): 8 priority queues per interface, Classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ, WRED algorithms
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, 802.3ah diagnostics
• Management platforms: Ruijie Cloud App/Web, eWeb local, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON
• Energy efficiency: Native support for port energy saving (Energy Saving PoE) and integrated EEE circuits
• Power expansion slots: 2 independent modular slots for power supplies with 1+1 redundancy
• Dissipation mechanism: Forced cooling via 3 × removable modular fan modules with 2+1 redundancy
• Airflow direction: Industrial Front-to-Rear and Left-to-Rear thermal flow for maximum rack efficiency
• Hot maintenance: Full Hot-Swap support for cables, optical transceivers, USB drives, fans, and power supplies
• Acoustic noise level: Acoustic emission of 60 dB at 27 °C / Industrial maximum of 78 dB at 45 °C
• Lightning protection: Contact ESD discharge: 6 kV (8 kV immunity) / Air discharge: 8 kV (15 kV immunity)
• Surge protection: Service interfaces (Telecom): 4 kV / MGMT port: 4 kV / Power port: 6 kV common and differential mode
• Power consumption: Base power consumption of electronic devices (without PoE): 150 W / Absolute maximum consumption with full PoE load: 1,800 W
• Environmental conditions: Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH / Operating altitude: Max. 5,000 m
• Chassis dimensions (W×D×H): 442 mm x 220 mm x 43.6 mm (standard 19-inch 1U rack thickness)
• Base Switch Net Weight: 6.11 kg (13.47 lbs) (Total weight of the metal structure, including factory fans)

📦 INCLUDED:
• 1x Smart Cloud Managed L3 Multi-GE Switch RG-CS86-24XMG4XS4VS-UP
• 3x Pluggable fan modules (M2SFAN I-F) pre-installed at the factory
• 2x Front metal rack-mount brackets
• 2x Rear metal rack-mount brackets
• 2x Rack slide rails
• 14x Phillips countersunk screws (M4x8, GB819-85)
• 4x Chassis mounting screws (M6x16)
• 4x Rack cage nuts (M6)
• 1x Safety grounding wire
• 4x Rubber pads for desktop use
• 1x Switch user manual
