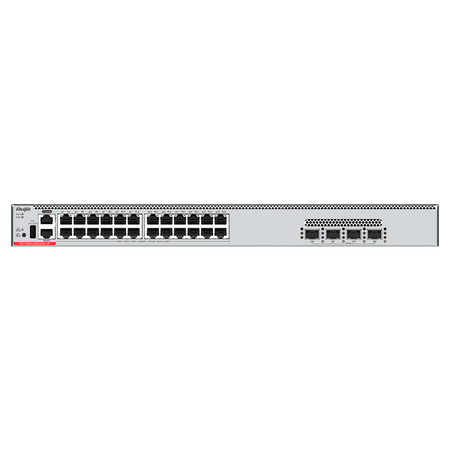

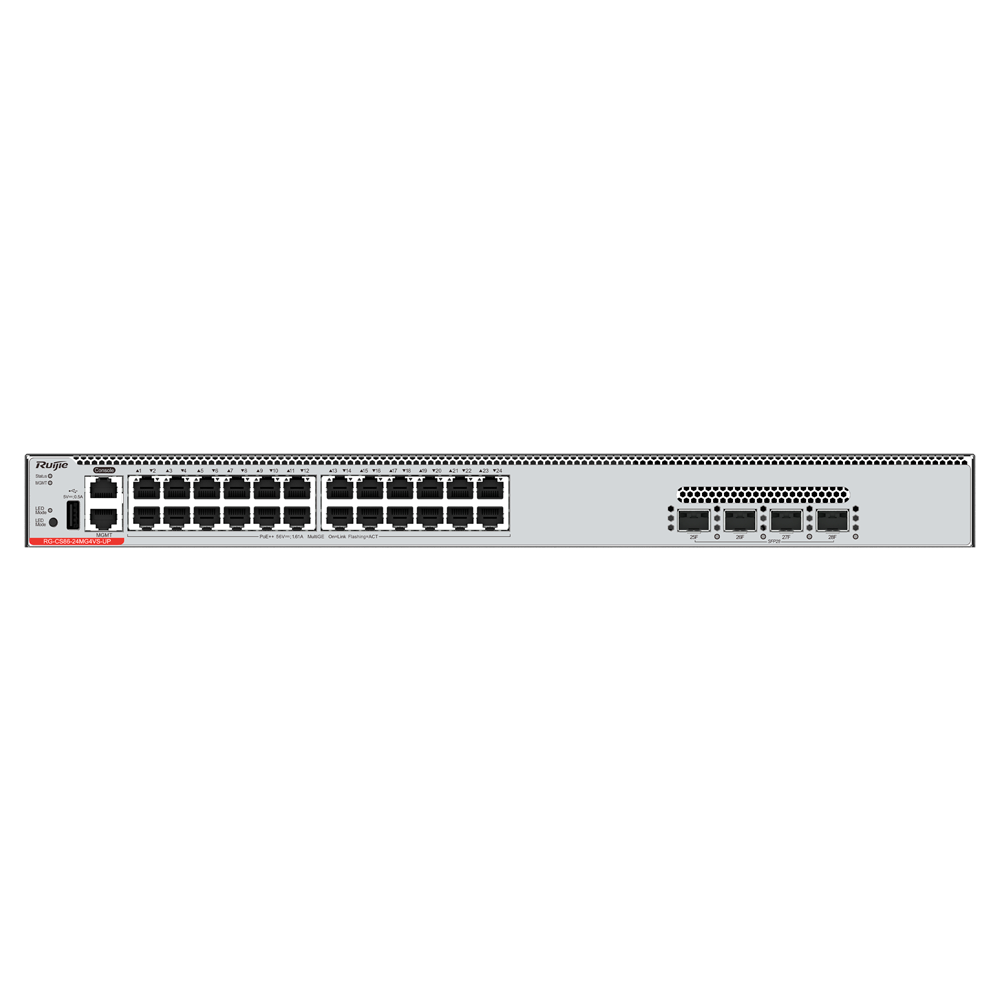

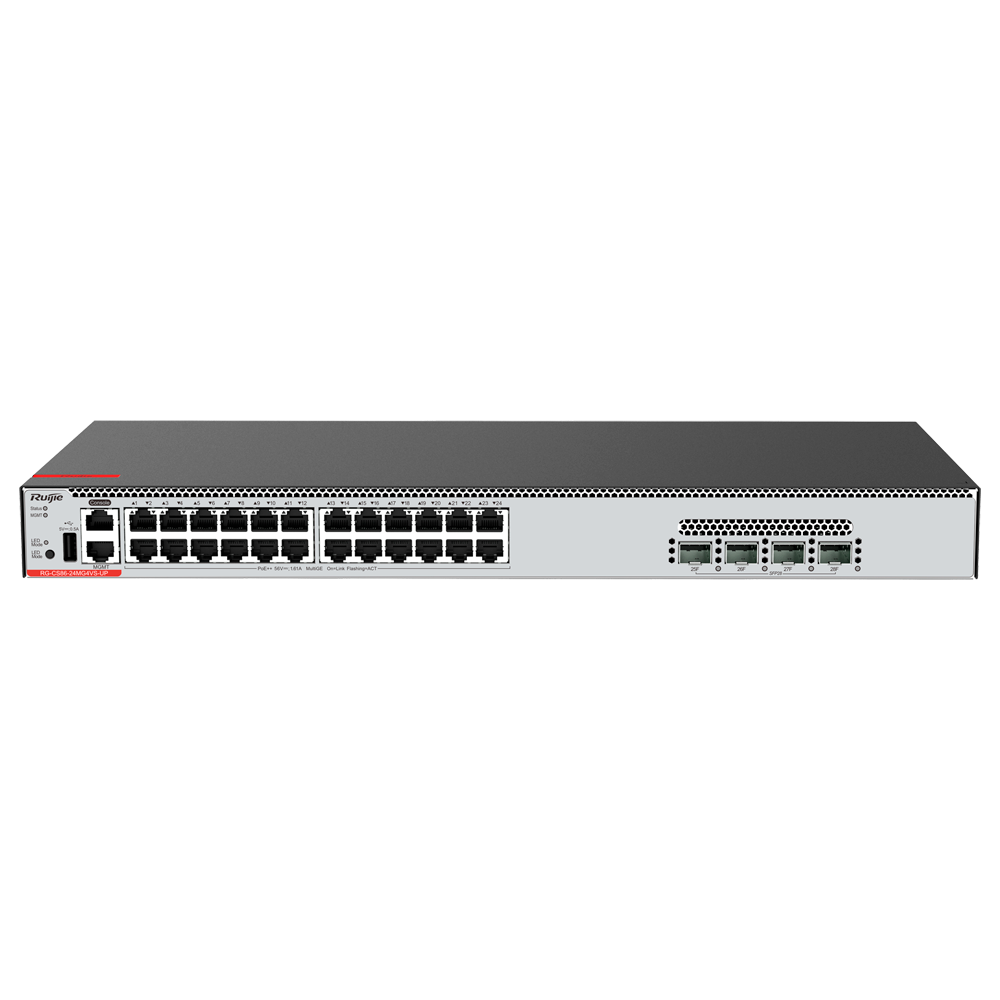

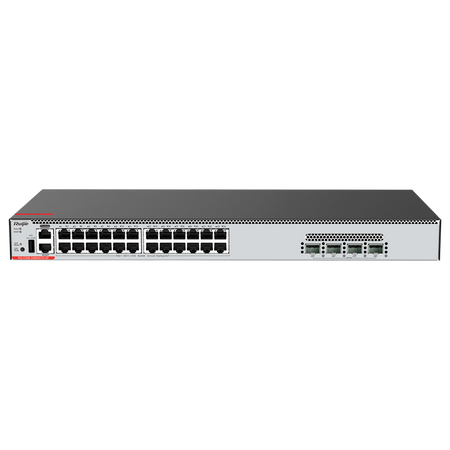

Ruijie Cloud Managed Multi-GE L3 Switch - 28 ports total (24 Multi-GE / 4 Uplink 25G)

Ruijie Cloud Managed Multi-GE L3 Switch - 28 Total Ports (24 Multi-GE / 4 25G Uplinks) - Multi-GE ports up to 5 Gbps on RJ45 copper cabling - Ultra-high power PoE++ up to 90W - High availability via VSU virtualization and BFD - Free lifetime Ruijie Cloud management

📋 SPECIFICATIONS:
• Brand: Ruijie
• Fixed network interfaces: 24 × 100M/1G/2.5G/5GBASE-T Multi-GE, 4 × 10GE/25GE SFP28 (Independent Uplink)
• Supported PoE standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and native IEEE 802.3bt (HPoE / PoE++)
• Total PoE power: 370 W, which can be intelligently distributed among connected edge devices
• Maximum power output: Up to 90 W stable power per single interface (ports 1 to 24)
• PoE power pins: Power supply via four wire pairs (1-2, 3-6, 4-5, 7-8)
• Fixed management ports: 1 × RJ45 console port, 1 × RJ45 MGMT management port, 1 × USB port
• Switching capacity: 440 Gbps
• Packet Forwarding Rate: 565 Mpps
• CPU specifications: Integrated single-core processor (single-core CPU) with 1.25 GHz clock frequency
• System RAM: 2 GB operational memory (supported in V1.10 versions and later)
• Flash Memory / BootROM: Flash memory: 1 GB / BootROM: 16 MB (1+1 redundant boot backup)
• Switch Buffer: 4 MB dynamic packet buffer memory
• MAC address table: 32,768 enterprise high-density entries
• L3 table functionality: ARP table: 16,000 / IPv4 Unicast routes: 16,000 / IPv6 Unicast routes: 16,000
• L3 multicast tables: IPv4 Multicast routes: 4,000 / IPv6 Multicast routes: 2,000
• Access Control Lists: ACE entries for hardware filtering: 2,500 inbound / 1,000 outbound
• Device virtualization: VSU (Virtual Switching Unit) technology with support for up to 2 members per logical cluster
• L2 redundancy protocols: STP, RSTP, MSTP, and ERPS ring protocol (G.8032) with millisecond convergence
• IP routing and services: Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, BGP4/BGP4+, PBR, ECMP, VRRP, DHCP v4/v6
• Advanced multicast services: IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2, MLD snooping, PIM-DM/SM/SSM/v6, MSDP
• Cybersecurity ecosystem: CPP (CPU Protection Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, RPF/URPF
• Quality of Service (QoS): 8 priority queues per interface, classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ, WRED algorithms
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, 802.3ah diagnostics
• Management platforms: Ruijie Cloud App/Web, local eWeb, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON
• Energy efficiency: Native support for energy saving on ports (Energy Saving PoE) and EEE integrated circuits
• Chassis structure and format: High-strength metal with conformal coating on key components
• Dissipation mechanism: Forced-air cooling via 2 fixed fan modules (Front-to-Right / Left-to-Right flow)
• Fan monitoring: Intelligent automatic 3-level speed adjustment based on ambient temperature and fault alarm
• Acoustic noise level: Base acoustic emission of 40 dB at 27 °C / Maximum of 78 dB at full load at 45 °C
• Lightning protection: Contact ESD discharge: 6 kV (8 kV immunity) / Air discharge: 8 kV (15 kV immunity)
• Surge protection: Service interfaces (Telecom): 4 kV / MGMT port: 4 kV / Power port: 6 kV common and differential mode
• Power supply: 1 × fixed internal AC power supply (Input range: 100-240V AC, 50/60 Hz, Max. 6 A)
• Electrical power consumption: Base power consumption of electronic devices (without PoE): 90 W / Absolute maximum consumption with full PoE load: 460 W
• Environmental conditions: Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH / Operating altitude: Max. 5,000 m
• Chassis dimensions (W×D×H): 442 mm x 220 mm x 43.6 mm (standard 19-inch 1U rack thickness)
• NET WEIGHT: 3.65 kg (8.82 lbs)

📦 INCLUDED:
• 1x RG-CS86-24MG4VS-UP Smart Cloud Managed L3 Multi-GE Switch• 2x Metal rack-mount brackets (ears)• 8x Cross-head countersunk screws (M4x8, GB819-85)• 4x Rack mounting screws (M6x16)• 1x Safety grounding wire• 4x M6 cage nuts for rack profile• 1x Industrial-grade AC power cord• 1x Nylon buckle• 4x Rubber pads for desktop use• 1x Rack-mount bracket installation guide• 1x Warranty certificate and declaration of hazardous substances
