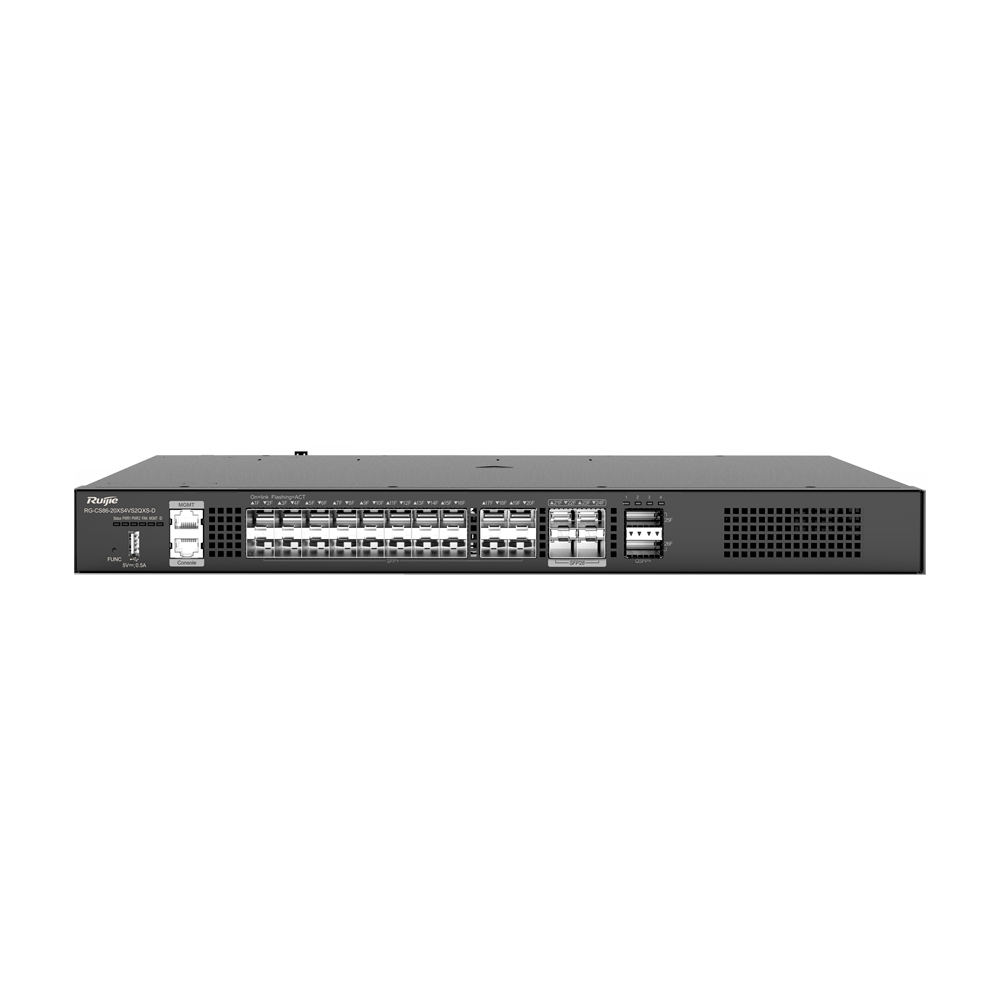

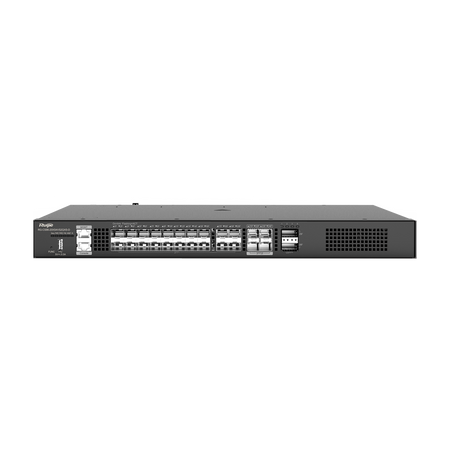

Ruijie Cloud Managed Full 10GE Core Switch
Regular price
€3.083,44
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Cloud Managed Full 10GE Core Switch - 26 Total Ports (20 SFP+ / 4 SFP28 / 2 QSFP+) - Multi-G SFP+ optical slots up to 10 Gbps - Dual slots for Hot-Swap modular power supplies - High availability via VSU and BFD virtualization - Lifetime free Ruijie Cloud management
📋 SPECIFICATIONS:
• Brand: Ruijie
• Access fiber interfaces: 20 × 1GE/2.5GE/10GE independent SFP+ (Supports Gigabit, 2.5G, and 10G transceivers)
• Uplink fiber interfaces: 4 × 10GE/25GE independent SFP28 (must operate synchronously at the same speed of 10G or 25G)
• Core fiber interfaces: 2 × 40GE independent QSFP+ for high-capacity trunk links (supports 4 × 10GE split mode)
• Switching capacity: 760 Gbps
• Packet Forwarding Rate: 570 Mpps
• Processor specifications: Single-core architecture processor with clock frequency up to 1.25 GHz
• System RAM: 1 GB
• Flash Memory / BootROM: Flash memory: 1 GB / BootROM: 16 MB (Integrated 1+1 boot redundancy support)
• Switch internal buffer: 4 MB of dynamic buffer memory for data burst mitigation
• MAC address table: 32,768 high-density enterprise entries
• L3 IP table capacity: ARP table: 16,000 / IPv4 Unicast routes: 16,000 / IPv6 Unicast routes: 16,000
• L3 multicast tables: IPv4 Multicast routes: 4,000 / IPv6 Multicast routes: 2,000
• Access Control Lists: ACE entries for hardware filtering: 2,500 ingress / 1,000 egress
• Device virtualization: VSU (Virtual Switching Unit) technology with support for up to 2 members per logical cluster
• L2 redundancy protocols: STP, RSTP, MSTP and high-speed ring protocol ERPS (G.8032)
• Routing and IP services: Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, ISv4, BGP4, BGP4+, PBR, ECMP, VRRP, DHCP v4/v6
• Advanced multicast services: IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2, MLD snooping, PIM-DM/SM/SSM/v6, MSDP, IGMP filtering
• Cybersecurity ecosystem: CPP (CPU Protection Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, Strict/Flexible RPF
• Full VLAN configuration: IEEE 802.1Q (4K VLANs), Voice VLAN, Super VLAN, Private VLAN, MAC/Port/Protocol/Subnet-based VLAN, GVRP, QinQ
• Quality of Service (QoS): 8 priority queues per port, classification based on 802.1p/DSCP/ToS, ACL redirection, L2/L3/L4, Packet ID, RR, SP, WRR, DRR, WFQ, RED, WRED
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, USB diagnostics, 802.3ah diagnostics
• Management platforms: Ruijie Cloud App/Web, eWeb local, TR-069 CWMP, CLI (Telnet/Console), gRPC, SNMP v1/v2c/v3, RMON (1, 2, 3, 9)
• Energy efficiency: Native support for IEEE 802.3az Energy Efficient Ethernet (EEE) and port idling
• Chassis structure and format: High-strength metal with conformal coating on key components
• Power expansion slots: 2 independent modular slots for pluggable power supplies with 1+1 electrical redundancy
• Dissipation mechanism: Front-to-Rear forced cooling via 2 × pluggable fan modules
• Fan monitoring: Intelligent multi-level automatic speed adjustment based on temperature and failure alarm
• Real-time connectivity: Full Hot-Swap support for cables, optical transceivers, USB storage units, and power supplies
• Enterprise certifications: Compliance with international safety standards IEC 62368-1 and extended EMC compatibility standards
• Lightning protection: Contact ESD discharge: 6 kV (8 kV immunity) / Air discharge: 8 kV (15 kV immunity)
• Surge protection: Service interfaces (Telecom): 10 kV / MGMT port: 4 kV / Power port: 6 kV in common and differential mode
• Electricity consumption: Absolute maximum operating power consumption of electronics equal to 85 W
• Environmental conditions: Operating temperature: 0 °C to 50 °C / Humidity: 10% to 90% RH / Operating altitude: Max. 5,000 m
• Chassis dimensions (W×D×H): 440 mm x 330 mm x 43.6 mm (compact 1U rack format)
• Net weight of base chassis: 4.6 kg (10.14 lbs) (Total weight of the empty structure, including the two fan modules)
📦 INCLUDED:
• 1x Full 10GE L3 Smart Cloud Managed Switch RG-CS86-20XS4VS2QXS-D (Base chassis)• 2x Pluggable fan modules (M1SFAN I-F) pre-installed at the factory• 1x Power supply filler panel• 1x L-shaped fixed frame• 8x Countersunk Phillips screws (M4*8FMO / includes 2 spares)• 1x Safety grounding wire• 4x Rubber pads for desktop use• 1x Fixed chassis installation quick start guide• 1x Official warranty manual and RoHS hazardous substances table
| Access Fiber Interfaces | 20 × independent 1GE/2.5GE/10GE SFP+ (Supports Gigabit, 2.5G, and 10G transceivers) |
|---|---|
| Uplink Fiber Interfaces | 4 × independent 10GE/25GE SFP28 (must operate synchronously at the same speed of 10G or 25G) |
| Core Fiber Interfaces | 2 × independent 40GE QSFP+ for high-capacity trunk links (supports 4 × 10GE split mode) |
| Switching Capacity | 760 Gbps |
| Packet Forwarding Rate | 570 Mpps |
| Processor Specifications | Single-core architecture processor with a clock frequency of up to 1.25 GHz |
| System RAM | 1 GB |
| Flash Memory / BootROM | Flash memory: 1 GB / BootROM: 16 MB (Integrated support for 1+1 boot redundancy) |
| Internal Switch Buffer | 4 MB dynamic buffer memory for data burst mitigation |
| MAC Address Table | 32,768 high-density enterprise entries |
| L3 IP Table Capacity | ARP Table: 16,000 / IPv4 Unicast Routes: 16,000 / IPv6 Unicast Routes: 16,000 |
| L3 Multicast Tables | IPv4 Multicast Routes: 4,000 / IPv6 Multicast Routes: 2,000 |
| Access Control Lists | ACE entries for hardware filtering: 2,500 ingress / 1,000 egress |
| Device Virtualization | VSU (Virtual Switching Unit) technology with support for up to 2 members per logical cluster |
| L2 Redundancy Protocols | STP, RSTP, MSTP, and high-speed ring protocol ERPS (G.8032) |
| Routing and IP Services | Static Routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, ISv4, BGP4, BGP4+, PBR, ECMP, VRRP, DHCP v4/v6 |
| Advanced Multicast Services | IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2, MLD snooping, PIM-DM/SM/SSM/v6, MSDP, IGMP filtering |
| Cybersecurity Ecosystem | CPP (CPU Protection Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, Strict/Flexible RPF |
| Comprehensive VLAN Configuration | IEEE 802.1Q (4K VLANs), Voice VLAN, Super VLAN, Private VLAN, MAC/Port/Protocol/Subnet-based VLAN, GVRP, QinQ |
| Quality of Service (QoS) | 8 priority queues per port, classification based on 802.1p/DSCP/ToS, ACL redirection, L2/L3/L4, Packet ID, RR, SP, WRR, DRR, WFQ, RED, WRED |
| Maintenance and Diagnosis | RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, USB diagnostics, 802.3ah diagnostics |
| Management Platforms | Ruijie Cloud App/Web, eWeb local, TR-069 CWMP, CLI (Telnet/Console), gRPC, SNMP v1/v2c/v3, RMON (1, 2, 3, 9) |
| Energy Efficiency | Native support for IEEE 802.3az Energy Efficient Ethernet (EEE) and port idling |
| Chassis Structure and Design | High-strength metal with conformal coating on key components |
| Power Expansion Slots | 2 independent modular slots for pluggable power supplies with 1+1 electrical redundancy |
| Dissipation Mechanism | Front-to-Rear forced cooling via 2 × pluggable fan modules |
| Fan Monitoring | Intelligent multi-level automatic speed adjustment based on temperature and failure alarm |
| Real-time Connectivity | Full Hot-Swap support for cables, optical transceivers, USB storage units, and power supplies |
| Enterprise Certifications | Compliance with international safety standards IEC 62368-1 and extended EMC compatibility standards |
| Lightning Protection | Contact ESD discharge: 6 kV (8 kV immunity) / Air discharge: 8 kV (15 kV immunity) |
| Surge Protection | Service interfaces (Telecom): 10 kV / MGMT port: 4 kV / Power port: 6 kV in common and differential mode |
| Power Consumption | Maximum absolute operating power consumption of electronics at 85 W |
| Environmental Conditions | Operating temperature: 0 °C to 50 °C / Humidity: 10% to 90% RH / Operating altitude: Max. 5,000 m |
| Chassis Dimensions (W×D×H) | 440 mm x 330 mm x 43.6 mm (compact 1U rack format) |
| Net Weight of Base Chassis | 4.6 kg (10.14 lbs) (Total weight of the empty structure, including the two fan modules) |
