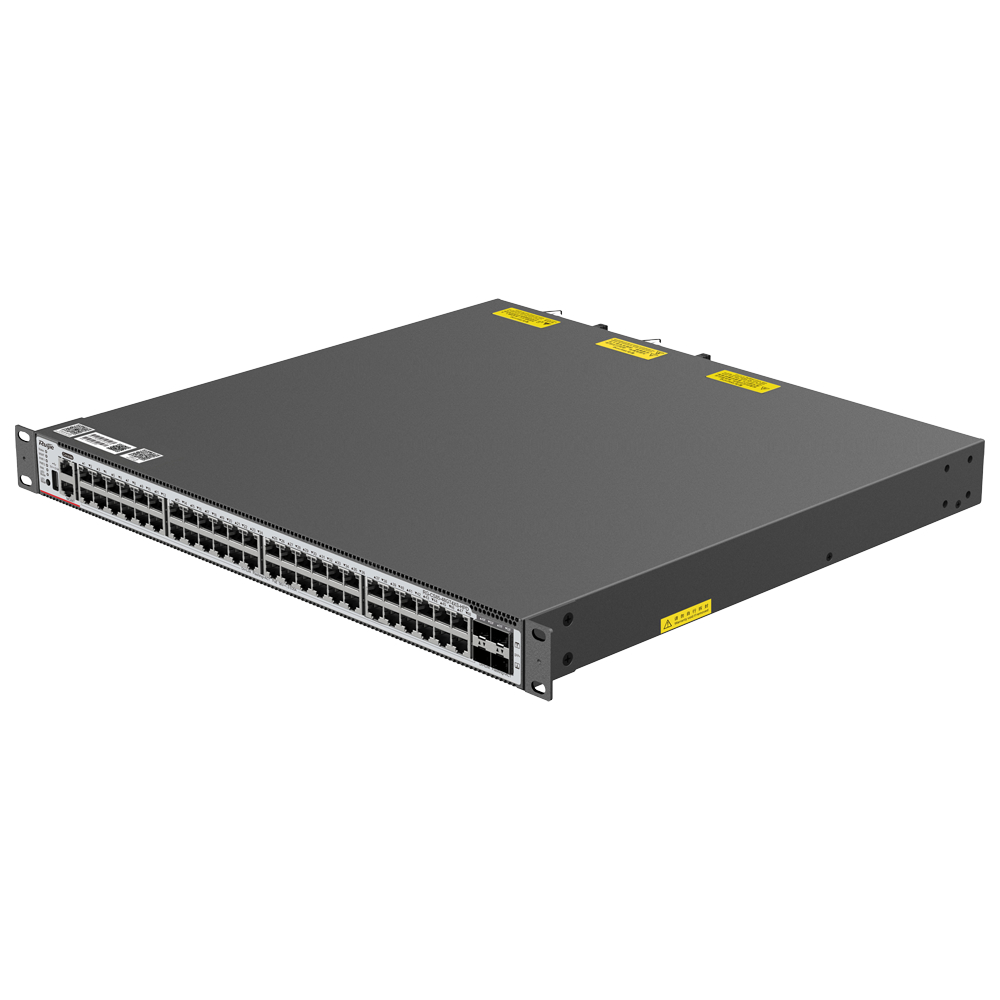

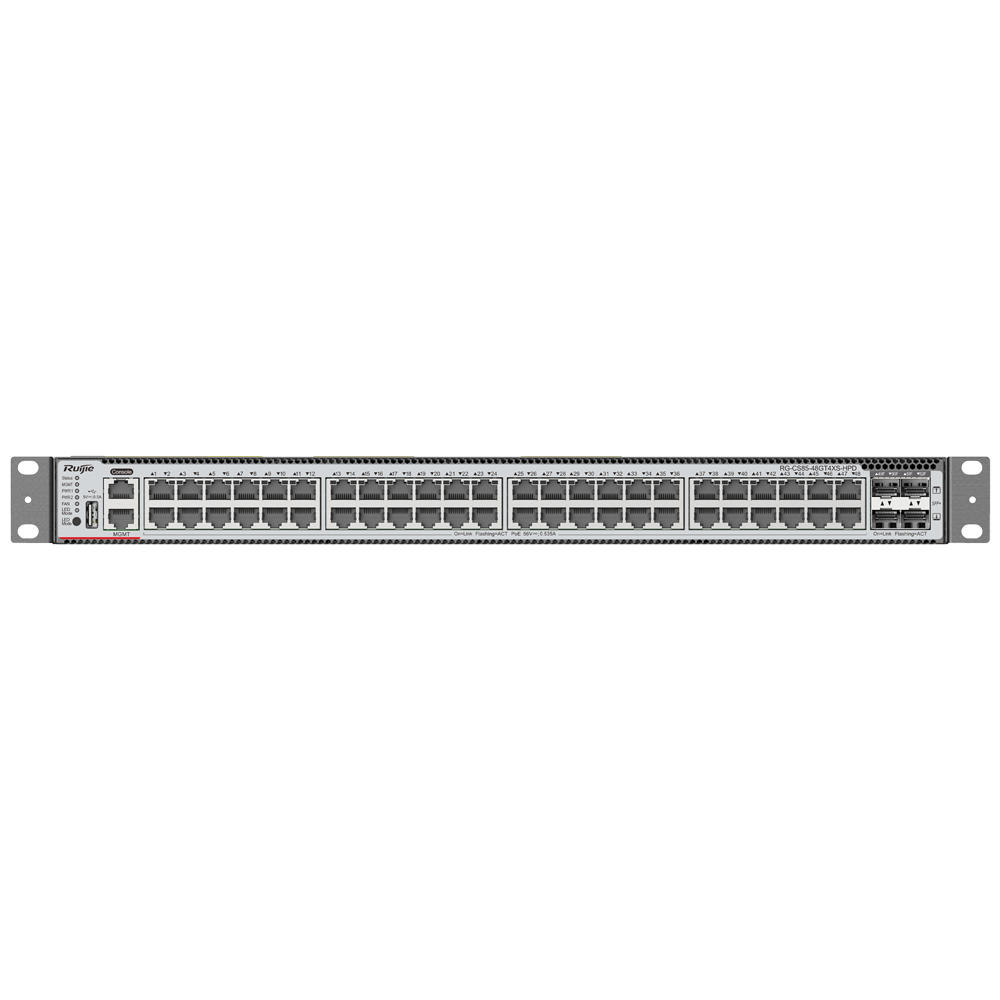

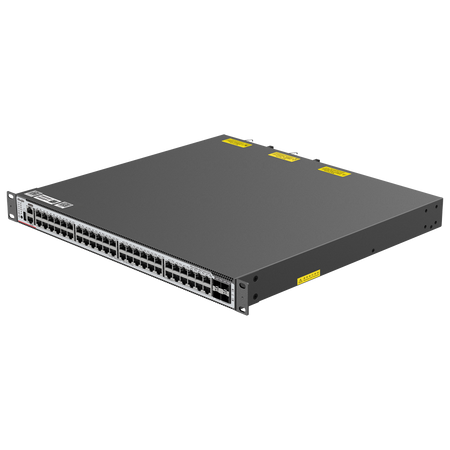

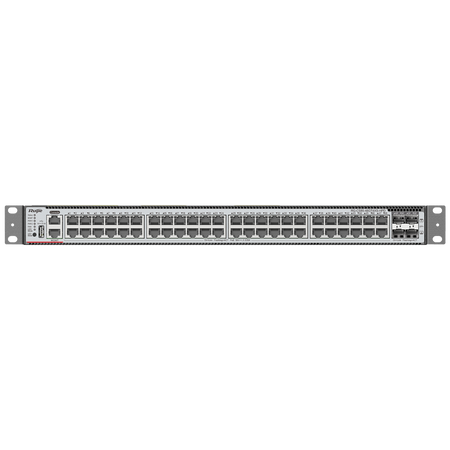

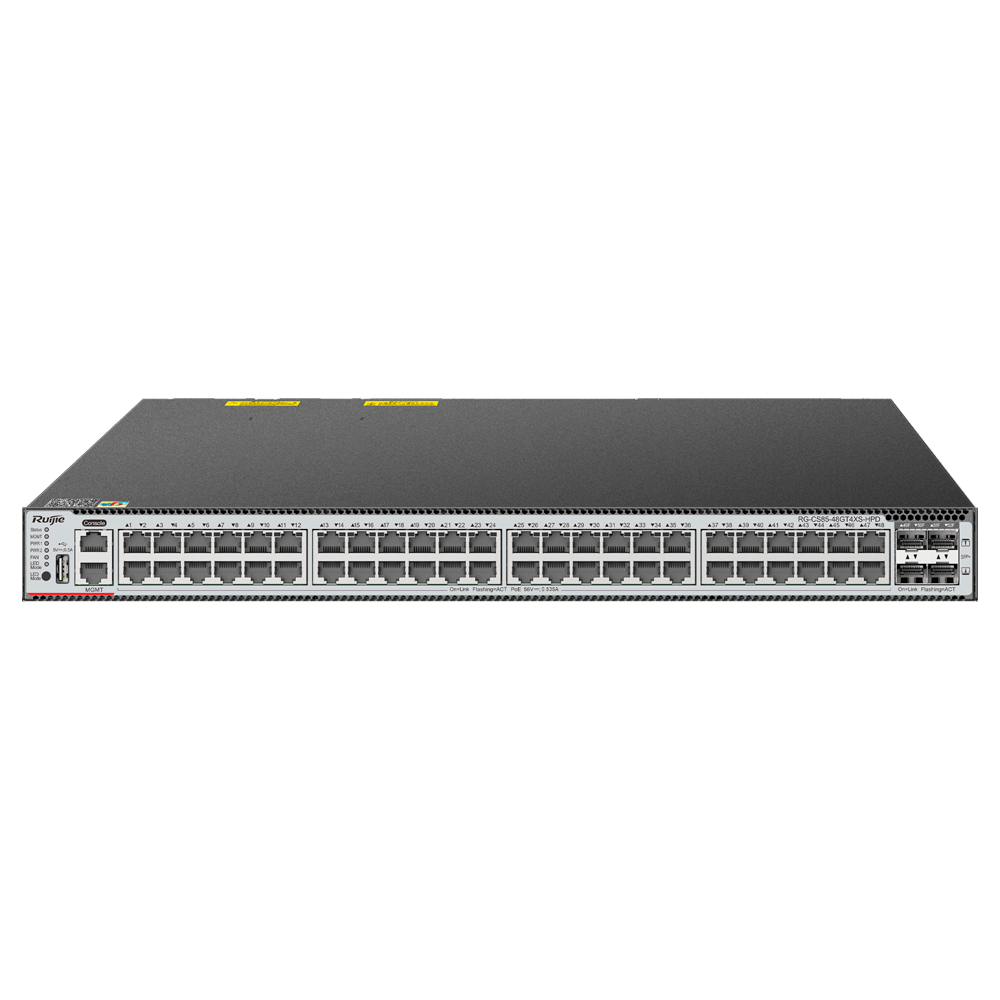

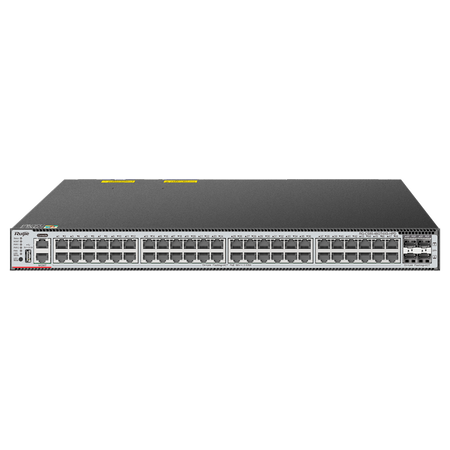

Ruijie Cloud Managed Layer 3 PoE+ Switch - 52 Total Ports (48 PoE+ / 4 Uplink 10G SFP+) - 656 Gbps

Ruijie Cloud Managed Layer 3 PoE+ Switch - 52 Total Ports (48 PoE+ / 4 Uplink 10G SFP+) - Ultra-fast 10 Gbps fiber optic connections - Stable 30W PoE+ power / 1440W Total - Continuous PoE power supply during warm reboots - Forever free Ruijie Cloud management

📋 SPECIFICATIONS:
• Brand: Ruijie
• Fixed network interfaces: 48 × 10/100/1000BASE-T PoE/PoE+ RJ45, 4 × 1GE/10GE SFP+ (independent uplink)
• PoE standards supported: IEEE 802.3af and IEEE 802.3at natively on all its copper interfaces
• Maximum PoE power: Up to 1440 W (Requires separate purchase of pluggable modular power supplies 2
• Maximum power output: Each port provides up to 30 W of stable power per single interface
• Pins and delivery modes: Power via Mode A (cable pairs 1-2 and 3-6)
• Logical expansion slots: 1 × free expansion slot (supports CM85-4XS2CQ 100G modular card)
• Dedicated management ports: 1 × RJ45 console port, 1 × RJ45 MGMT port, 1 × USB 3.0 port
• Switching capacity: 656 Gbps
• Packet Forwarding Rate: 488 Mpps
• Processor specifications: Dual-core processor (dual-core CPU), with each core at a frequency of 1.2 GHz
• System RAM memory: 2 GB
• Flash Memory / BootROM: Flash memory: 4 GB / BootROM MIB: 16 MB (1+1 boot redundancy thanks to dual chip)
• Internal switch buffer: 4 MB dynamic memory
• MAC address table: 64,000 high-density enterprise entries
• L3 IP table capacity: ARP table: 24,000 / IPv4 Unicast routes: 24,000 / IPv6 Unicast routes: 14,000
• L3 multicast capacity: IPv4 Multicast routes: 4,000 / IPv6 Multicast routes: 2,000
• Access Control Lists: ACE entries for hardware filtering: 7,000 ingress / 1,500 egress
• Device virtualization: VSU (Virtual Switching Unit) technology with support for up to 4 members per cluster
• L2 redundancy protocols: STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) and ERPS ring protocol (G.8032)
• Routing and IP services: Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, BGP4/BGP4+, PBR, VRF, VRRP, MPLS L3VPN
• Advanced multicast services: IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2, MLD snooping, PIM-DM/SM/SSM/v6
• Cybersecurity ecosystem: CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, RPF/URPF
• Quality of Service (QoS): 8 priority queues per port, classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ algorithms
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, 802.3ah diagnostics
• Management platforms: Ruijie Cloud App/Web, local eWeb, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON
• Intelligent PoE functions: Perpetual PoE power, configurable port priority and intelligent power management modes
• Chassis structure and format: Metal with conformal coating against humidity, salt spray, and infiltration
• Power expansion slots: 2 independent modular slots for power supplies with 1+1 redundancy
• Dissipation mechanism: Air cooling via 2 × Hot-Swap modular fan modules (Front-to-Rear)
• Acoustic noise level: Maximum acoustic emission measured at 57.9 dB during operation at high thermal loads of 45 °C
• Lightning protection: Contact ESD discharge: 6 kV (Susceptibility 8 kV) / Air discharge: 8 kV (Susceptibility 15 kV)
• Surge protection: Service interfaces (Telecom): 10 kV / MGMT port: 4 kV / Power port: 6 kV common and differential
• Electric power consumption: Base consumption (without PoE): 120 W / Maximum absolute consumption at full PoE load: 1,600 W
• Environmental conditions: Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH / Operating altitude: Max. 5,000 m
• Chassis dimensions (W×D×H): 442 mm x 420 mm x 43.6 mm (standard 1 rack unit format)
• Net device weight: 5.7 kg (12.57 lbs) (Chassis weight, including installed modular fans)

📦 INCLUDED:
• 1x High-density L3 PoE+ switch base chassis • 2x Pre-installed pluggable fan modules (M2SFAN I-F) • 2x Metal rack-mount brackets (ears) • 8x Phillips countersunk head screws (M4x8, GB819-85) • 1x Safety grounding wire • 4x Rubber pads for desktop use • 1x Rack-mount bracket installation guide • 1x Warranty certificate and hazardous substances declaration
