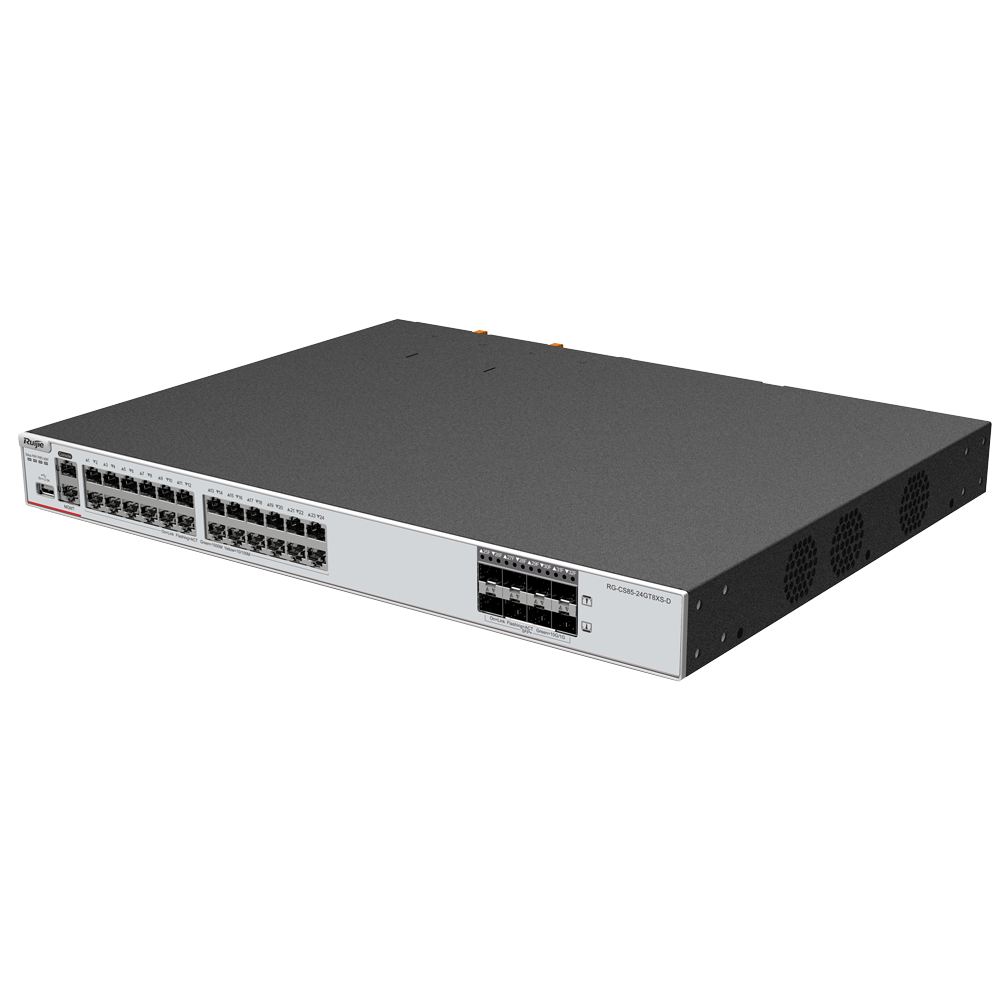

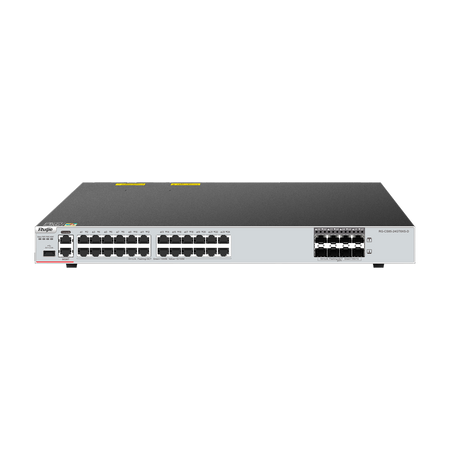

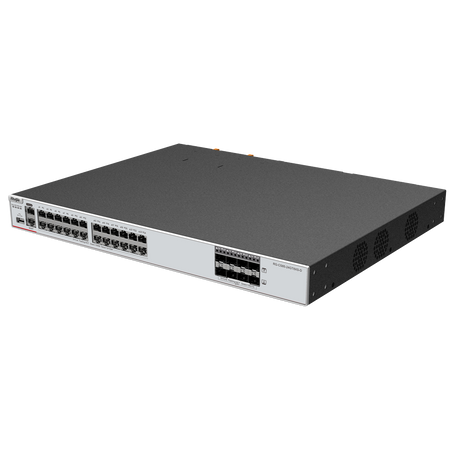

Ruijie Cloud Managed Layer 3 Switch - 32 Total Ports (24 GE / 8 10G SFP+ Uplinks)
Ruijie Cloud Managed Layer 3 Switch - 32 Total Ports (24 GE / 8 10G SFP+ Uplinks)
Regular price
€2.803,98
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Cloud Managed Layer 3 Switch - 32 total ports (24 GE / 8 10G SFP+ Uplink) - Ultra-fast 10 Gbps fiber optic connections - Expansion slot for main line card - VSU virtualization and 1+1 boot redundancy - Free forever Ruijie Cloud management
📋 SPECIFICATIONS:
• Brand: Ruijie

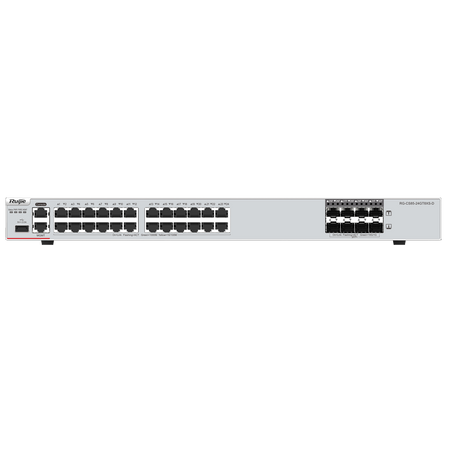

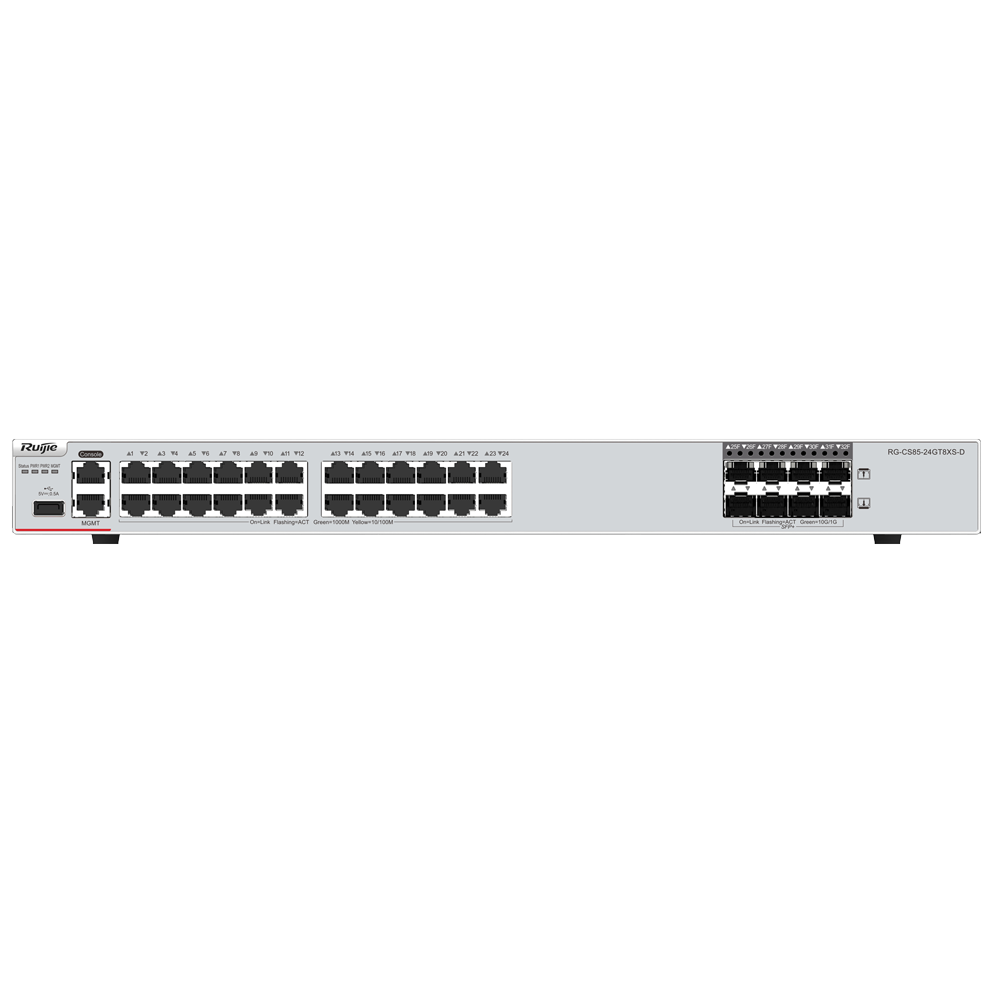

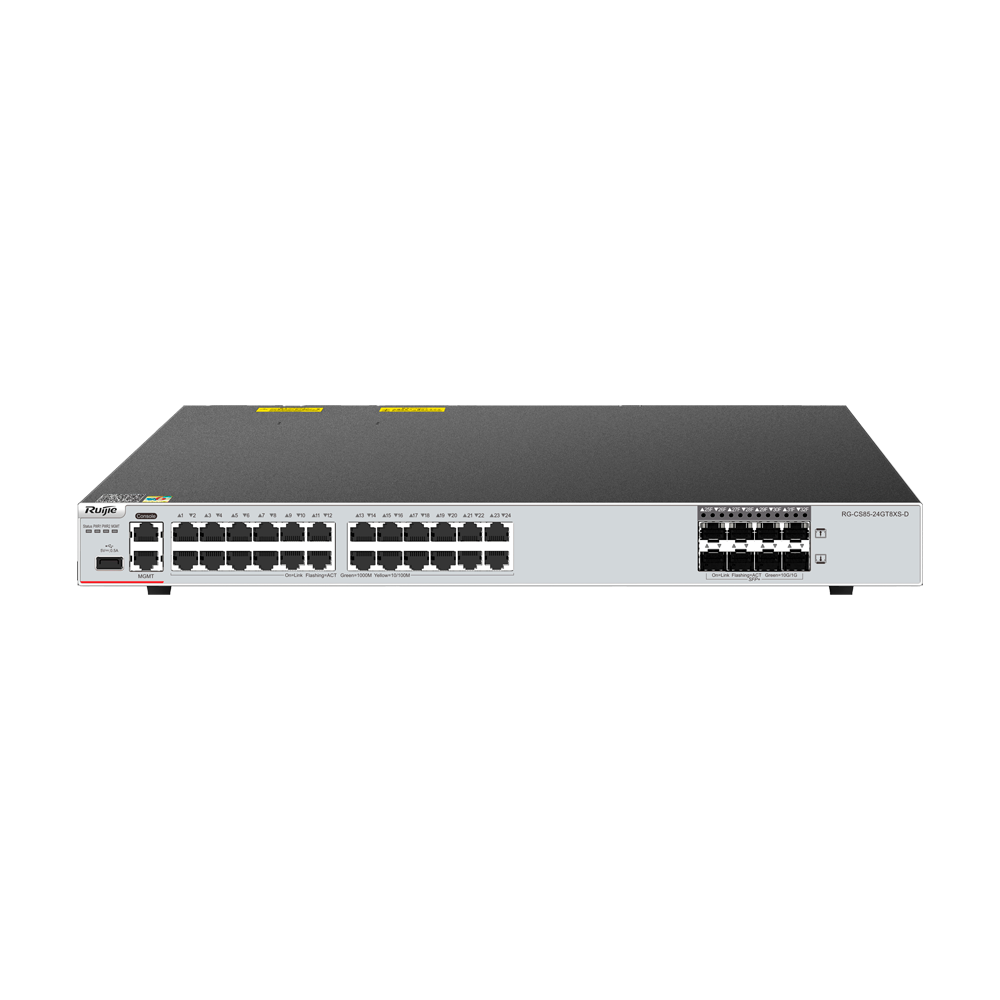

• Fixed network interfaces: 24 × 10/100/1000BASE-T RJ45, 8 × 1GE/10GE SFP+ (independent fiber uplinks)
• Logical expansion slots: 1 × free expansion slot (supports CM85-4XS2CQ 100G modular card)
• Dedicated management ports: 1 × RJ45 console port, 1 × RJ45 MGMT port, 1 × USB 3.0 port
• Switching capacity: 688 Gbps
• Packet Forwarding Rate: 512 Mpps
• Processor specs: Dual-core processor, with each core at 1.2 GHz frequency
• System RAM: 1 GB
• Flash memory / BootROM: Flash memory: 4 GB / BootROM MIB: 16 MB (1+1 boot redundancy via dual chip)
• Internal switch buffer: 4 MB dynamic memory
• MAC address table: 64,000 high-density enterprise entries
• L3 IP table capacity: ARP table: 24,000 / IPv4 Unicast routes: 24,000 / IPv6 Unicast routes: 14,000
• L3 multicast capacity: IPv4 Multicast routes: 4,000 / IPv6 Multicast routes: 2,000
• Access Control Lists: ACE entries for hardware filtering: 7,000 ingress / 1,500 egress
• Device virtualization: VSU (Virtual Switching Unit) technology supporting up to 4 members per cluster
• L2 redundancy protocols: STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and ERPS ring protocol (G.8032)
• IP routing and services: Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, BGP4/BGP4+, PBR, VRF, VRRP, MPLS L3VPN
• Advanced multicast services: IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2, MLD snooping, PIM-DM/SM/SSM/v6
• Cybersecurity ecosystem: CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, RPF/URPF
• Quality of Service (QoS): 8 priority queues per port, classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ algorithms
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, 802.3ah diagnosis
• Management platforms: Ruijie Cloud App/Web, local eWeb, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON
• Energy efficiency: Native support for IEEE 802.3az Energy Efficient Ethernet (EEE) and port idle mode
• Chassis structure and format: Metal with conformal coating against humidity, salt spray, and infiltration

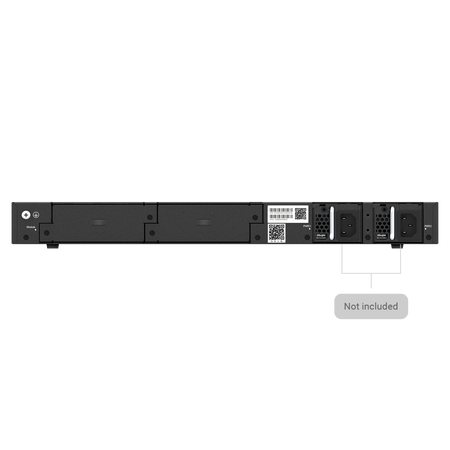

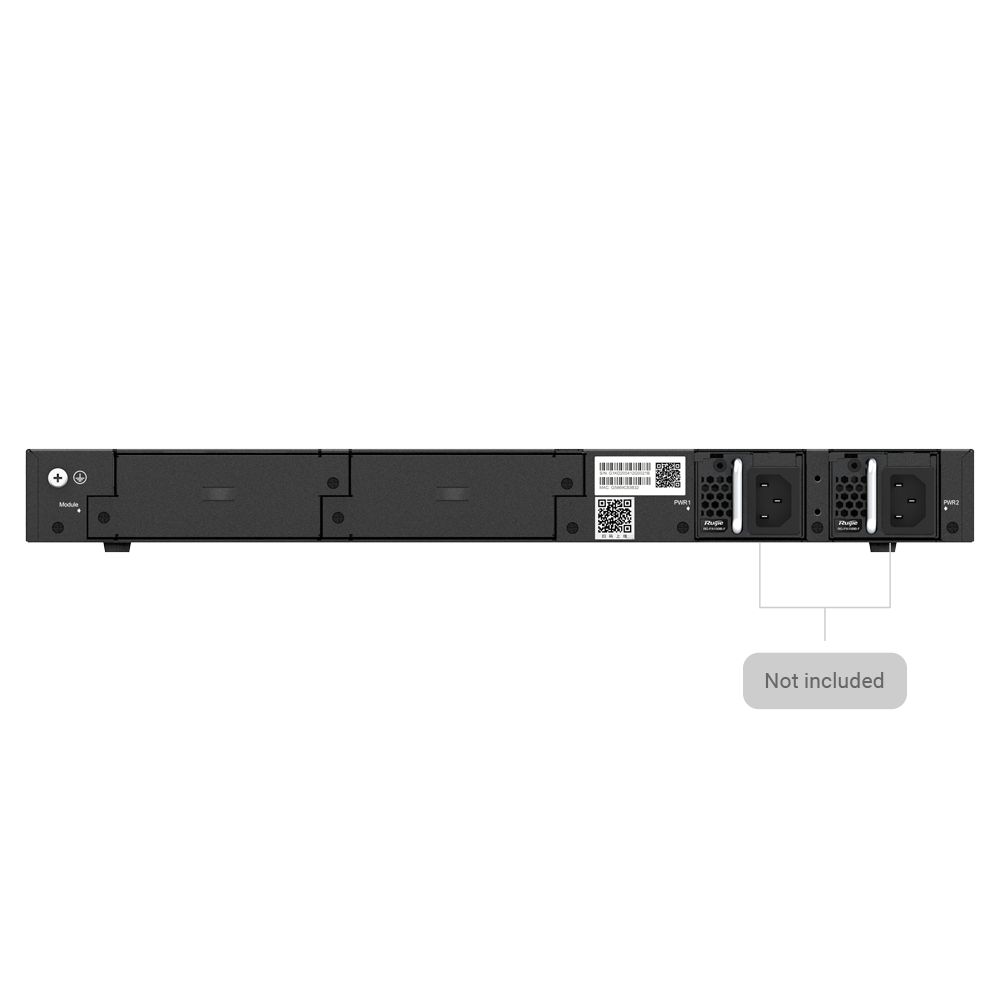

• Power expansion slots: 2 independent modular slots for power supplies with 1+1 redundancy

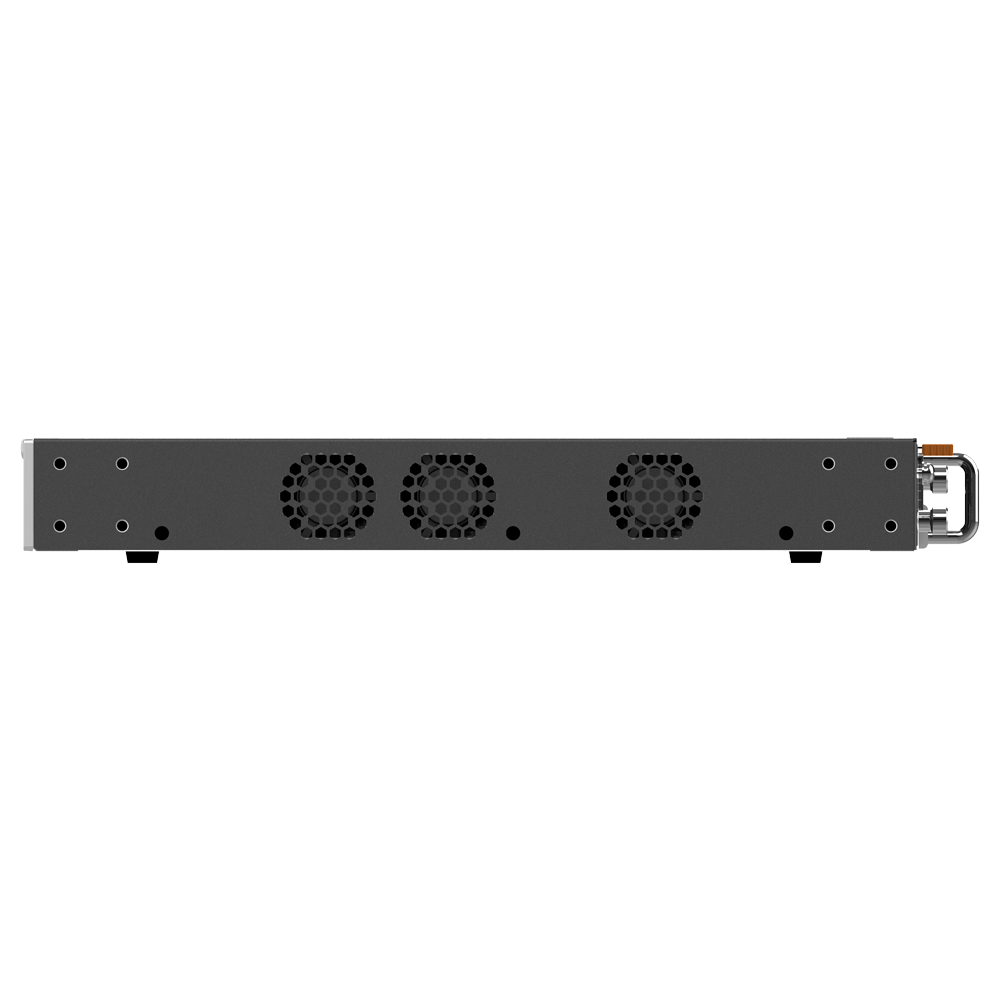

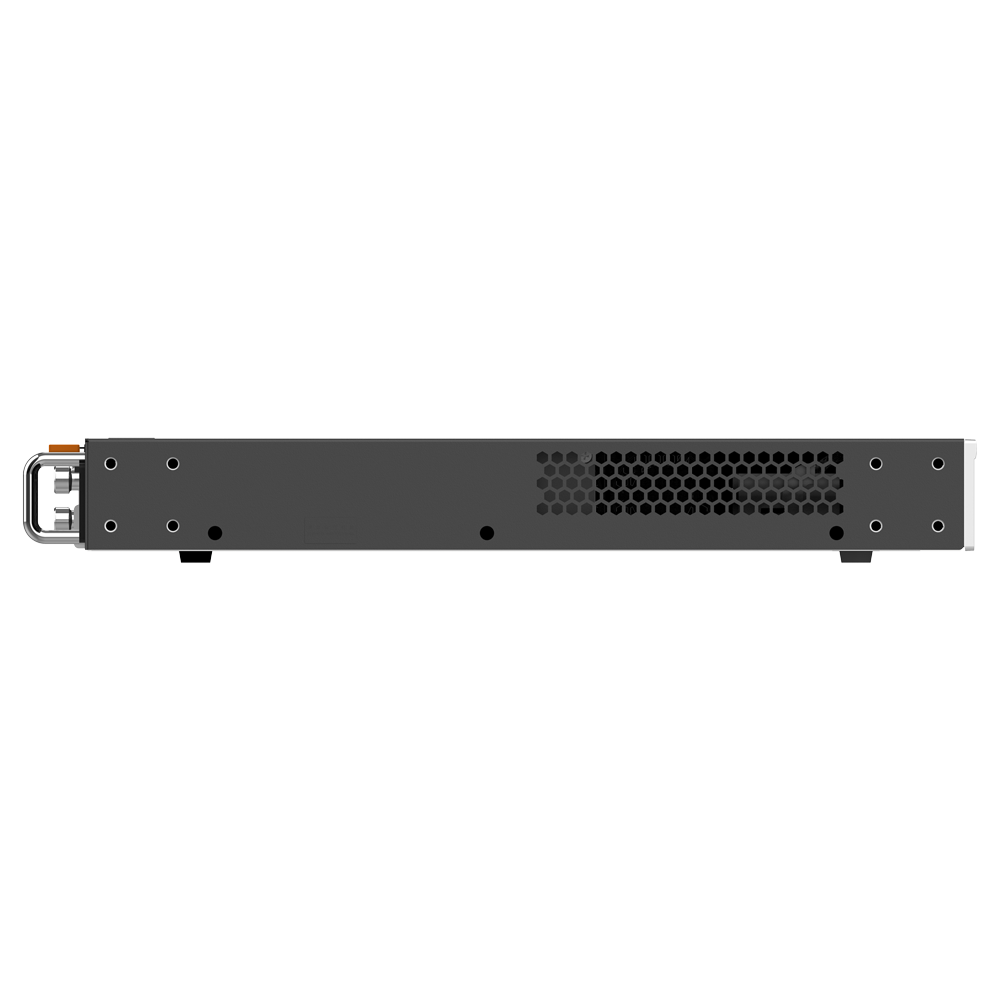

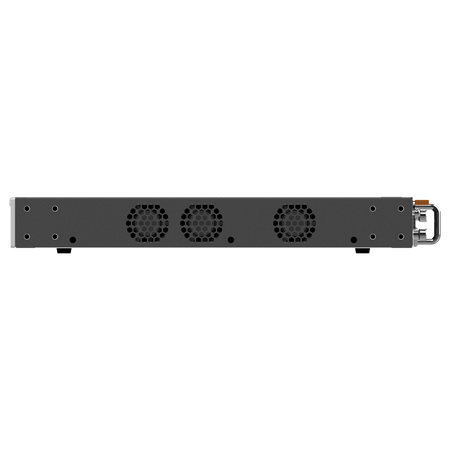

• Dissipation mechanism: Air cooling via 3 × fixed fan modules (left-to-right airflow)
• Fan monitoring: Automatic dynamic adjustment of 3 speed levels based on temperature and failure alarms
• Acoustic noise level: Maximum acoustic emission measured at 56.2 dB during operation at high thermal loads of 45 °C
• Lightning protection: ESD contact discharge: 6 kV (Susceptibility 8 kV) / Air discharge: 8 kV (Susceptibility 15 kV)
• Surge protection: Service interfaces (Telecom): 10 kV / MGMT port: 4 kV / Power port: 6 kV common and differential mode
• Power consumption: Base consumption (without cards): 60 W / Absolute maximum consumption with expansion module connected: 85 W
• Environmental conditions: Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH / Operating altitude: Max. 5,000 m
• Chassis dimensions (W×D×H): 440 mm x 340 mm x 44 mm (standard 1U rackmount slim format)
• Net device weight: 4.4 kg (9.70 lbs) (Weight relative to the base chassis electronics)
📦 INCLUDED:
• 1x High-performance L3 base switching chassis• 2x Metal rackmount brackets (ears) • 8x Phillips countersunk screws (M4x8, GB819-85) • 1x Safety grounding wire • 4x Rubber feet for desktop use • 1x Rackmount bracket installation guide • 1x Warranty certificate and hazardous substances declaration
| Fixed network interfaces | 24 × 10/100/1000BASE-T RJ45, 8 × 1GE/10GE SFP+ (Independent fiber uplinks) |
|---|---|
| Logical expansion slots | 1 × free expansion slot (supports CM85-4XS2CQ 100G modular card) |
| Dedicated management ports | 1 × RJ45 console port, 1 × RJ45 MGMT port, 1 × USB 3.0 port |
| Switching capacity | 688 Gbps |
| Packet Forwarding Rate | 512 Mpps |
| Processor specifications | Dual-core processor (dual-core CPU), with each core at a frequency of 1.2 GHz |
| System RAM | 1 GB |
| Flash Memory / BootROM | Flash memory: 4 GB / BootROM MIB: 16 MB (1+1 boot redundancy thanks to dual-chip) |
| Internal switch buffer | 4 MB of dynamic memory |
| MAC address table | 64,000 high-density enterprise entries |
| L3 IP table capacity | ARP table: 24,000 / IPv4 Unicast routes: 24,000 / IPv6 Unicast routes: 14,000 |
| L3 multicast capacity | IPv4 Multicast routes: 4,000 / IPv6 Multicast routes: 2,000 |
| Access Control Lists | ACE entries for hardware filtering: 7,000 inbound / 1,500 outbound |
| Device virtualization | VSU (Virtual Switching Unit) technology with support for up to 4 members per cluster |
| L2 redundancy protocols | STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and ERPS ring protocol (G.8032) |
| IP routing and services | Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, BGP4/BGP4+, PBR, VRF, VRRP, MPLS L3VPN |
| Advanced multicast services | IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2, MLD snooping, PIM-DM/SM/SSM/v6 |
| Cybersecurity ecosystem | CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, RPF/URPF |
| Quality of Service (QoS) | 8 priority queues per port, classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ algorithms |
| Maintenance and diagnostics | RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, 802.3ah diagnostics |
| Management platforms | Ruijie Cloud App/Web, eWeb local, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON |
| Energy efficiency | Native support for IEEE 802.3az Energy Efficient Ethernet (EEE) and port idling |
| Chassis structure and format | Metal with conformal coating against humidity, salt spray, and infiltration |
| Power expansion slots | 2 independent modular slots for power supplies with 1+1 redundancy |
| Dissipation mechanism | Air cooling via 3 × fixed ventilation modules (left-to-right airflow) |
| Fan monitoring | Automatic dynamic adjustment of 3 speed levels based on temperature and fault alarm |
| Acoustic noise level | Maximum acoustic emission measured at 56.2 dB during operation at high thermal loads of 45 °C |
| Lightning protection | Contact ESD discharge: 6 kV (Susceptibility 8 kV) / Air discharge: 8 kV (Susceptibility 15 kV) |
| Surge protection | Service interfaces (Telecom): 10 kV / MGMT port: 4 kV / Power port: 6 kV common and differential |
| Power consumption | Base consumption (without cards): 60 W / Absolute maximum consumption with expansion module connected: 85 W |
| Environmental conditions | Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH / Operating altitude: Max. 5,000 m |
| Chassis dimensions (W×D×H) | 440 mm x 340 mm x 44 mm (standard 1U rackmount slim format) |
| Net device weight | 4.4 kg (9.70 lbs) (Weight related to the basic chassis electronics) |
