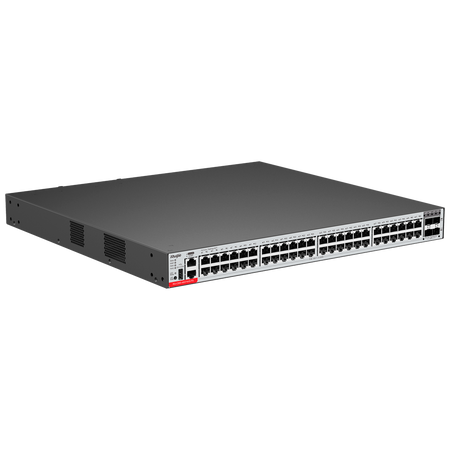

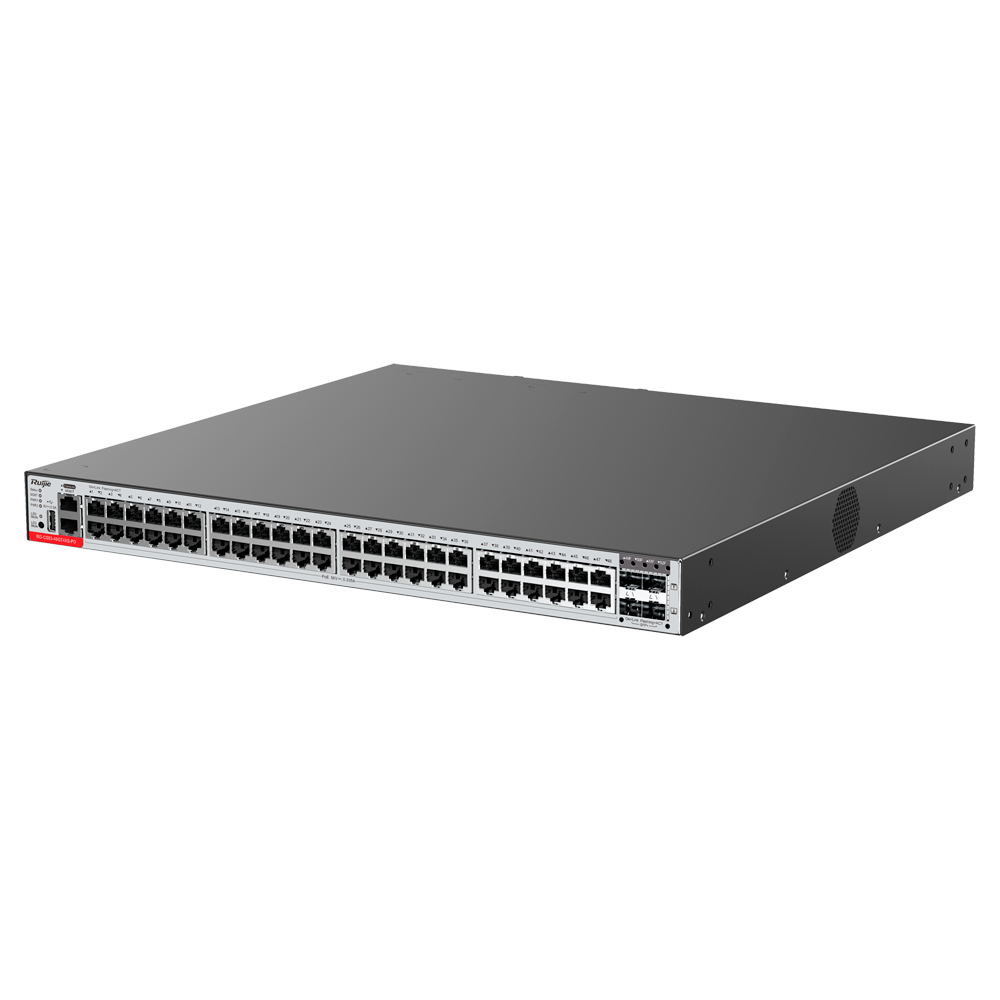

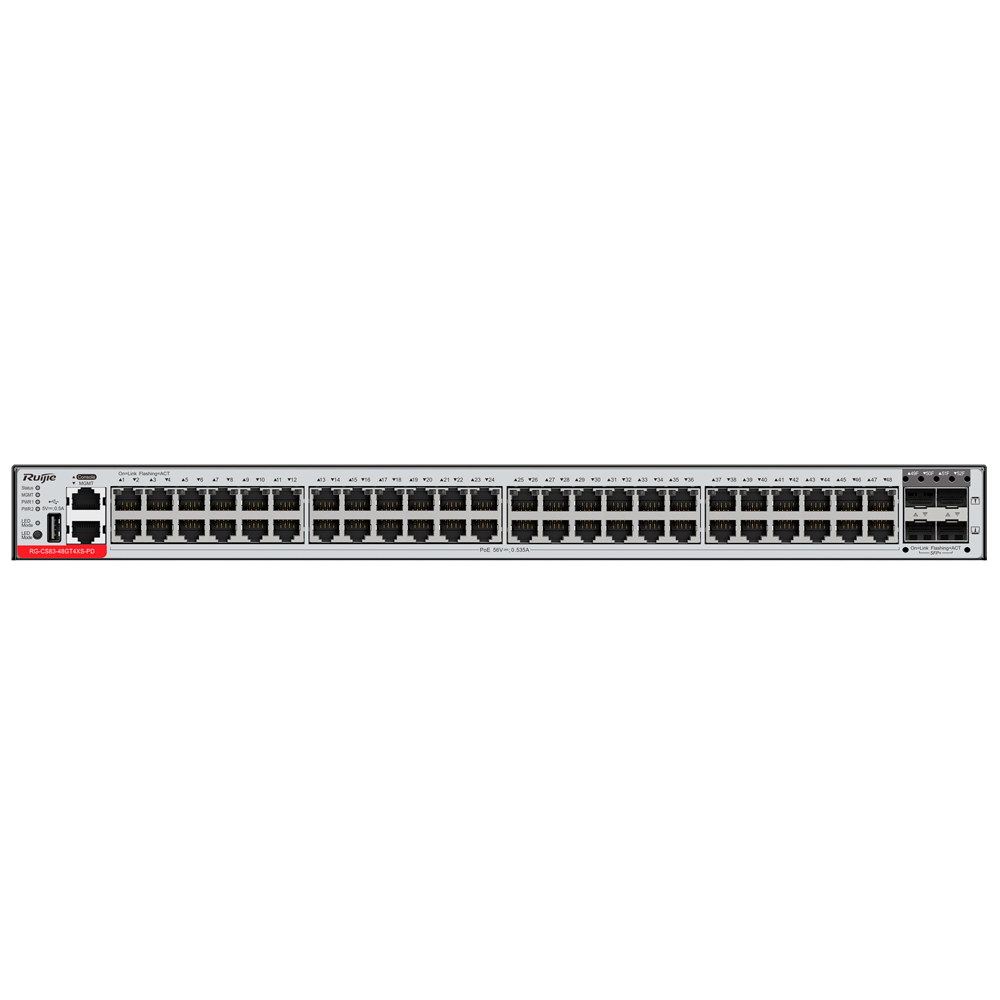

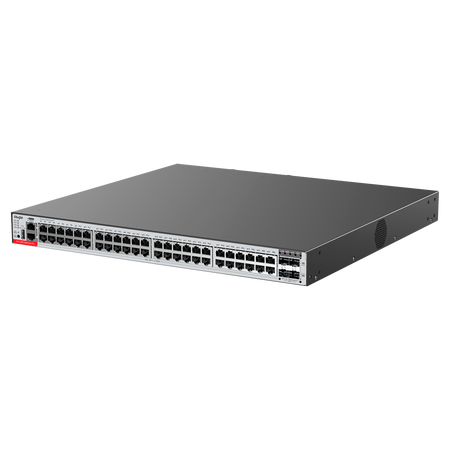

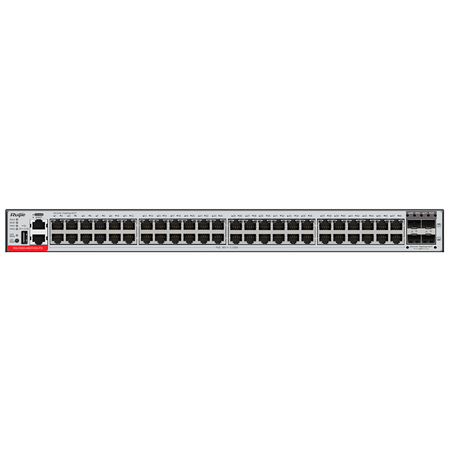

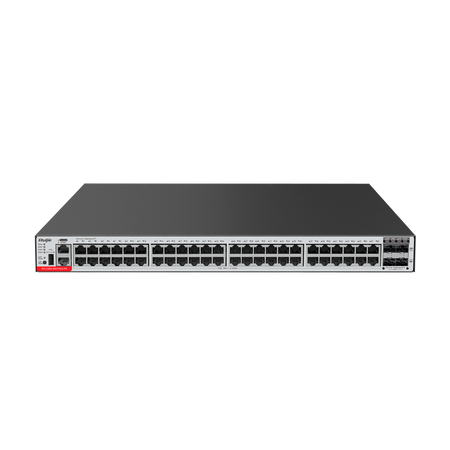

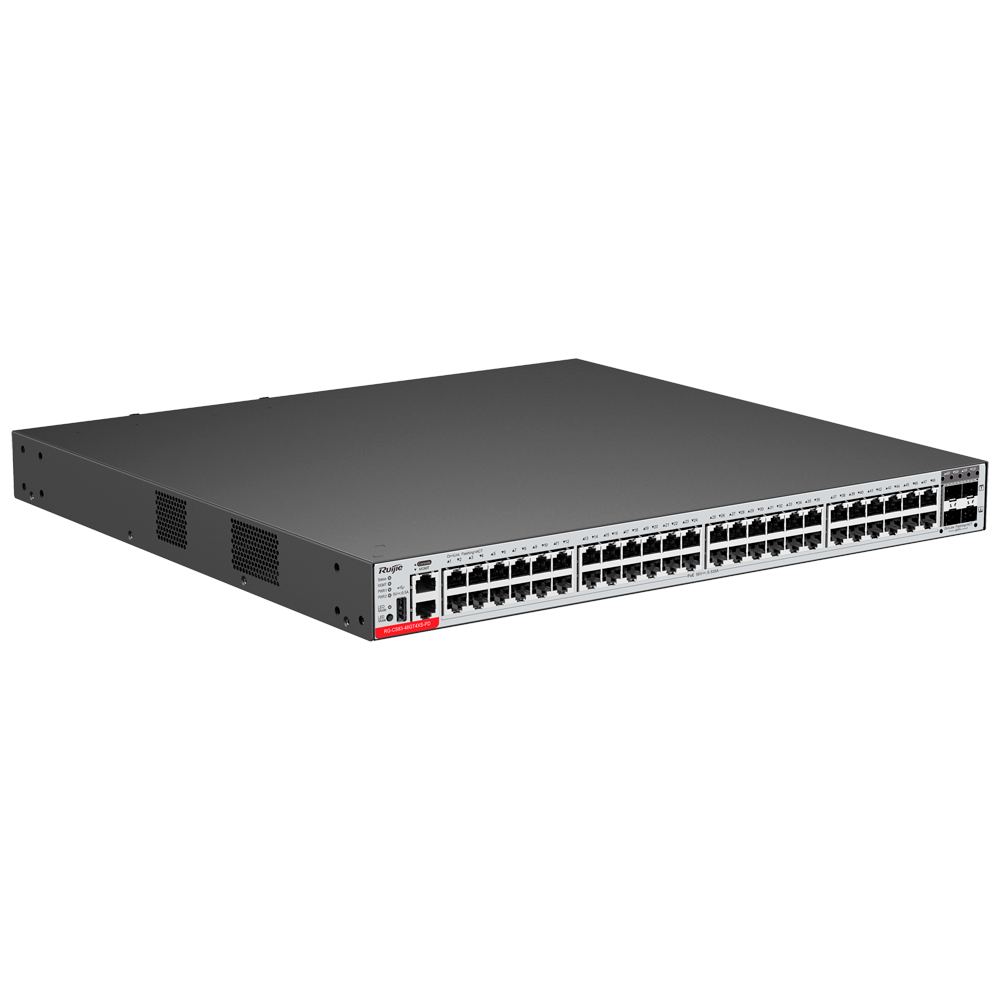

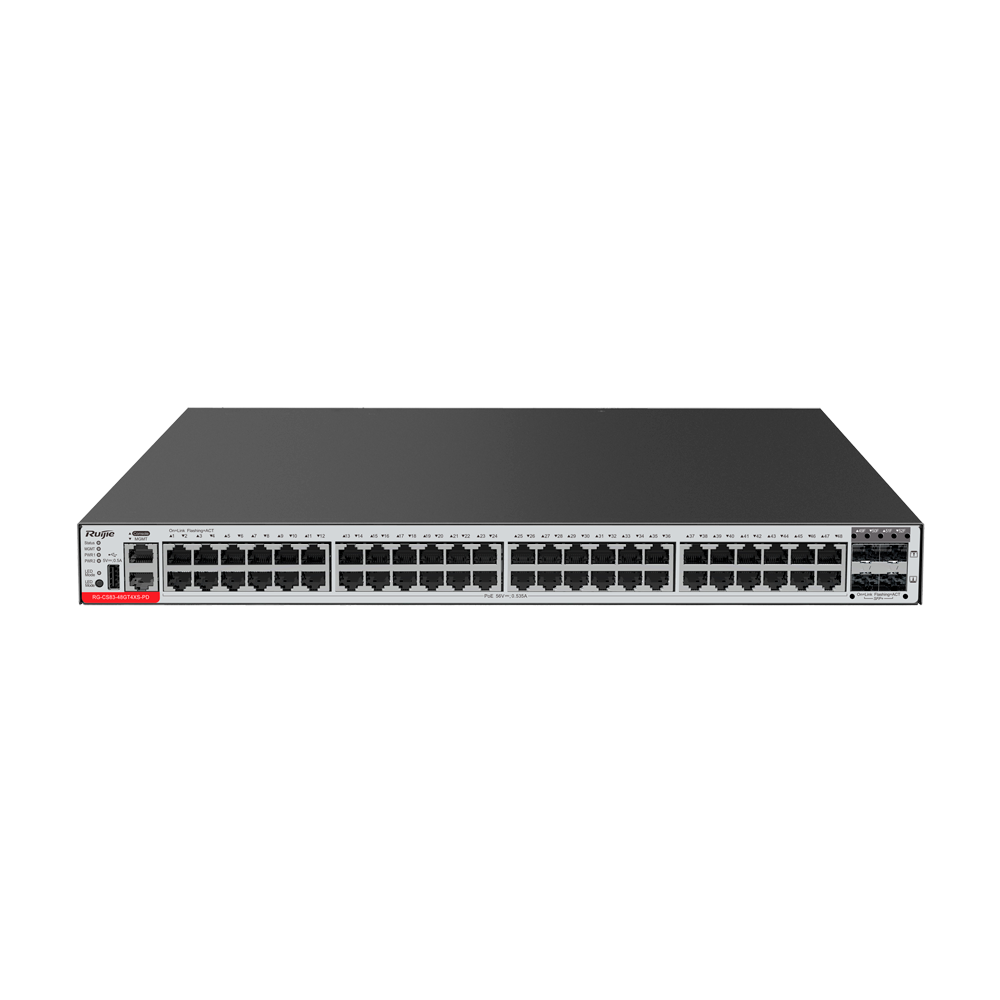

Ruijie Cloud Managed Layer 3 Switch - 52 total ports (48 PoE+ / 4 10G SFP+ Uplinks)
Ruijie Cloud Managed Layer 3 Switch - 52 total ports (48 PoE+ / 4 10G SFP+ Uplinks)
Regular price
€2.150,76
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Cloud Managed Layer 3 Switch - 52 Total Ports (48 PoE+ / 4 10G SFP+ Uplinks) - Ultra-fast 10 Gbps fiber optic connections - Dual slot for hot-swappable modular power supplies - VSU virtualization and advanced L3 redundancy - Lifetime free Ruijie Cloud management
📋 SPECIFICATIONS:
• Brand: Ruijie
• Fixed network interfaces: 48 × 10/100/1000BASE-T PoE/PoE+ RJ45, 4 × 1GE/10GE SFP+ (independent uplink)
• Supported PoE standards: IEEE 802.3af and IEEE 802.3at natively on all copper interfaces
• Maximum PoE power: Up to 1480 W (requires separate purchase of 2 RG-PA1000I-P-F AC modular power supplies)
• Maximum power output: Each port provides up to 30 W of stable power per single interface
• Pin and supply mode: Power via Mode A (cable pairs 1-2 and 3-6)
• Fixed management ports: 1 × RJ45 console port, 1 × RJ45 MGMT port, 1 × USB port
• Switching capacity: 176 Gbps
• Packet Forwarding Rate: 132 Mpps
• CPU specs: Dual-core processor, with each core at a frequency of 1.2 GHz
• System RAM: 1 GB
• Flash Memory / BootROM: Flash: 2 GB / BootROM: 16 MB
• Switch Buffer: 3 MB
• MAC address table: 32,000 enterprise high-density entries
• L3 table capabilities: ARP table: 4,000 / IPv4 Unicast routes: 8,000 / IPv6 Unicast routes: 4,000 / VLAN conversion: 4,094
• L3 multicast tables: IPv4 Multicast routes: 2,500 / IPv6 Multicast routes: 1,200
• Access control lists: Filter ACE entries: 3,500 inbound / 1,500 outbound
• Device virtualization: VSU (Virtual Switching Unit) technology supporting up to 4 members per logical cluster
• L2 redundancy protocols: STP, RSTP, MSTP and ERPS ring protocol (G.8032) with millisecond convergence
• IP routing and services: Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, BGP4/BGP4+, PBR, VRF, VRRP, DHCP v4/v6
• Cybersecurity ecosystem: CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, RPF/URPF
• Quality of Service (QoS): 8 priority queues per interface, classification based on 802.1p/DSCP/ToS, CAR, SP, WRR, DRQ, WFQ, RED, WRED
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, 802.3ah diagnostics
• Management platforms: Ruijie Cloud App/Web, eWeb local, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON
• Energy efficiency: Native support for energy saving on ports (Energy Saving PoE) and integrated circuits
• Chassis structure and form factor: Metal with conformal coating on key components, 1 RU form factor
• Power expansion slots: 2 independent modular slots for pluggable power supplies
• Hot maintenance: Native support for hot-swapping cables, optical transceivers, USB units, and power modules
• Fan monitoring: Automatic 3-level dynamic adjustment based on temperature and ventilation failure alarms
• Acoustic noise level: 51.6 dB measured at a temperature of 27 °C / 57.4 dB at a maximum temperature of 45 °C
• Lightning protection: Contact ESD discharge: 6 kV (Susceptibility 8 kV) / Air discharge: 8 kV (Susceptibility 15 kV)
• Surge protection: Service interfaces (Telecom): 10 kV / MGMT port: 4 kV / Power port: 6 kV common and differential
• Power consumption: Basic electronic device power consumption (without PoE): 75 W / Absolute maximum consumption at full load: 1570 W
• Environmental conditions: Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH / Altitude: Max. 5,000 m
• Chassis dimensions (W×D×H): 442 mm x 420 mm x 43.6 mm (standard 19-inch rack format)
• Net weight of base chassis: 4.6 kg (10.14 lbs) (Base chassis, excluding external power supply modules)
📦 INCLUDED:
• 1x RG-CS83-48GT4XS-PD Smart Cloud Managed L3 Switch (base chassis)• 2x Metal rack-mount brackets (ears)• 8x Phillips countersunk head screws (M4x8, GB819-85)• 4x Rubber feet for desktop use• 1x Grounding wire• 1x Mounting bracket installation guide• 1x Warranty manual and substance declaration• (Note: The RG-PA600I-P-F or RG-PA1000I-P-F modular power supplies are not included in the basic package and must be purchased separately based on the required PoE power)
| Fixed network interfaces | 48 × 10/100/1000BASE-T PoE/PoE+ RJ45, 4 × 1GE/10GE SFP+ (independent uplink) |
|---|---|
| Supported PoE standards | IEEE 802.3af and IEEE 802.3at natively on all copper interfaces |
| Maximum PoE power | Up to 1480 W (requires separate purchase of 2 RG-PA1000I-P-F AC modular power supplies) |
| Maximum power output | Each port provides up to 30 W of stable power per single interface |
| Pin and supply mode | Power via Mode A (wire pairs 1-2 and 3-6) |
| Fixed management ports | 1 × RJ45 console port, 1 × RJ45 MGMT port, 1 × USB port |
| Switching capacity | 176 Gbps |
| Packet Forwarding Rate | 132 Mpps |
| CPU specifications | Dual-core processor (dual-core CPU), with each core at a frequency of 1.2 GHz |
| System RAM memory | 1 GB |
| Flash Memory / BootROM | Flash: 2 GB / BootROM: 16 MB |
| Switch buffer | 3 MB |
| MAC address table | 32,000 entries, high-density enterprise grade |
| L3 table capabilities | ARP table: 4,000 / IPv4 Unicast routes: 8,000 / IPv6 Unicast routes: 4,000 / VLAN conversion: 4,094 |
| L3 multicast tables | IPv4 Multicast routes: 2,500 / IPv6 Multicast routes: 1,200 |
| Access Control Lists | Filter ACE entries: 3,500 inbound / 1,500 outbound |
| Device virtualization | VSU (Virtual Switching Unit) technology supporting up to 4 members per logical cluster |
| L2 redundancy protocols | STP, RSTP, MSTP, and ERPS (G.8032) ring protocol with millisecond convergence |
| IP routing and services | Static routing, RIP, RIPng, OSPFv2/v3, IS-ISv4/v6, BGP4/BGP4+, PBR, VRF, VRRP, DHCP v4/v6 |
| Cybersecurity ecosystem | CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, DHCP Snooping, 802.1X Auth, Web Auth, RPF/URPF |
| Quality of Service (QoS) | 8 priority queues per interface, classification based on 802.1p/DSCP/ToS, CAR, SP, WRR, DRQ, WFQ, RED, WRED |
| Maintenance and diagnostics | RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN/ERSPAN mirroring, sFlow, Syslog, 802.3ah diagnostics |
| Management platforms | Ruijie Cloud App/Web, eWeb local, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON |
| Energy efficiency | Native support for energy saving on ports (Energy Saving PoE) and integrated circuits |
| Chassis structure and format | Metal with conformal coating on key components, 1 RU format |
| Power expansion slots | 2 independent modular slots for pluggable power supplies |
| Hot maintenance | Native support for hot-swapping cables, optical transceivers, USB units, and power modules |
| Fan monitoring | Automatic 3-level dynamic adjustment based on temperature and ventilation failure alarm |
| Acoustic noise level | 51.6 dB measured at a temperature of 27 °C / 57.4 dB at the maximum temperature of 45 °C |
| Lightning protection | Contact ESD discharge: 6 kV (8 kV susceptibility) / Air discharge: 8 kV (15 kV susceptibility) |
| Surge protection | Service interfaces (Telecom): 10 kV / MGMT port: 4 kV / Power port: 6 kV common and differential mode |
| Electric power consumption | Base power consumption of electronic devices (without PoE): 75 W / Absolute maximum consumption at full load: 1570 W |
| Environmental conditions | Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH / Altitude: Max. 5,000 m |
| Chassis dimensions (W×D×H) | 442 mm x 420 mm x 43.6 mm (standard 19-inch rack format) |
| Net weight of base chassis | 4.6 kg (10.14 lbs) (Base chassis, external power modules excluded) |
