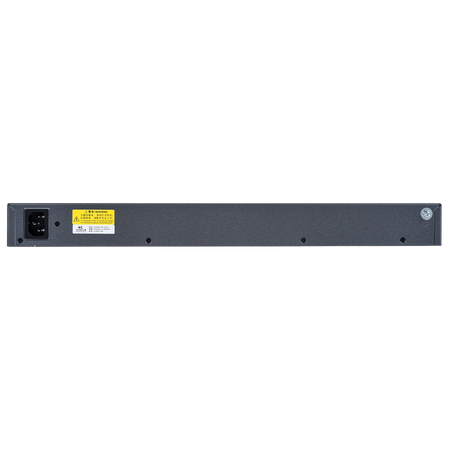

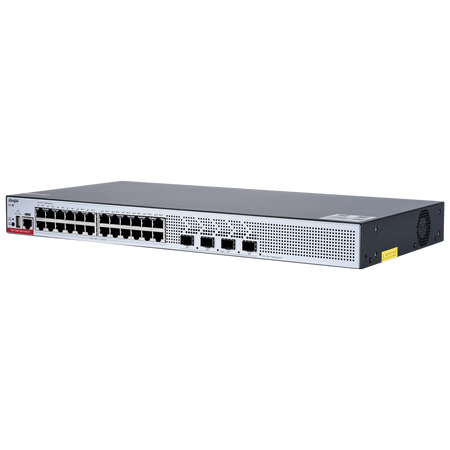

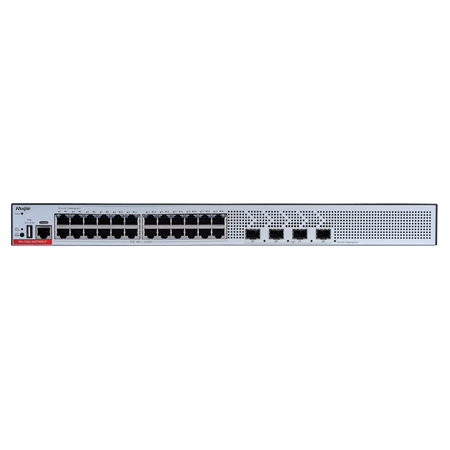

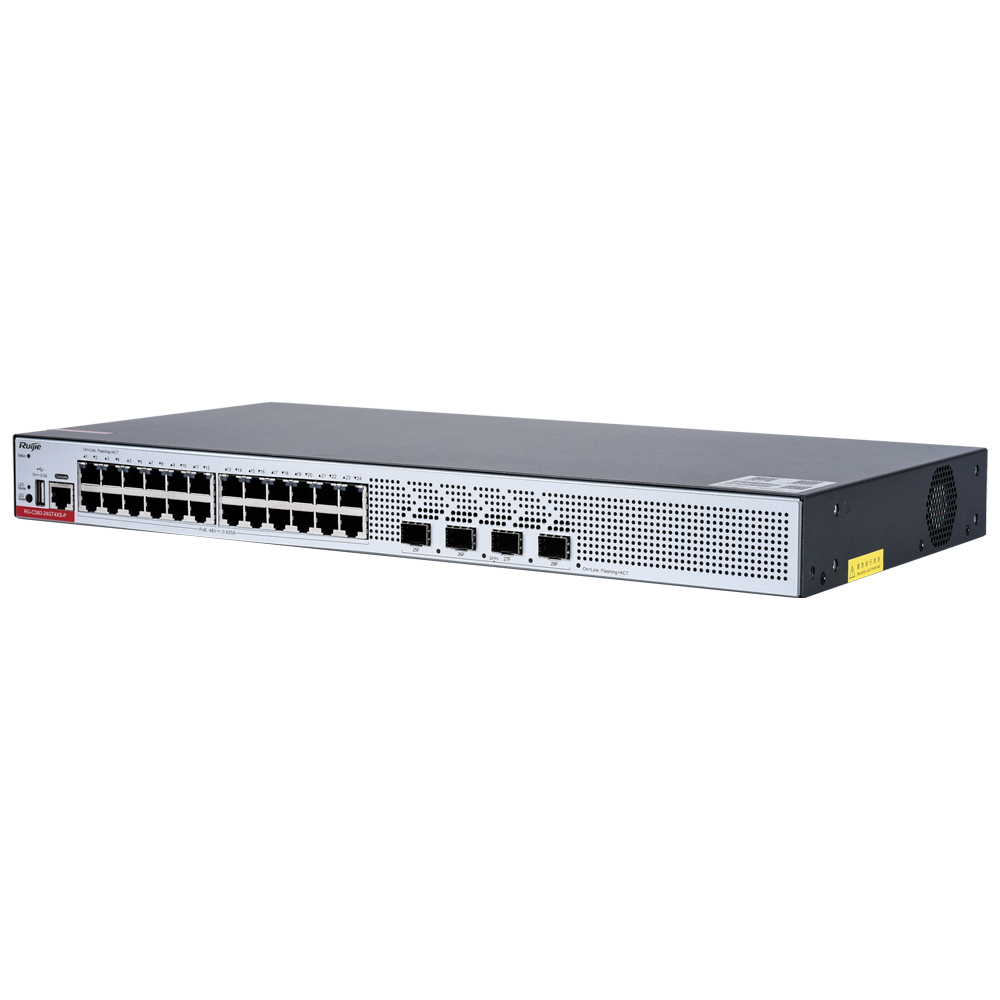

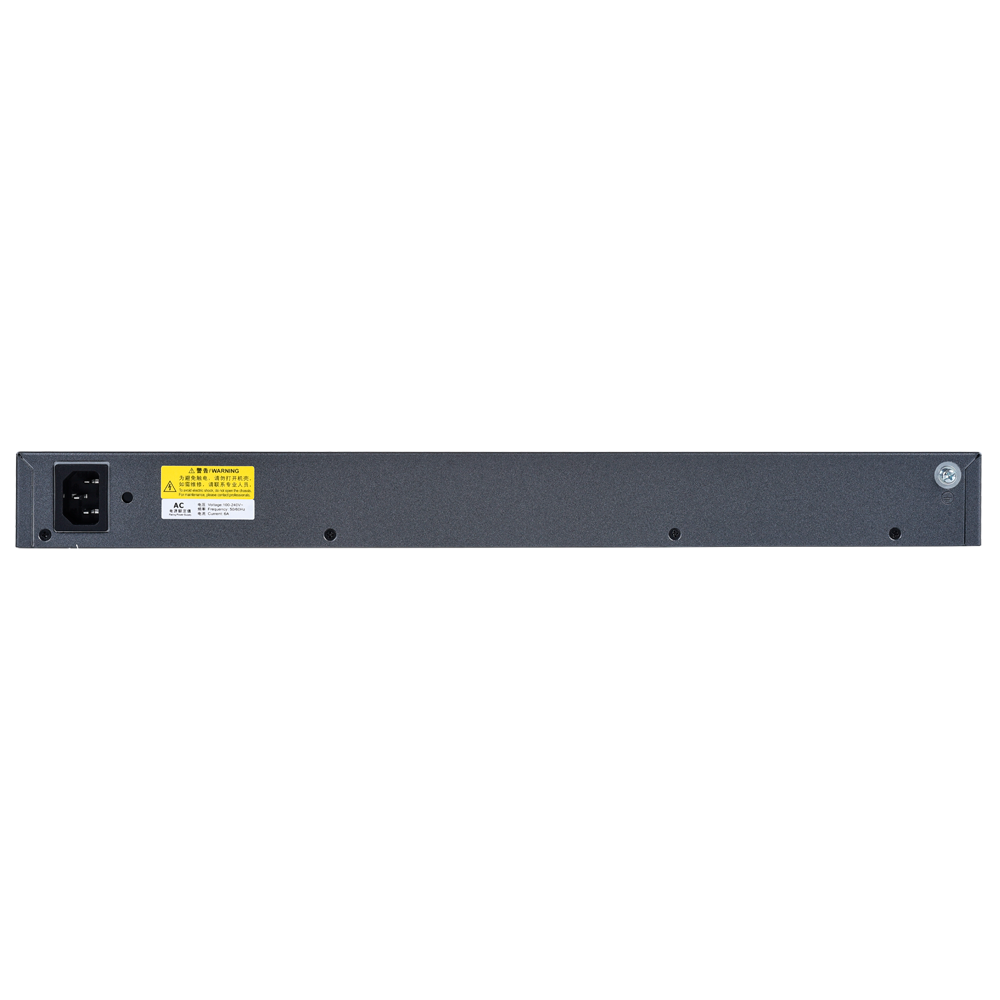

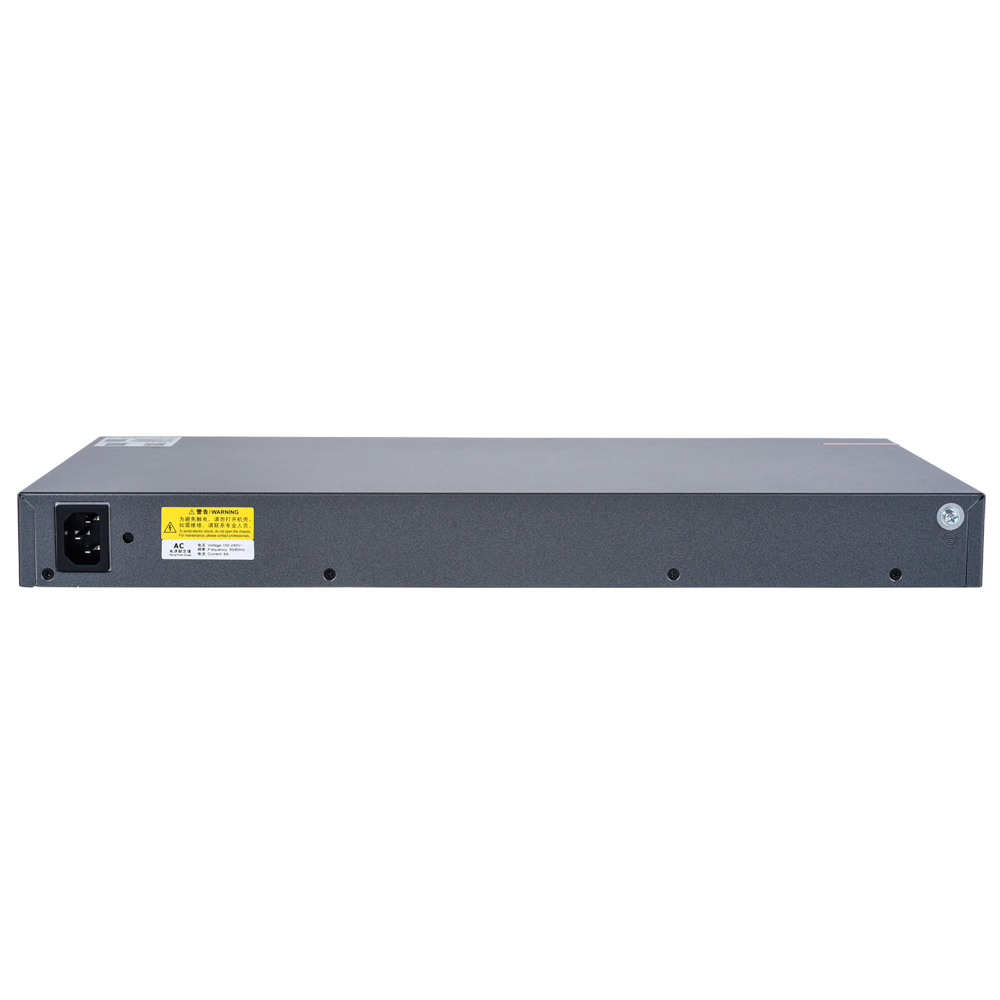

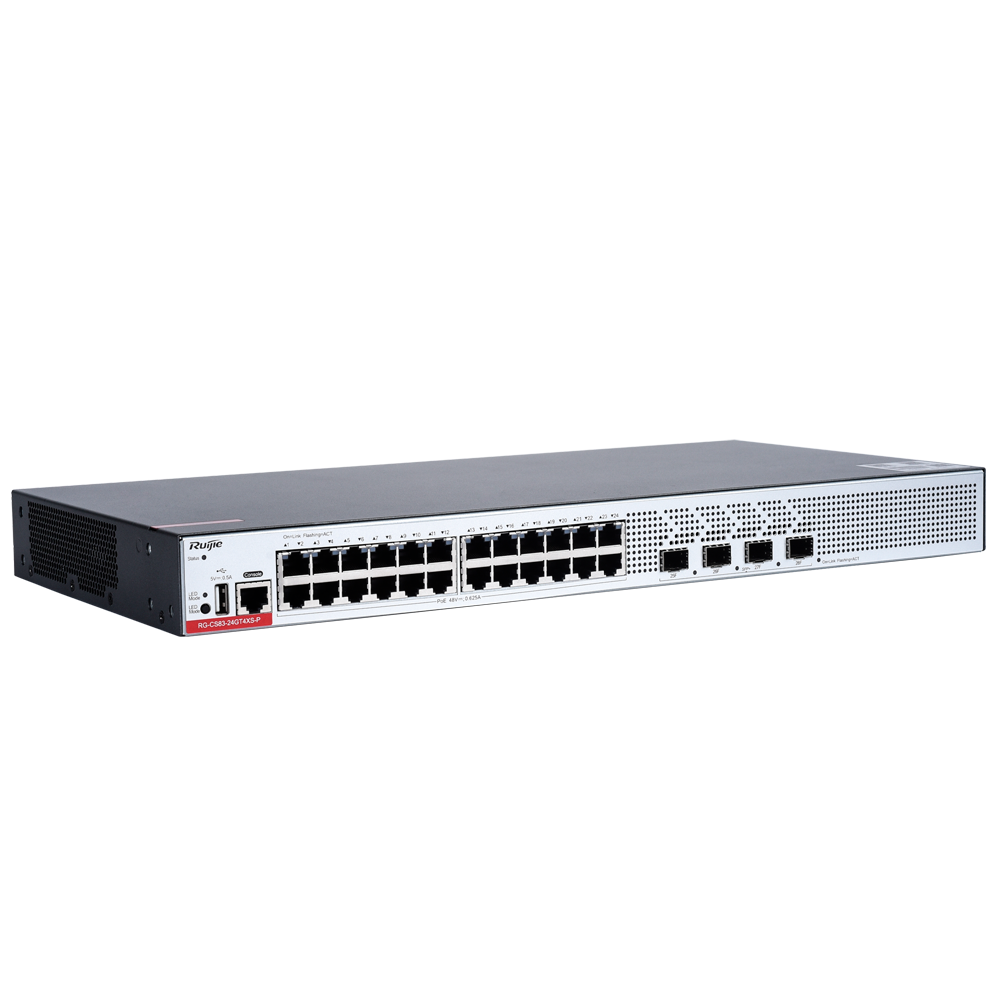

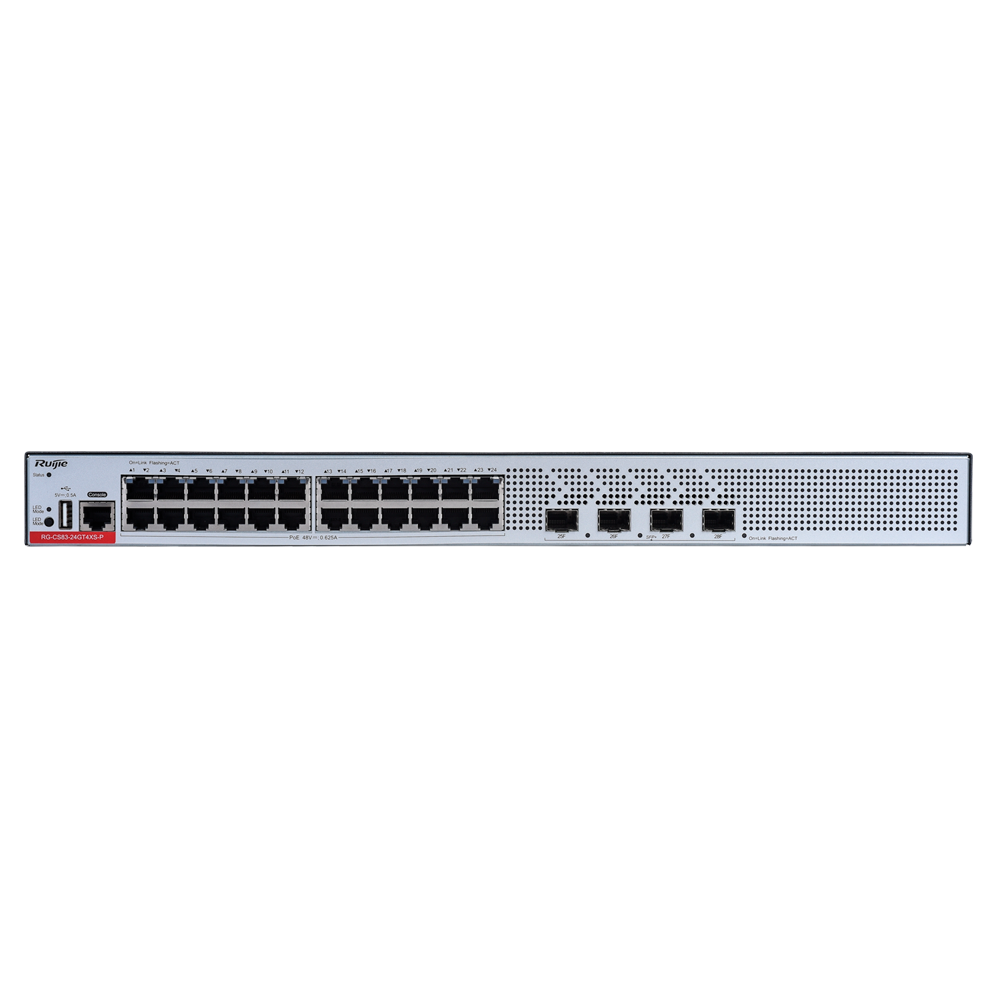

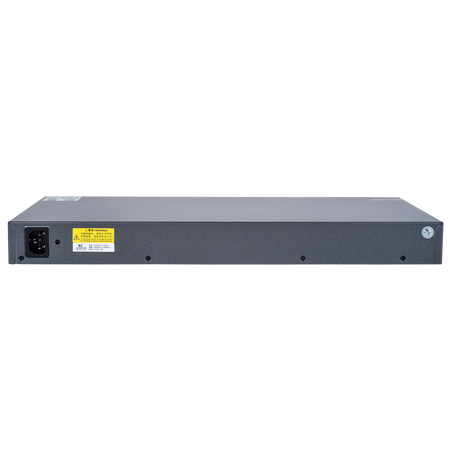

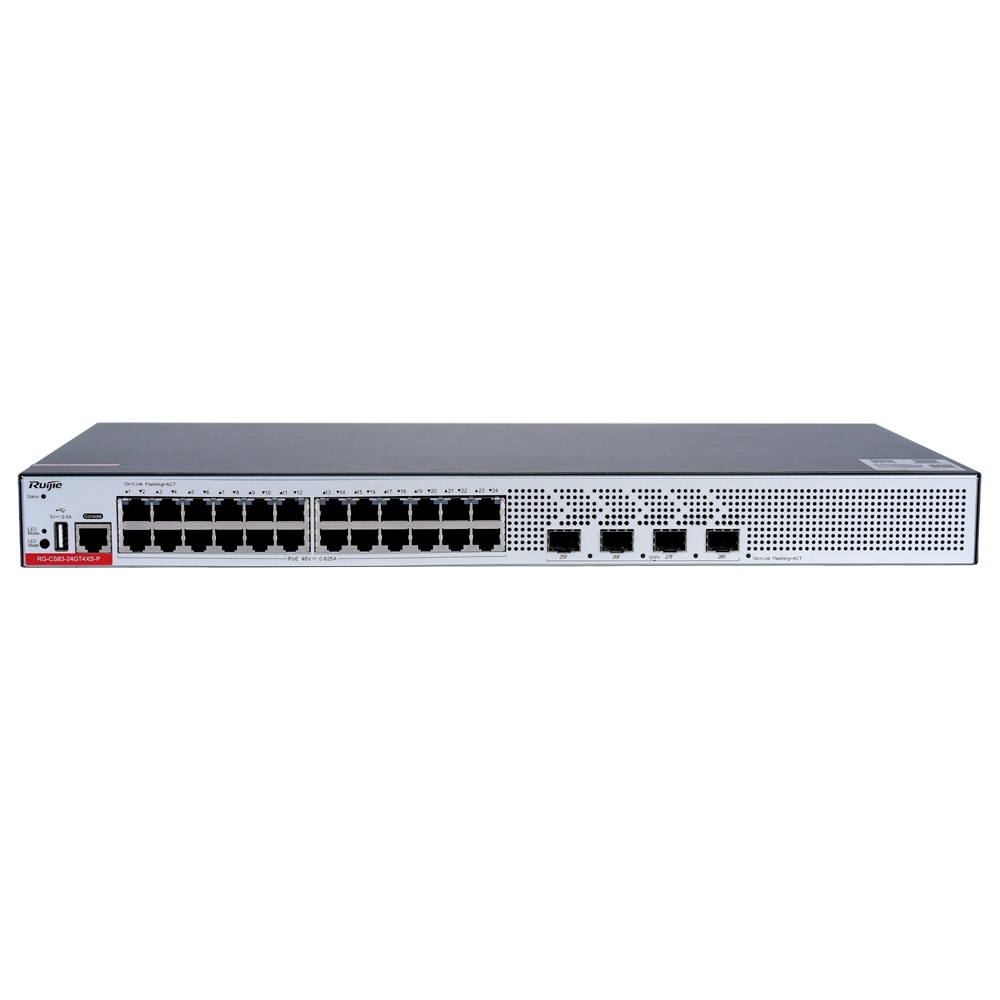

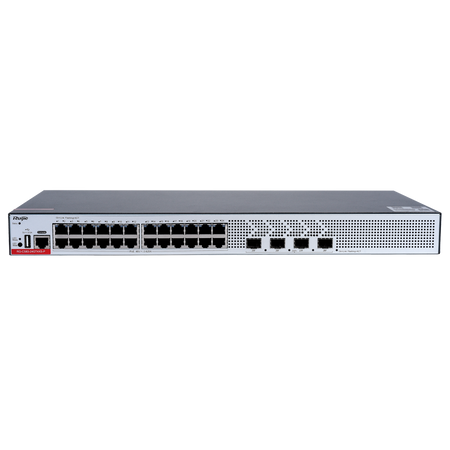

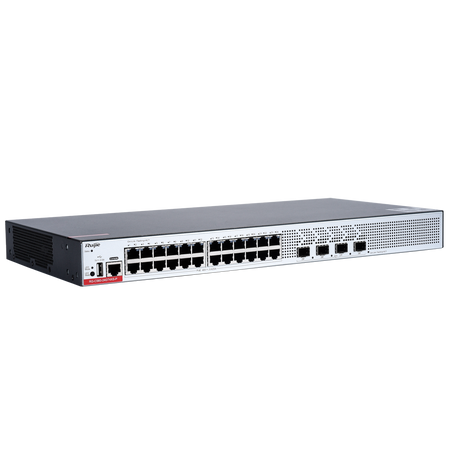

Ruijie Cloud Managed Layer 3 PoE+ Switch - 28 Ports total (24 PoE+ / 4 Uplink 10G SFP+)
Ruijie Cloud Managed Layer 3 PoE+ Switch - 28 Ports total (24 PoE+ / 4 Uplink 10G SFP+)
Regular price
€1.042,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Cloud Managed Layer 3 PoE+ Switch - 28 total ports (24 PoE+ / 4 Uplink 10G SFP+) - Ultra-fast 10 Gbps fiber optic connections - Stable 30W PoE+ power / 370W total - Hardware-level dual-boot redundancy - Ruijie Cloud management free forever
📋 SPECIFICATIONS:
• Brand: Ruijie
• Fixed network interfaces: 24 × 10/100/1000BASE-T PoE/PoE+ RJ45, 4 × 1GE/10GE SFP+ (independent uplink)
• PoE standards supported: IEEE 802.3af and IEEE 802.3at natively on all copper interfaces
• Total PoE power: 370 W to be allocated intelligently
• Maximum power output: Up to 30 W of stable power per single interface
• Pins and delivery mode: Power via Mode A (cable pairs 1-2 and 3-6)
• Management / Additional ports: 1 × console port, RJ45 × 1 USB port (no storage capacity limit)
• Switching capacity: 128 Gbps
• Packet Forwarding Rate: 96 Mpps
• CPU specs: Dual-core processor, with each core at 1.0 GHz frequency
• System RAM: 1 GB
• Flash Memory / BootROM: Flash: 512 MB / BootROM: 16 MB (Built-in support for 1+1 boot redundancy)
• Switch Buffer: 1.5 MB
• MAC address table: 16,000 high-density entries
• L3 table functionality: ARP table: 4,000 / IPv4 Unicast routes: 6,000 / IPv6 Unicast routes: 2,000
• L3 multicast tables: IPv4 Multicast routes: 1,000 / IPv6 Multicast routes: 750
• Access control lists: Filter ACE entries: 1,750 inbound / 800 outbound
• Device virtualization: VSU (Virtual Switching Unit) technology with support for up to 4 members per cluster
• L2 redundancy protocols: STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) and ERPS ring protocol (G.8032)
• Routing and IP services: Static routing, RIP, RIPng, OSPFv2, OSPFv3, PBR (Policy-Based Routing), VRF, VRRP, DHCP v4/v6
• Cybersecurity ecosystem: CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, Time/Expert-based ACLs, 802.1X Auth, Web Auth
• Quality of Service (QoS): 8 priority queues per interface, classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ algorithms
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN Mirroring, sFlow, Syslog, 802.3ah diagnostics
• Management platforms: Ruijie Cloud App/Web, local eWeb, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON
• Energy efficiency: Native support for IEEE 802.3az Energy Efficient Ethernet (EEE)
• Chassis structure and format: Metal with conformal coating on key components, 1 RU format
• Dissipation mechanism: Air cooling via 1 × fixed fan module
• Fan monitoring: Multi-level dynamic speed adjustment based on PID according to temperature and failure alarm
• Acoustic noise level: Just 32 dB measured at a controlled ambient temperature of 27 °C
• Lightning protection: ESD contact discharge: 6 kV (8 kV susceptibility) / Air discharge: 8 kV (15 kV susceptibility)
• Surge protection: Service interfaces (Telecom): 10 kV / Power port: 6 kV in common mode and 8 kV in differential mode
• Power supply: 1 × internal fixed AC power supply
• Power operating range: Nominal voltage: 100-240 V AC, 50/60 Hz (Max limits: 90-264 V AC, 47-63 Hz, max current 6 A)
• Power consumption: Base consumption (without PoE): 35 W / Absolute maximum consumption at full PoE load: 405 W
• Environmental conditions: Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH (non-condensing)
• Switch dimensions (W×D×H): 442 mm x 220 mm x 43.6 mm (Reduced depth of 8.66 inches for small cabinets)
• Device net weight: 3.4 kg (7.50 lbs)
📦 INCLUDED:
• 1x RG-CS83-24GT4XS-P L3 PoE+ Smart Cloud Managed Switch • 2x Metal rack-mount brackets (ears) • 8x Cross-head countersunk screws (M4x8, GB819-85) • 4x Rack mounting screws (M6*16) • 4x Rack cage nuts (M6 cage nut) • 1x Grounding wire • 1x Professional AC power cord • 1x Nylon buckle • 4x Rubber feet for desktop use • 1x Bracket installation guide and user manual
| Fixed network interfaces | 24 × 10/100/1000BASE-T PoE/PoE+ RJ45, 4 × 1GE/10GE SFP+ (independent uplink) |
|---|---|
| Supported PoE standards | IEEE 802.3af and IEEE 802.3at natively on all copper interfaces |
| Total PoE power | 370 W to be assigned intelligently |
| Maximum power output | Up to 30 W of stable power per single interface |
| Pin and supply mode | Power via Mode A (wire pairs 1-2 and 3-6) |
| Management / Additional ports | 1 × console port, RJ45 × 1 USB port (no storage capacity limits) |
| Switching capacity | 128 Gbps |
| Packet Forwarding Rate | 96 Mpps |
| CPU specifications | Dual-core processor (dual-core CPU), with each core at a frequency of 1.0 GHz |
| System RAM memory | 1 GB |
| Flash / BootROM memory | Flash: 512 MB / BootROM: 16 MB (Integrated support for 1+1 boot redundancy) |
| Switch buffer | 1.5 MB |
| MAC address table | 16,000 high-density entries |
| L3 table capabilities | ARP table: 4,000 / IPv4 Unicast routes: 6,000 / IPv6 Unicast routes: 2,000 |
| L3 multicast tables | IPv4 Multicast routes: 1,000 / IPv6 Multicast routes: 750 |
| Access Control Lists | Filter ACE entries: 1,750 inbound / 800 outbound |
| Device virtualization | VSU (Virtual Switching Unit) technology with support for up to 4 cluster members |
| L2 redundancy protocols | STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) and ERPS ring protocol (G.8032) |
| Routing and IP services | Static routing, RIP, RIPng, OSPFv2, OSPFv3, PBR (Policy Based Routing), VRF, VRRP, DHCP v4/v6 |
| Cybersecurity ecosystem | CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, Time/Expert-based ACLs, 802.1X Auth, Web Auth |
| Quality of Service (QoS) | 8 priority queues per interface, 802.1p/DSCP/ToS-based classification, SP, WRR, DRR, WFQ algorithms |
| Maintenance and diagnostics | RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN Mirror, sFlow, Syslog, 802.3ah diagnostics |
| Management platforms | Ruijie Cloud App/Web, eWeb local, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON |
| Energy efficiency | Native support for IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Chassis structure and format | Metal with conformal coating on key components, 1 RU format |
| Dissipation mechanism | Air cooling via 1 × fixed fan module |
| Fan monitoring | PID-based multi-level dynamic speed adjustment based on temperature and failure alarm |
| Acoustic noise level | Just 32 dB measured at a controlled ambient temperature of 27 °C |
| Lightning protection | Contact ESD discharge: 6 kV (8 kV susceptibility) / Air discharge: 8 kV (15 kV susceptibility) |
| Surge protection | Service interfaces (Telecom): 10 kV / Power port: 6 kV common mode and 8 kV differential mode |
| Power supply | 1 × internal fixed AC power supply |
| Power operation range | Nominal voltage: 100-240 V AC, 50/60 Hz (Maximum limits: 90-264 V AC, 47-63 Hz, max current 6 A) |
| Power consumption | Base consumption (without PoE): 35 W / Absolute maximum consumption at full PoE load: 405 W |
| Environmental conditions | Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH (non-condensing) |
| Switch dimensions (W×D×H) | 442 mm x 220 mm x 43.6 mm (Reduced depth of 8.66 inches for small cabinets) |
| Net device weight | 3.4 kg (7.50 lbs) |
