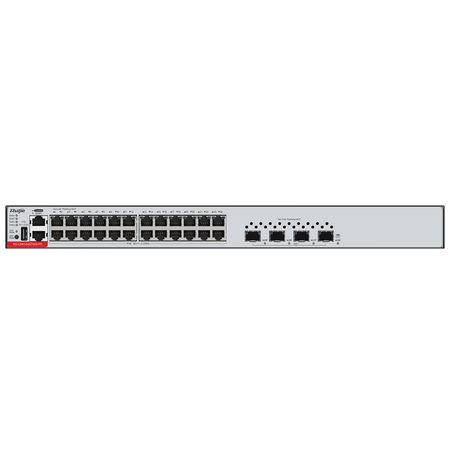

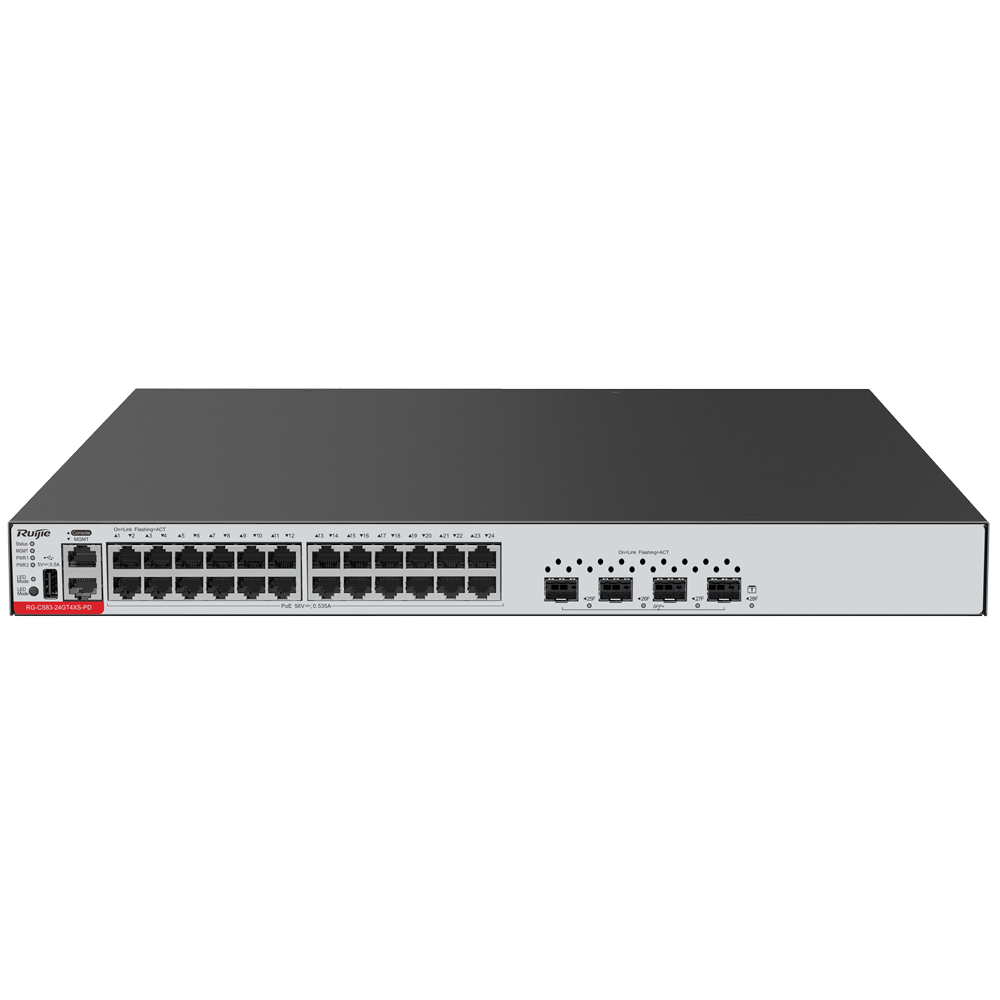

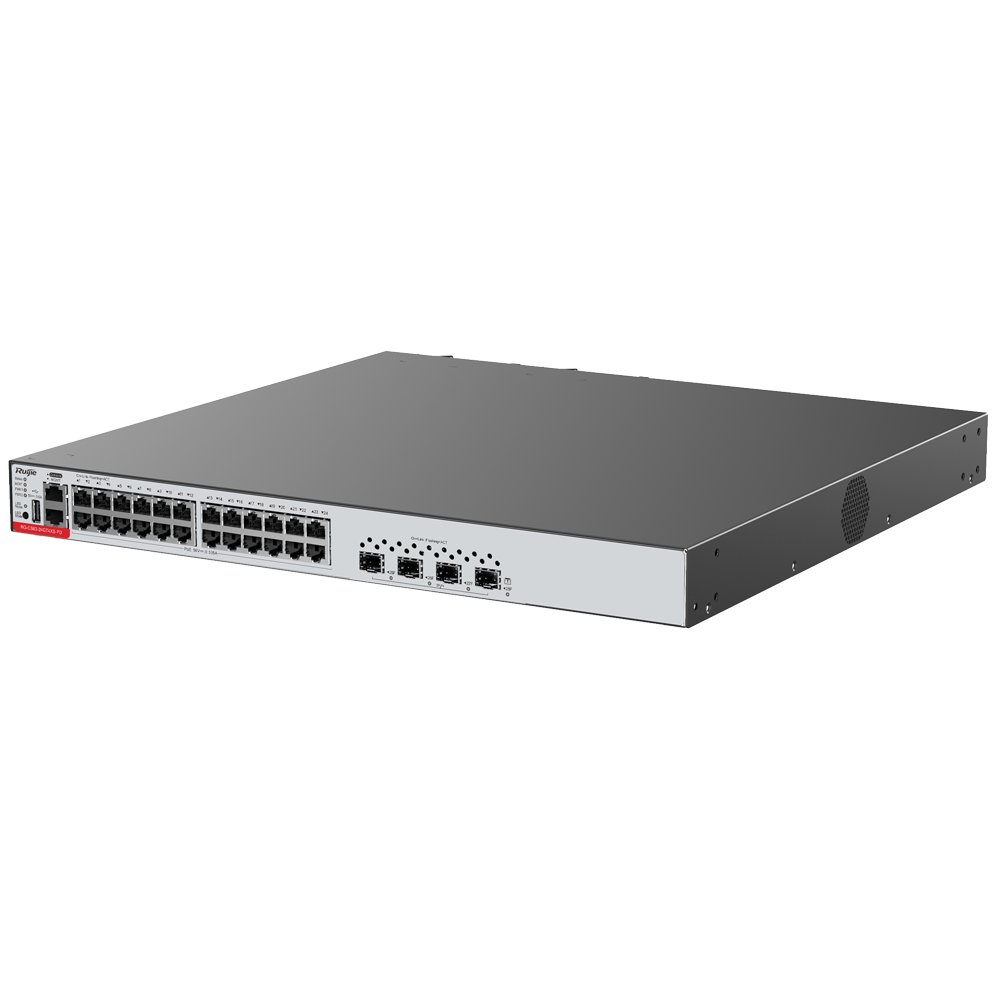

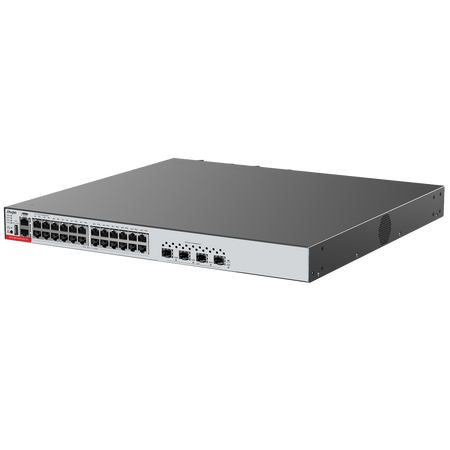

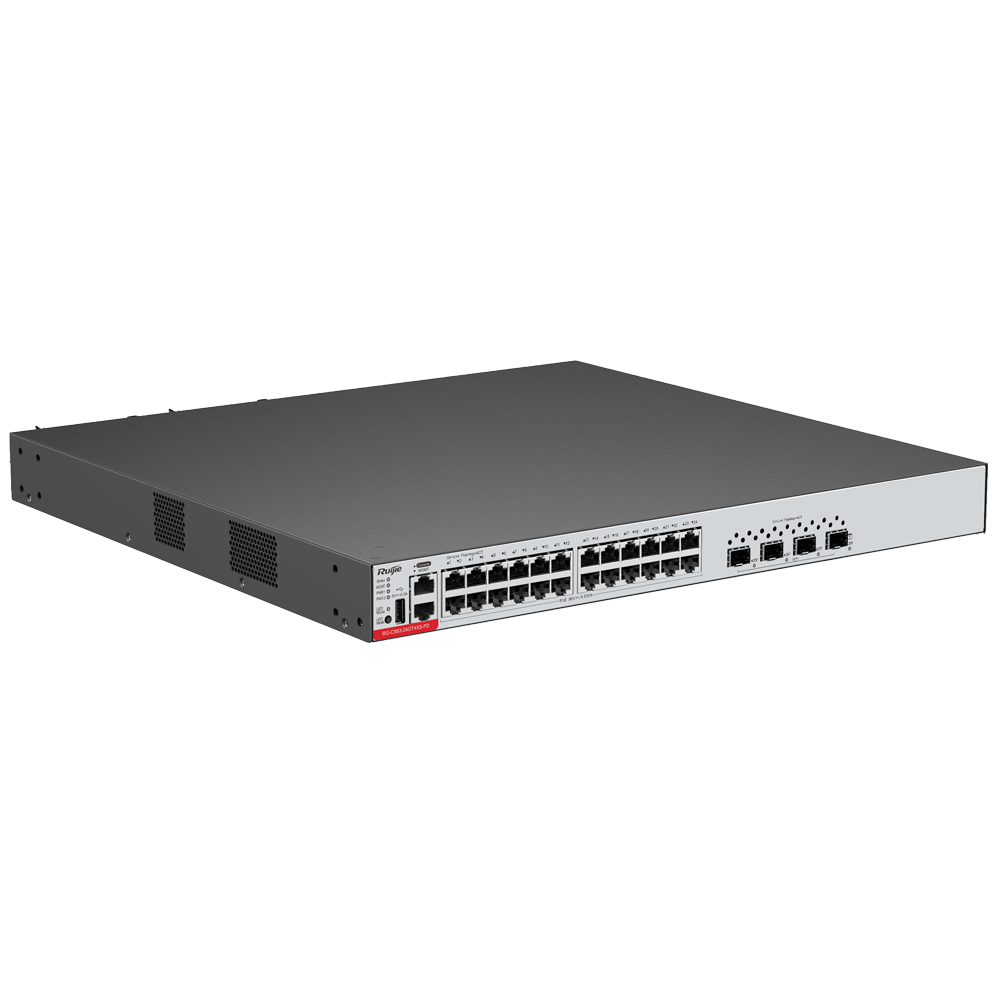

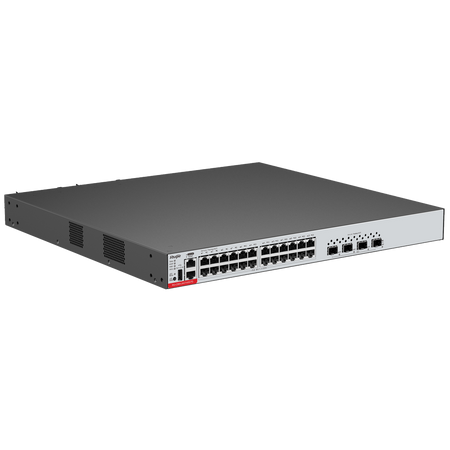

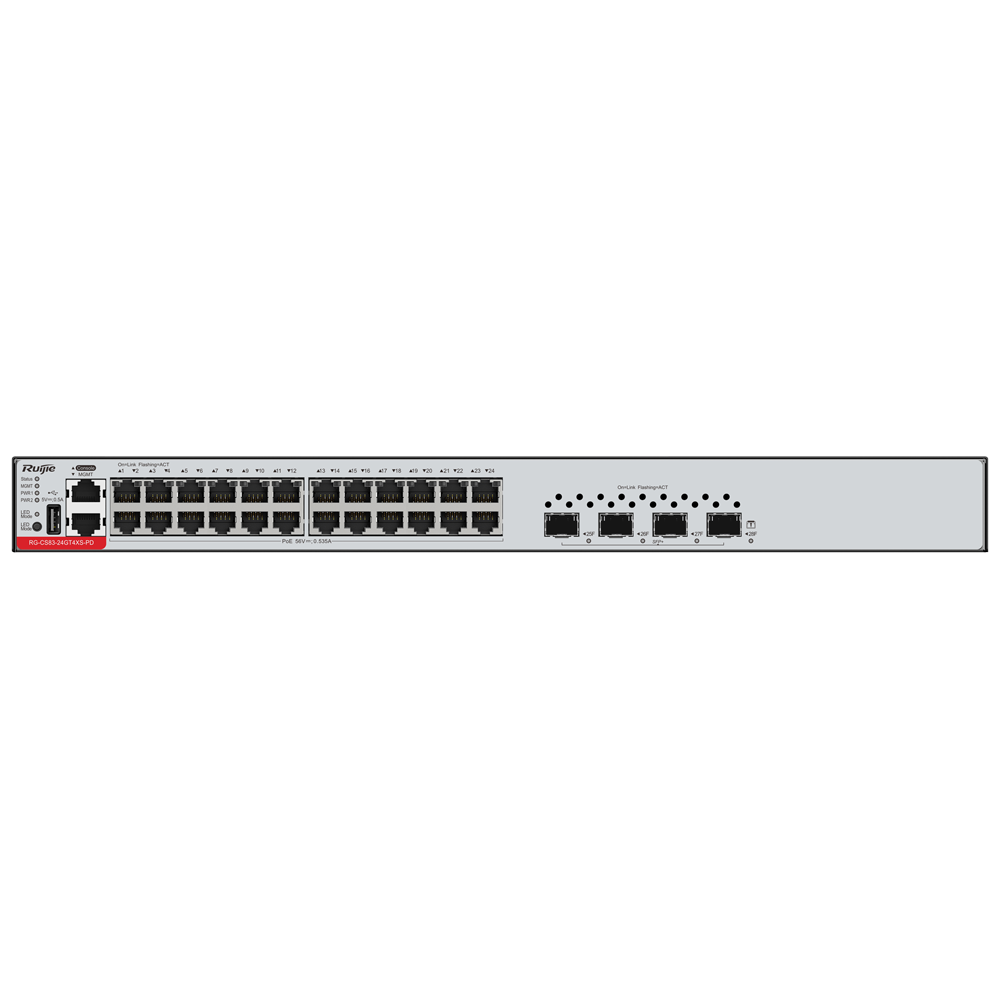

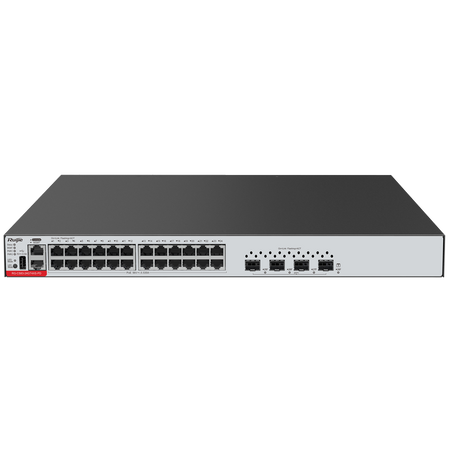

Ruijie Cloud Managed Layer 3 Access Switch - 28 ports total (24 GE / 4 10G SFP+ Uplinks)
Ruijie Cloud Managed Layer 3 Access Switch - 28 ports total (24 GE / 4 10G SFP+ Uplinks)
Regular price
€710,28
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Cloud Managed Layer 3 Access Switch - 28 Total Ports (24 GE / 4 Uplink 10G SFP+) - Ultrafast 10 Gbps fiber optic connections - Fanless design with natural heat dissipation - Hardware-level Dual-Boot redundancy - Forever-free Ruijie Cloud management
📋 SPECIFICATIONS:
• Brand: Ruijie
• Fixed network interfaces: 24 × 10/100/1000BASE-T RJ45, 4 × 1GE/10GE SFP+ (independent fiber uplinks)
• Management / Additional ports: 1 × console port, 1 × USB port (no storage capacity limits)
• Switching capacity: 128 Gbps
• Packet Forwarding Rate: 96 Mpps
• CPU specifications: Dual-core processor, each core at a frequency of 1.0 GHz
• System RAM: 1 GB
• Flash Memory / BootROM: Flash: 512 MB / BootROM: 16 MB (Built-in support for 1+1 boot redundancy)
• Switch Buffer: 1.5 MB
• MAC address table: 16,000 high-density entries
• L3 table capabilities: ARP table: 4,000 / IPv4 Unicast routes: 6,000 / IPv6 Unicast routes: 2,000
• L3 multicast tables: IPv4 Multicast routes: 1,000 / IPv6 Multicast routes: 750
• Access Control Lists: Filtering ACE entries: 1,750 inbound / 800 outbound
• Device virtualization: VSU (Virtual Switching Unit) technology supporting up to 4 members per cluster
• L2 redundancy protocols: STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and ERPS ring protocol (G.8032)
• Routing and IP services: Static routing, RIP, RIPng, OSPFv2, OSPFv3, PBR (Policy-Based Routing), VRF, VRRP, DHCP v4/v6
• Cybersecurity ecosystem: CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, Time/Expert-based ACLs, 802.1X Auth, Web Auth
• Quality of Service (QoS): 8 priority queues per interface, classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ algorithms
• Maintenance and diagnostics: RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN mirroring, sFlow, Syslog, 802.3ah diagnostics
• Management platforms: Ruijie Cloud App/Web, local eWeb, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON
• Energy efficiency: Native support for IEEE 802.3az Energy Efficient Ethernet (EEE)
• Chassis structure and format: Metal with conformal coating on key components, 1 RU format
• Dissipation mechanism: Fanless passive structural design with natural thermal convection
• Acoustic noise level: Completely silent, less than 20 dB, ideal for direct office installation
• Lightning protection: Contact ESD: 6 kV (8 kV susceptibility) / Air discharge: 8 kV (15 kV susceptibility)
• Surge protection: Service interfaces (Telecom): 10 kV / Power port: 6 kV common mode and 6 kV differential mode
• Power supply: 1 × fixed internal AC power supply
• Power operating range: Nominal voltage: 100-240 V AC, 50/60 Hz (Maximum limits: 90-264 V AC, 47-63 Hz, max current 0.6 A)
• Power consumption: Absolute maximum operating consumption of only 25 W
• Environmental conditions: Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH (non-condensing)
• Switch dimensions (W×D×H): 442 mm x 220 mm x 43.6 mm (standard slim 1U rack thickness)
• Device net weight: 3.25 kg (7.17 lbs)
📦 INCLUDED:
• 1x RG-CS83-24GT4XS L3 Smart Cloud Managed Switch • 2x Metal rack-mount brackets (ears) • 8x Countersunk Phillips screws (M4x8, GB819-85) • 4x Rack mounting screws (M6*16) • 4x Rack cage nuts (M6) • 1x Grounding wire • 1x Professional-grade AC power cord • 1x Nylon cable tie • 4x Rubber table-top pads • 1x Bracket installation guide and user manual
| Fixed network interfaces | 24 × 10/100/1000BASE-T RJ45, 4 × 1GE/10GE SFP+ (Independent fiber uplink) |
|---|---|
| Management / Additional ports | 1 × console port, RJ45 × USB port 1 (no storage capacity limits) |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 96 Mpps |
| CPU specifications | Dual-core processor, with each core at a frequency of 1.0 GHz |
| System RAM memory | 1 GB |
| Flash / BootROM memory | Flash: 512 MB / BootROM: 16 MB (Integrated support for 1+1 boot redundancy) |
| Switch buffer | 1.5 MB |
| MAC address table | 16,000 high-density entries |
| L3 table functionality | ARP table: 4,000 / IPv4 Unicast routes: 6,000 / IPv6 Unicast routes: 2,000 |
| L3 multicast tables | IPv4 Multicast routes: 1,000 / IPv6 Multicast routes: 750 |
| Access control lists | Filter ACE entries: 1,750 inbound / 800 outbound |
| Device virtualization | VSU (Virtual Switching Unit) technology with support for up to 4 members per cluster |
| L2 redundancy protocols | STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) and ERPS ring protocol (G.8032) |
| IP routing and services | Static routing, RIP, RIPng, OSPFv2, OSPFv3, PBR (Policy-Based Routing), VRF, VRRP, DHCP v4/v6 |
| Cybersecurity ecosystem | CPP (CPU Protect Policy), NFPP, IP Source Guard, SAVI, Time/Expert-based ACLs, 802.1X Auth, Web Auth |
| Quality of Service (QoS) | 8 priority queues per interface, classification based on 802.1p/DSCP/ToS, SP, WRR, DRR, WFQ algorithms |
| Maintenance and diagnostics | RLDP, REUP, DLDP, Port Loop Detection, SPAN/RSPAN mirror, sFlow, Syslog, 802.3ah diagnostics |
| Management platforms | Ruijie Cloud App/Web, local eWeb, TR-069 CWMP, CLI (Telnet/SSHv1/v2), gRPC, SNMP v1/v2c/v3, RMON |
| Energy efficiency | Native support for IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Chassis structure and format | Metal with conformal coating on key components, 1 RU format |
| Dissipation mechanism | Passive fanless structural design with thermal dissipation and natural convection |
| Acoustic noise level | Completely silent, less than 20 dB, ideal for direct office installations |
| Lightning protection | Contact ESD discharge: 6 kV (Susceptibility 8 kV) / Air discharge: 8 kV (Susceptibility 15 kV) |
| Surge protection | Service interfaces (Telecom): 10 kV / Power port: 6 kV common mode and 6 kV differential mode |
| Power supply | 1 × fixed internal AC power supply |
| Operating power range | Nominal voltage: 100-240 V AC, 50/60 Hz (Maximum limits: 90-264 V AC, 47-63 Hz, maximum current 0.6 A) |
| Electrical power consumption | Absolute maximum operating consumption of only 25 W |
| Environmental conditions | Operating temperature: 0 °C to 45 °C / Humidity: 10% to 90% RH (non-condensing) |
| Switch dimensions (W×D×H) | 442 mm x 220 mm x 43.6 mm (standard slim 1 rack unit thickness) |
| Net weight of the device | 3.25 kg (7.17 lbs) |
