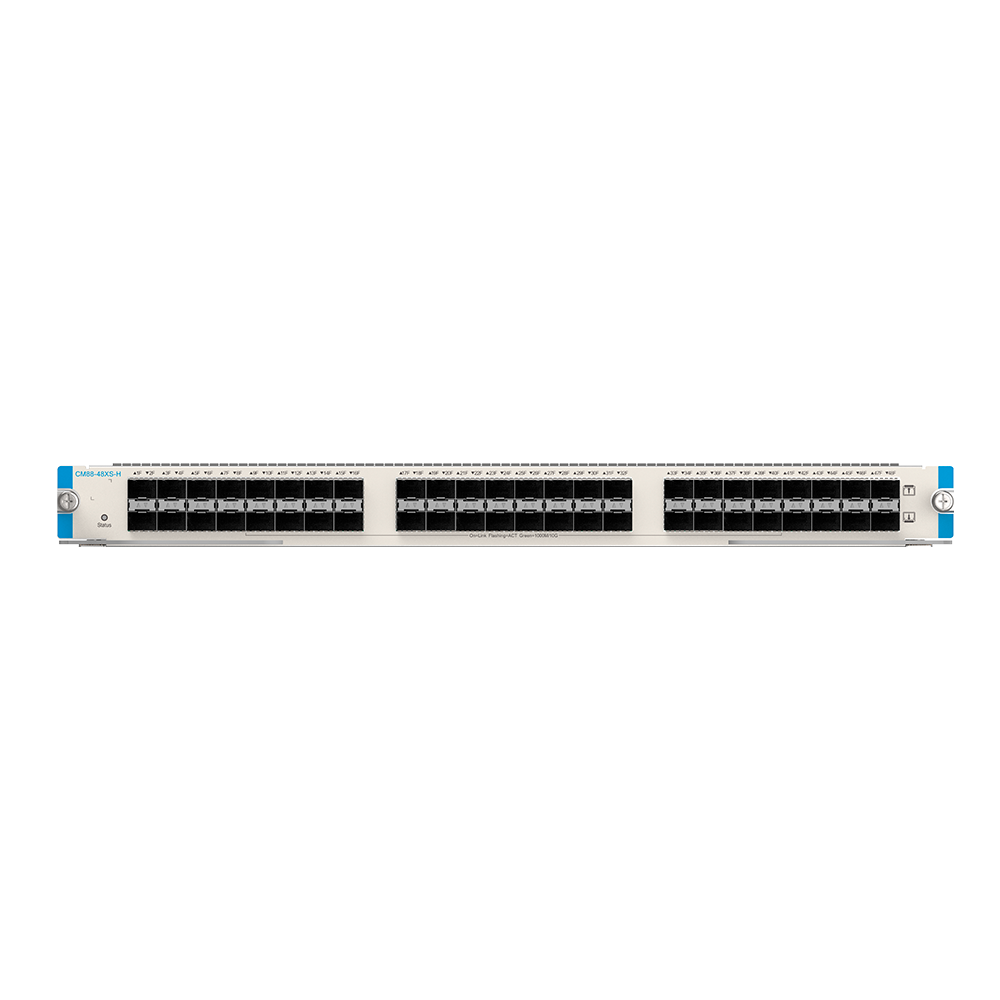

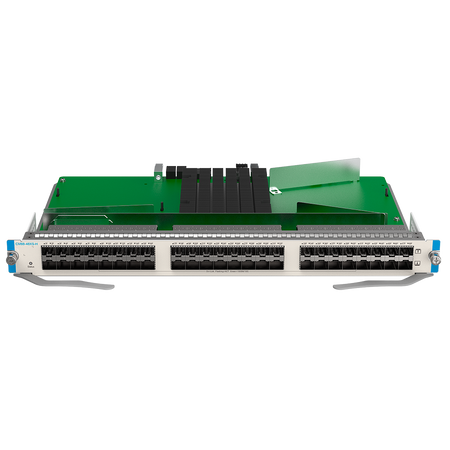

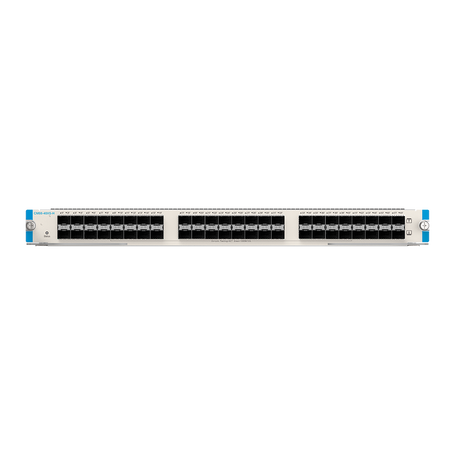

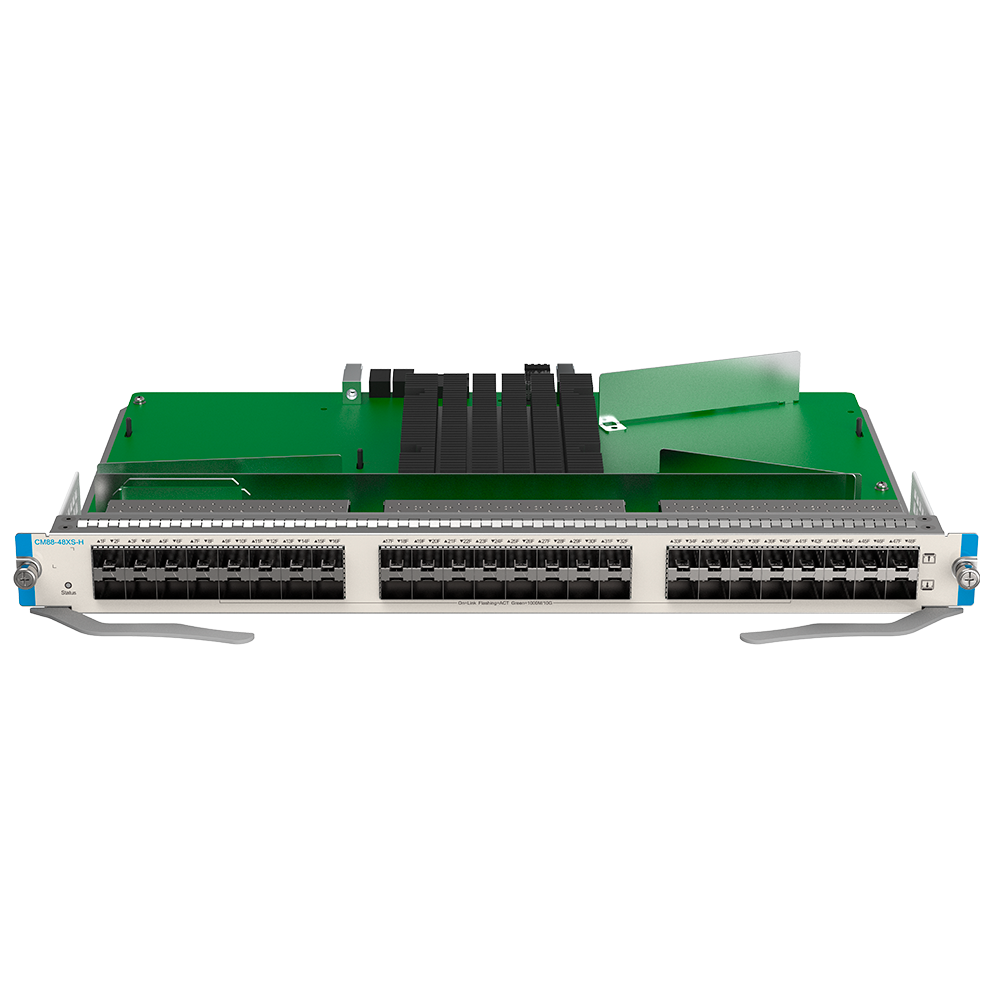

Ruijie ultra-high-speed 10G core card - 48 independent 1GE/10GE SFP+ central slots - Ultra-low latency LC optical connectors - Native support for AOC active optical cables - Full hot-swap support for service ports
📋 SPECIFICATIONS:
• Brand: Ruijie
• Card model: CM88-48XS-H
• Chassis compatibility: Designed exclusively for RG-CS88 series modular chassis (RG-CS88-08)
• Fiber optic ports (ultra-fast): 48 × independent 1GE/10GE SFP+ (Full backward compatibility with 1G transceivers)
• Optical connector type: LC (Lucent Connector) / Compatible with AOC active optical cables (1m, 3m, 5m)
• Port performance: Dedicated bandwidth up to 10 Gbps per slot for data center trunk and backbone links
• Per-port QoS policy: 8 priority queues with SP, WRR, DRR, WFQ, and mixed congestion management algorithms
• Access control mechanisms: Support for standard, extended, advanced, and global hardware ACLs per port
• Hot-Swap: Native support for hot-swapping transceivers, fiber optic cables, and AOC cables
• Airflow and cooling: Lateral aerodynamic design coordinated with the main chassis ventilation system
• Frame material: Industrial-grade rigid metal frame (CS88 format card slot)
• Manufacturer warranty: 5 years (in line with main chassis warranty terms)
📦 INCLUDED:
• 1x High-density 10G SFP+ core line card CM88-48XS-H
| Card model | CM88-48XS-H |
|---|---|
| Chassis compatibility | Designed exclusively for RG-CS88 series modular chassis (RG-CS88-08) |
| Fiber optic ports (ultra-fast) | 48 × independent 1GE/10GE SFP+ (Full backward compatibility with 1G transceivers) |
| Optical connector type | LC (Lucent Connector) / Compatible with AOC (Active Optical Cable) (1m, 3m, 5m) |
| Port performance | Dedicated bandwidth of up to 10 Gbps per slot for data center trunk and backbone connections |
| QoS policy per port | 8 priority queues with SP, WRR, DRR, WFQ, and mixed congestion management algorithms |
| Access control mechanisms | Support for standard, extended, advanced level, and global hardware ACLs per port |
| Hot-Swap | Native support for hot-swapping transceivers, fiber optic cables, and AOC cables |
| Airflow and cooling | Lateral aerodynamic design coordinated with the base chassis ventilation system |
| Structure material | Industrial-grade rigid metal frame (CS88 format card slot) |
| Manufacturer warranty | 5 years (in line with the main chassis warranty terms) |
