Ruijie Large-scale optical aggregation card
Regular price
€3.511,76
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

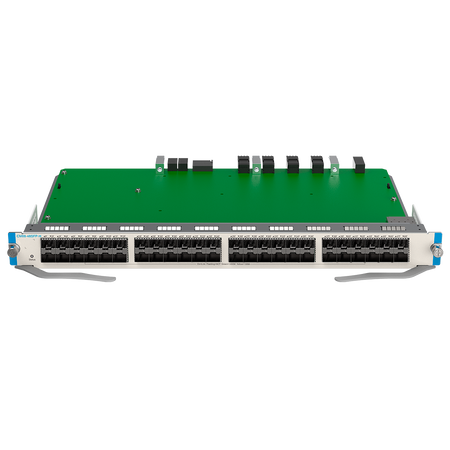

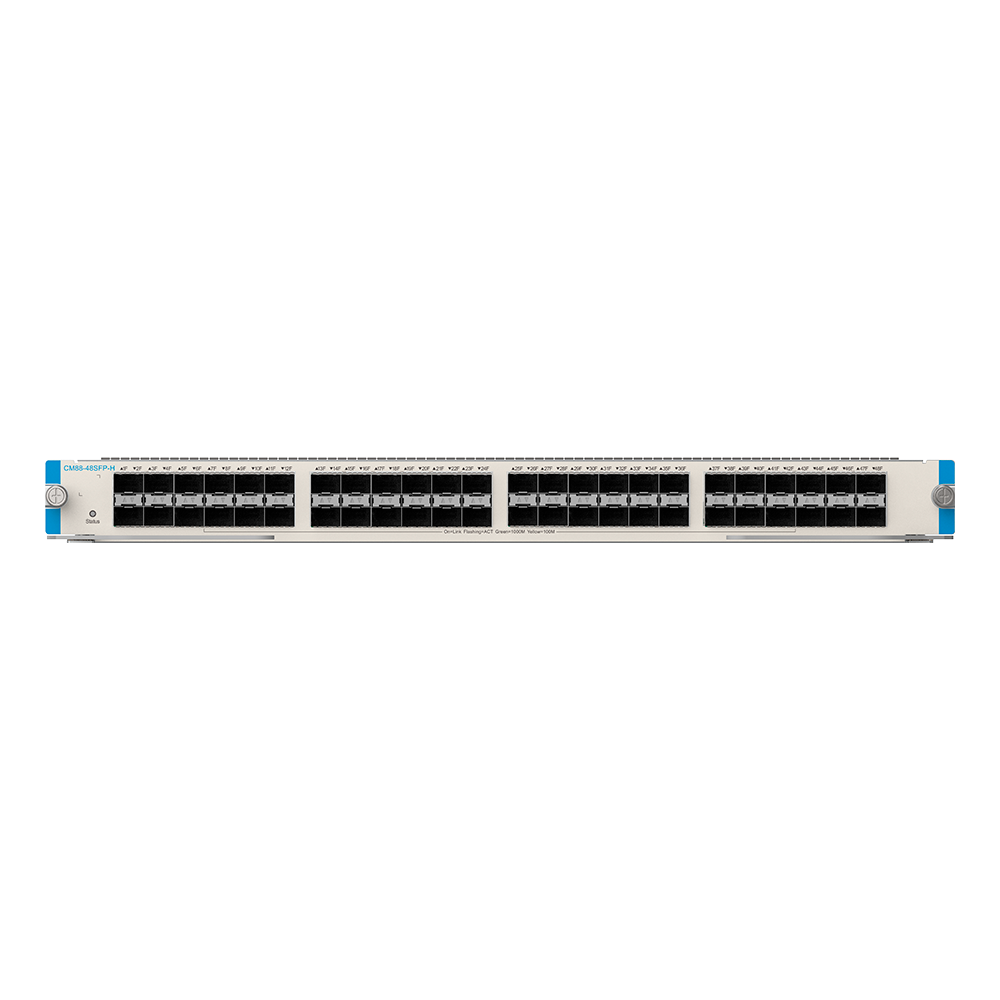

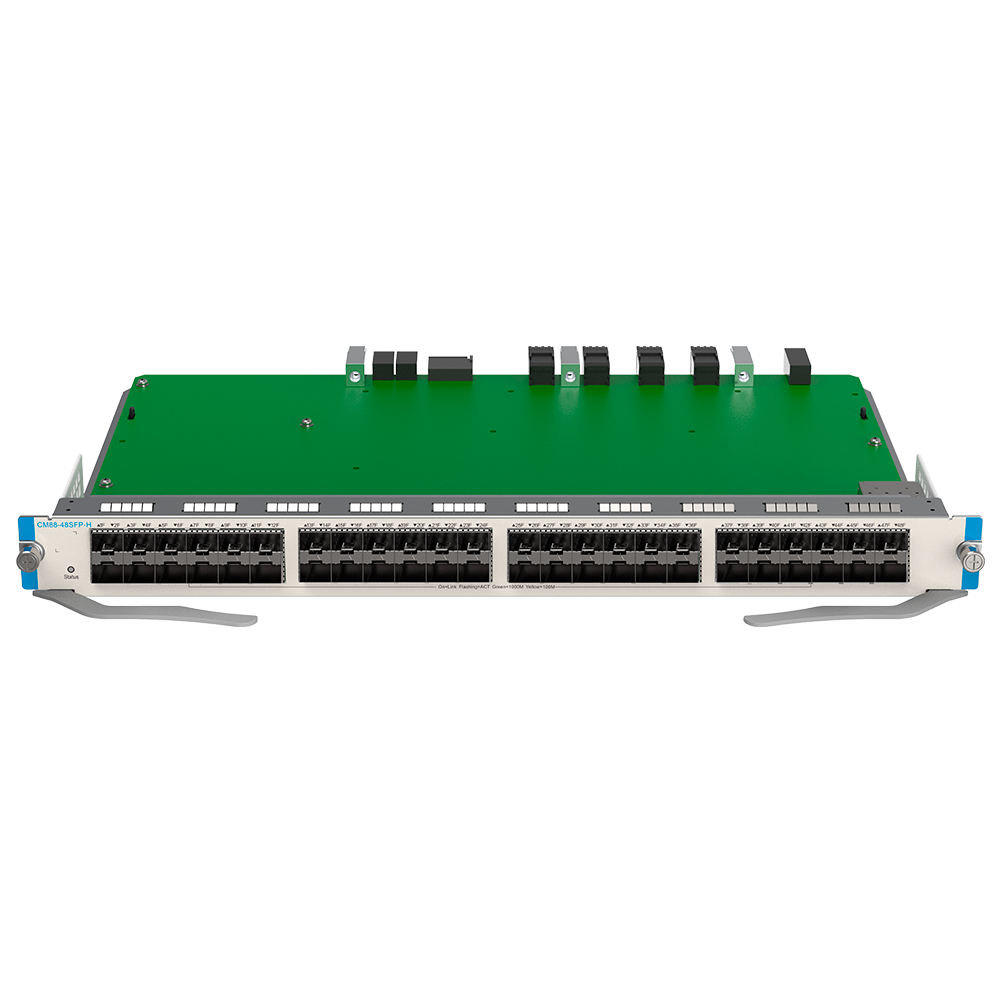

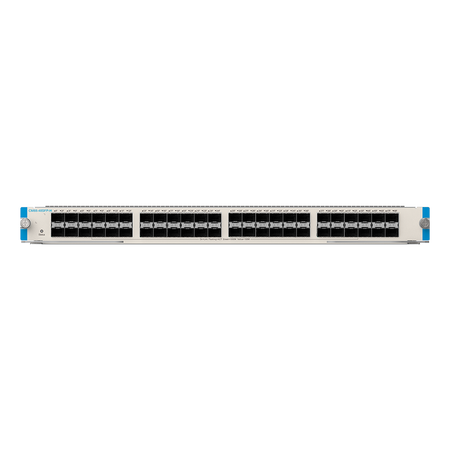

Ruijie Large-scale optical aggregation card - 48 independent 1GE SFP fiber slots - Optical connectors with native LC support - Ideal for long-range perimeter distribution - Full hot-swap support for service ports
📋 SPECIFICATIONS:
• Brand: Ruijie
• Card model: CM88-48SFP-H
• Chassis compatibility: Designed exclusively for RG-CS88 series modular chassis (RG-CS88-08)
• Fiber optic ports (distribution): 48 × 1GE independent SFP (supports 1 Gbps SX/LX/LH/ZX/BiDi transceivers)
• Optical connector type: LC (Lucent Connector) via additional SFP transceiver modules
• Distance compatibility: Supports multimode fiber (MMF) and single-mode fiber (SMF) up to 80 km depending on the transceiver used
• Per-port QoS policy: 8 priority queues with SP, WRR, DRR, WFQ, and hybrid congestion management algorithms
• Access control mechanisms: Support for standard, extended, advanced, and global hardware ACLs per port
• Hot-Swap: Native support for hot-swapping transceivers and optical cables on service ports
• Airflow and cooling: Side-to-side aerodynamic design coordinated with the base chassis ventilation system
• Structure material: Industrial-grade rigid metal frame (CS88 card slot format)
• Manufacturer warranty: 5 years (in line with main chassis warranty terms)
📦 INCLUDED:
• 1x CM88-48SFP-H optical aggregation line card
| Model | CM88-48SFP-H |
|---|---|
| Chassis compatibility | Designed exclusively for RG-CS88 series modular chassis (RG-CS88-08) |
| Fiber optic ports (downlink) | 48 × independent 1GE SFP (supports 1 Gbps SX/LX/LH/ZX/BiDi transceivers) |
| Optical connector type | LC (Lucent Connector) via additional SFP transceiver modules |
| Distance compatibility | Supports multimode (MMF) and single-mode (SMF) fiber up to 80 km depending on the transceiver used |
| Per-port QoS policy | 8 priority queues with SP, WRR, DRR, WFQ, and mixed congestion management algorithms |
| Access control mechanisms | Support for standard, extended, advanced level, and global hardware ACLs per port |
| Hot-Swap | Native support for hot-swapping transceivers and optical cables on service ports |
| Airflow and cooling | Lateral aerodynamic design coordinated with the base chassis ventilation system |
| Chassis material | Industrial-grade rigid metal frame (CS88 card slot format) |
| Manufacturer warranty | 5 years (in line with the main chassis warranty terms) |
