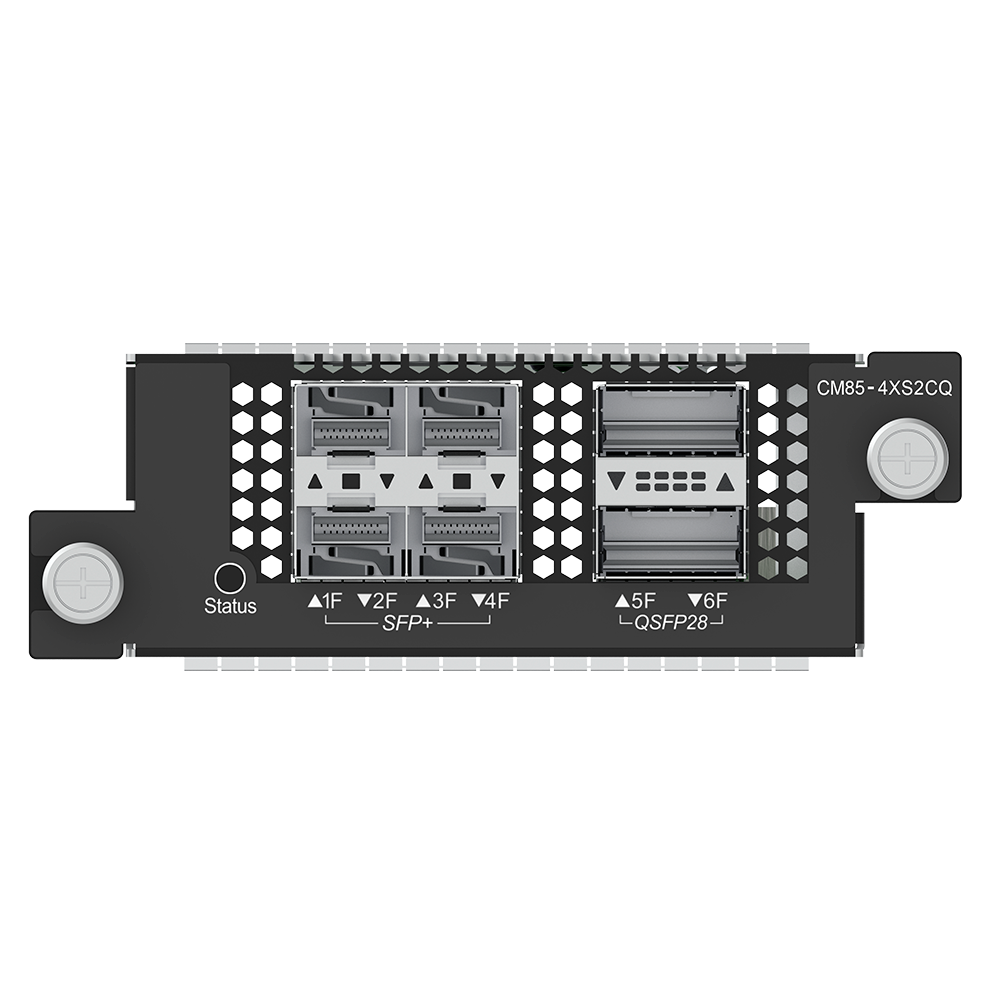

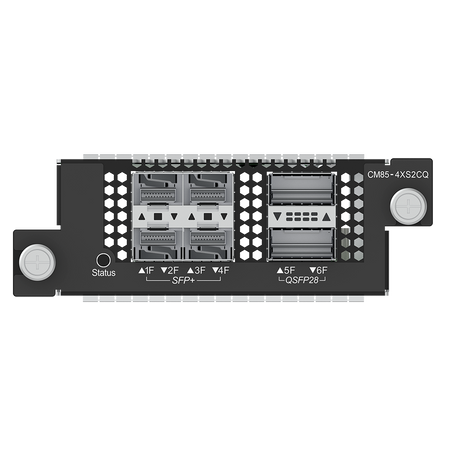

Ruijie Logical expansion module for L3 switch
Regular price
€862,62
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie Logical expansion module for L3 switches - 2 ultra-high-speed 100G QSFP28 core slots - 4 independent high-speed 10G SFP+ slots - Multi-port MPO optical connectors and LC cables - Significant increase in trunk bandwidth - Full hot-swap support for service ports
📋 SPECIFICATIONS:
• Brand: Ruijie
• Component type: Core-level modular expansion module
• Hardware compatibility: Designed exclusively for the expansion slot of the RG-CS85 series
• Fiber optic ports (ultra-fast): 2 × 100GE/40GE QSFP28 independent (for large-scale backbone links)
• Fiber optic ports (high-speed): 4 × 10GE/1GE SFP+ independent (Full backward compatibility with 1G transceivers)
• Core optical connector type: 1x12 MPO (for short distances SR/LSR) and Duplex LC (for long distances LR4/iLR4) in QSFP28 slots
• Access optical connector type: Duplex LC compatible with standard SFP/SFP+ transceivers and active optical cables (AOC)
• 100G optical module support: QSFP28 transceivers: SR4, LR4, iLR4 and active optical cables (AOC) (5m, 10m)
• 40G optical module support: QSFP+ transceivers: SR, LSR, LR4, iLR4, LX4 active AOC cables (5m, 30m)
• 10G optical module support: SFP+ transceivers: SR, LR, ER, ZR and active optical cables (AOC) (1m, 3m, 5m)
• Hot-Swap: Native support for hot-swapping transceivers and cables on all service ports
• Airflow and cooling: Passive aerodynamic design coordinated with the base chassis ventilation system
• Chassis material: Industrial-grade rigid metal frame (CS85 card slot format)
• Software management: Unified via the central chassis modular firmware RGOS12.X (Ruijie Cloud / eWeb)
📦 INCLUDED:
• 1x Core Modular expansion module CM85-4XS2CQ
| Component type | Core-level modular expansion module (Expansion Module) |
|---|---|
| Hardware compatibility | Designed exclusively for the RG-CS85 series expansion slot |
| Fiber optic ports (ultra-fast) | 2 × independent 40GE/100GE QSFP28 (for large-scale backbone links) |
| Fiber optic ports (high-speed) | 4 × independent 1GE/10GE SFP+ (Full backward compatibility with 1G transceivers) |
| Core optical connector type | MPO 1x12 (for short-range SR/LSR) and Duplex LC (for long-range LR4/iLR4) in QSFP28 slots |
| Access optical connector type | Duplex LC compatible with standard SFP/SFP+ transceivers and active optical cables (AOC) |
| Support for 100G optical modules | QSFP28 transceivers: SR4, LR4, iLR4 and active optical cables (AOC) (5m, 10m) |
| Support for 40G optical modules | QSFP+ transceivers: SR, LSR, LR4, iLR4, LX4, active AOC cables (5m, 30m) |
| Support for 10G optical modules | SFP+ transceivers: SR, LR, ER, ZR and active optical cables (AOC) (1m, 3m, 5m) |
| Hot-Swap | Native support for hot-swapping transceivers and cables on all service ports |
| Airflow and cooling | Passive aerodynamic design coordinated with the base chassis ventilation system |
| Frame material | Industrial-grade rigid metal frame (CS85 card slot format) |
| Software management | Unified via the central chassis modular firmware RGOS12.X (Ruijie Cloud / eWeb) |
