Reyee e-Lighten Wall-Mounted Omnidirectional Wi-Fi 5 PON AP
Reyee e-Lighten Wall-Mounted Omnidirectional Wi-Fi 5 PON AP
Regular price
€129,78
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Reyee e-Lighten PON - Wall-Mounted Omnidirectional Wi-Fi 5 AP - Supports 802.11 b/g/n/ac Wave 1 and 2 2.4GHz and 5GHz - Transmission speed up to 1167 Mbps - 3x Gigabit RJ45 Ports, 1x RJ11 Telephony Port - 1x 1G SC PON Uplink Port
📋 SPECIFICATIONS:
• Brand: Reyee e-Lighten PON
• Wireless Standard: Wi-Fi 5 (802.11ac)
• Frequencies: 2.4 GHz and 5GHz
• 2.4GHz Transmission Speed: Up to 300 Mbps
• 5GHz Transmission Speed: Up to 867 Mbps
• Recommended Number of Clients: 8 (2.4 GHz) + 24 (5 GHz) = 32
• Maximum Transmission Power: Adjustable
• Maximum Sensitivity: –83 dBm@MCS0
• Modulation: 256-QAM
• Integrated Antenna: 2x2 Internal MIMO Omnidirectional Antennas for 2.4 GHz (2dBi) and 5 GHz (2dBi)
• VLAN: Up to 8 VLANs; Port-based VLANs
• Operating Modes: e-Lighten wireless Access Point; Compatible with AP Group; Not compatible with Reyee AP Mesh; Intelligent optimization; Layer 2 Roaming
• Security: WPA / WPA2 (AES) / WPA-PSK
• SSID: Up to 8
• Management: Configuration via web interface or remotely with Ruijie cloud app

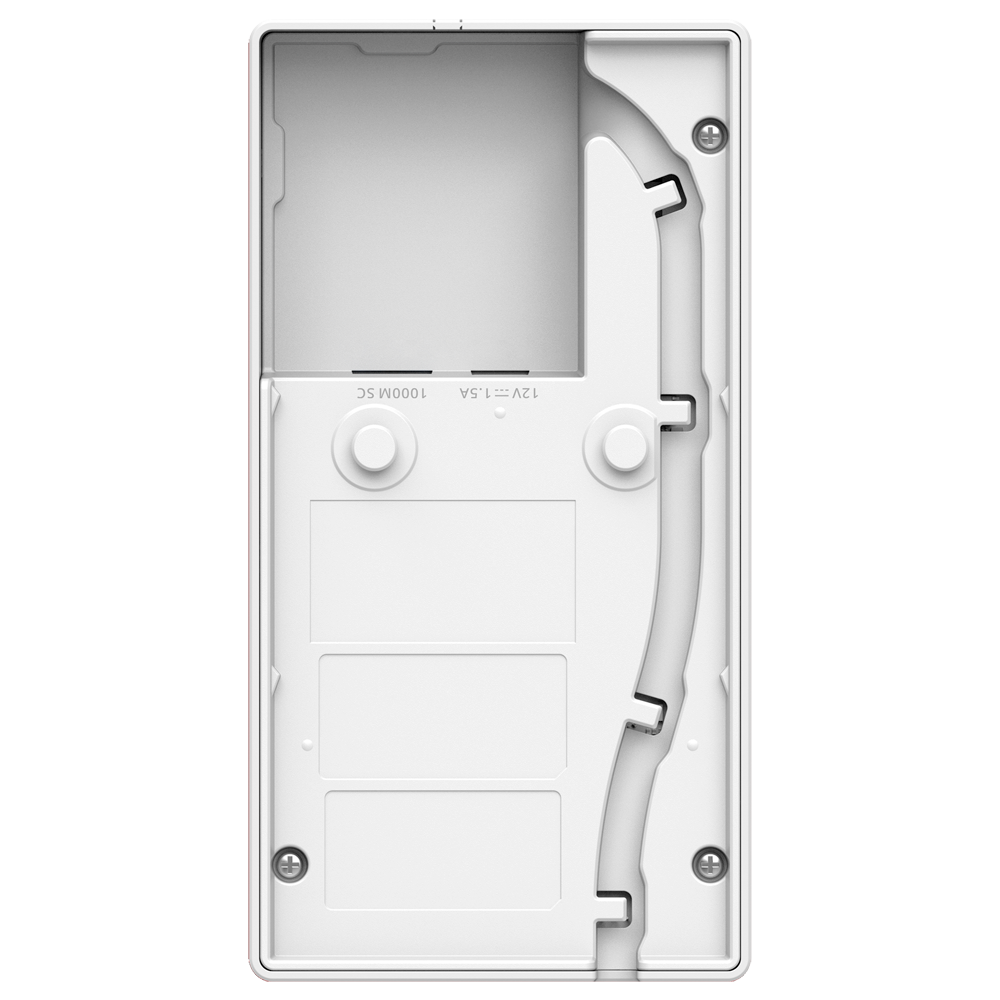

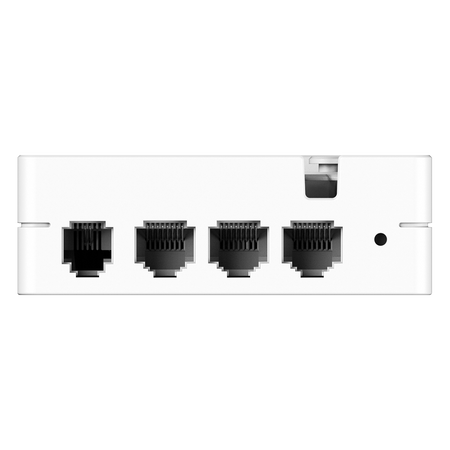

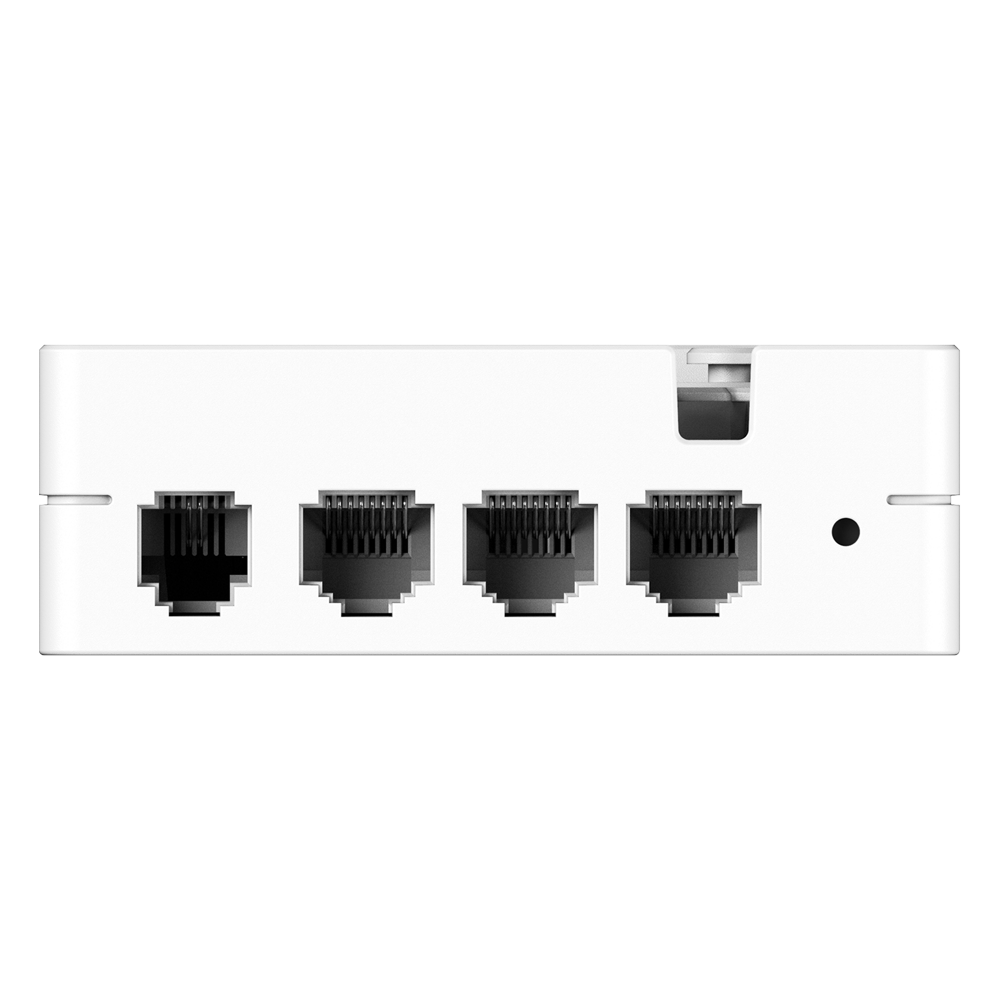

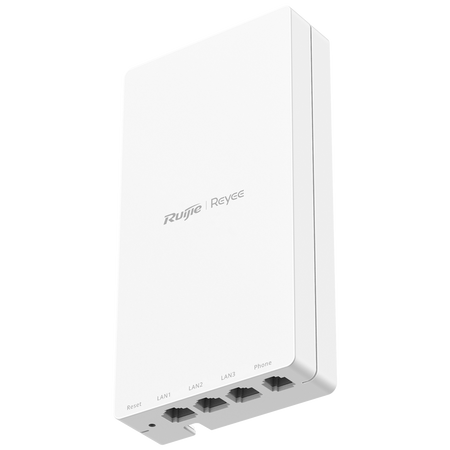

• Interface: 1 Rear SC PON Uplink; 3 RJ45 10/100/1000 Mbps; 1 RJ11
• Power Consumption: < 12.95 W
• Power Supply: DC: 12 V/1.5 A (Power adapter included)
• Protection Rating: IP41
• Operating Temperature: 0 °C ~ 40 °C
• Dimensions: 86 (D) x 29 (W) x 165 (H) mm
• Weight: 236 g
📦 INCLUDED:
• Access Point• Installation Guide• DC 5V 1.5A Adapter
| Wireless Standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Frequencies | 2.4 GHz and 5 GHz |
| 2.4 GHz transmission speed | Up to 300 Mbps |
| 5 GHz transmission speed | Up to 867 Mbps |
| Recommended number of clients | 8 (2.4 GHz) + 24 (5 GHz) = 32 |
| Maximum transmission power | Adjustable |
| Maximum sensitivity | –83 dBm@MCS0 |
| Modulation | 256-QAM |
| Integrated antenna | 2x2 Internal omnidirectional MIMO antennas for 2.4 GHz (2dBi) and 5 GHz (2dBi) |
| VLAN | Up to 8 port-based VLANs |
| Operating modes | Wireless Access Point, e-Lighten compatible, AP Group not compatible, Reyee AP Mesh compatible, Intelligent optimization, Layer 2 roaming |
| Security | WPA / WPA2 (AES) / WPA-PSK |
| SSID | Up to 8 |
| Management | Web interface configuration or remote management via Ruijie cloud app |
| Interface | 1 rear SC PON uplink, 3 RJ45 10/100/1000 Mbps, 1 RJ11 |
| Power consumption | < 12.95 W |
| Power supply | DC: 12 V/1.5 A (Power adapter included) |
| Protection rating | IP41 |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 86 (D) x 29 (W) x 165 (H) mm |
| Weight | 236 g |
