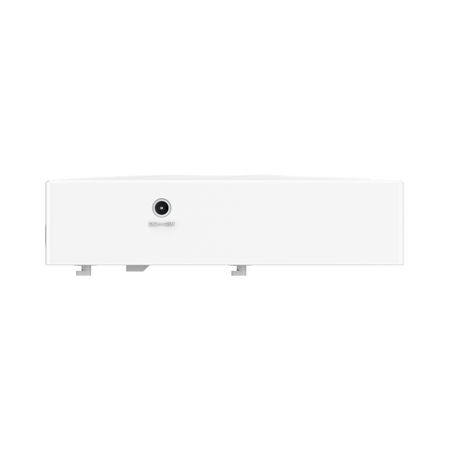

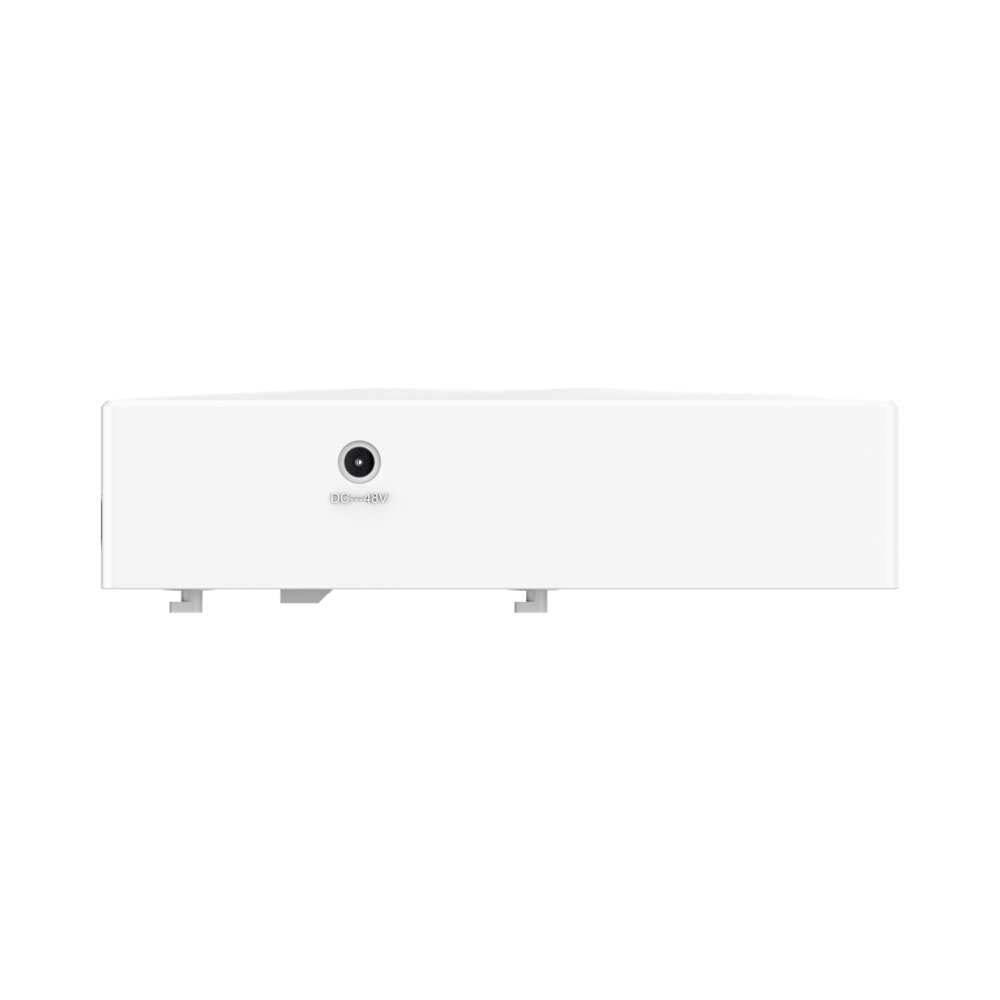

Ruijie Wall-Mounted Omni-directional Wi-Fi 6 AP - Dual Band 2.4 and 5 GHz / 160MHz Bandwidth
Ruijie Wall-Mounted Omni-directional Wi-Fi 6 AP - Dual Band 2.4 and 5 GHz / 160MHz Bandwidth
Regular price
€213,40
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

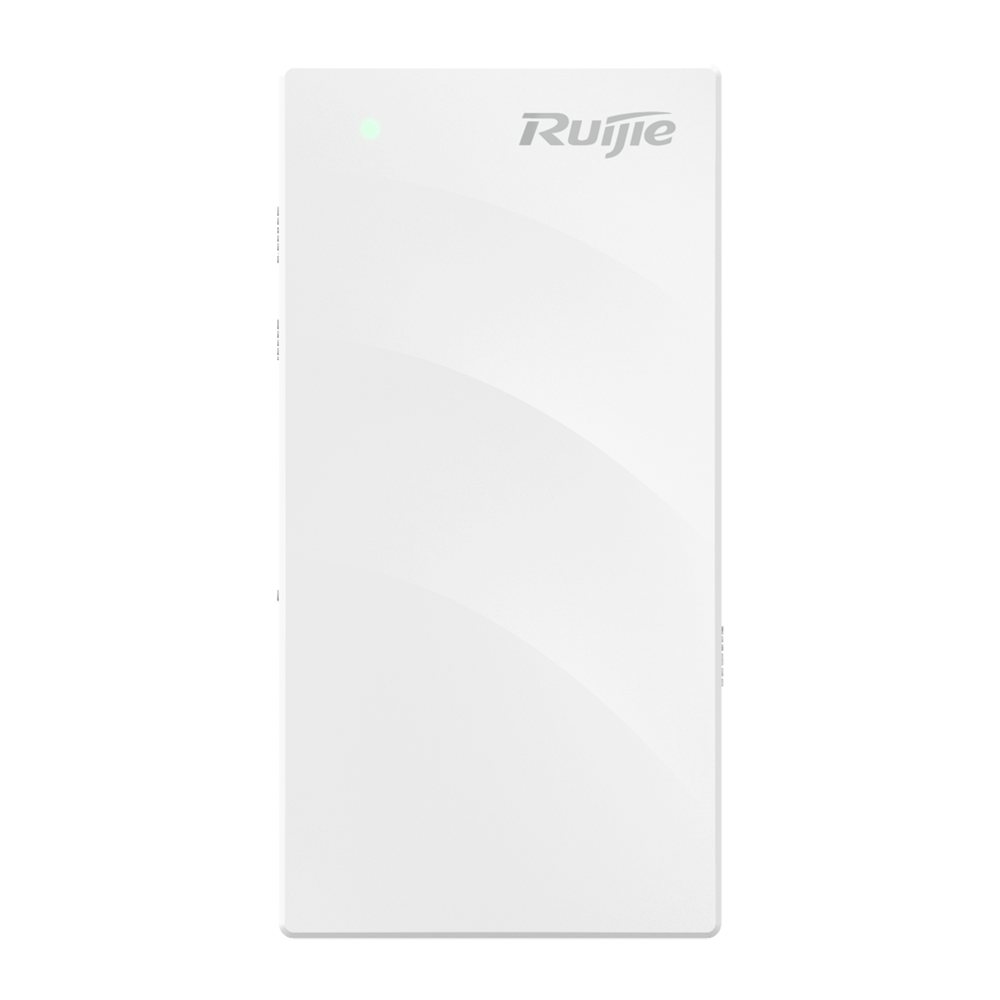

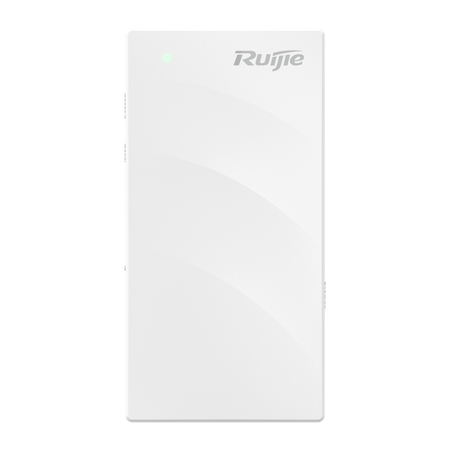

Ruijie - Wall-Mounted Omnidirectional Wi-Fi 6 AP - Dual Band 2.4 and 5 GHz / 160MHz Bandwidth - Supports 802.11a/b/g/n/ac/ax - Transmission speed up to 3000 Mbps - Antenna 2x2: MIMO in 2.4GHz, 2x2 in 5GHz
📋 SPECIFICATIONS:
• Brand: Ruijie
• Wireless Standard: Wi-Fi 6 802.11ax
• Frequencies: 2.4 GHz and 5GHz
• Wi-Fi Performance: Up to 2975 Mbps; Radio1: 2.4GHz - 574 Mbps; Radio2: 5GHz - 2400 Mbps
• Integrated Antenna: 2.4GHz 3dBi, 5GHz 3dBi
• SSID: Up to 32, 16 per radio
• Operating modes: FIT: Adopted by centralized WS AP Controller; FAT: Standalone mode - Local Web Access; Cloud: Managed via Ruijie Cloud
• Security: WPA / WPA2 (AES) / WPA-PSK / WPA3
• Management: Web/Cloud/APP

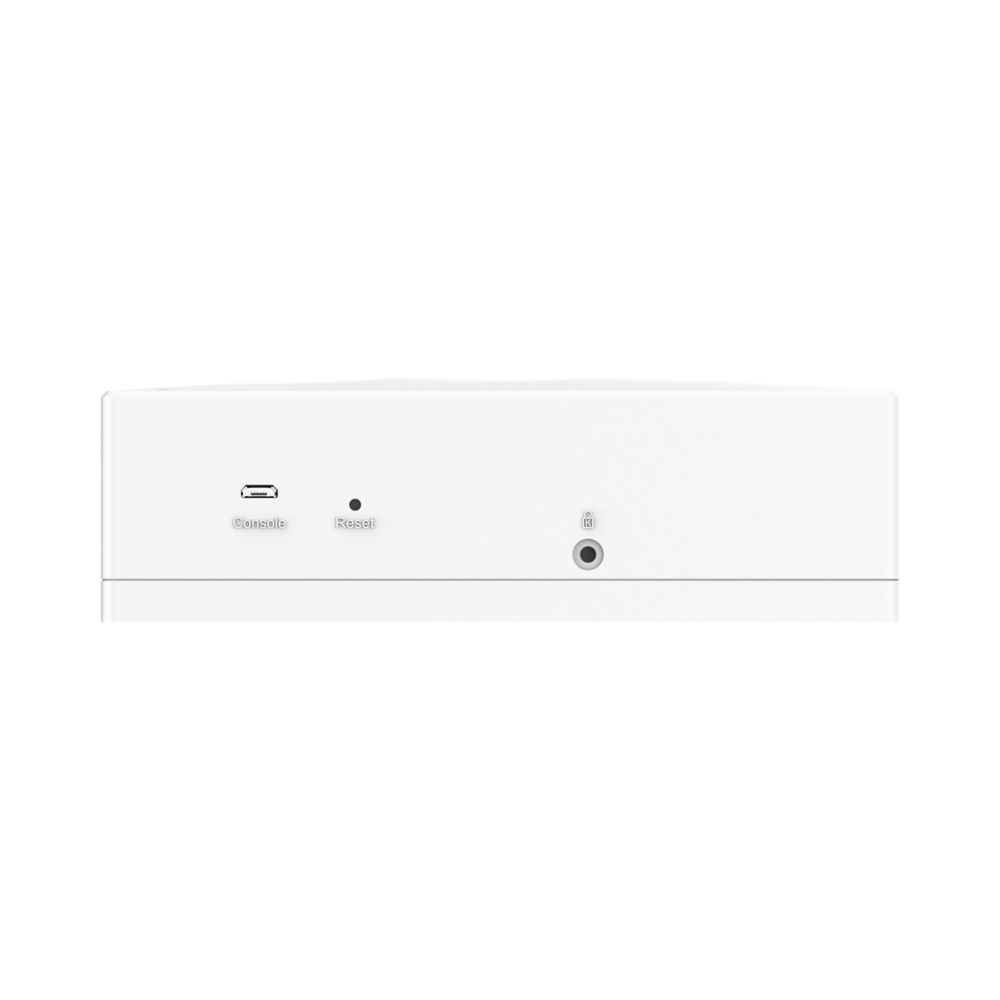

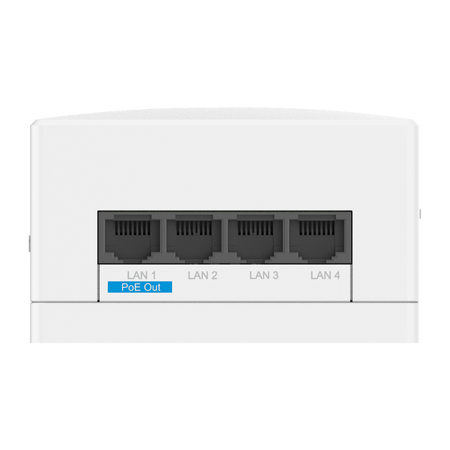

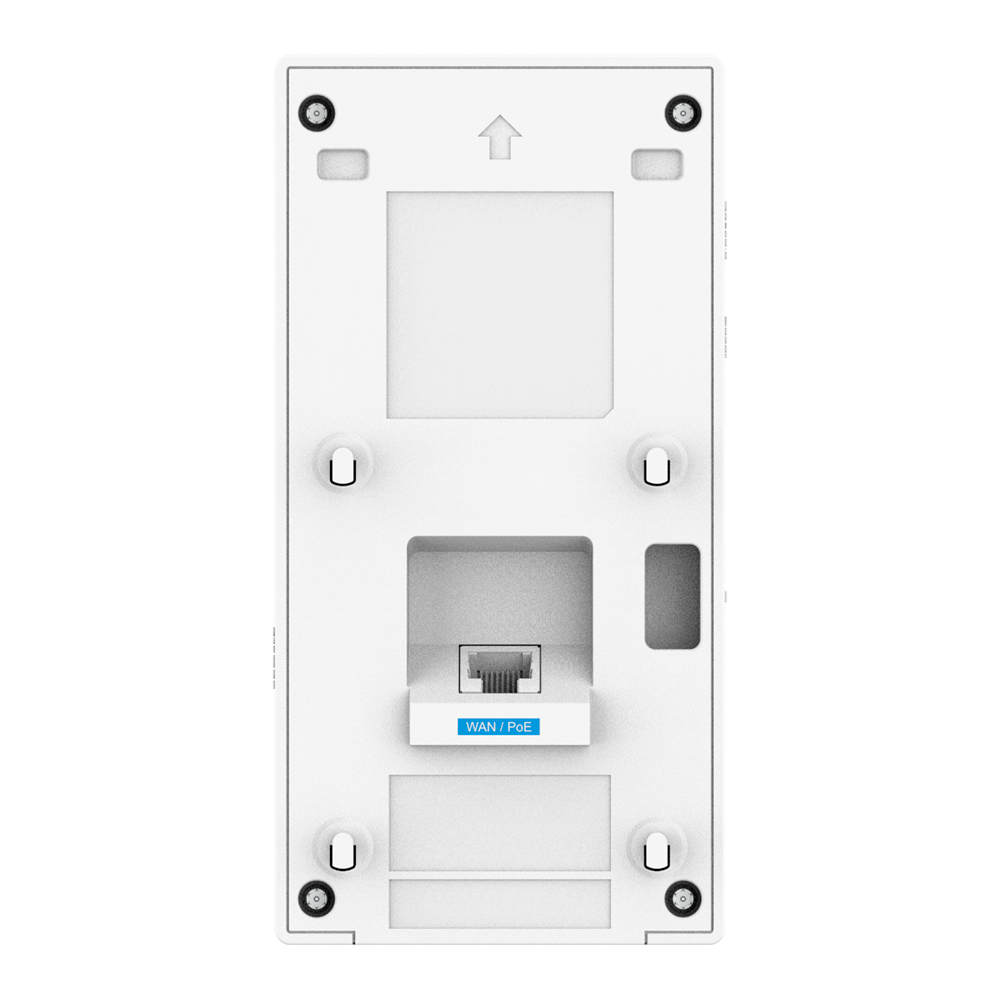

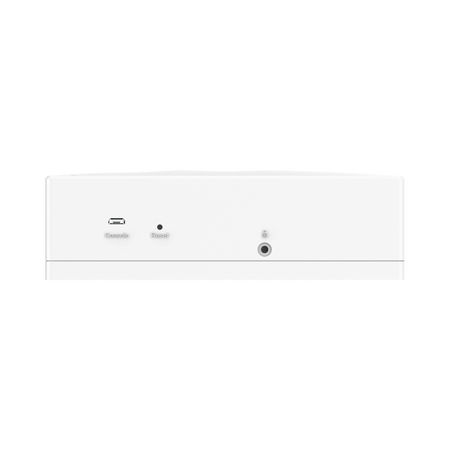

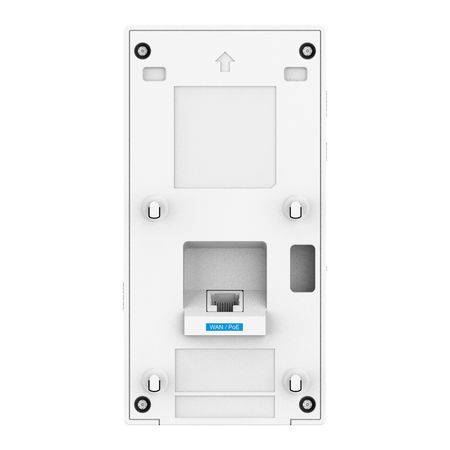

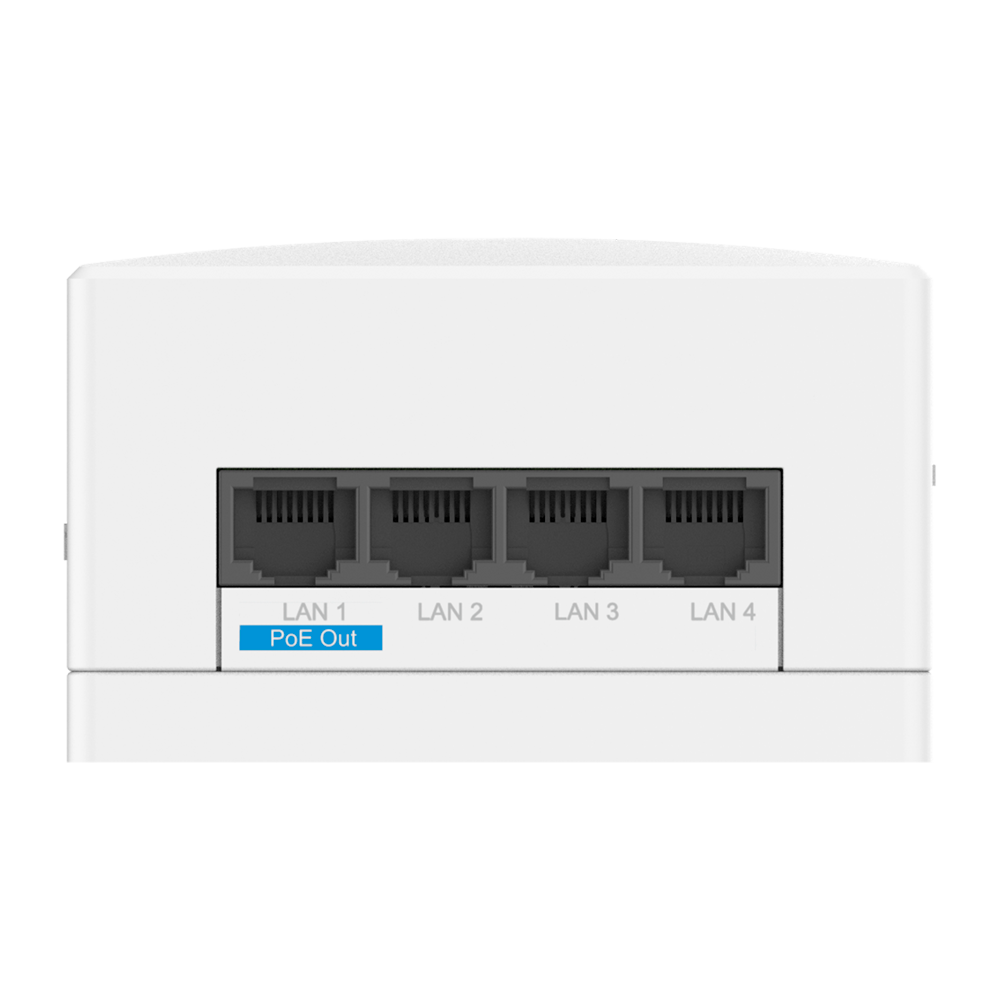

• Interface: 1 x 2.5Gbps PoE In RJ45 port; 3 x Downlink RJ45 ports + 1 x 48V/10W passive PoE Out RJ45 port; 1 x Micro USB Console port
• Technologies: Hidden SSID; Band Steering; Load balancing based on number of users or traffic; Bandwidth Control; PPSK (Proprietary) and 802.1X authentication; Rogue AP detection; Wi-Fi client isolation; CPU Protection Policy (CPP); Network Foundation Protection Policy (NFPP); Multicast to Unicast conversion; SNMP V1, V2c, V3
• Compatible Hardware Controller: RG-WS6000 Controller series
• Power supply: 48Vdc/0.6A Jack connector; We recommend powering the device with 802.3at PoE+; If powered with 802.3af PoE, the AP will work correctly but will not be able to power other devices through the PoE Out port
• Operating temperature: -0°C ~ 40°C
• Dimensions: 170 x 86 x 43 mm
• Weight: 0.3 Kg
📦 INCLUDED:
• Access Point• Installation guide
| Wireless Standard | Wi-Fi 6 802.11ax |
|---|---|
| Frequencies | 2.4 GHz and 5 GHz |
| Wi-Fi Performance | Up to 2975 Mbps Radio 1: 2.4 GHz - 574 Mbps Radio 2: 5 GHz - 2400 Mbps |
| Integrated Antenna | 2.4 GHz 3dBi, 5 GHz 3dBi |
| SSID | Up to 32, 16 per radio |
| Operating modes | FIT: Adopted by centralized WS AP Controller FAT: Standalone mode - Local Web Access Cloud: Managed via Ruijie Cloud |
| Security | WPA / WPA2 (AES) / WPA-PSK / WPA3 |
| Management | Web/Cloud/APP |
| Interface | 1 x 2.5Gbps RJ45 PoE In port 3 x Downlink RJ45 ports + 1 x Passive 48V/10W PoE Out RJ45 port 1 x Micro USB Console port |
| Technologies | Hidden SSID Band Steering Load balancing based on number of users or traffic Bandwidth Control PPSK (Proprietary) and 802.1X authentication Rogue AP detection Wi-Fi client isolation CPU Protection Policy (CPP) Network Foundation Protection Policy (NFPP) Multicast to Unicast conversion SNMP V1, V2c, V3 |
| Compatible Hardware Controller | RG-WS6000 Controller series |
| Power Supply | 48Vdc/0.6A Jack connector It is recommended to power the device with 802.3at PoE+ If powered with 802.3af PoE, the AP will function correctly but will not be able to power other devices via the PoE Out port |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 170 x 86 x 43 mm |
| Weight | 0.3 kg |
