Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

REYEE

Reyee Frequency 5.15 GHz 5.85 GHz - Operating distance up to 5 km

SKU: RG-ANT16S-120
(0)
In stock
Usually shipped within 24 hours
€140,00 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Reyee - Frequency 5.15 GHz 5.85 GHz - Passive antenna compatible with RG-AirMetro550G-B - Operating distance up to 5 km - IP55, suitable for outdoor use - 2x SMA Male connectors

📋 SPECIFICATIONS:
• Brand: Reyee
• Operating mode: Passive antenna for RG-AirMetro550G-B (1 type of antenna per device)

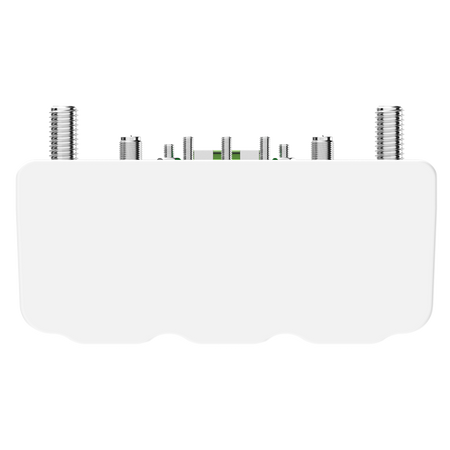

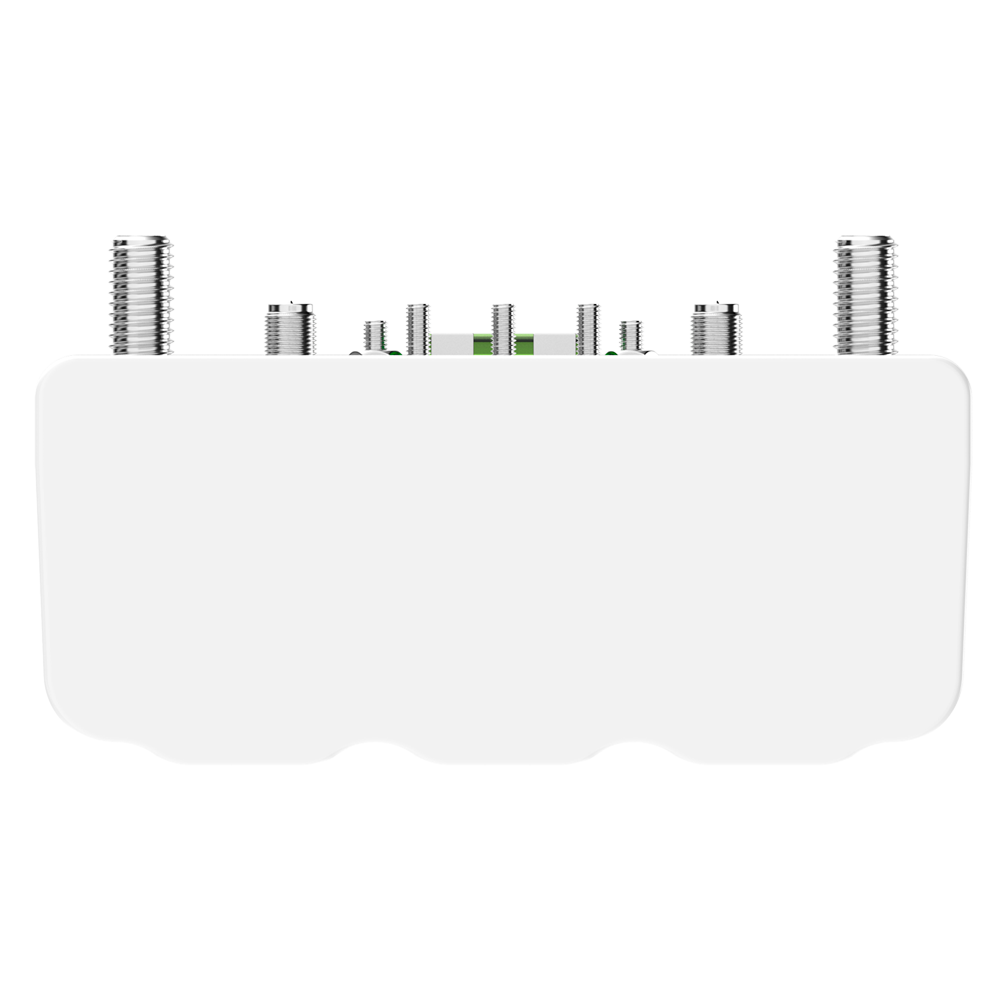

• SMA ports: 2 x SMA Male for Dipole
• Frequencies: 5.15GHz – 5.85 GHz
• Distance: Up to 5 km (under ideal conditions)
• Integrated antenna: 16 dBi; Bidirectional
• Power supply: No power supply required
• IP Protection rating: IP55
• Dimensions: 361 x 110 x 48.5mm
• Weight: 2.5 Kg
• Horizontal polarization beamwidth: 118º (6 dBi)
• Vertical polarization beamwidth: 120º (6 dBi)
• Elevation beamwidth: 10º (6dBi)

📦 INCLUDED:
• 1 x RG-ANT16S-120• 2 x SMA Female-to-Female adapter cables• Pole installation accessory kit with metal flanges• Instructions
Operating mode Passive Antenna for RG-AirMetro550G-B (1 antenna type per device)
SMA Ports 2 x SMA Male for Dipole
Frequencies 5.15GHz – 5.85 GHz
Distance Up to 5 km (under ideal conditions)
Integrated antenna 16 dBi Bidirectional
Power supply No power supply required
IP Protection Rating IP55
Dimensions 361 x 110 x 48.5mm
Weight 2.5 Kg
Horizontal Polarization beamwidth 118º (6 dBi)
Vertical Polarization beamwidth 120º (6 dBi)
Elevation beamwidth 10º (6dBi)
