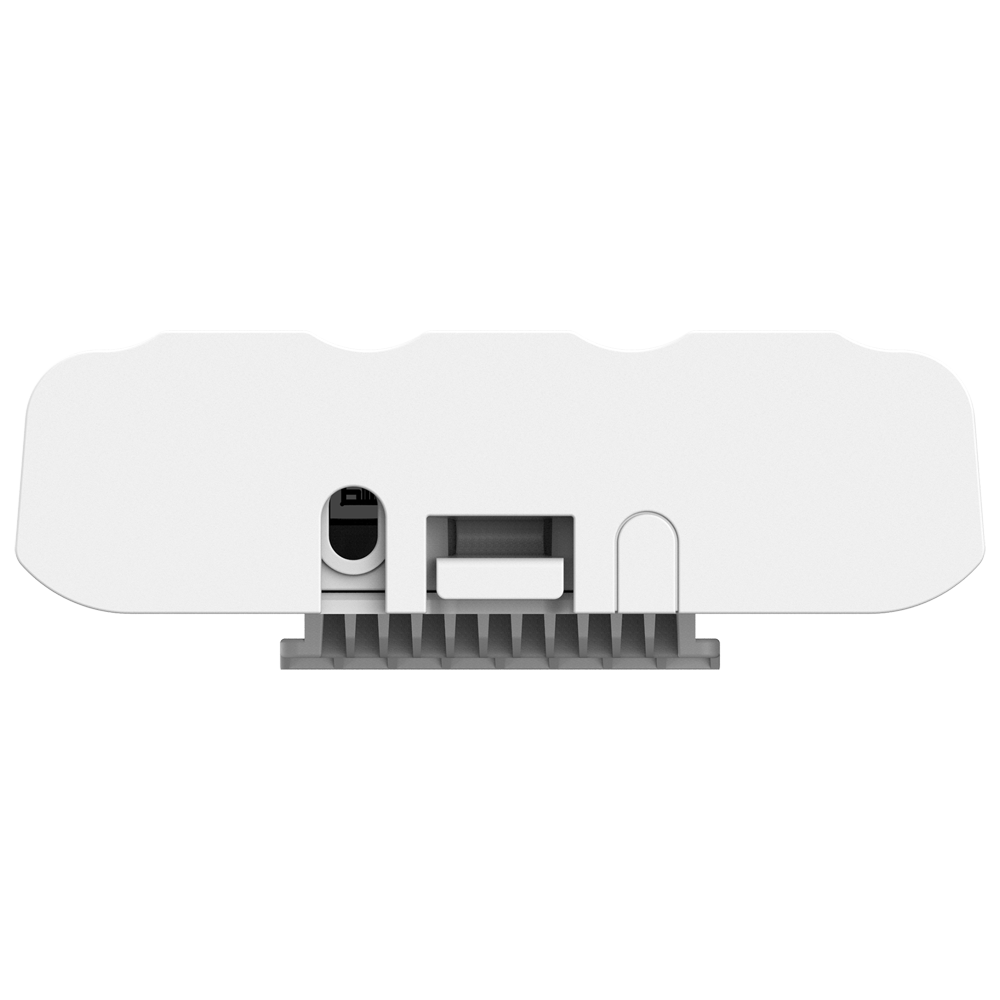

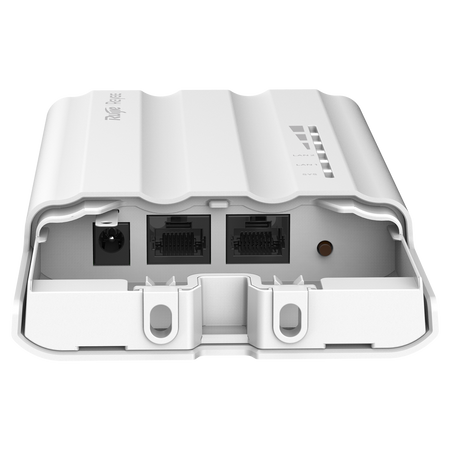

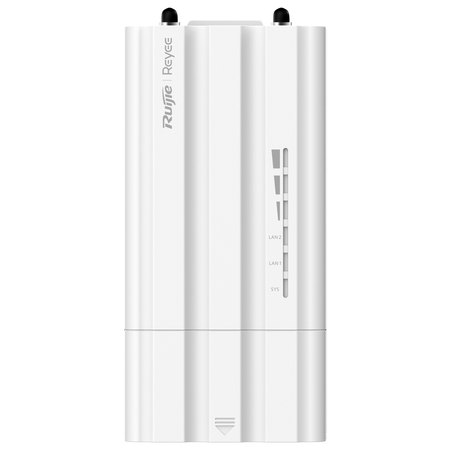

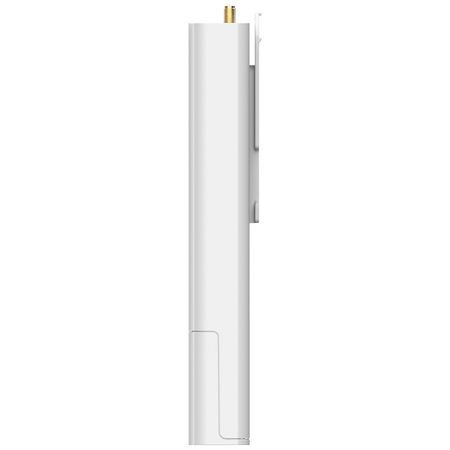

Reyee Wireless bridge up to 867Mbps - Base Station for radio bridges
Reyee Wireless bridge up to 867Mbps - Base Station for radio bridges
Regular price
€208,18
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Reyee Wireless bridge up to 867Mbps - Base Station for radio bridges - Frequency 5.15 GHz 5.85 GHz - Proprietary protocol based on TDMA - IP55, suitable for outdoor use - 2x SMA connectors for external antenna connection
📋 SPECIFICATIONS:
• Brand: Reyee
• Wireless Standard: Proprietary
• Operating mode: Point-to-Point / Point-to-Multipoint (up to 32 CPEs)
• RJ45 port: 2 x 10/100/1000 Mbps
• Frequencies: 5.15 GHz – 5.85 GHz
• Distance: Up to 10 km (depending on the passive antenna installed)
• Channel width: 20/40/80Mhz
• Transmission range: 0 to +26 dBm
• Antenna NOT integrated: SMA connectors
• Compatible antenna references: RG-ANT13-360, RG-ANT16S-120, RG-ANT20S-90
• TDMA: Fixed Mode / Flexible Mode
• Management: Web interface configuration, One-click configuration, AI Heatmap for radio bridge, Bridge alignment tool, Spectrum scanning and link optimization
• Additional features: SSID masking, Spectrum analysis, Alignment tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, ARQ, Remote reboot
• Power supply: 24 VDC non-standard PoE / 12vDC
• Operating temperature: -40 °C ~ 80 °C (When using the power adapter, the maximum operating temperature of the device and the power adapter is 60ºC max)
• Electrostatic protection: ±24 kV Contact/Air
• Surge protection: 6 kV
• IP Protection Rating: IP55
• Power consumption: < 12 W
• Dimensions: 200 x 98.5 x 29mm
• Weight: 0.68 Kg
📦 INCLUDED:
• 1 x RG-AirMetro550G-B• 1 x Passive PoE injector• Instructions
| Wireless Standard | Proprietary |
|---|---|
| Operating Mode | Point to Point / Point to Multipoint (up to 32 CPEs) |
| RJ45 Port | 2 x 10/100/1000 Mbps |
| Frequencies | 5.15 GHz – 5.85 GHz |
| Distance | Up to 10 km (depending on the passive antenna installed) |
| Channel Width | 20/40/80 MHz |
| Transmission Range | 0 to +26 dBm |
| Antenna NOT integrated | SMA connectors |
| Compatible antenna references | RG-ANT13-360, RG-ANT16S-120, RG-ANT20S-90 |
| TDMA | Fixed Mode / Flexible Mode |
| Management | Web interface configuration, One-click configuration, AI Heatmap for wireless bridge, Bridge alignment tool, Spectrum scan and link optimization |
| Additional features | SSID masking, Spectrum analysis, Alignment tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server, Network Diagnoses Ping/TraceRoute/Dns, ARQ, Remote reboot |
| Power Supply | 24 VDC non-standard POE / 12vDC |
| Operating Temperature | -40 °C ~ 80 °C (When using the power adapter, the maximum operating temperature of the device and the power adapter is 60º max) |
| Electrostatic Protection | ±24 kV Contact/Air |
| Surge Protection | 6 kV |
| IP Rating | IP55 |
| Power Consumption | < 12 W |
| Dimensions | 200 x 98.5 x 29 mm |
| Weight | 0.68 Kg |
