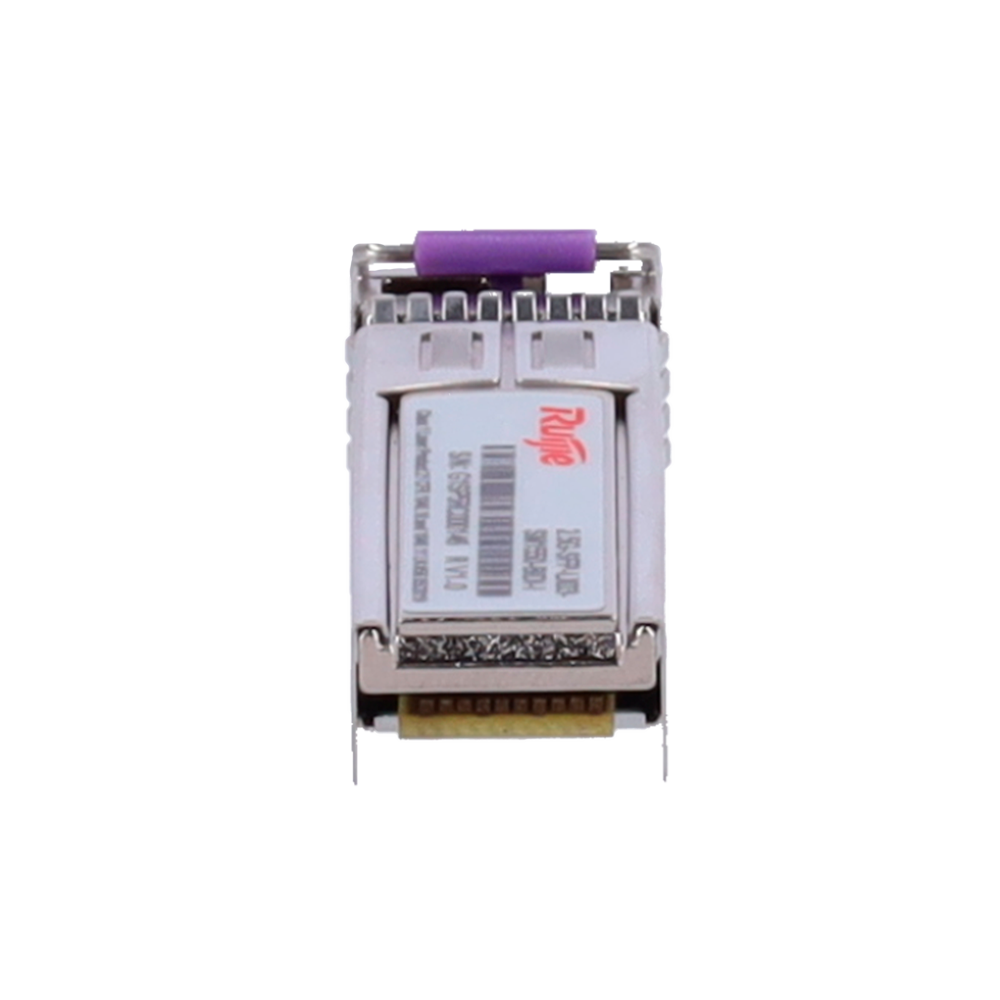

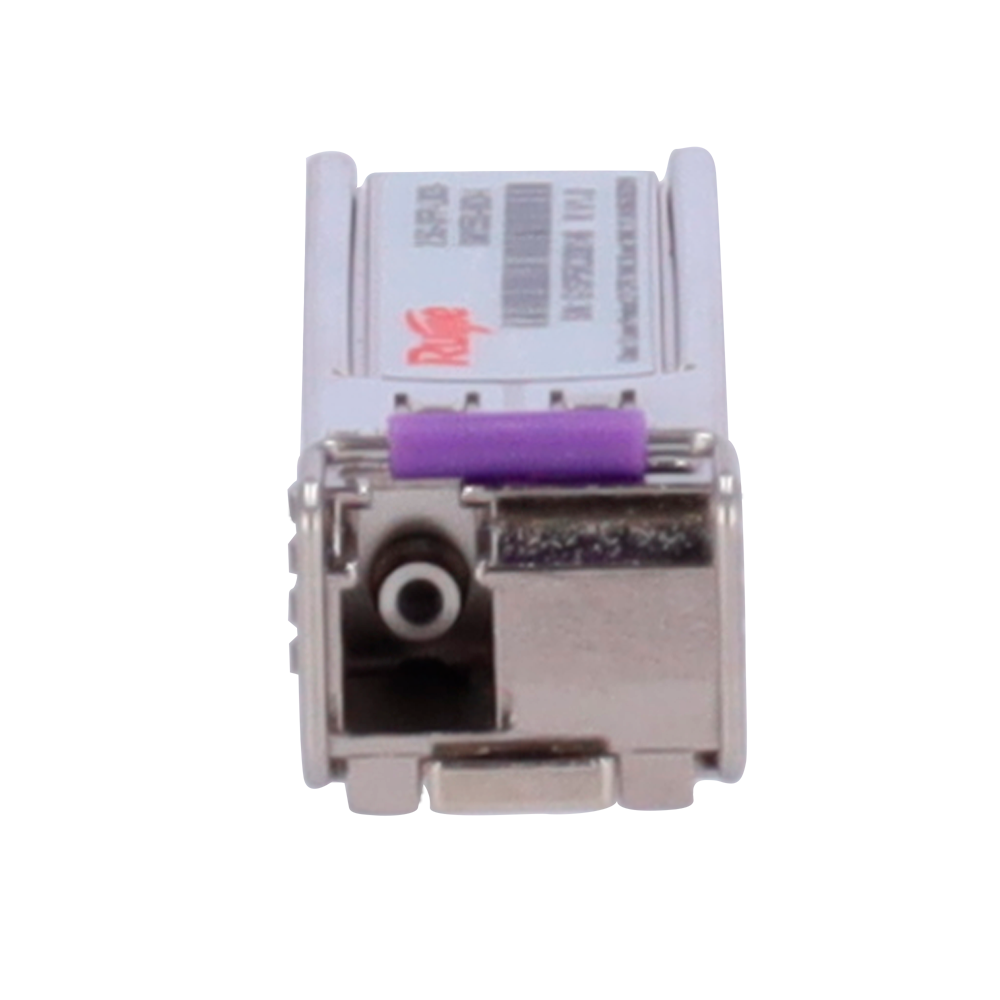

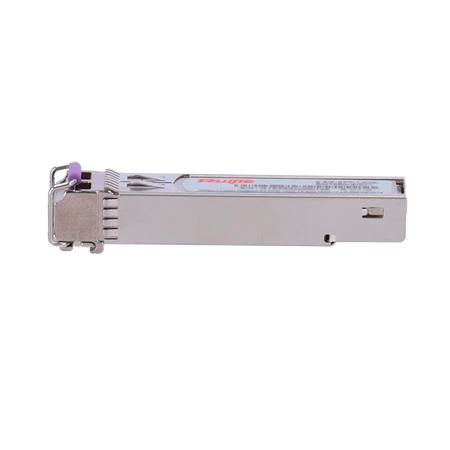

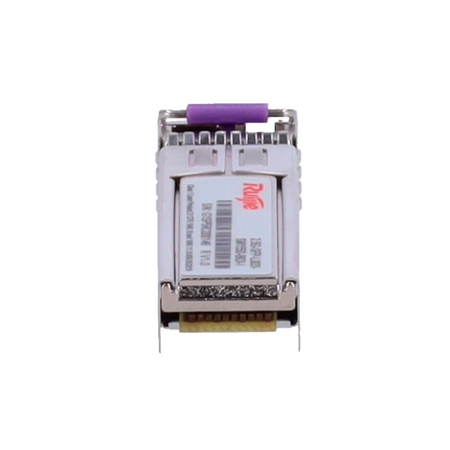

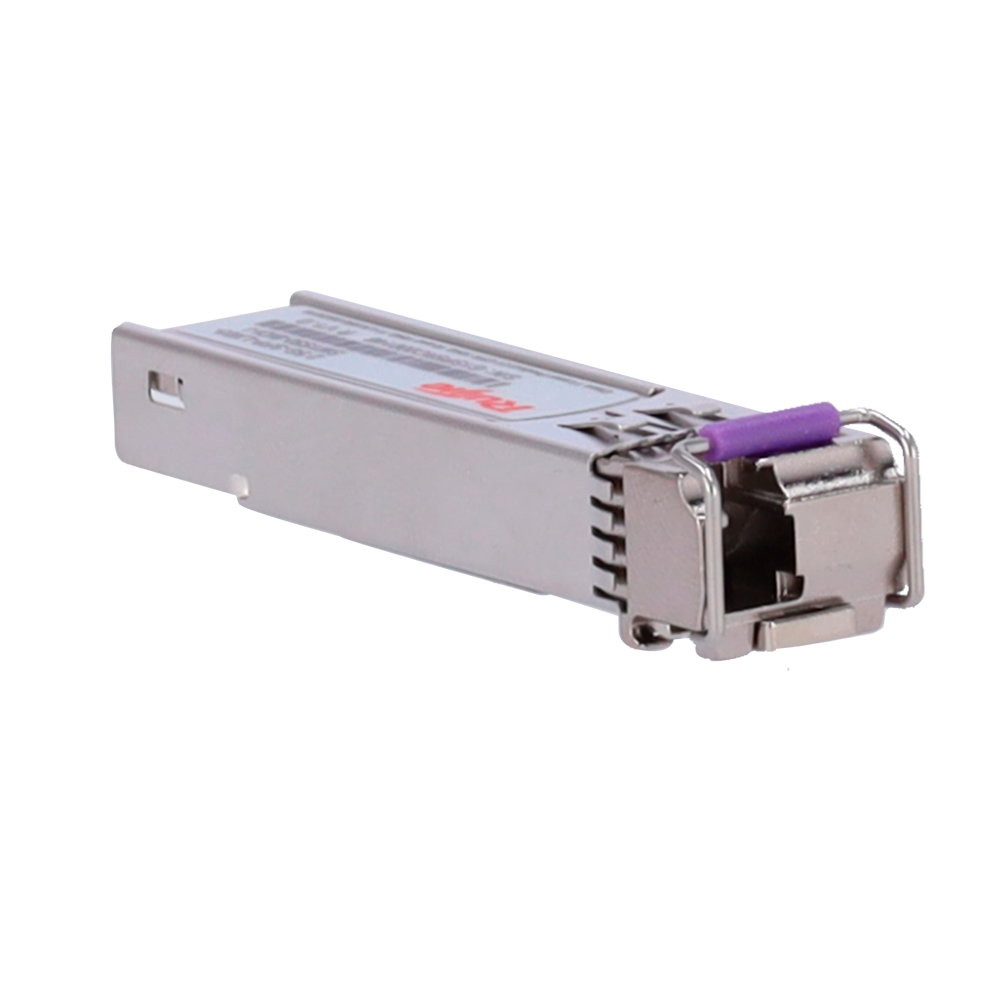

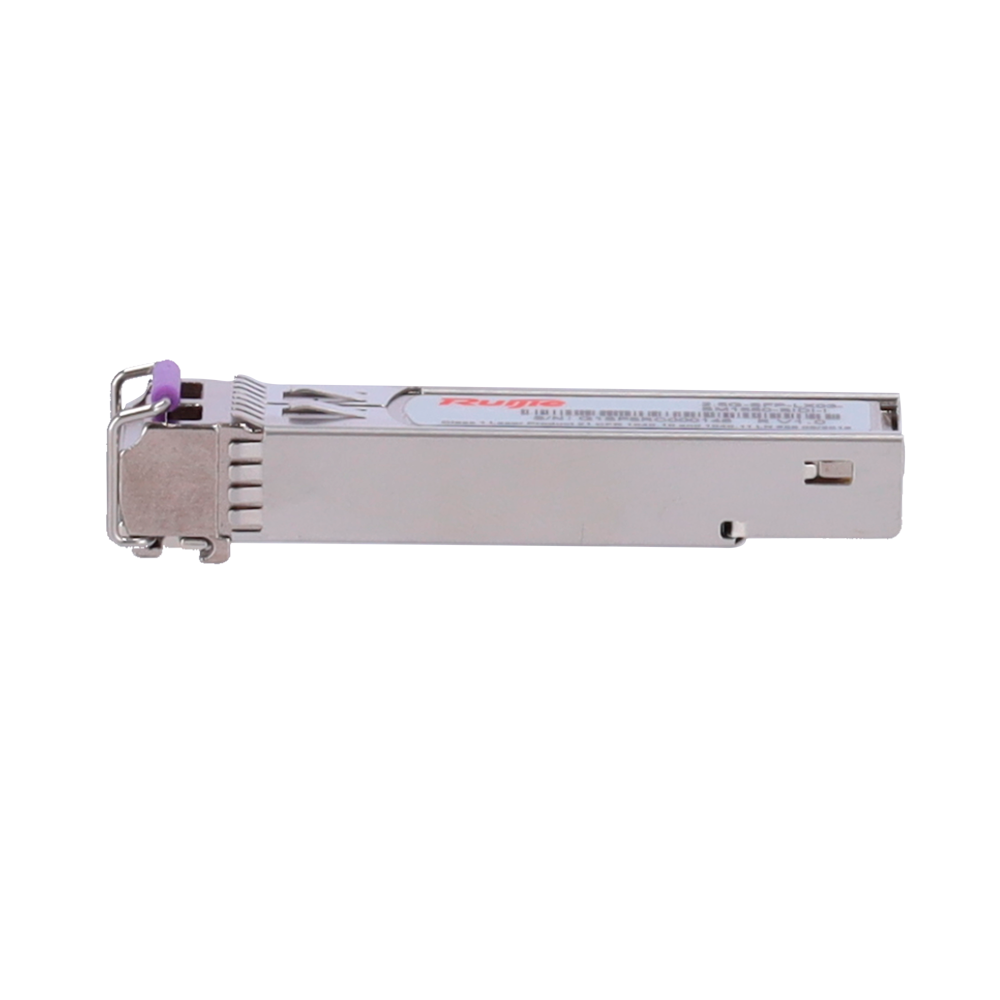

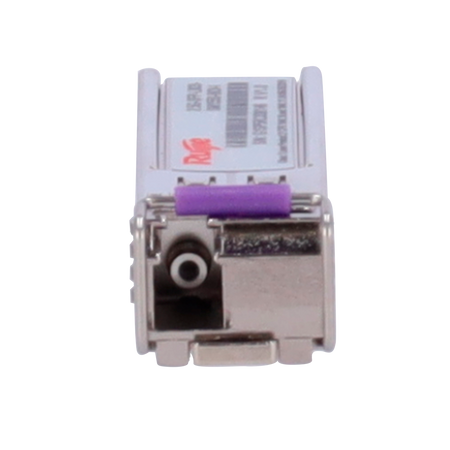

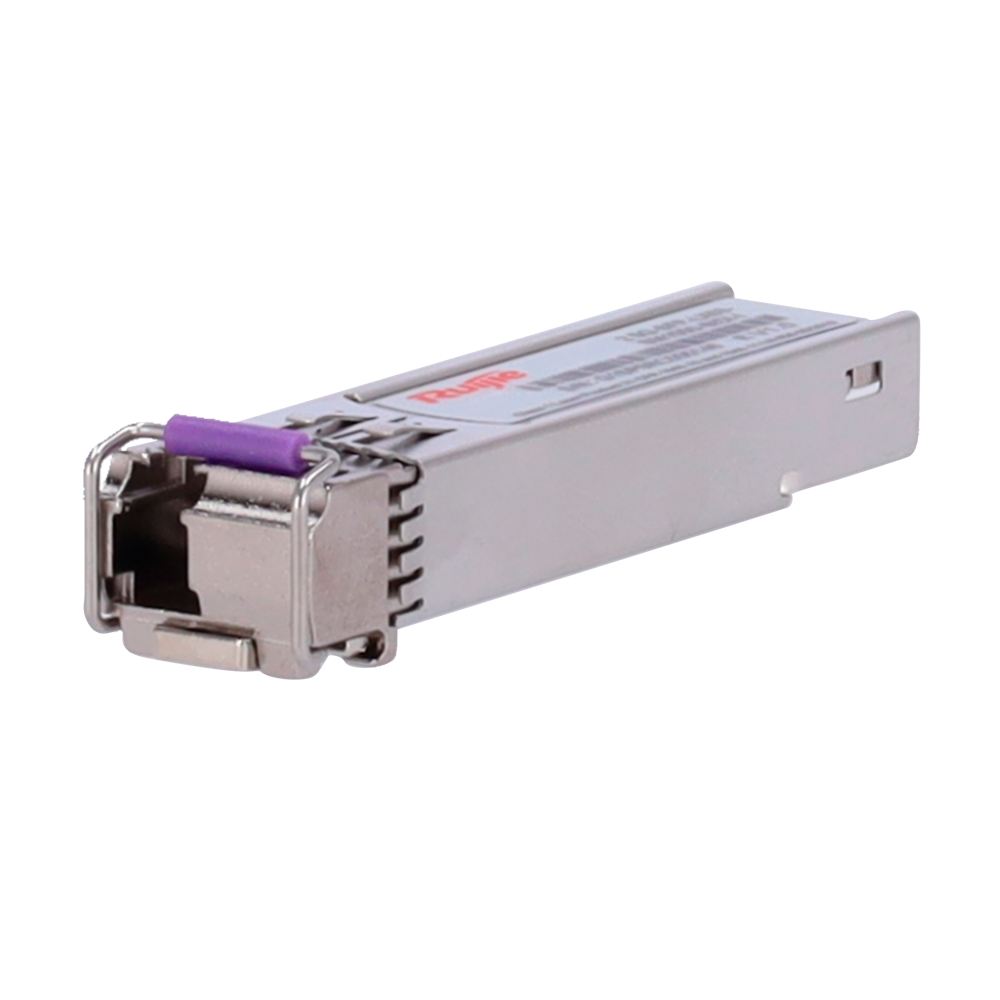

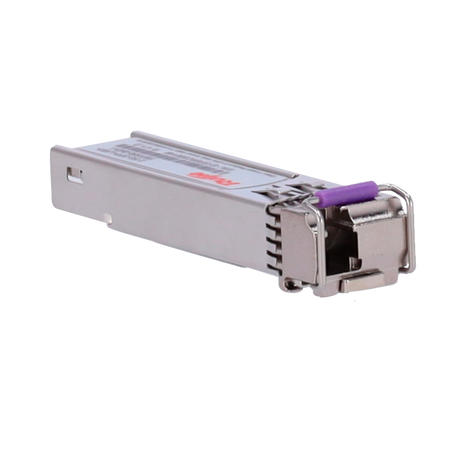

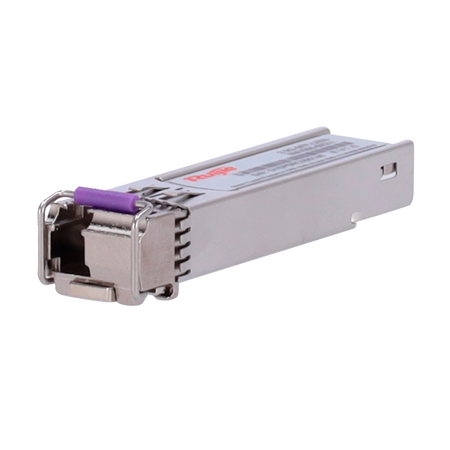

Ruijie BiDi SFP Transceiver Module - 2.5GBASE-LX Ethernet Standard - 1550 nm
Ruijie BiDi SFP Transceiver Module - 2.5GBASE-LX Ethernet Standard - 1550 nm
Regular price
€87,50
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie BiDi SFP transceiver module - 2.5GBASE-LX Ethernet standard - Bidirectional Simplex LC connector - Operating distance up to 3Km - Dual wavelength Tx1550nm and Rx1310nm - Transfer speed up to 3.125 Gbps
📋 SPECIFICATIONS:
• Manufacturer: Ruijie
• Form factor type: SFP
• Environment type: Industrial grade
• Ethernet standard: 2.5GBASE-LX
• Fiber type: Single-mode (SMF)
• Fiber finish: Ultra Physical Contact (UPC)
• Connector type: BIDI LC (Simplex)
• Data rate: Up to 3.125 Gbps
• Operating distance: Up to 3 km
• Transmission wavelength (TX): 1550 nm
• Reception wavelength (RX): 1310 nm
• Laser type: DFB
• Receiver type: PIN
• Bit Error Rate (BER): 1.00E-12
• DDM (Digital Diagnostic Monitoring) function: Yes
• Power consumption: ≤ 1 W
• Minimum transmission power (TX Min.): -9 dBm
• Maximum transmission power (TX Max.): -3 dBm
• Minimum extinction ratio: ≥ 6.5 dB
• Reception sensitivity (OMA): < < < < -16 dBm
• Optical power overload: -3 dBm
• Operating temperature: -40 to 85 °C
• Storage temperature: -40 to 85 °C
• Operating humidity: 10% to 90% RH
• Storage humidity: 10% to 90% RH
• Dimensions (W x D x H): 56.5 mm x 13.5 mm x 8.5 mm
• Weight: 35 g
• Installation: For a fiber connection, use 2.5G-SFP-LX03-SM1310-BIDI-I at one end and 2.5G-SFP-LX03-SM1550-BIDI-I at the other end.
📦 INCLUDED:
• 1x 2.5G-SFP-LX03-SM1550-BIDI-I
| Manufacturer | Ruijie |
|---|---|
| Form factor type | SFP |
| Environment type | Industrial grade |
| Ethernet standard | 2.5GBASE-LX |
| Fiber type | Single-mode (SMF) |
| Fiber finish | Ultra Physical Contact (UPC) |
| Connector type | BIDI LC (Simplex) |
| Data rate | Up to 3.125 Gbps |
| Operating distance | Up to 3 km |
| Transmit wavelength (TX) | 1550 nm |
| Receive wavelength (RX) | 1310 nm |
| Laser type | DFB |
| Receiver type | PIN |
| Bit error rate (BER) | 1.00E-12 |
| DDM (Digital Diagnostic Monitoring) function | Yes |
| Power consumption | ≤ 1 W |
| Minimum transmit power (TX Min.) | -9 dBm |
| Maximum transmit power (TX Max.) | -3 dBm |
| Minimum extinction ratio | ≥ 6.5 dB |
| Receive sensitivity (OMA) | < -16 dBm |
| Optical power overload | -3 dBm |
| Operating temperature | -40 to 85 °C |
| Storage temperature | -40 to 85 °C |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 10% to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm |
| Weight | 35 g |
| Installation | For a fiber link, 2.5G-SFP-LX03-SM1310-BIDI-I will be used at one end and 2.5G-SFP-LX03-SM1550-BIDI-I at the other end. |
