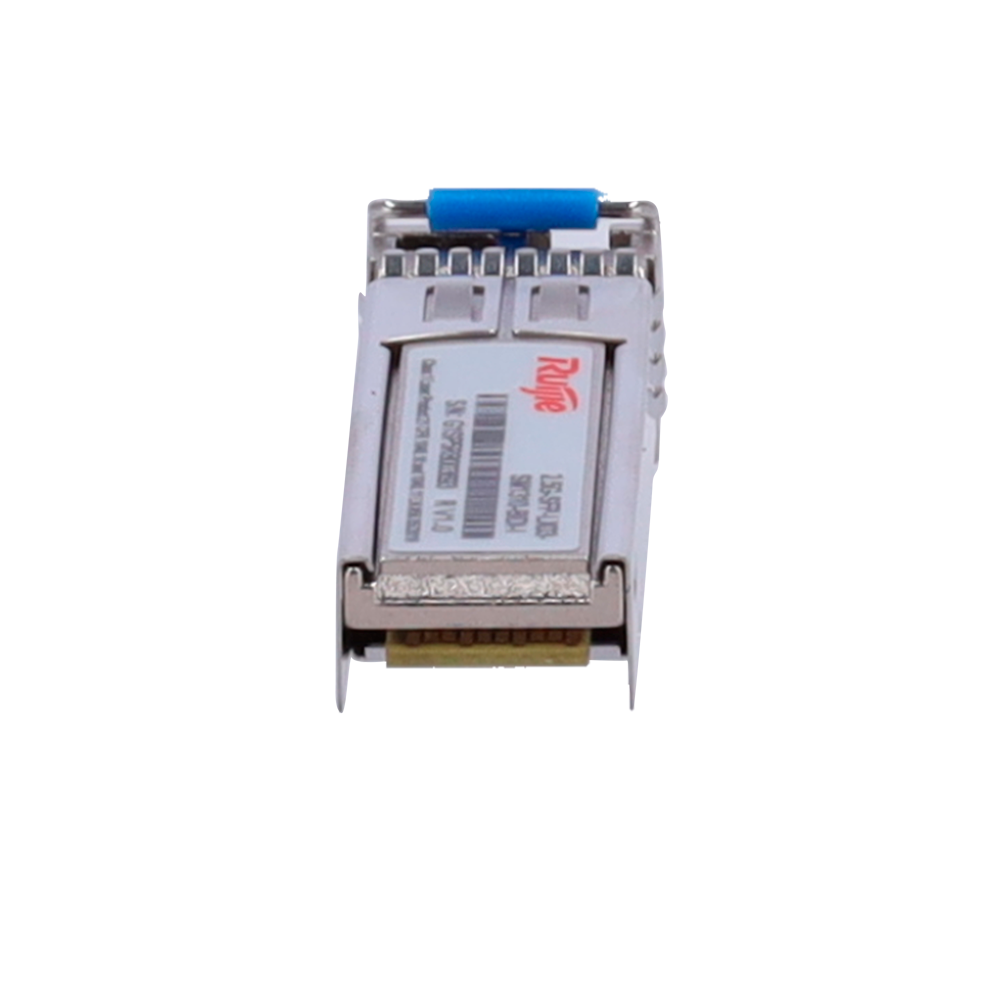

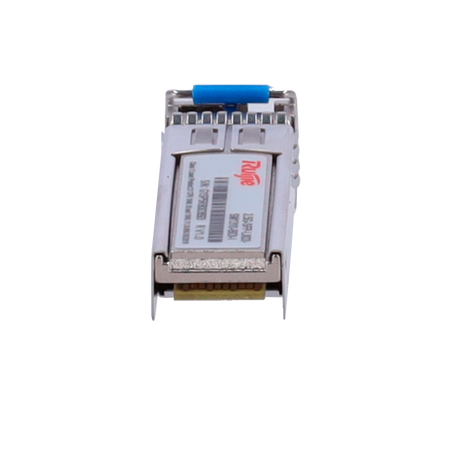

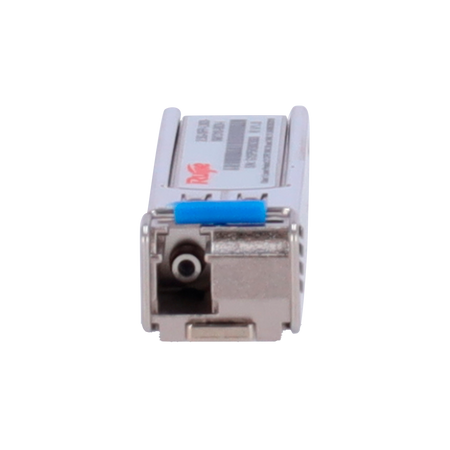

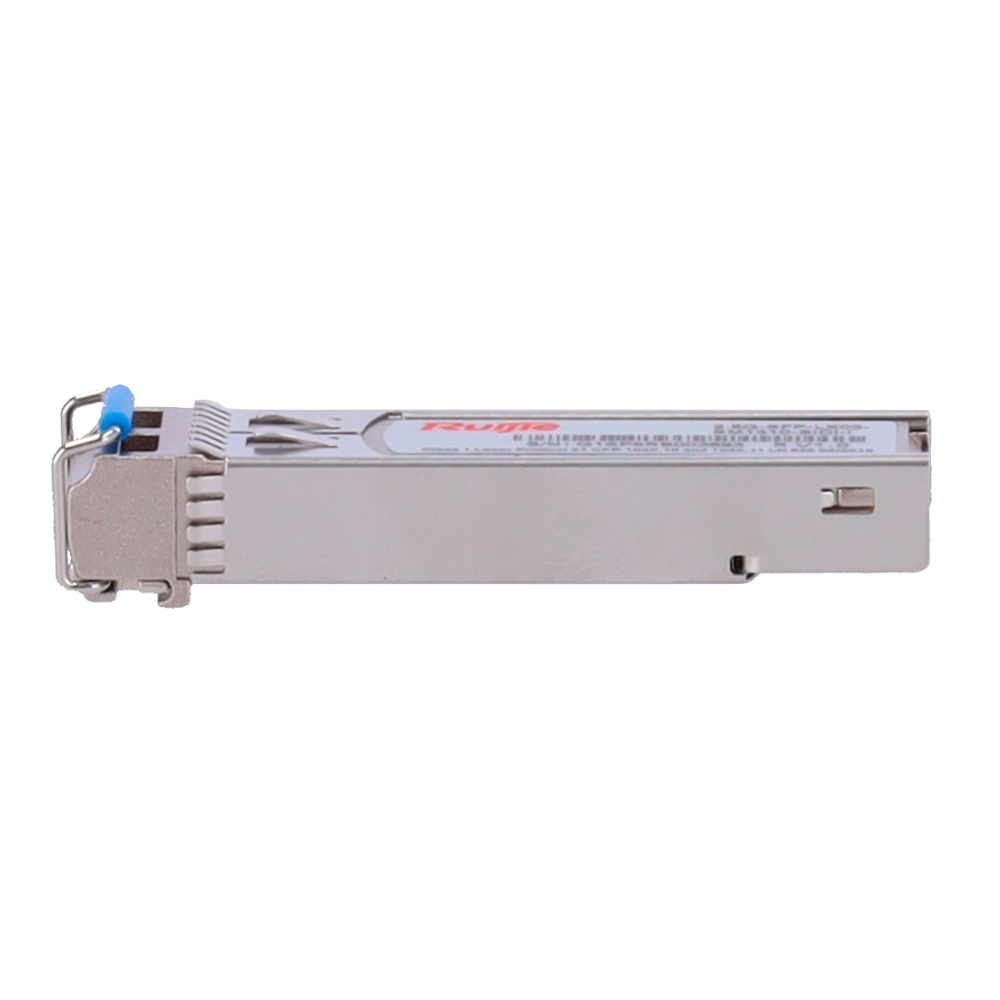

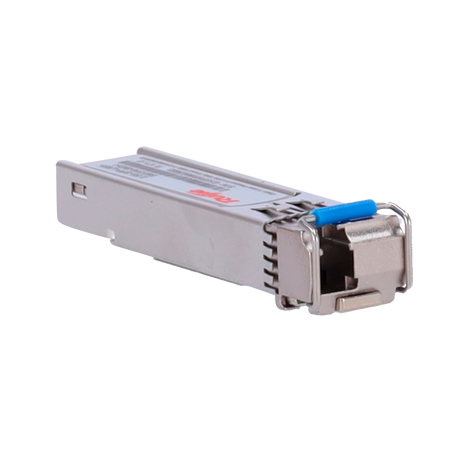

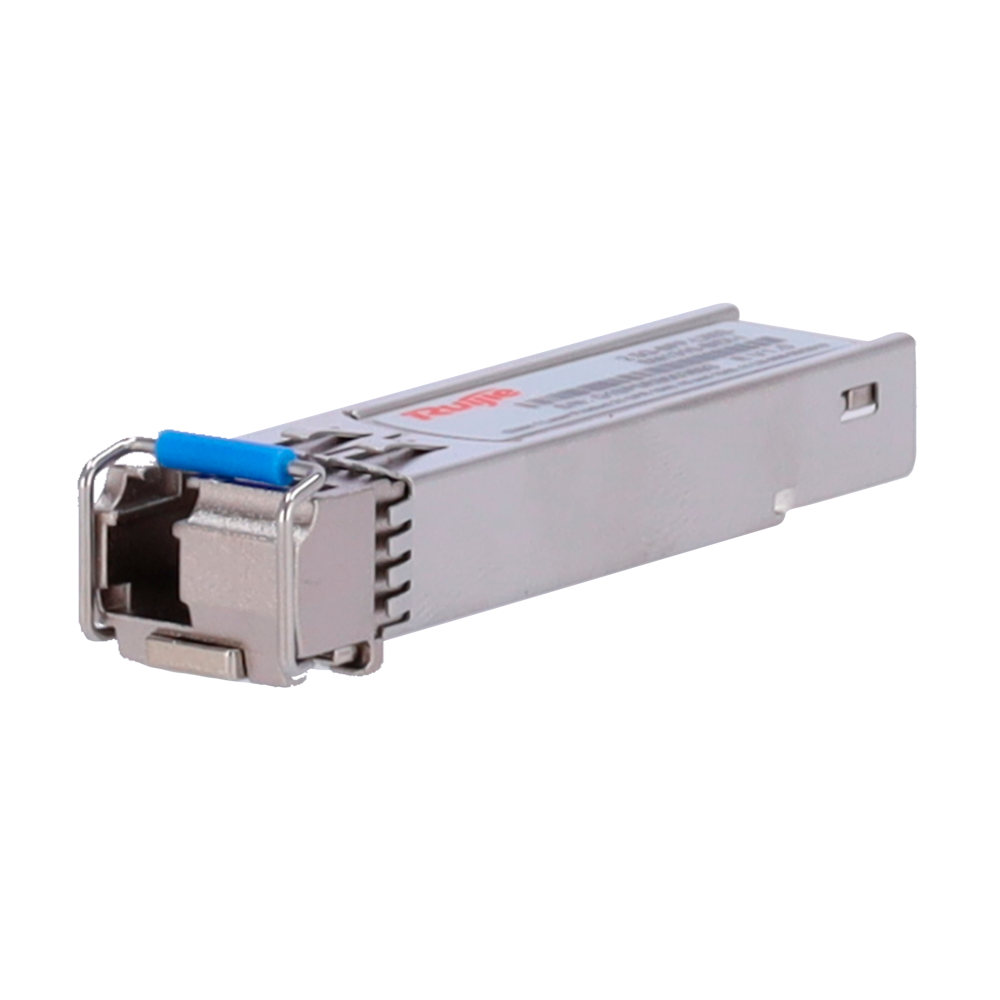

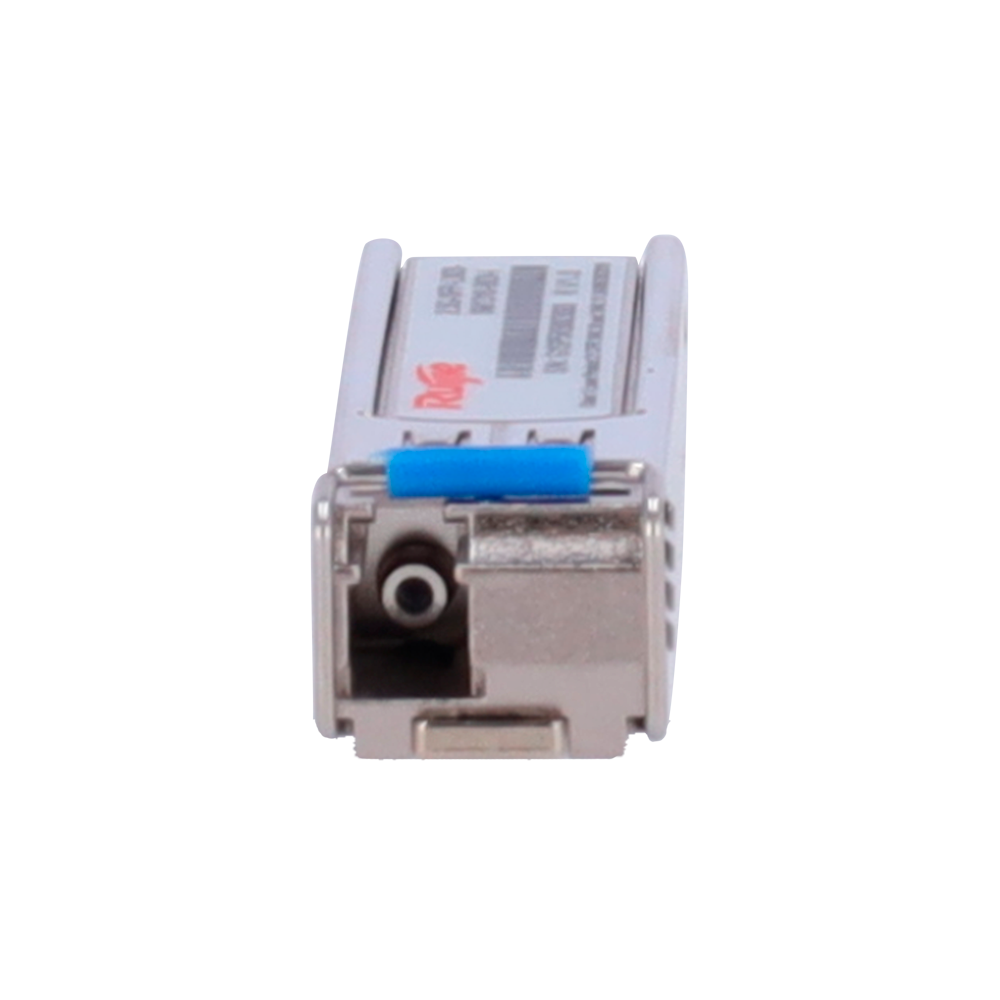

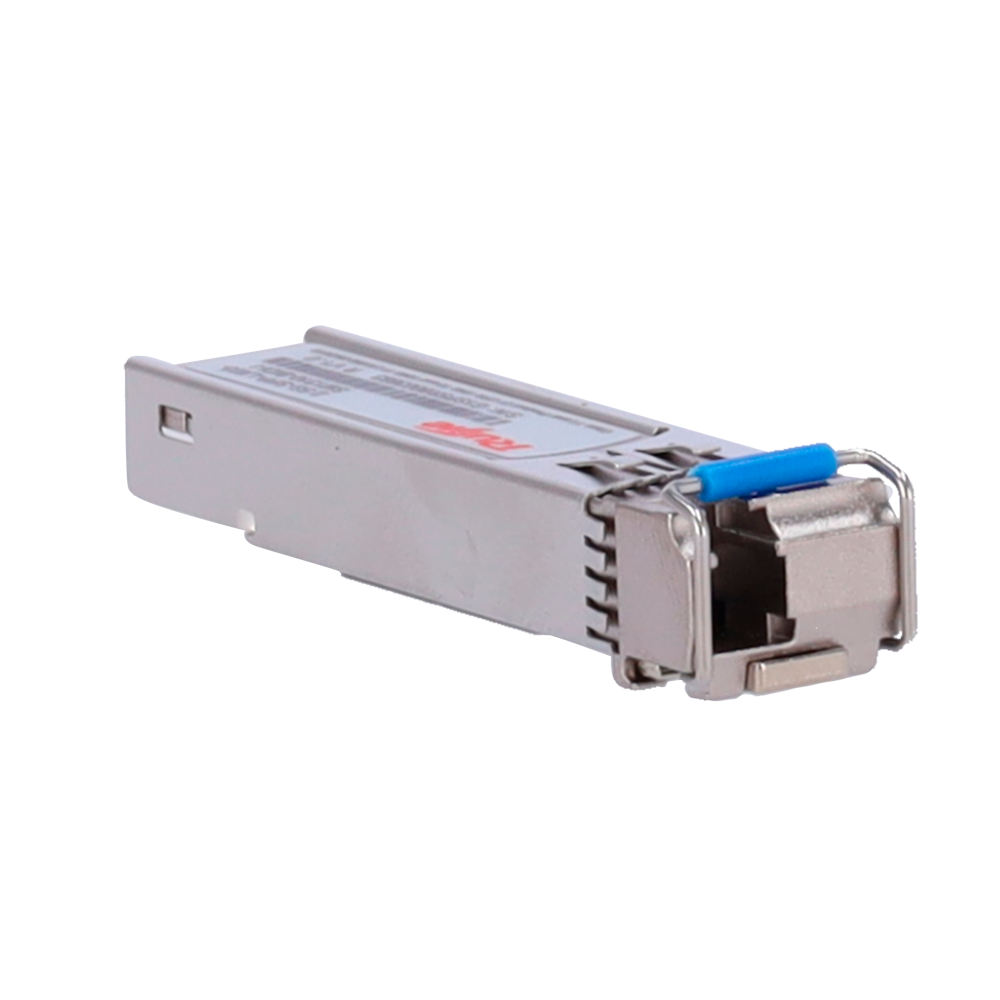

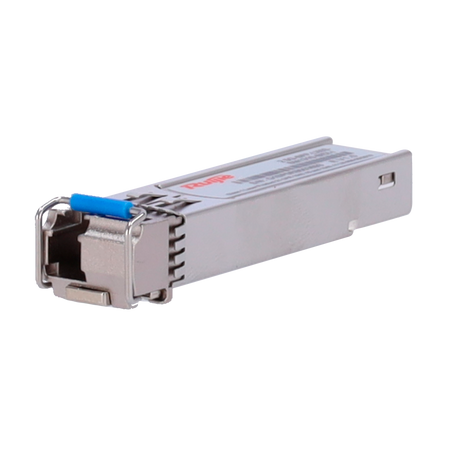

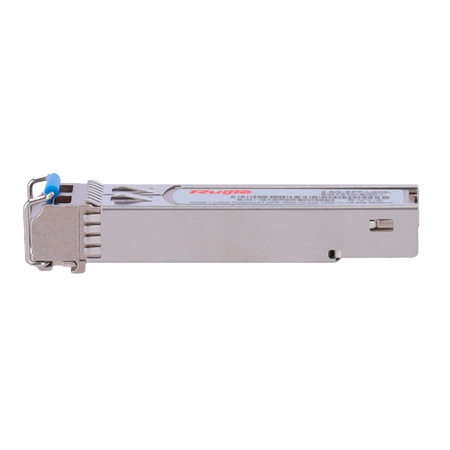

Ruijie SFP BiDi transceiver module - 2.5GBASE-LX Ethernet standard - 1310 nm
Ruijie SFP BiDi transceiver module - 2.5GBASE-LX Ethernet standard - 1310 nm
Regular price
€77,50
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Ruijie BiDi SFP transceiver module - 2.5GBASE-LX Ethernet standard - Bidirectional Simplex LC connector - Operating distance up to 3Km - Dual wavelength Tx1310nm and Rx1550nm - Transfer speed up to 3.125 Gbps
📋 SPECIFICATIONS:
• Manufacturer: Ruijie
• Form factor type: SFP
• Environment type: Industrial grade
• Ethernet standard: 2.5GBASE-LX
• Fiber type: Single-mode (SMF)
• Fiber finish: Ultra Physical Contact (UPC)
• Connector type: BIDI LC (Simplex)
• Data rate: Up to 3.125 Gbps
• Operating distance: Up to 3 km
• Transmission wavelength (TX): 1310 nm
• Reception wavelength (RX): 1550 nm
• Laser type: FB
• Receiver type: PIN
• Bit Error Rate (BER): 1.00E-12
• DDM (Digital Diagnostics Monitoring) function: Yes
• Power consumption: ≤ 1 W
• Minimum transmission power (TX Min.): -9 dBm
• Maximum transmission power (TX Max.): -3 dBm
• Minimum extinction ratio: ≥ 6.5 dB
• Receiver sensitivity (OMA): < < < < -16 dBm
• Optical power overload: -3 dBm
• Operating temperature: -40 to 85 °C
• Storage temperature: -40 to 85 °C
• Operating humidity: 10% to 90% RH
• Storage humidity: 10% to 90% RH
• Dimensions (W x D x H): 56.5 mm x 13.5 mm x 8.5 mm
• Weight: 35 g
• Installation: For a fiber link, use 2.5G-SFP-LX03-SM1310-BIDI-I at one end and 2.5G-SFP-LX03-SM1550-BIDI-I at the other end.
📦 INCLUDED:
• 1x 2.5G-SFP-LX03-SM1310-BIDI-I
| Manufacturer | Ruijie |
|---|---|
| Form factor | SFP |
| Environment type | Industrial grade |
| Ethernet standard | 2.5GBASE-LX |
| Fiber type | Single-mode (SMF) |
| Fiber finish | Ultra Physical Contact (UPC) |
| Connector type | BIDI LC (Simplex) |
| Data rate | Up to 3.125 Gbps |
| Operating distance | Up to 3 km |
| Transmission wavelength (TX) | 1310 nm |
| Reception wavelength (RX) | 1550 nm |
| Laser type | FB |
| Receiver type | PIN |
| Bit Error Rate (BER) | 1.00E-12 |
| DDM function (Digital Diagnostic Monitoring) | Yes |
| Power consumption | ≤ 1 W |
| Minimum transmission power (TX Min.) | -9 dBm |
| Maximum transmission power (TX Max.) | -3 dBm |
| Minimum extinction ratio | ≥ 6.5 dB |
| Reception sensitivity (OMA) | < -16 dBm |
| Optical power overload | -3 dBm |
| Operating temperature | -40 to 85 °C |
| Storage temperature | -40 to 85 °C |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 10% to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm |
| Weight | 35 g |
| Installation | For a fiber connection, use the 2.5G-SFP-LX03-SM1310-BIDI-I at one end and the 2.5G-SFP-LX03-SM1550-BIDI-I at the other end. |
