Raedian Smart Meter Compatible with NEO - Single-Phase | Up to 80A
Raedian Smart Meter Compatible with NEO - Single-Phase | Up to 80A
Regular price
€112,98
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

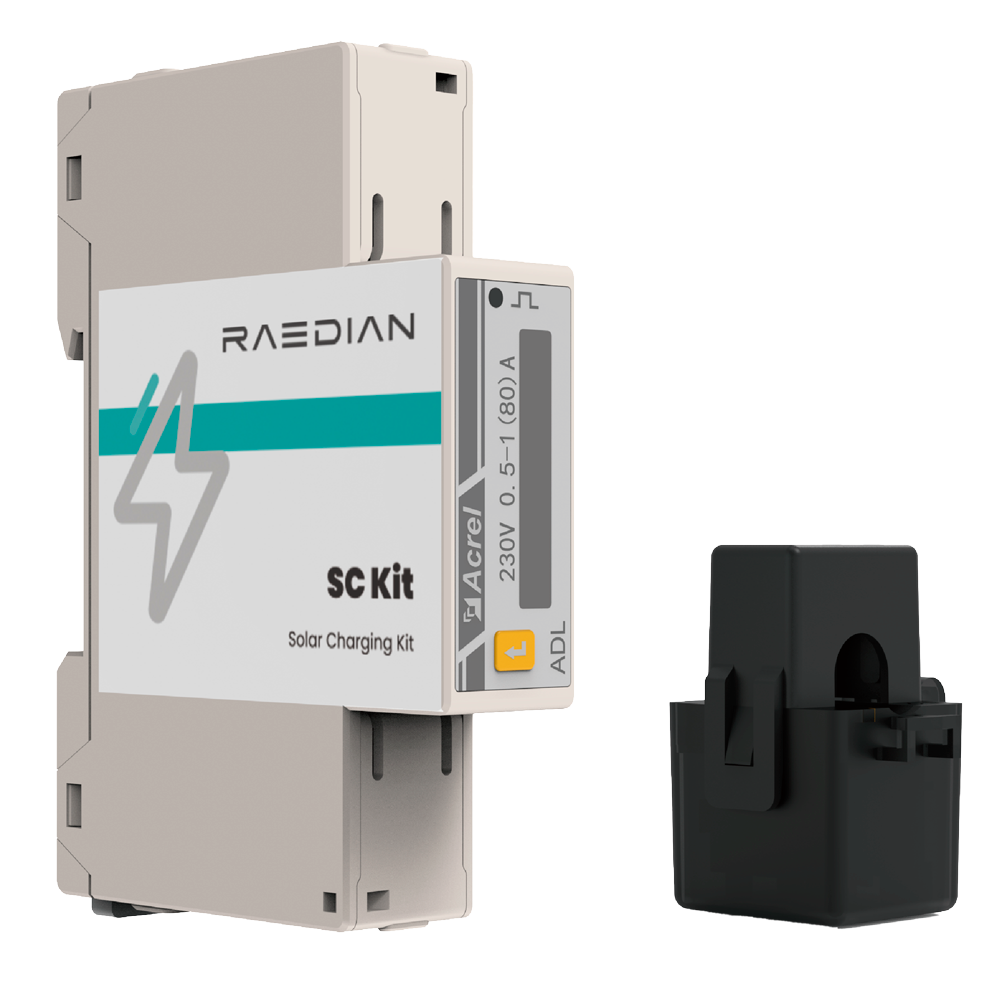

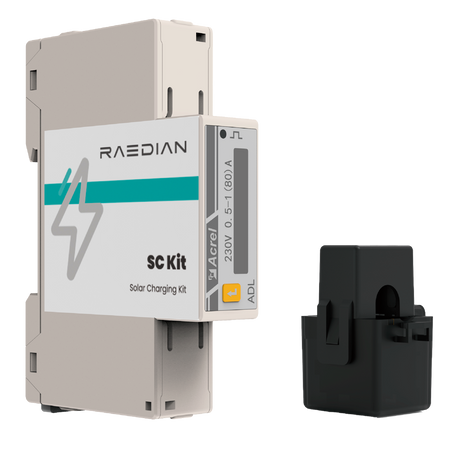

Raedian Smart Meter - NEO Compatible - Single-phase | Up to 80A - Bidirectional - DIN rail mounting - Class I Accuracy
📋 SPECIFICATIONS:
• Brand: RAEDIAN
• Device type: Bidirectional Smart Meter
• Rated voltage: Single-phase 230Vac
• Consumption: <0.2 W
• Power measurement: Active, reactive, apparent
• Input current: 80A with 80A clamp included
• Grid frequency: 45-65 Hz
• Accuracy class: Class I +-0.5%
• Mounting: DIN rail
• Measurement: Class B (split-core current transformer)
• Operating temperature: -40 ~ 70ºC
• Communication: RS485 interface and Modbus RTU protocol (1-247)
• Baud rate: 1200bps - 38400bps
• Compatibility: NEO 7.4 KW chargers (Single-phase)
• Color: White
• Dimensions: 65 (H) x 90 (W) x 18 (D) mm
• CT hole size: 10 mm
• Overload: x1.2 continuous; x2 for 1s
• Response time: <100ms (voltage, current, power); <1s (electrical energy)
• Operating temperature: -40ºC - 70ºC
• Relative humidity: <95% (non-condensing)
• Altitude: Up to 3000m
📦 INCLUDED:
• Smart Meter• 80A CT clamp
| Device type | Bidirectional Smart Meter |
|---|---|
| Rated voltage | Single-phase 230Vac |
| Consumption | <0.2 W |
| Power measurement | Active, reactive, apparent |
| Input current | 80A with included 80A clamp |
| Mains frequency | 45-65 Hz |
| Accuracy class | Class I +-0.5% |
| Mounting | DIN rail |
| Measurement | Class B (split-core current transformer) |
| Operating temperature | -40 ~ 70ºC |
| Communication | RS485 interface and Modbus RTU protocol (1-247) |
| Baud rate | 1200bps - 38400bps |
| Compatibility | NEO 7.4 kW chargers (Single-phase) |
| Color | White |
| Dimensions | 65 (H) x 90 (W) x 18 (D) mm |
| CT aperture size | 10 mm |
| Overload | x1.2 continuously, x2 for 1s |
| Response time | <1s (electrical energy) |
| Working temperature | -40ºC - 70ºC |
| Relative humidity | <95% (non-condensing) |
| Altitude | Up to 3000m |
