Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

RAEDIAN

Raedian Portable EV Charger - 7.4kW / 32A / Single-phase Power

SKU: RD-NORA-7-C1-S-RET
(0)
In stock
Usually shipped within 24 hours
€472,69 Final price
-24% €620,00 €472,69 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

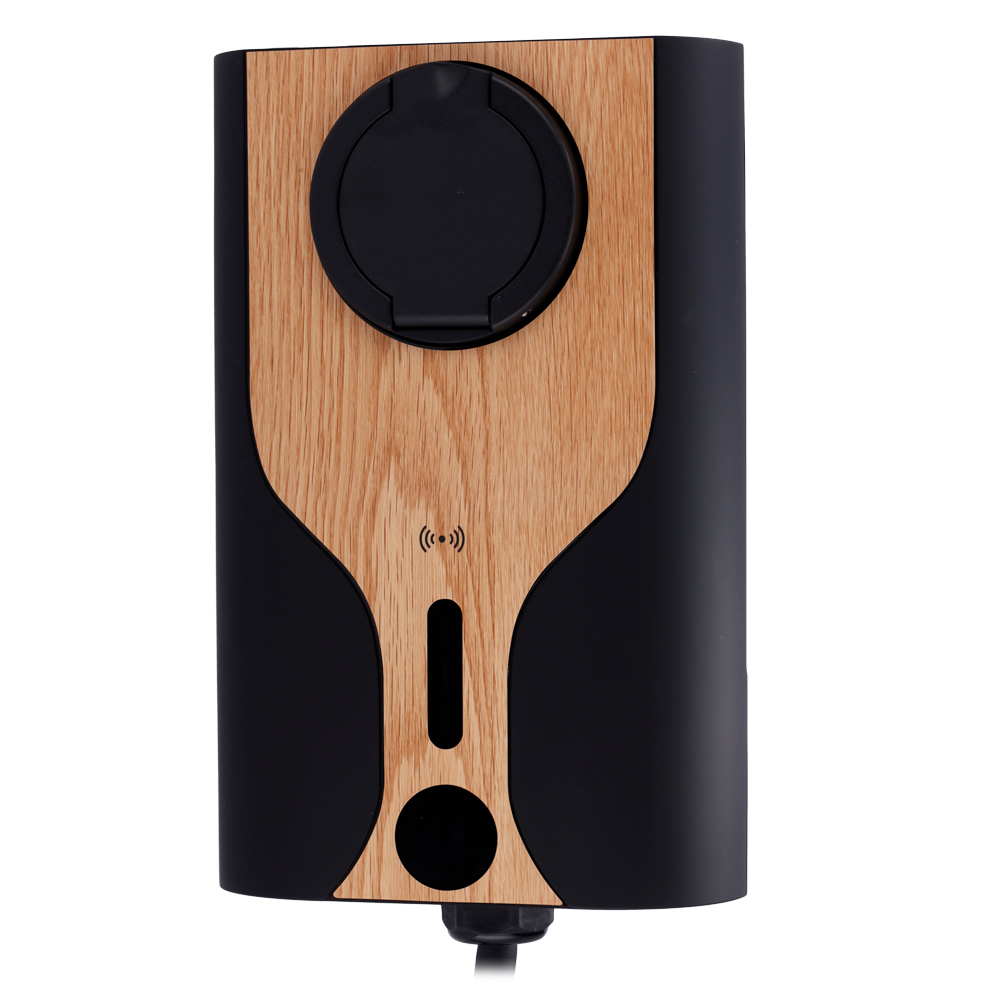

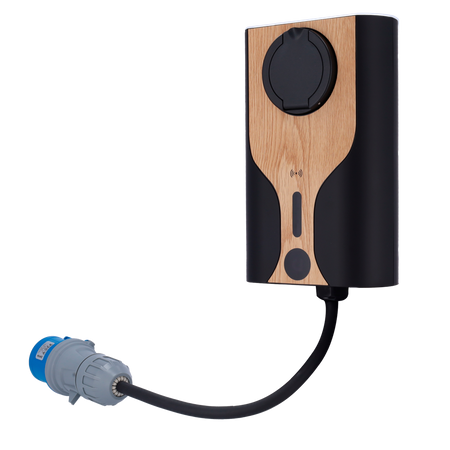

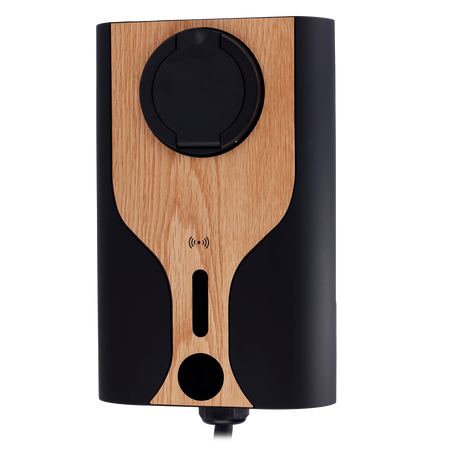

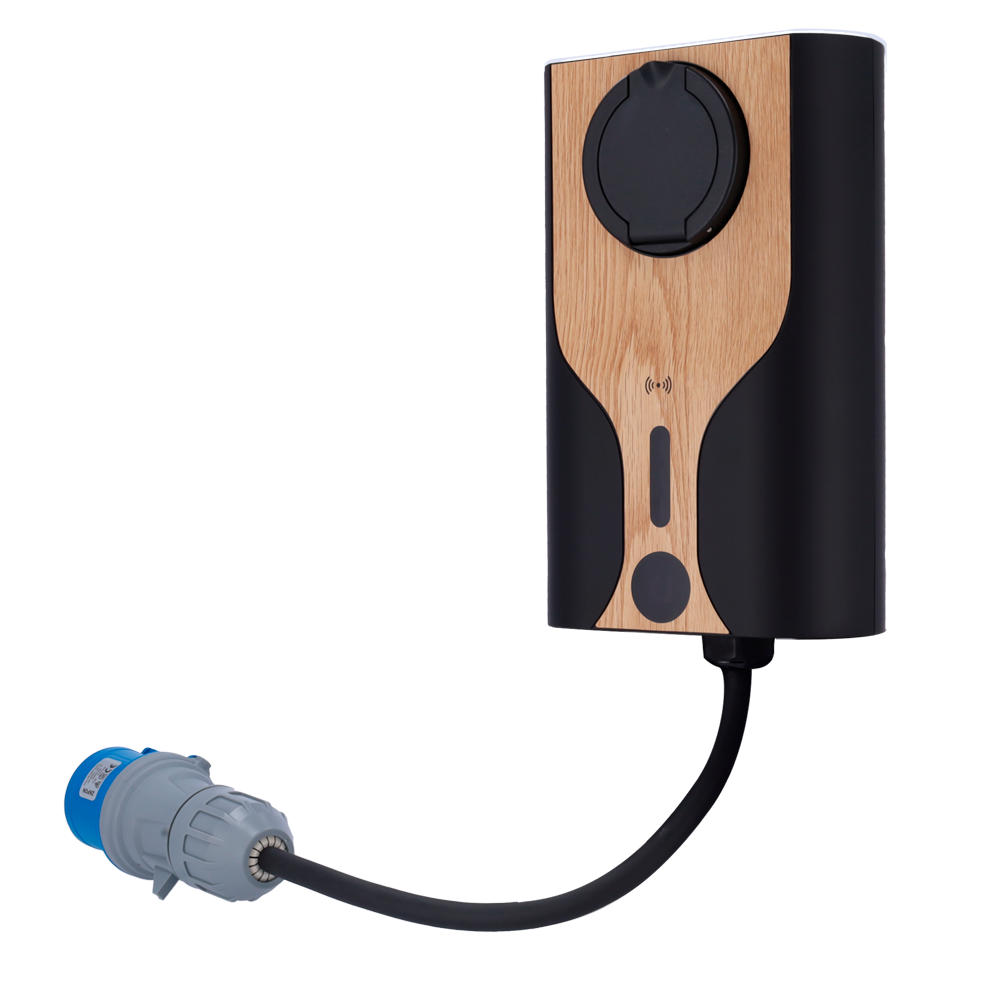

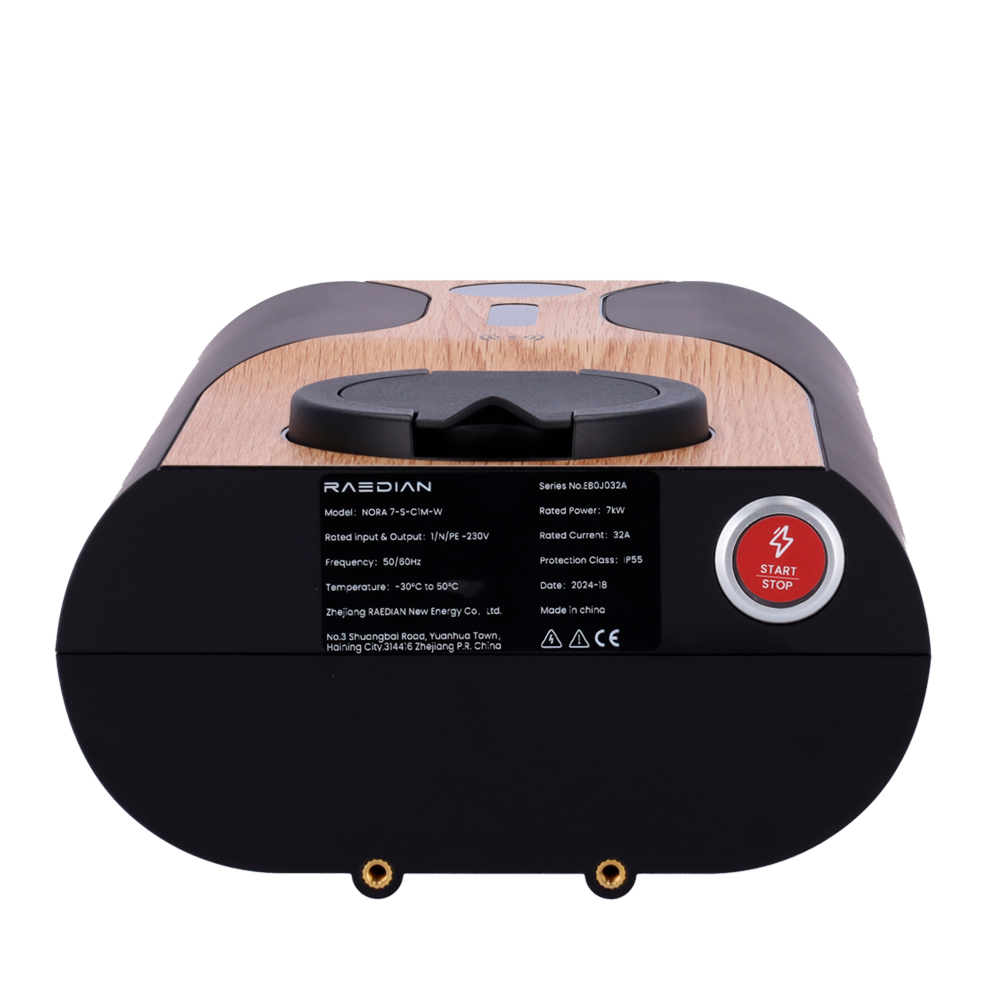

Portable electric vehicle charger - Power 7.4kW / 32A / Single-phase - Type 2 connector - IP55, IK10 protection - APP monitoring - Wood color

📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2
• Connection type: Single-phase
• Charging mode: Mode 3
• Maximum power: 7.4 kW
• Maximum current: 32 A
• Voltage range: 230V
• Input frequency: 50/60 Hz
• Earthing system: TN / TT / IT
• Connectivity: WiFi, BLE
• Authentication: Plug & play / RFID / Button start / APP (via BT) / OCPP Backend
• RFID protocol: ISO 14443-A, ISO 14443-B
• Third-party RFID: MiFare Classic 1K; MiFare 1K; M1 Card; Fundan S50
• Charging interface: IEC 62196-2
• Status: RGB Logo and LED
• Installation: Wall-mounted or pedestal
• Cable included: No
• Operating temperature: -30℃ ~ +55℃
• Relative humidity: 5% - 95%
• Standby consumption: 4.8W
• Protection: UVP / OVP / OCP / Relay block / Overheating
• Protection rating: IP55, IK10
• Residual current protection: Integrated 6 mA DC according to standard 62955
• Dimensions: 260 (D) x 168 (H) x 86 (W) mm
• Weight: 2.1kg
• Color: Wood

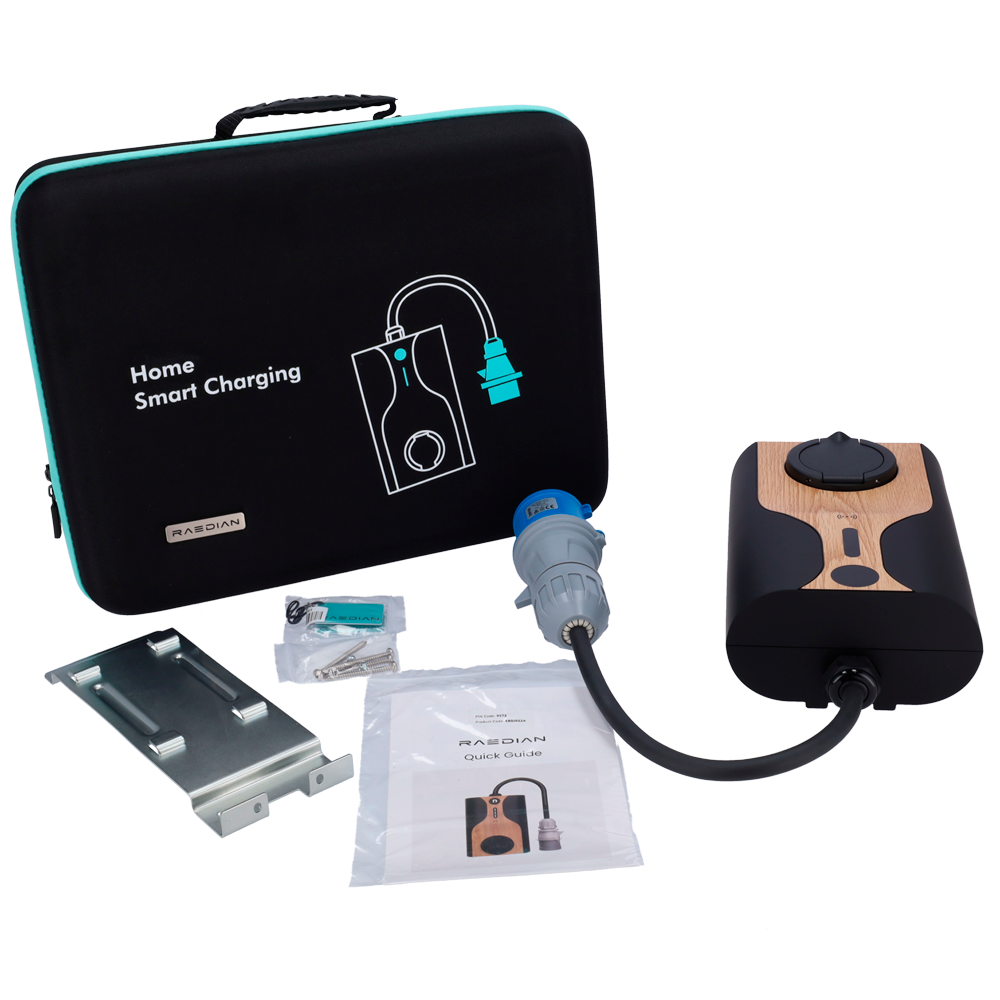

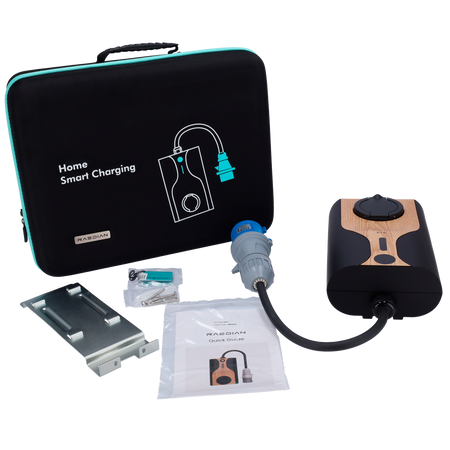

📦 INCLUDED:

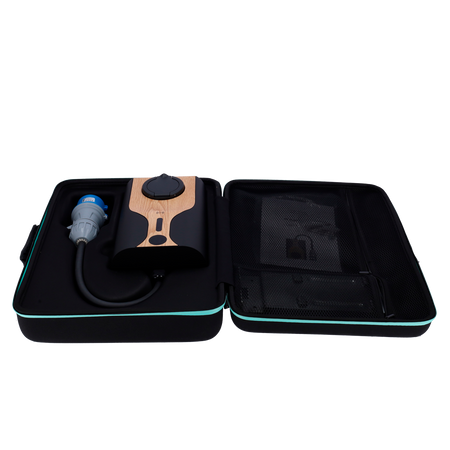

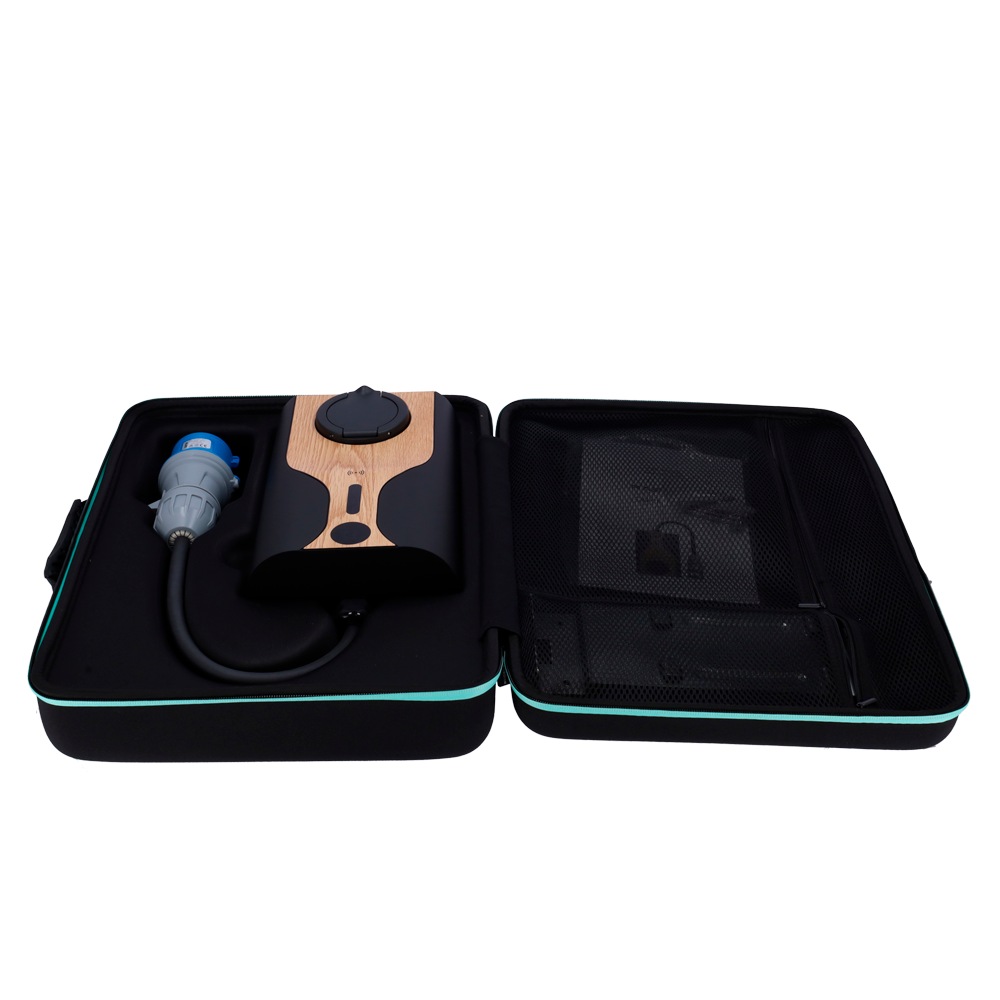

• Electric vehicle charging station• Charger case• 2x RFID cards• Installation hardware• Instruction manual
Connector Type 2
Connection type Single-phase
Charging mode Mode 3
Maximum power 7.4 kW
Maximum current 32 A
Voltage range 230V
Input frequency 50/60 Hz
Earthing system TN / TT / IT
Connectivity WiFi, BLE
Authentication Plug & play / RFID / Push-button start / APP (via BT) / OCPP Backend
RFID protocol ISO 14443-A, ISO 14443-B
Third-party RFID MiFare Classic 1K MiFare 1K M1 Card Fundan S50
Charging interface IEC 62196-2
Status RGB Logo and LED
Installation Wall or pedestal mounted
Supplied cable No
Operating temperature -30℃ ~ +55℃
Relative humidity 5% - 95%
Standby consumption 4.8W
Protection UVP / OVP / OCP / Relay block / Overheating
Protection rating IP55, IK10
Residual current protection 6 mA DC integrated according to standard 62955
Dimensions 260 (D) x 168 (H) x 86 (W) mm
Weight 2.1kg
Color Wood

Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.

For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.

The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
