Raedian portable charger kit + plug adapters - Power 22kW / 32A / Three-phase
Raedian portable charger kit + plug adapters - Power 22kW / 32A / Three-phase
Regular price
€807,03
Final price
Regular price
-9%
€890,00
Sale price
€807,03
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

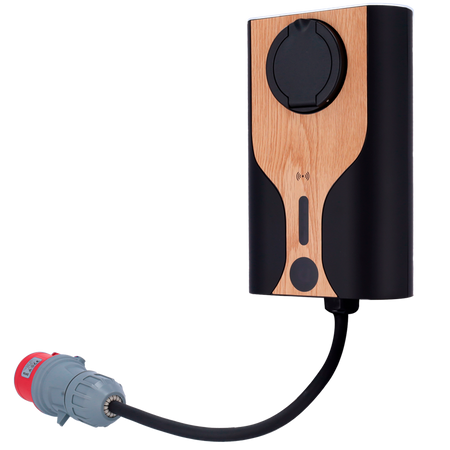

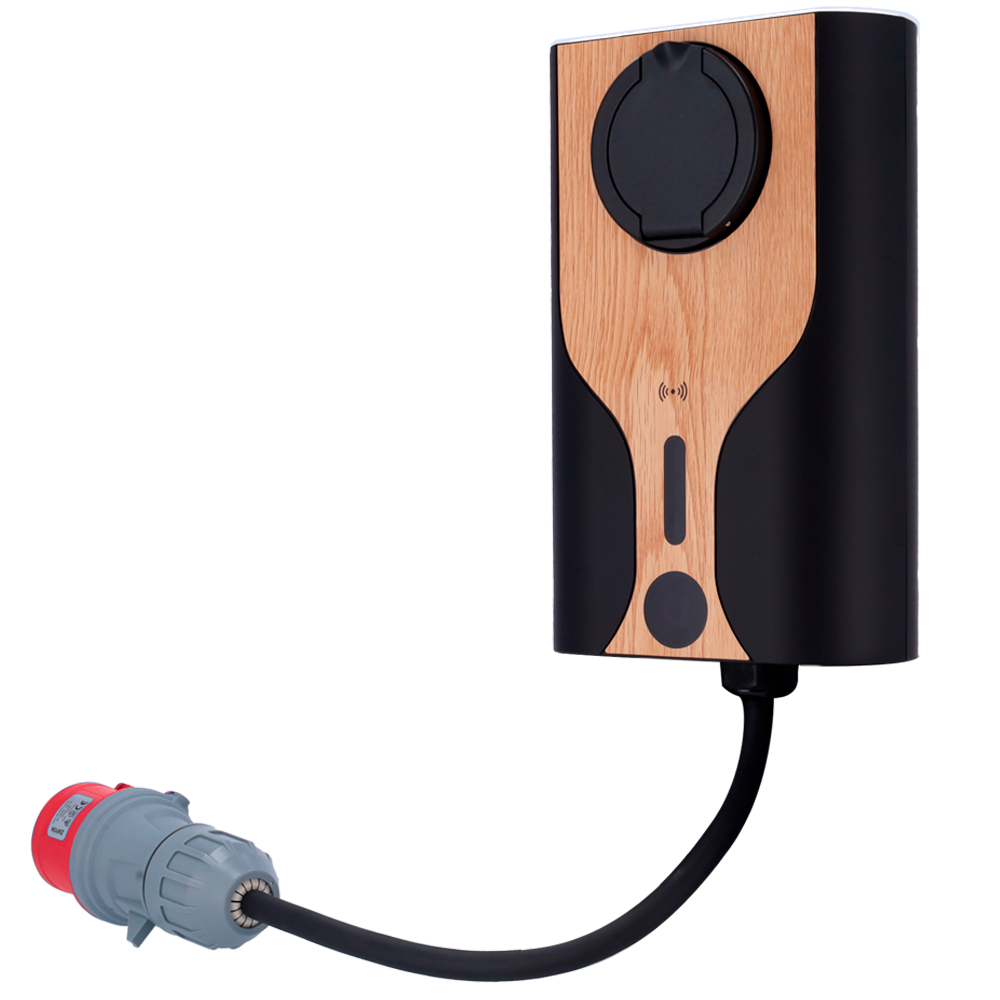

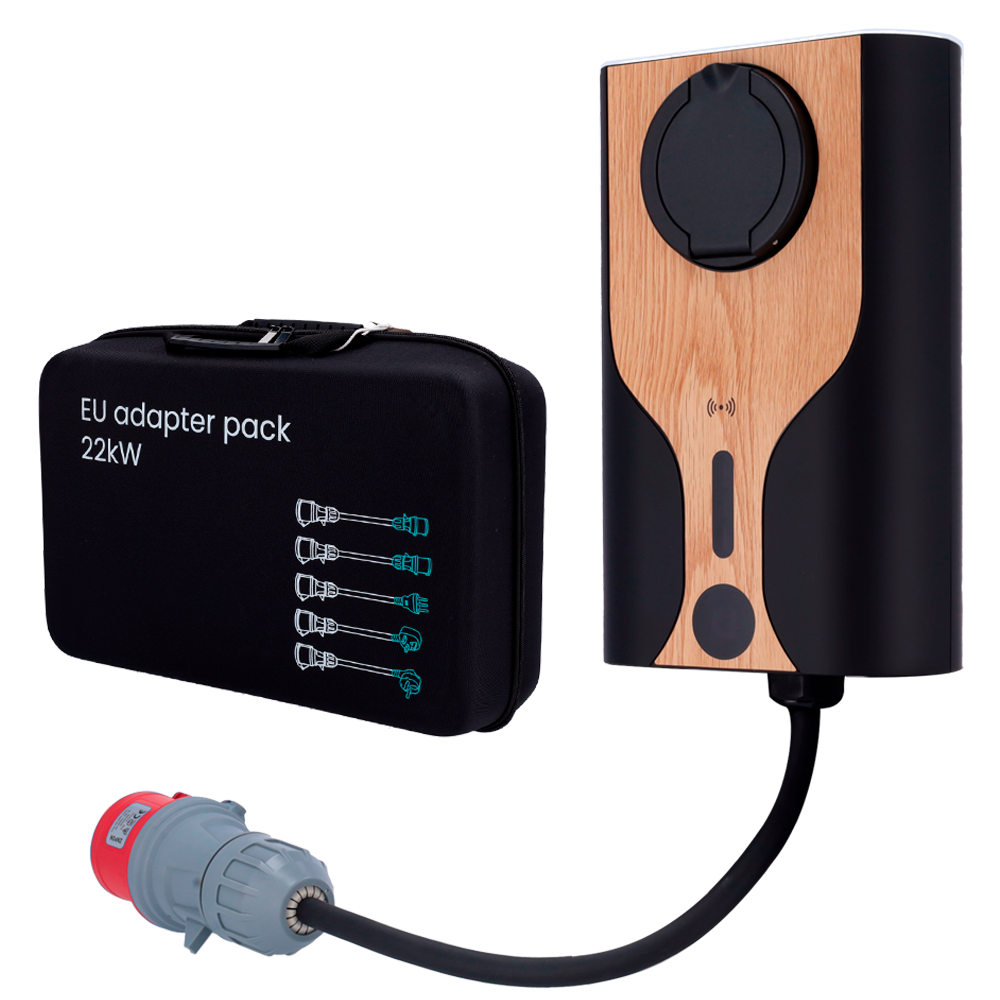

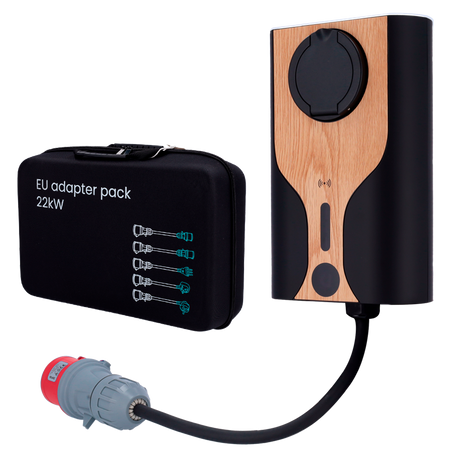

Portable charger kit + socket adapters - Power 22kW / 32A / Three-phase - Type 2 connector - Cable adapters - App monitoring - Wood finish
📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2
• Connection type: Three-phase
• Charging mode: Mode 3
• Maximum power: 22 kW
• Maximum current: 32 A
• Voltage range: 230V - 400V
• Input frequency: 50/60 Hz
• Grounding system: TN / TT / IT
• Connectivity: WiFi, BLE
• Authentication: Plug & play / RFID / Button start / App (via Bluetooth) / OCPP Backend
• RFID protocol: ISO 14443-A, ISO 14443-B
• Third-party RFID: MiFare Classic 1K; MiFare 1K; M1 Card; Fundan S50
• Charging interface: IEC 62196-2
• Status: RGB Logo and LED
• Installation: Wall-mounted (recommended) or pole-mounted
• Included cable: No
• Operating temperature: -30℃ ~ +55℃
• Relative humidity: 5% - 95%
• Standby consumption: 4.8W
• Protection: UVP / OVP / OCP / Relay welding / Overheating
• Protection rating: IP55, IK10
• Residual current protection: Integrated 6 mA DC according to IEC 62955
• Dimensions: 260 (D) x 168 (H) x 86 (W) mm
• Weight: 2.1kg
• Color: Wood
• Brand: RAEDIAN
• Device type: Cable adapter pack
• Compatibility: NORA 22 KW charging station

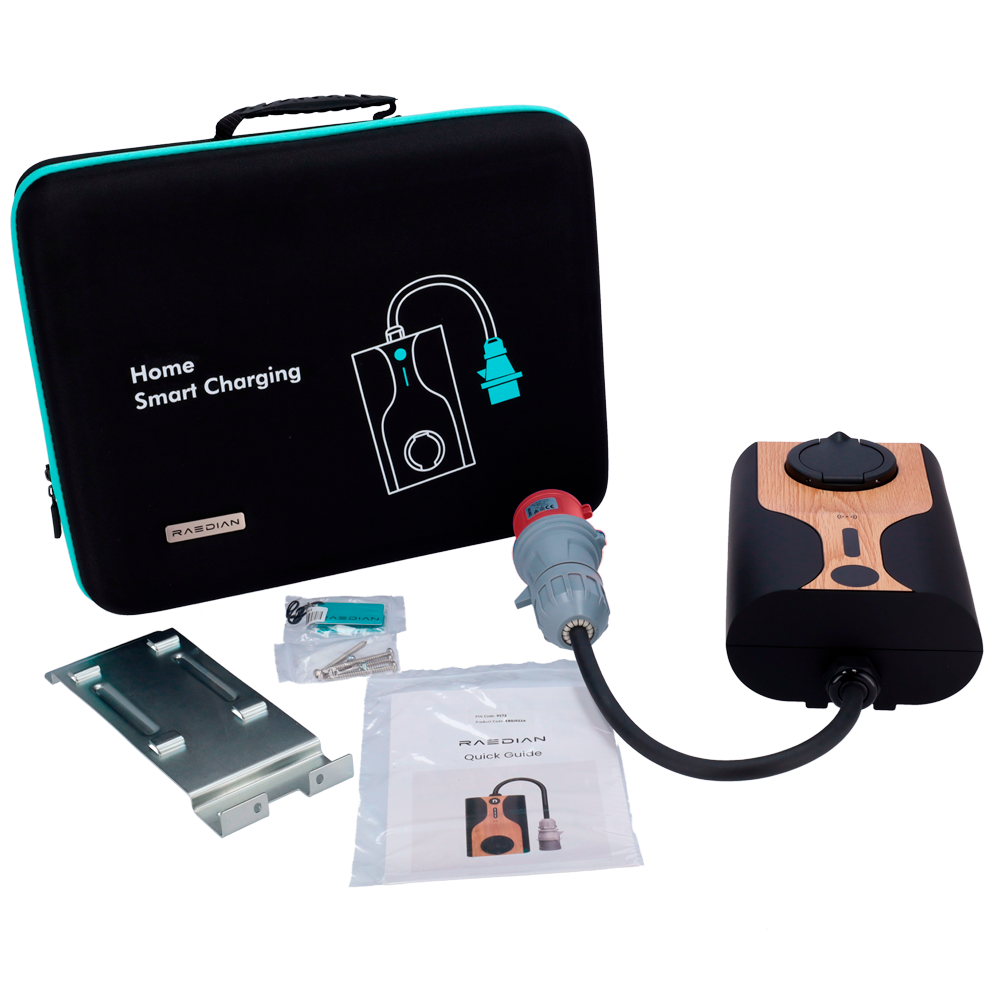

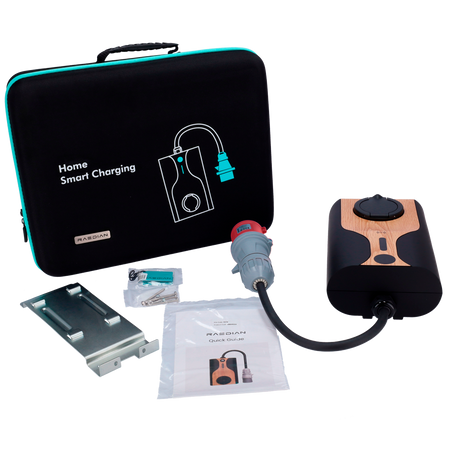

📦 INCLUDED:

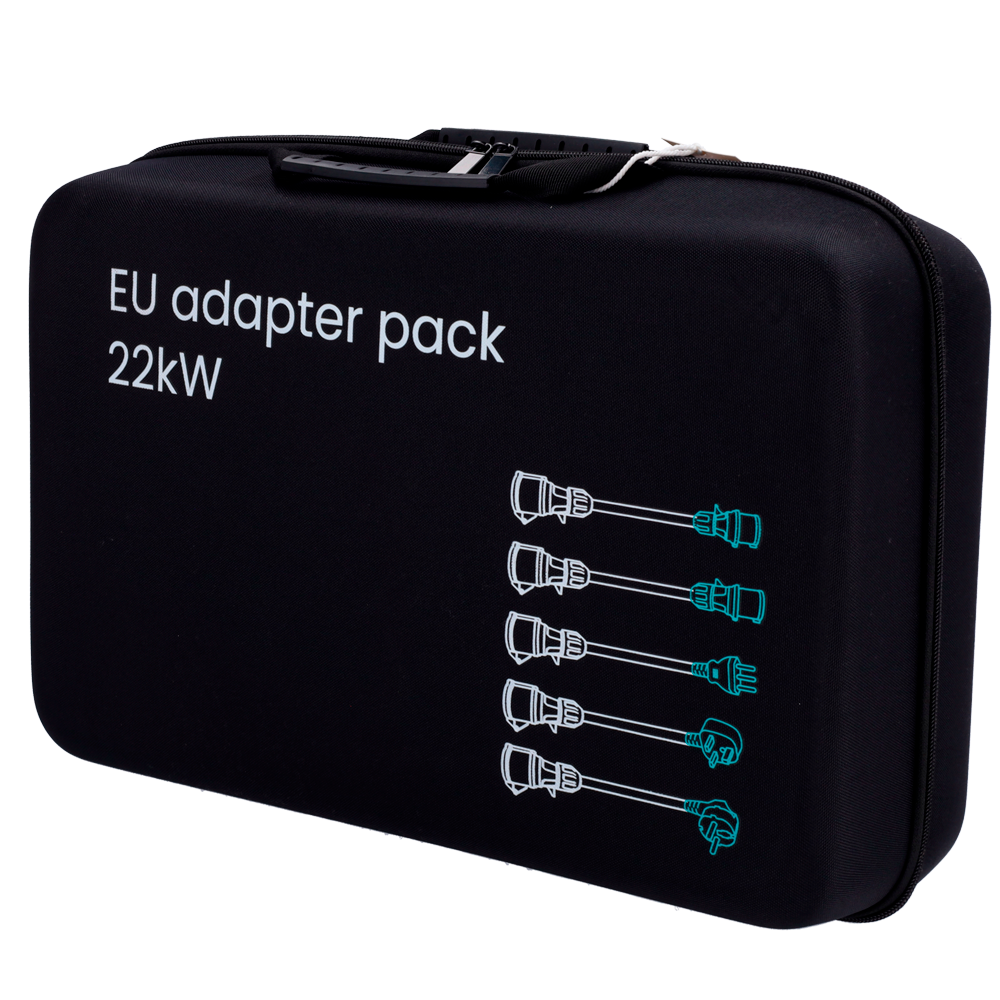

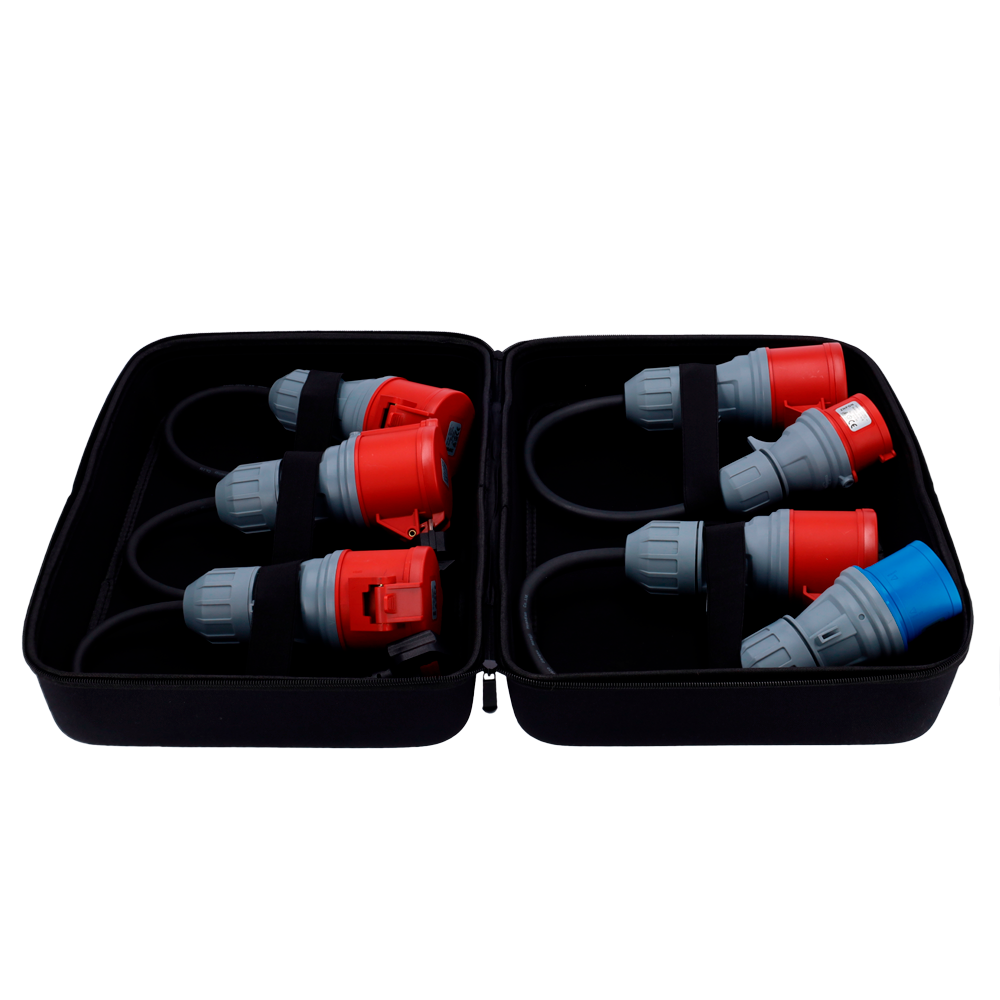

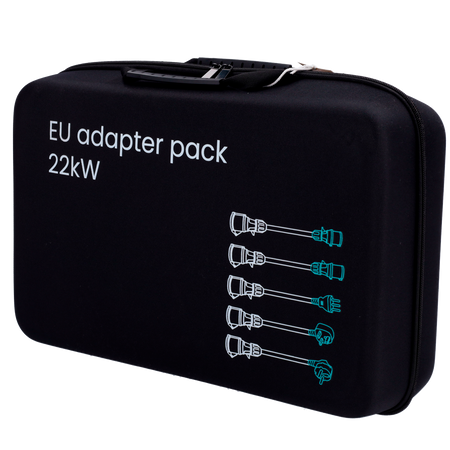

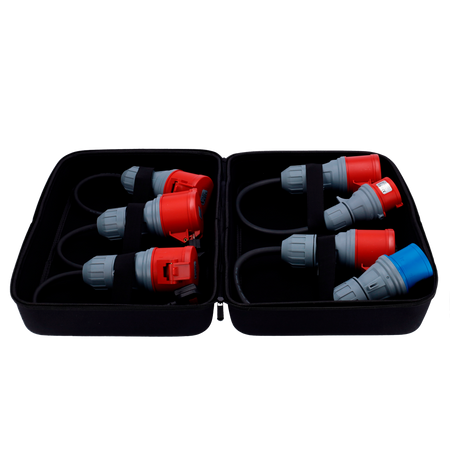

• Electric vehicle charging station• Charger carrying case• 2x RFID cards• Installation hardware and instruction manual• Adapter carrying case• Type G (IEC) socket adapter• Type L socket adapter• Type E/F (Schuko) socket adapter• 22 KW to 7 KW adapter• 22 KW to 11 KW adapter
| Connector | Type 2 |
|---|---|
| Connection type | Three-phase |
| Charging mode | Mode 3 |
| Maximum power | 22 kW |
| Maximum current | 32 A |
| Voltage range | 230V - 400V |
| Input frequency | 50/60 Hz |
| Earthing system | TN / TT / IT |
| Connectivity | WiFi, BLE |
| Authentication | Plug & play / RFID / Push-button start / App (via Bluetooth) / OCPP Backend |
| RFID protocol | ISO 14443-A, ISO 14443-B |
| Third-party RFID | MiFare Classic 1K MiFare 1K M1 Card Fundan S50 |
| Charging interface | IEC 62196-2 |
| Status | RGB Logo and LED |
| Installation | Wall-mounted (recommended) or pole-mounted |
| Cable included | No |
| Operating temperature | -30℃ ~ +55℃ |
| Relative humidity | 5% - 95% |
| Standby consumption | 4.8W |
| Protection | UVP / OVP / OCP / Relay welding / Overheating |
| Protection rating | IP55, IK10 |
| Residual current protection | 6 mA DC integrated according to standard 62955 |
| Dimensions | 260 (D) x 168 (H) x 86 (W) mm |
| Weight | 2.1kg |
| Color | Wood |
| Device type | Cable adapter pack |
| Compatibility | NORA 22 KW charging station |
