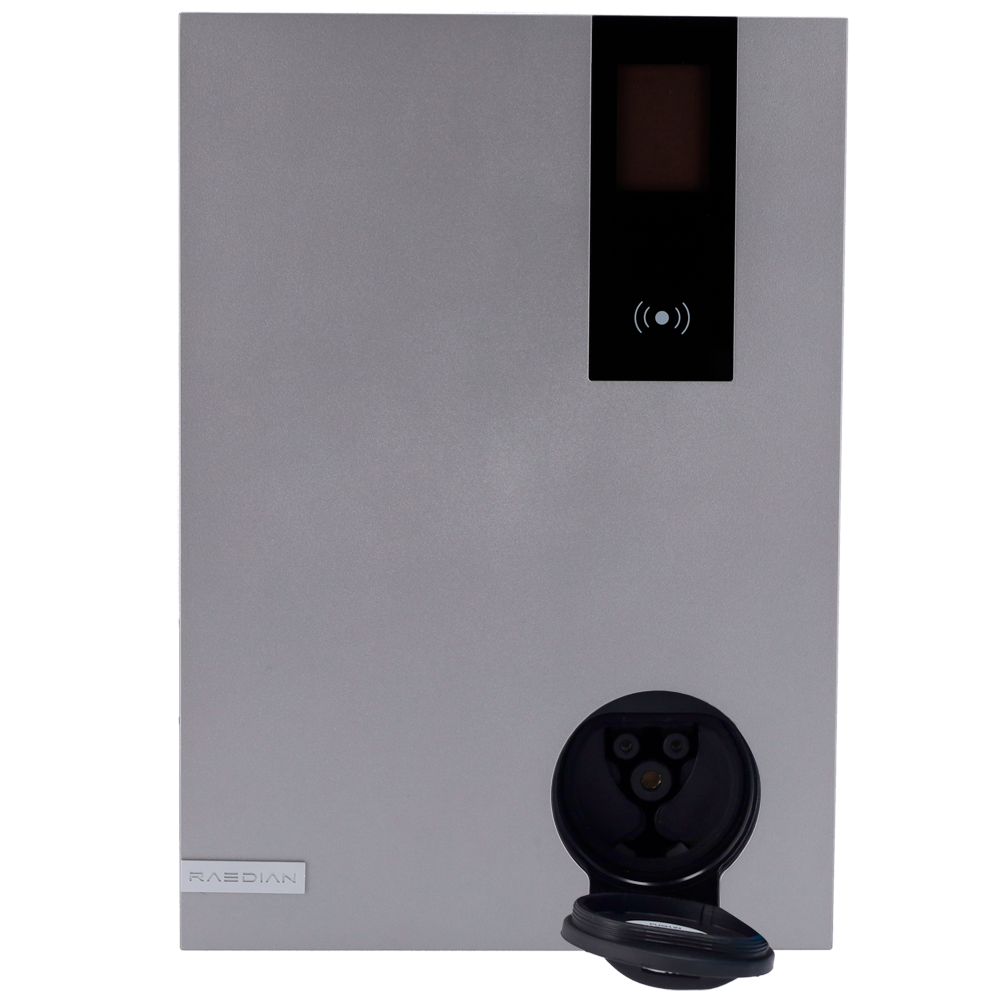

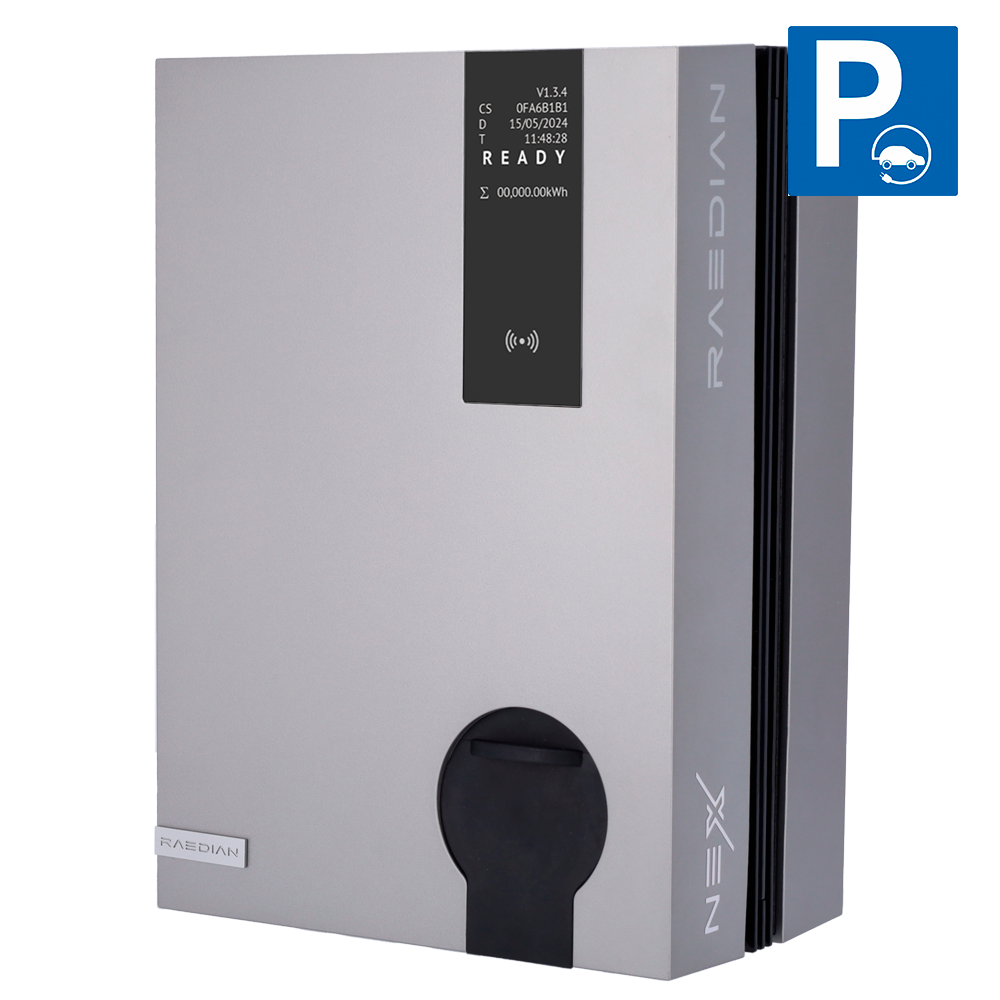

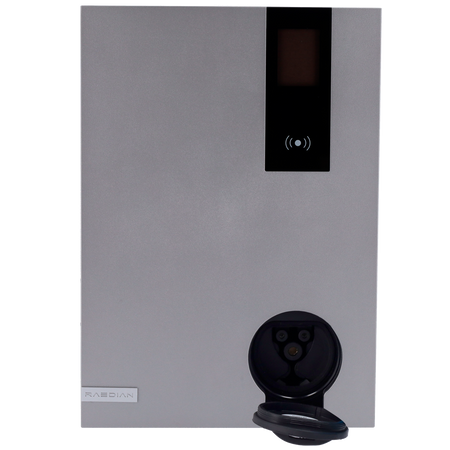

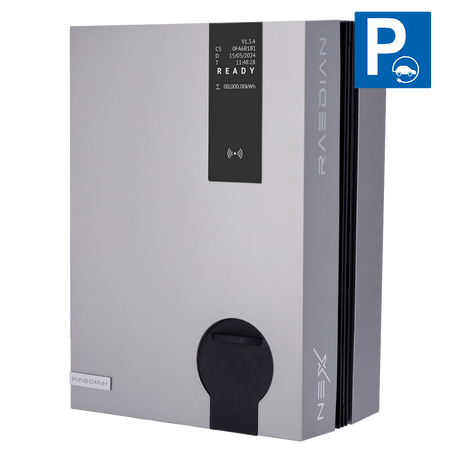

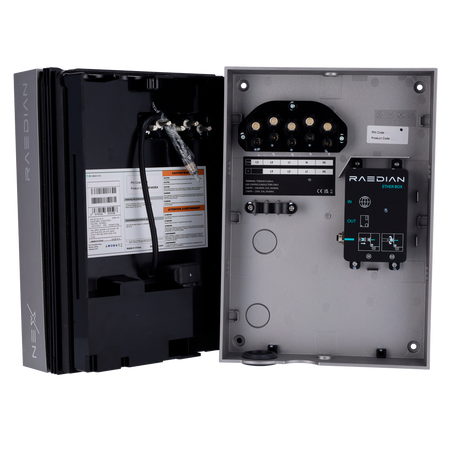

Raedian EV charging station - Power 22kW / 32A / Three-phase - Type 2 with Shuttered Socket
Raedian EV charging station - Power 22kW / 32A / Three-phase - Type 2 with Shuttered Socket
Regular price
€1.152,90
Final price
Regular price
-6%
€1.230,00
Sale price
€1.152,90
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Electric vehicle charging station - Power 22kW / 32A / Three-phase - Type 2 connector | Socket Shutter - IP55 protection - APP and portal monitoring - Scalable | Silver color
📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2 with Socket Shutter
• Charging mode: Mode 3
• Connection type: Single-phase / Three-phase
• Maximum power: 7.4 kW single-phase; 22 kW three-phase
• Maximum current: 32 A
• Voltage range: 230V single-phase; 400V three-phase
• Input frequency: 50/60 Hz
• Authentication: Plug & Charge; RFID; BLE (via RAEDIAN App); OCPP 1.6 Backend

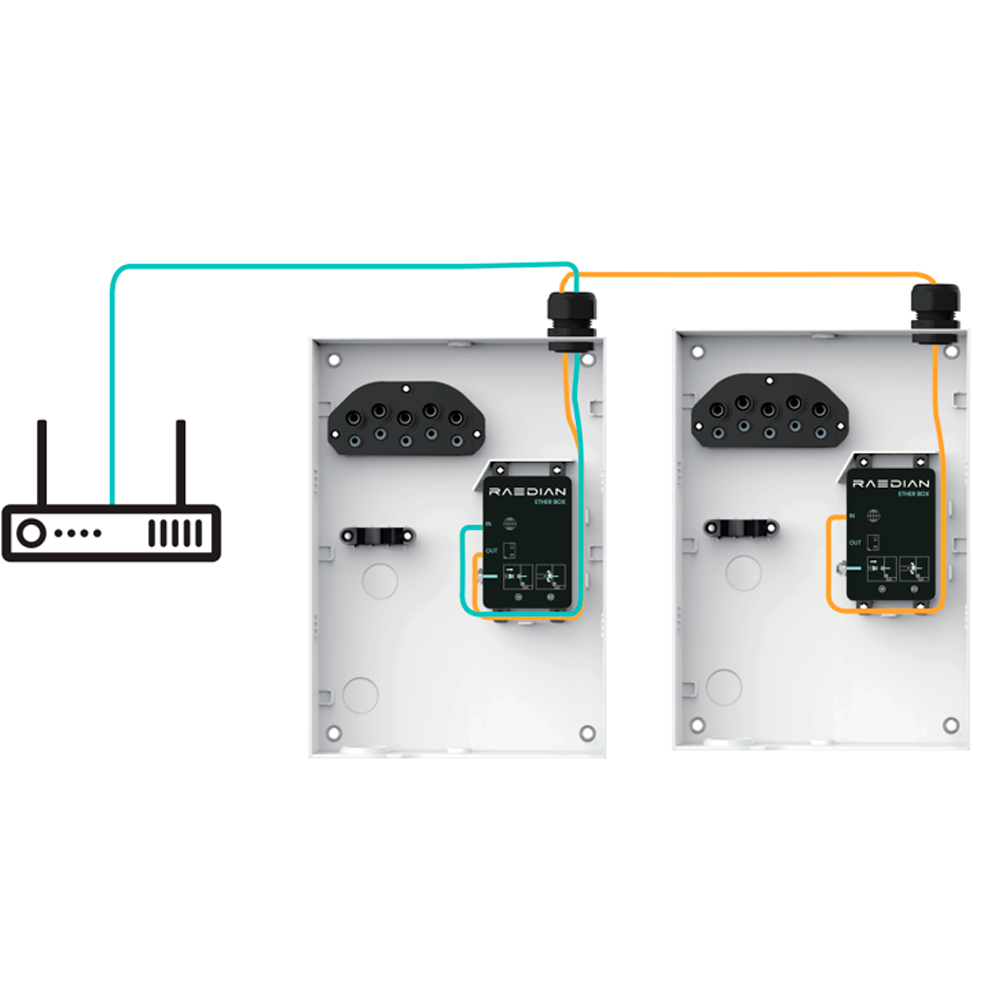

• Connectivity: WiFi, BLE, 4G, LAN
• Display: OLED screen: Status and measurement data
• Load management: Directly to CT clamp (dynamic load balancing); To certified external meter (dynamic load balancing with solar surplus) with RS485; Backend with OCPP; Static load management with the RAEDIAN App
• HMI: LED strips
• Installation: Wall-mounted, pedestal
• Cable included: No
• Operating temperature: -30℃ ~ +55℃
• Earthing: TN/TT/IT
• Relative humidity: 5 - 95%
• Standby consumption: 4.5W
• Protection rating: IP55, IK10
• Dimensions: 297 (H) x 210 (W) x 110 (D) mm
• Weight: 4.7 kg
• Protection: UVP, OVP, OCP, Stuck relay, Overtemperature, Residual current IEC 62955
• Meter: MID Class B certified
• Operating altitude: Up to 3000m
• Color: Metallic silver
📦 INCLUDED:
• Electric vehicle charging station• 2x RFID cards• Installation material• Instruction manual
| Connector | Type 2 with Shutter Socket |
|---|---|
| Charging mode | Mode 3 |
| Connection type | Single-phase / Three-phase |
| Maximum power | 7.4 kW single-phase 22 kW three-phase |
| Maximum current | 32 A |
| Voltage range | 230V single-phase 400V three-phase |
| Input frequency | 50/60 Hz |
| Authentication | Plug & Charge RFID BLE (via RAEDIAN App) OCPP 1.6 Backend |
| Connectivity | WiFi, BLE, 4G, LAN |
| Display | OLED screen: Status and measurement data |
| Load management | Directly to CT clamp (dynamic load balancing) To certified external meter (dynamic load balancing with solar surplus) with RS485 OCPP backend Static load management with RAEDIAN App |
| HMI | LED strips |
| Installation | Wall-mounted, pedestal-mounted |
| Cable included | No |
| Operating temperature | -30℃ ~ +55℃ |
| Earthing | TN/TT/IT |
| Relative humidity | 5 - 95% |
| Standby consumption | 4.5W |
| Protection rating | IP55, IK10 |
| Dimensions | 297 (H) x 210 (W) x 110 (D) mm |
| Weight | 4.7 kg |
| Protection | UVP, OVP, OCP, Welded relay, Over-temperature, Residual current IEC 62955 |
| Meter | MID certified Class B |
| Operating altitude | Up to 3000m |
| Color | Metallic silver |
