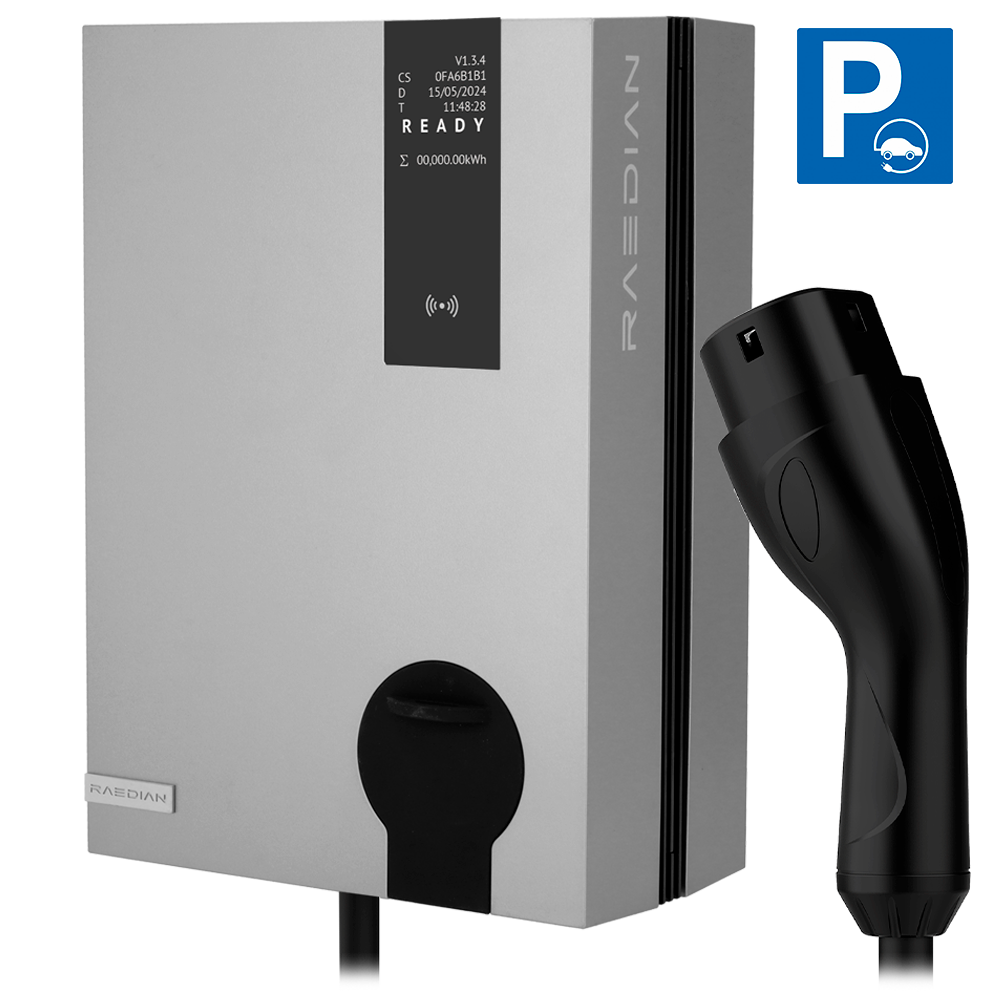

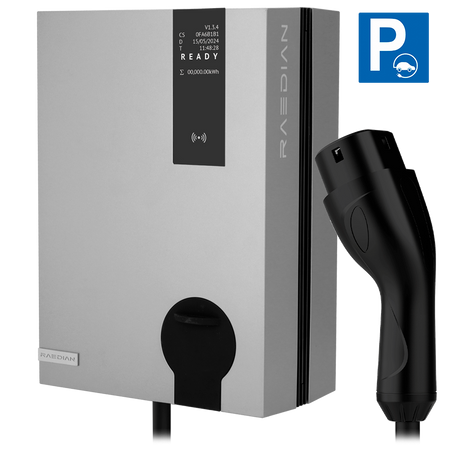

Raedian Electric Vehicle Charging Station - 22kW / 32A Power / Three-Phase - Type 2

SKU: RD-NEX-22-C5-SILVER
(0)
In stock
Usually shipped within 24 hours
€1.325,84 Final price
-7% €1.420,00 €1.325,84 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Electric vehicle charging station - Power 22kW / 32A / Three-phase - Type 2 connector | 5m cable - IP55 protection - Monitoring via APP and portal - Scalable | Silver color

📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2
• Charging mode: Mode 3
• Connection type: Single-phase / Three-phase
• Maximum power: 7.4 kW single-phase; 22 kW three-phase
• Maximum current: 32 A
• Voltage range: 230V single-phase; 400V three-phase
• Input frequency: 50/60 Hz
• Authentication: Plug & Charge; RFID; BLE (via RAEDIAN App); OCPP 1.6 Backend
• Connectivity: WiFi, BLE, 4G, LAN
• Display: OLED screen: Status and measurement data
• Load management: Directly to CT clamp (dynamic load balancing); To certified external meter (dynamic load balancing with solar surplus) with RS485; Backend with OCPP; Static load management with RAEDIAN App
• HMI: LED strips
• Installation: Wall-mounted, pedestal
• Supplied cable: 5m
• Operating temperature: -30℃ ~ +55℃
• Earthing: TN/TT/IT
• Relative humidity: 5 - 95%
• Standby consumption: 4.5W
• Protection rating: IP55, IK10
• Dimensions: 297 (H) x 210 (W) x 110 (D) mm
• Weight: 4.7 kg
• Protection: UVP, OVP, OCP, Stuck relay, Over-temperature, Residual current IEC 62955
• Meter: MID certified Class B
• Operating altitude: Up to 3000m
• Color: Metallic silver

📦 INCLUDED:
• Electric vehicle charging station with integrated 5m Type 2 cable • 2x RFID cards • Installation hardware • Instruction manual
Connector Type 2
Charging mode Mode 3
Connection type Single-phase / Three-phase
Maximum power 7.4 kW single-phase, 22 kW three-phase
Maximum current 32 A
Voltage range 230V single-phase, 400V three-phase
Input frequency 50/60 Hz
Authentication Plug & Charge, RFID, BLE (via RAEDIAN App), OCPP 1.6 Backend
Connectivity WiFi, BLE, 4G, LAN
Display OLED screen: Status and measurement data
Load management Directly to CT clamp (dynamic load balancing), to external certified meter (dynamic load balancing with solar surplus) via RS485, Backend with OCPP, Static load management with RAEDIAN App
HMI LED strips
Installation Wall-mounted, pedestal
Included cable 5m
Operating temperature -30℃ ~ +55℃
Grounding TN/TT/IT
Relative humidity 5 - 95%
Standby consumption 4.5W
Protection rating IP55, IK10
Dimensions 297 (H) x 210 (W) x 110 (D) mm
Weight 4.7 kg
Protection UVP, OVP, OCP, Stuck relay, Overtemperature, Residual current IEC 62955
Meter MID Certified Class B
Operating altitude Up to 3000m
Color Metallic silver
