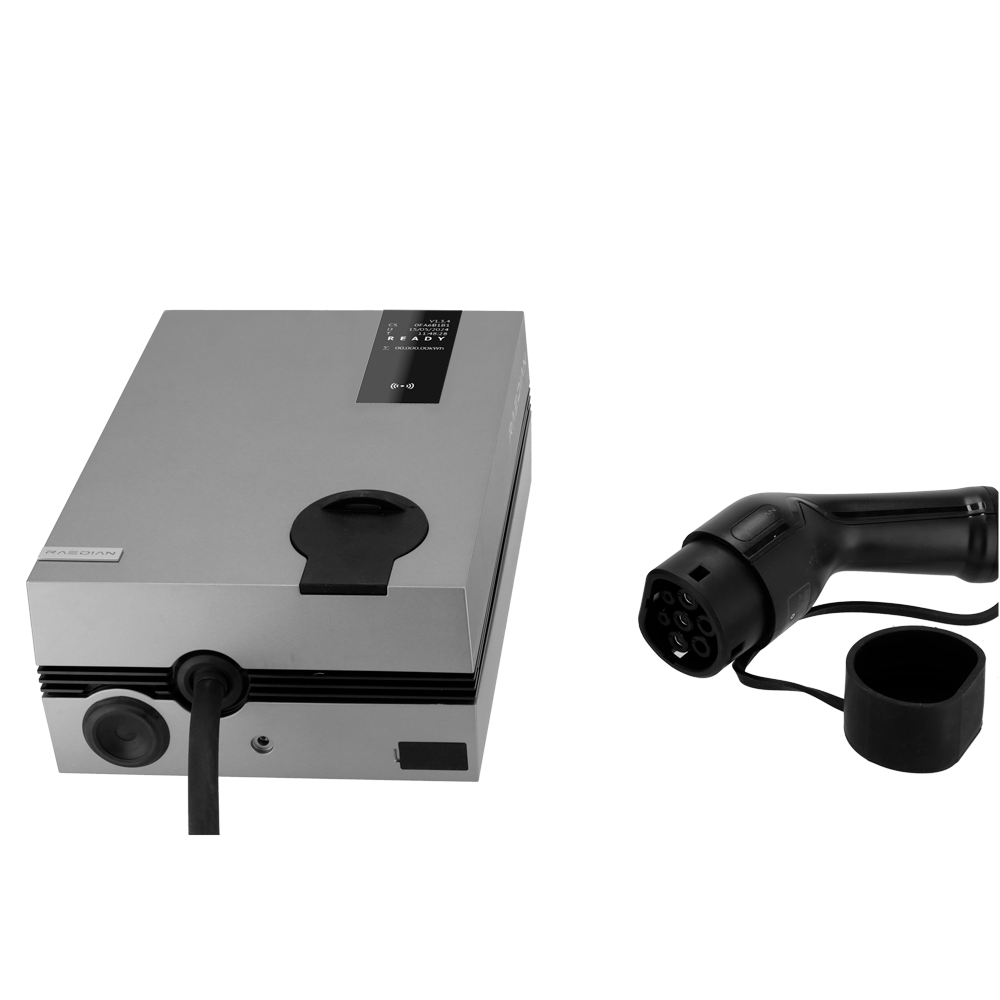

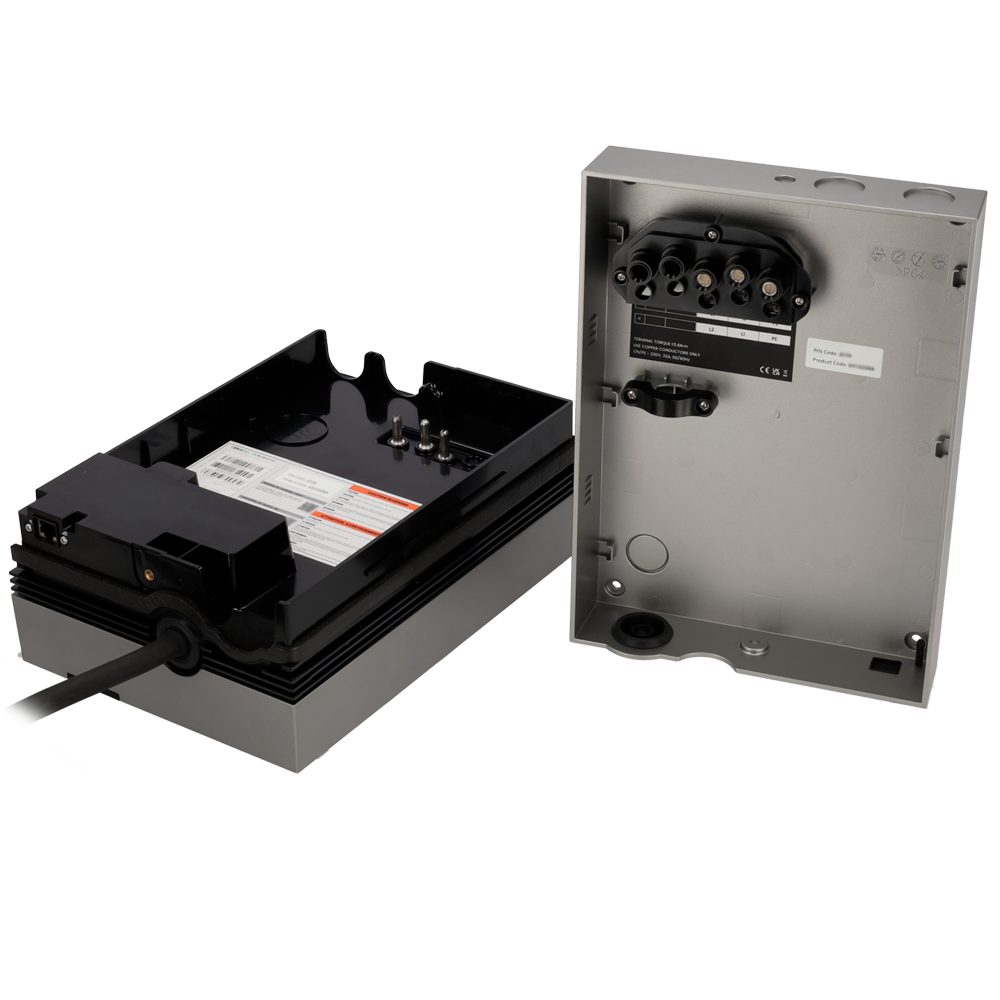

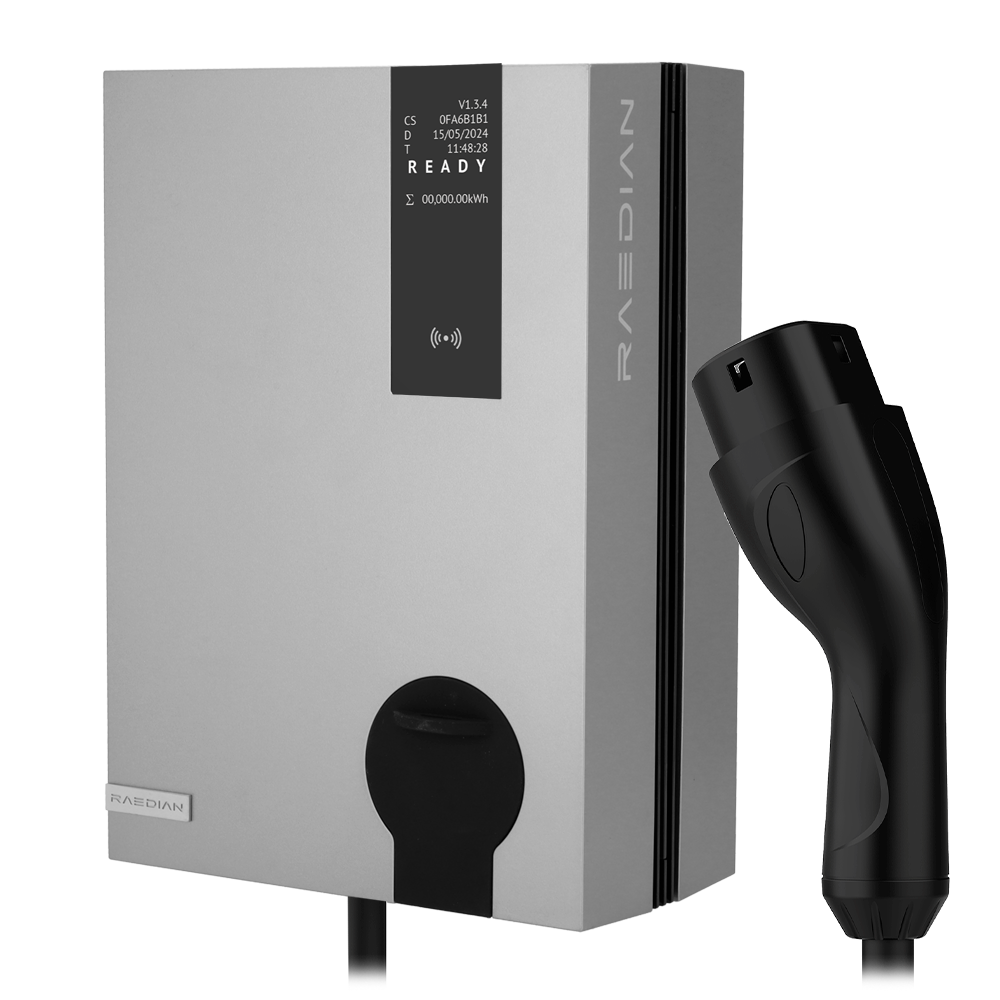

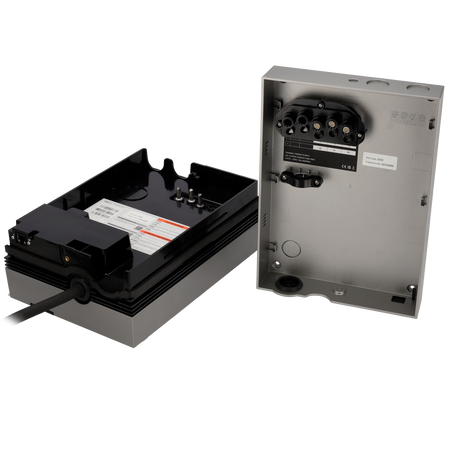

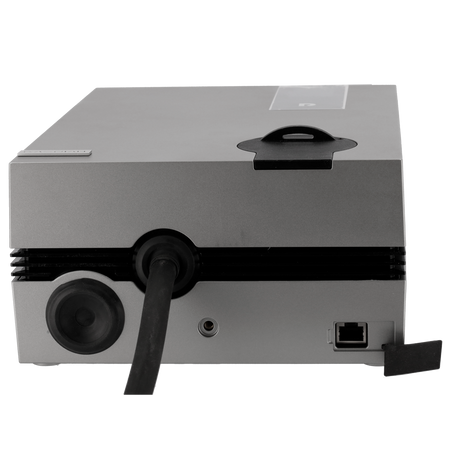

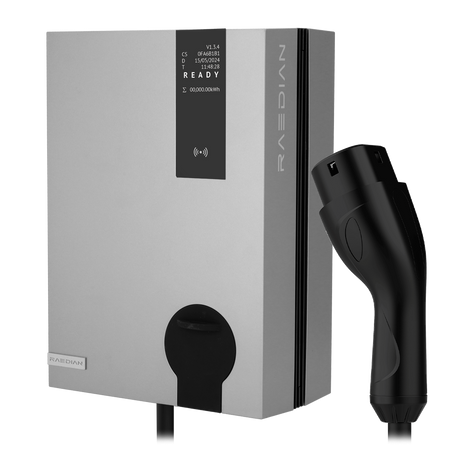

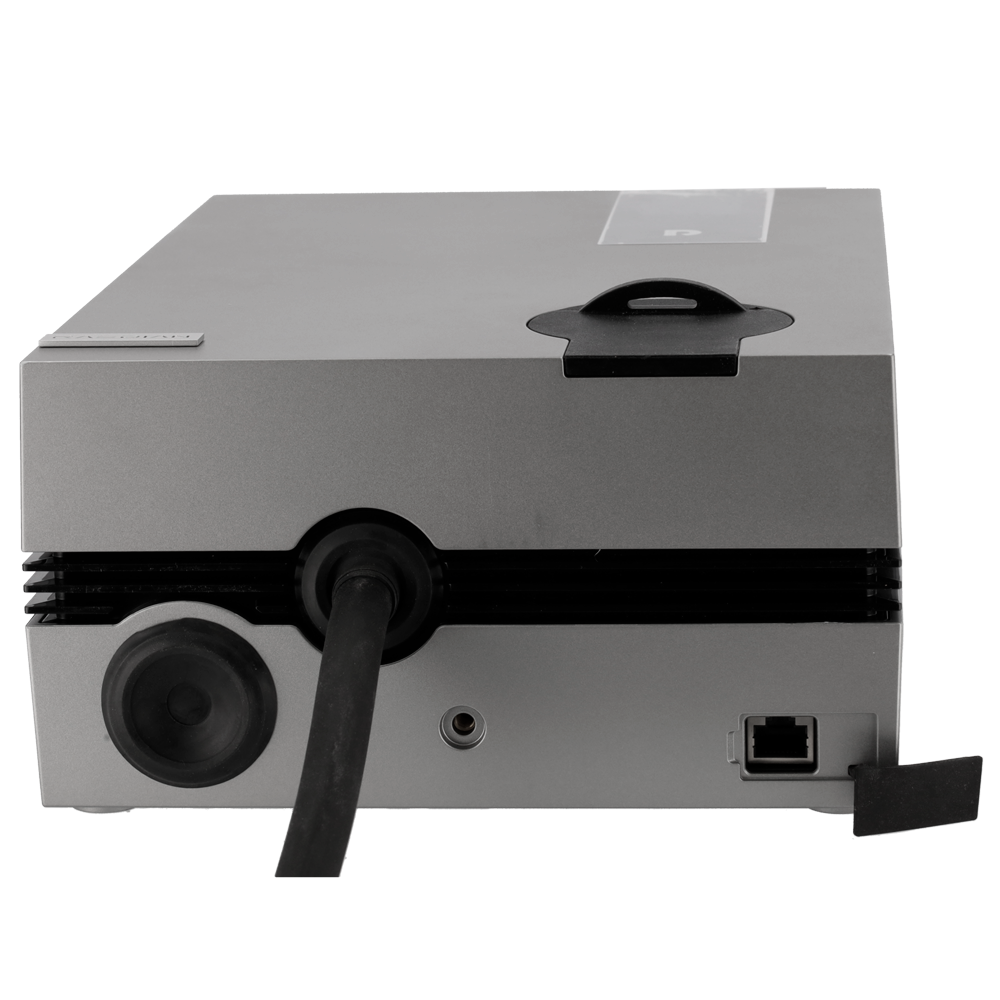

Raedian electric vehicle charging station - Power 7.4 kW / 32A / Single-phase - 7.5 m
Raedian electric vehicle charging station - Power 7.4 kW / 32A / Single-phase - 7.5 m
Regular price
€876,20
Final price
Regular price
-5%
€920,00
Sale price
€876,20
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

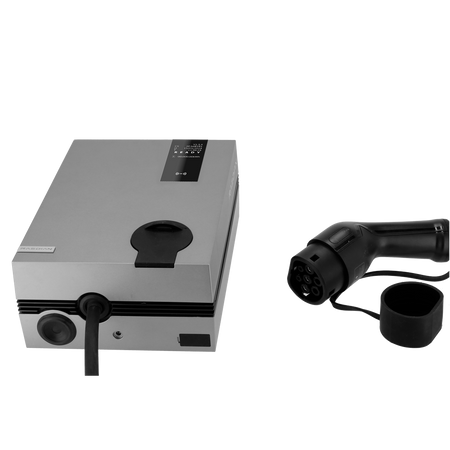

Electric vehicle charging station - Power 7.4 kW / 32A / Single-phase - Type 2 connector - Protection IP55, IK10 - App monitoring - Metallic silver color | 7.5m cable
📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2
• Connection type: Single-phase
• Maximum power: 7.4 kW
• Maximum current: 32 A
• Voltage range: 230V
• Input frequency: 47 ~ 63Hz
• RFID protocol: ISO 14443-A, ISO 14443-B
• Third-party RFID: MiFare Classic 1K; MiFare 1K; M1 card; Fundan S50
• Connectivity: WiFi, BLE, RFID
• Charging interface: IEC 62196-2
• Installation: Wall or pedestal mounted
• Cable included: Yes
• Cable length: 7.5 m
• Operating temperature: -40℃ ~ +60℃
• Relative humidity: 0-95% non-condensing
• Cooling: Air cooled
• Standby consumption: < 8W
• Protection rating: IP55, IK10
• Dimensions: 297 (H) x 210 (W) x 110 (D) mm
• Weight: 5.8kg
• Color: Metallic silver

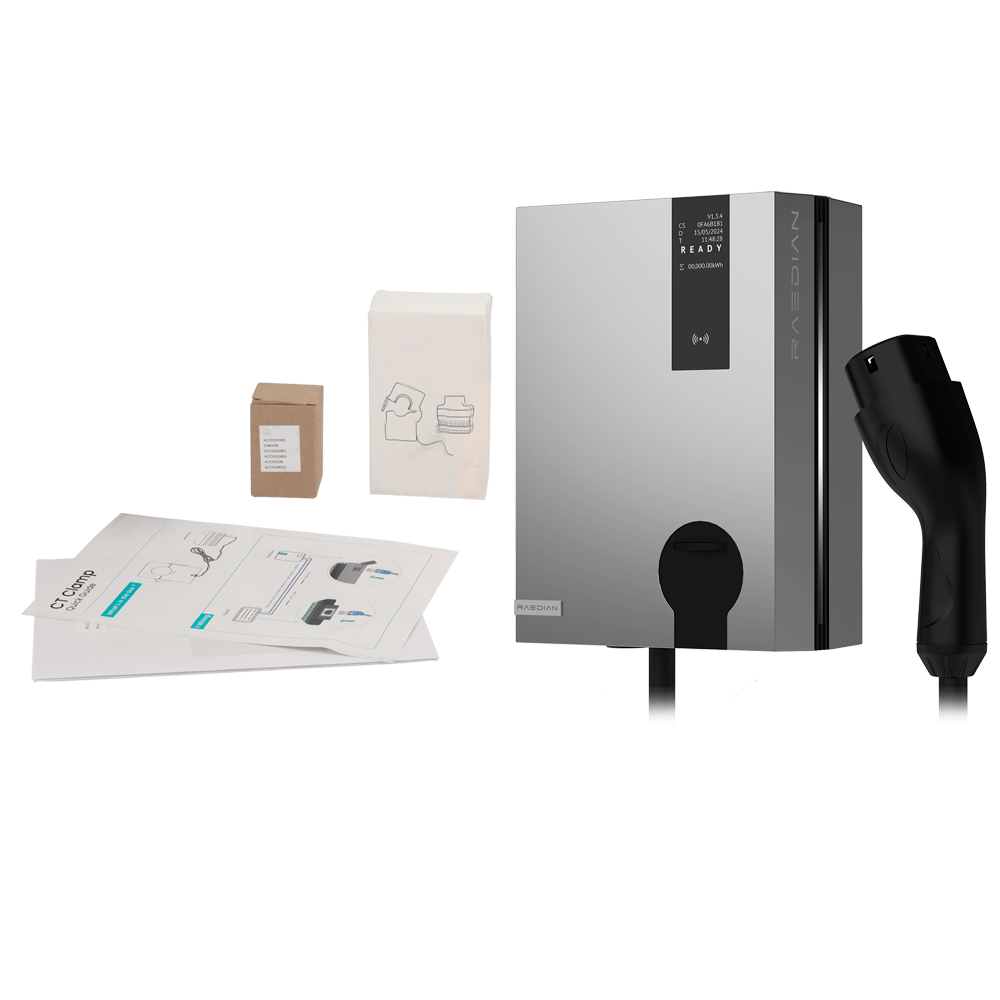

📦 INCLUDED:

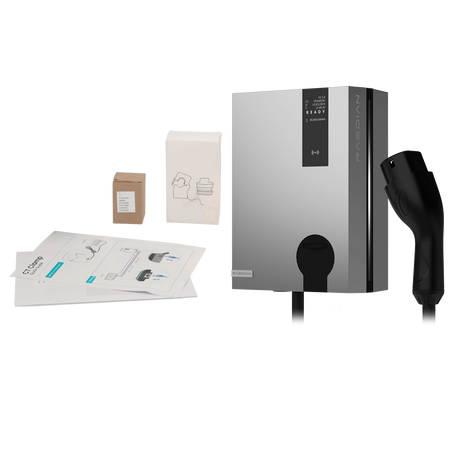

• Electric vehicle charging station with integrated 7.5m Type 2 cable • CT clamp • CT connector • 2x RFID cards • Installation hardware • Instruction manual
| Connector | Type 2 |
|---|---|
| Connection type | Single-phase |
| Maximum power | 7.4 kW |
| Maximum current | 32 A |
| Voltage range | 230V |
| Input frequency | 47 ~ 63Hz |
| RFID protocol | ISO 14443-A, ISO 14443-B |
| Third-party RFID | MiFare Classic 1K, MiFare 1K, Fundan S50 M1 card |
| Connectivity | WiFi, BLE, RFID |
| Charging interface | IEC 62196-2 |
| Installation | Wall or pedestal mounted |
| Included cable | Yes |
| Cable length | 7.5 m |
| Operating temperature | -40℃ ~ +60℃ |
| Relative humidity | 0-95% non-condensing |
| Cooling | Air cooled |
| Standby consumption | < 8W |
| Protection rating | IP55, IK10 |
| Dimensions | 297 (H) x 210 (W) x 110 (D) mm |
| Weight | 5.8kg |
| Color | Metallic silver |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
