Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

RAEDIAN

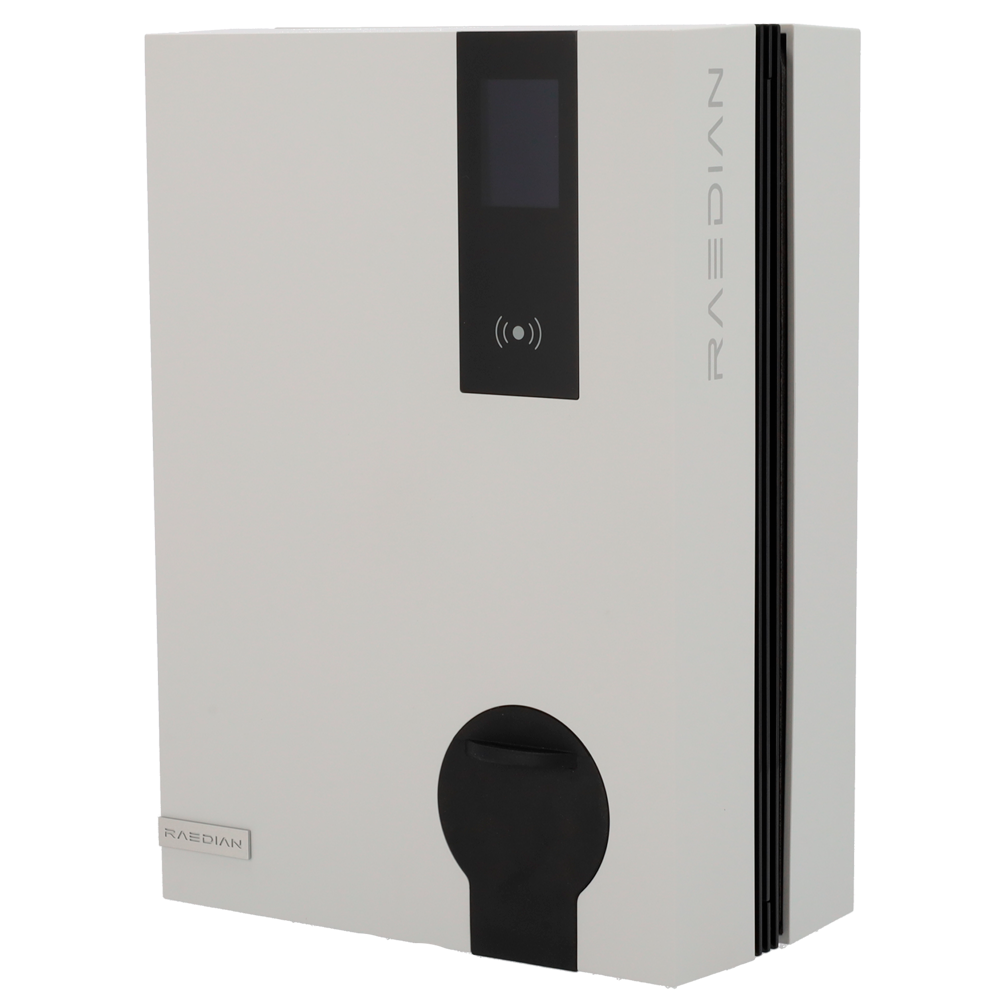

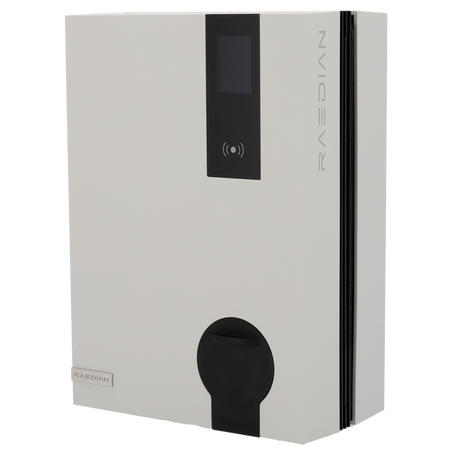

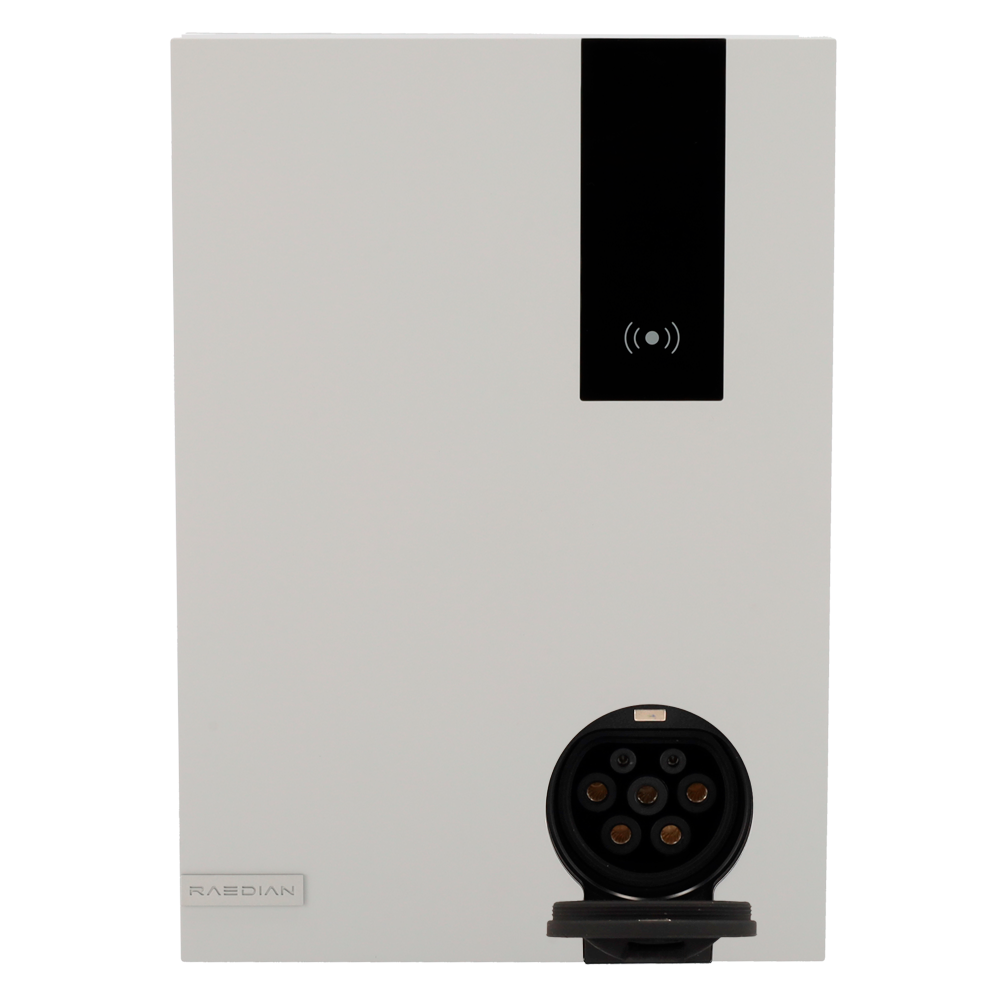

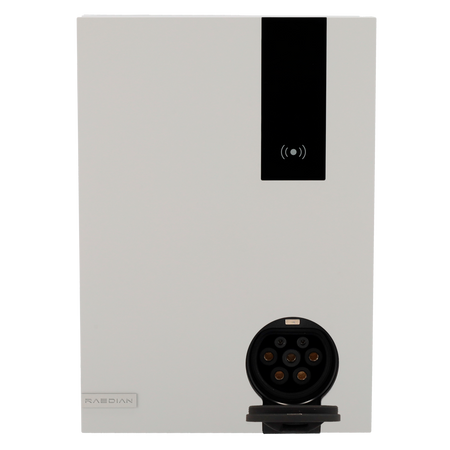

Raedian electric vehicle charging station - 7.4 kW / 32A power / Single-phase - white

SKU: RD-NEO-7-S-WHITE
(0)
In stock
Usually shipped within 24 hours
€703,27 Final price
-5% €740,00 €703,27 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Electric vehicle charging station - Power 7.4 kW / 32A / Single-phase - Type 2 connector - Protection IP55, IK10 - App monitoring - White color

📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2
• Connection type: Single-phase
• Maximum power: 7.4 kW
• Maximum current: 32 A
• Voltage range: 230V
• Input frequency: 47 ~ 63Hz
• Connectivity: WiFi, BLE, RFID
• RFID protocol: ISO 14443-A, ISO 14443-B
• Third-party RFID: MiFare Classic 1K; MiFare 1K; M1 card; Fundan S50
• Charging interface: IEC 62196-2
• Installation: Wall or pedestal mounted
• Cable included: No
• Operating temperature: -40℃ ~ +60℃
• Relative humidity: 0-95% non-condensing
• Cooling: Air cooled
• Standby consumption: < 8W
• Protection rating: IP55, IK10
• Dimensions: 297 (H) x 210 (W) x 110 (D) mm
• Weight: 3.2kg
• Color: White

📦 INCLUDED:

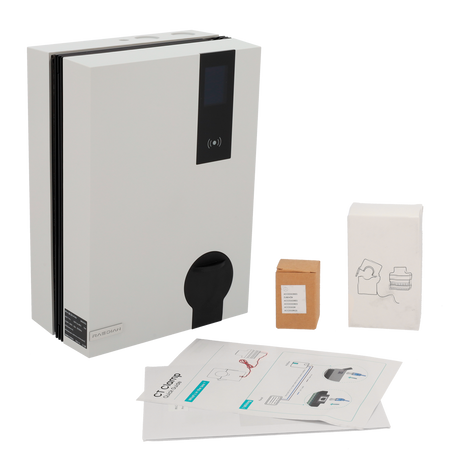

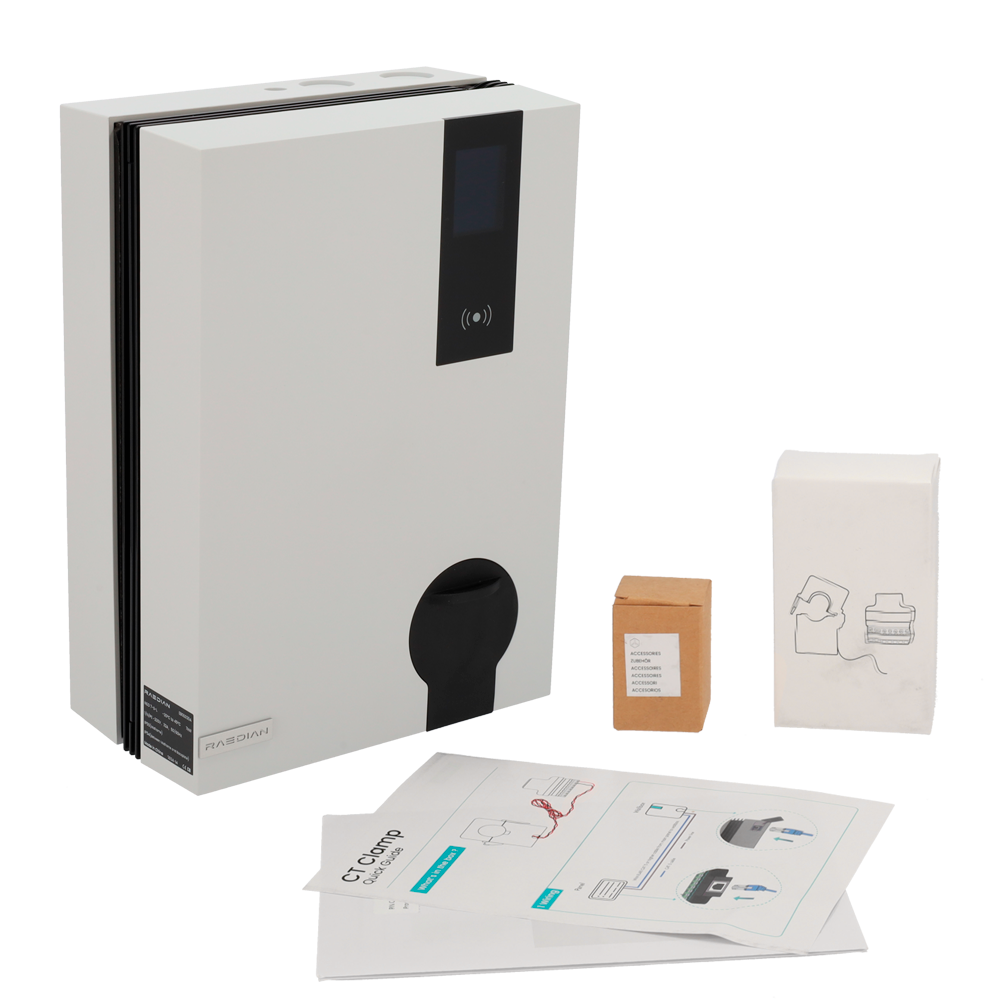

• Electric vehicle charging station• CT clamp• CT connector• 2x RFID cards• Installation material• Instruction manual
Connector Type 2
Connection type Single-phase
Maximum power 7.4 kW
Maximum current 32 A
Voltage range 230V
Input frequency 47 ~ 63Hz
Connectivity WiFi, BLE, RFID
RFID protocol ISO 14443-A, ISO 14443-B
Third-party RFID MiFare Classic 1K, MiFare 1K, M1 Card, Fundan S50
Charging interface IEC 62196-2
Installation Wall-mounted or pedestal
Cable included No
Operating temperature -40℃ ~ +60℃
Relative humidity 0-95% non-condensing
Cooling Air cooling
Standby consumption &lt; 8W
Protection rating IP55, IK10
Dimensions 297 (H) x 210 (W) x 110 (D) mm
Weight 3.2kg
Color White

Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.

For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.

The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
