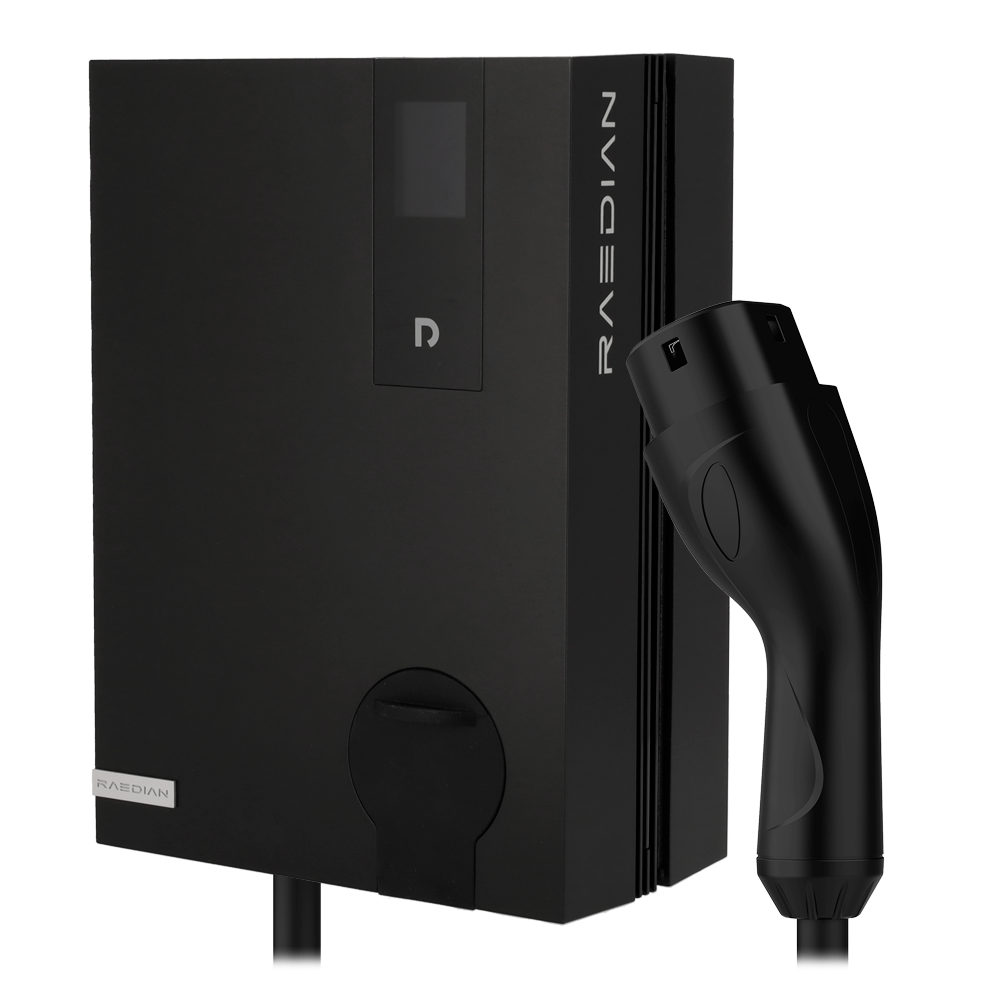

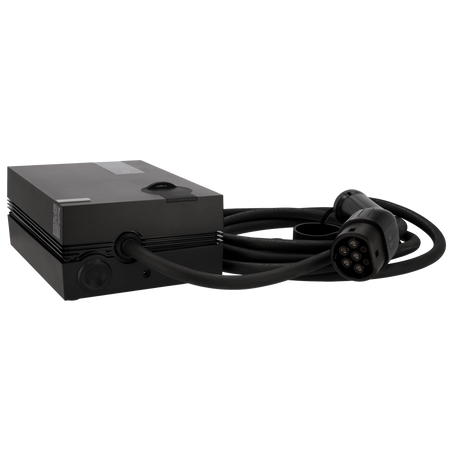

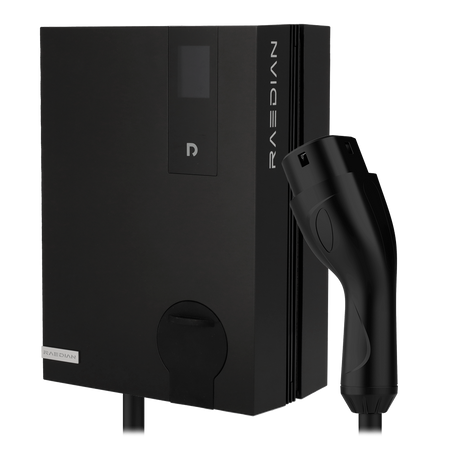

Raedian electric vehicle charging station - 7.4 kW / 32A power / Single-phase - grey | 5m cable
Raedian electric vehicle charging station - 7.4 kW / 32A power / Single-phase - grey | 5m cable
Regular price
€795,50
Final price
Regular price
-3%
€820,00
Sale price
€795,50
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Electric vehicle charging station - Power 7.4 kW / 32A / Single-phase - Type 2 connector - IP55, IK10 protection - App monitoring - Gray color | 5m cable
📋 SPECIFICATIONS:
• Brand: Raedian

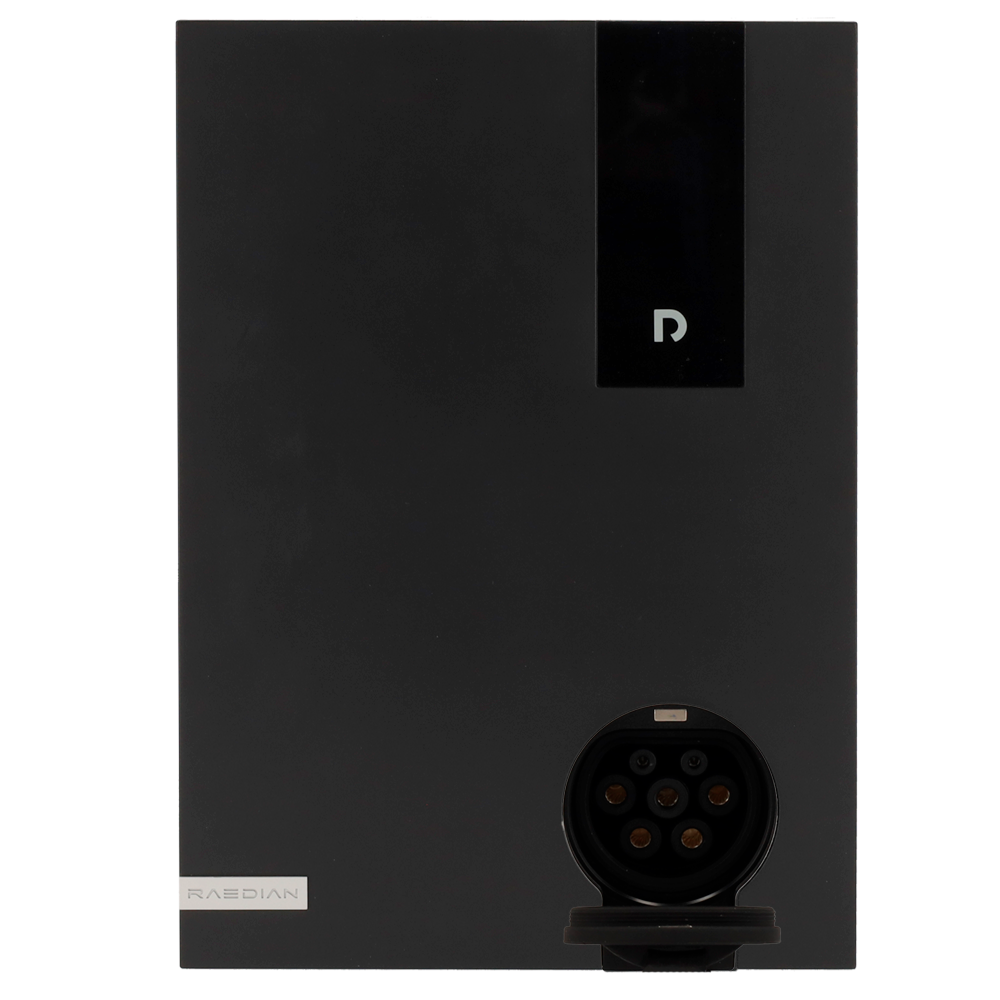

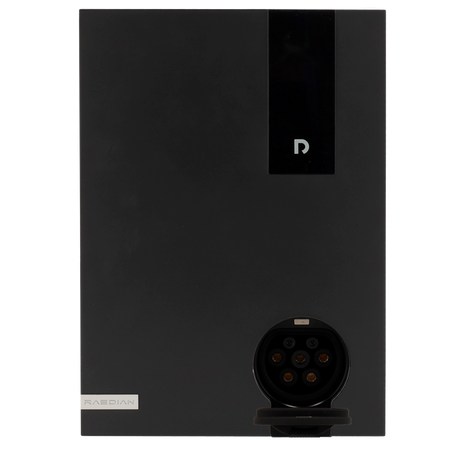

• Connector: Type 2
• Connection type: Single-phase
• Maximum power: 7.4 kW
• Maximum current: 32 A
• Voltage range: 230V
• Input frequency: 47 ~ 63Hz
• Connectivity: WiFi, BLE, RFID
• RFID protocol: ISO 14443-A, ISO 14443-B
• Third-party RFID: MiFare Classic 1K; MiFare 1K; M1 card; Fundan S50
• Charging interface: IEC 62196-2
• Installation: Wall or pedestal mount
• Cable included: Yes

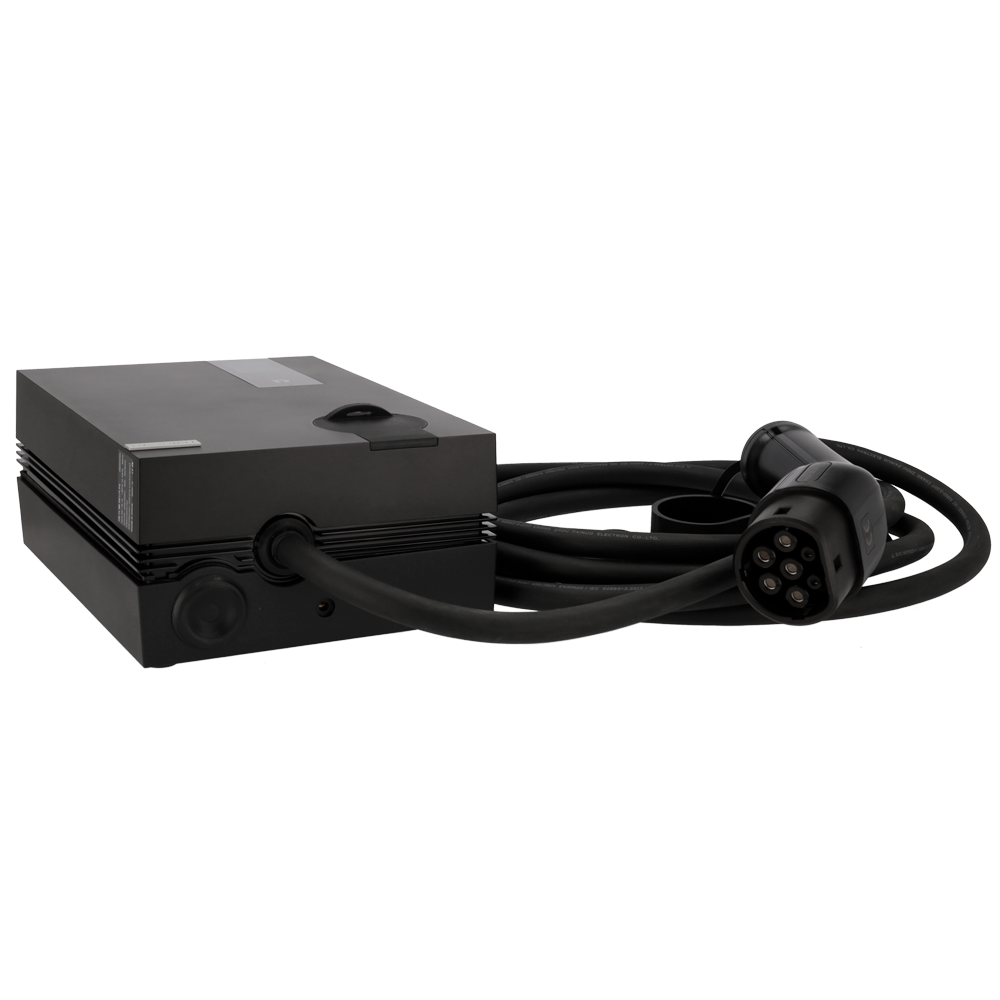

• Cable length: 5 m
• Operating temperature: -40℃ ~ +60℃
• Relative humidity: 0-95% non-condensing
• Cooling: Air cooled
• Standby consumption: < 8W
• Protection rating: IP55, IK10
• Dimensions: 297 (H) x 210 (W) x 110 (D) mm
• Weight: 5.8kg
• Color: Gray
📦 INCLUDED:

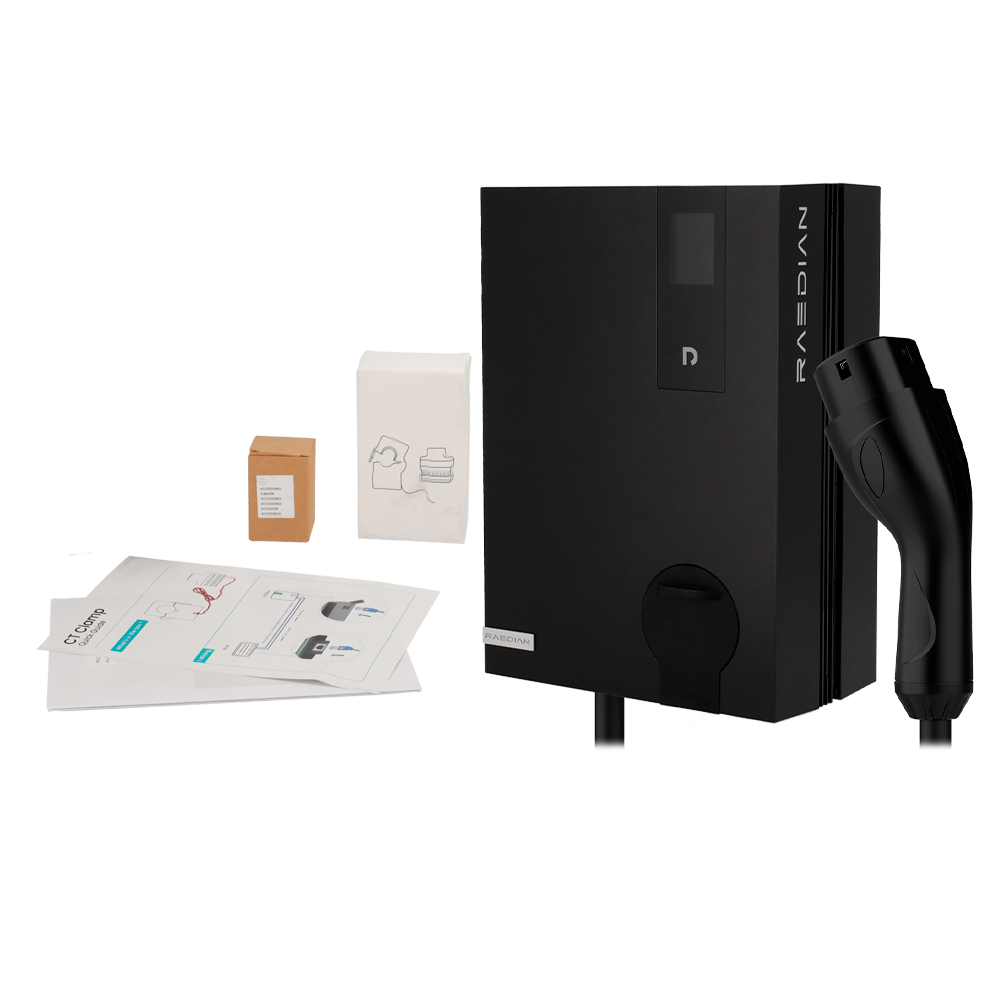

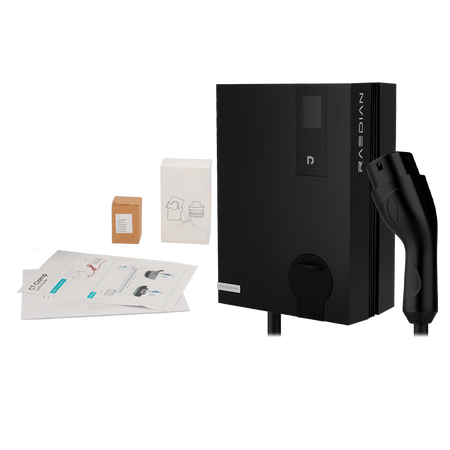

• Electric vehicle charging station with 5m integrated Type 2 cable • CT clamp • CT connector • 2x RFID cards • Installation hardware • Instruction manual
| Connector | Type 2 |
|---|---|
| Connection type | Single-phase |
| Maximum power | 7.4 kW |
| Maximum current | 32 A |
| Voltage range | 230V |
| Input frequency | 47 ~ 63Hz |
| Connectivity | WiFi, BLE, RFID |
| RFID protocol | ISO 14443-A, ISO 14443-B |
| Third-party RFID | MiFare Classic 1K, MiFare 1K, Fundan S50 M1 card |
| Charging interface | IEC 62196-2 |
| Installation | Wall or pedestal mounted |
| Cable included | Yes |
| Cable length | 5 m |
| Operating temperature | -40℃ ~ +60℃ |
| Relative humidity | 0-95% non-condensing |
| Cooling | Air cooling |
| Standby consumption | < 8W |
| Protection rating | IP55, IK10 |
| Dimensions | 297 (H) x 210 (W) x 110 (D) mm |
| Weight | 5.8kg |
| Color | Gray |
