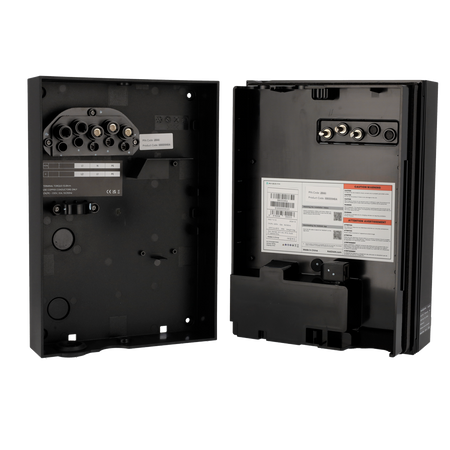

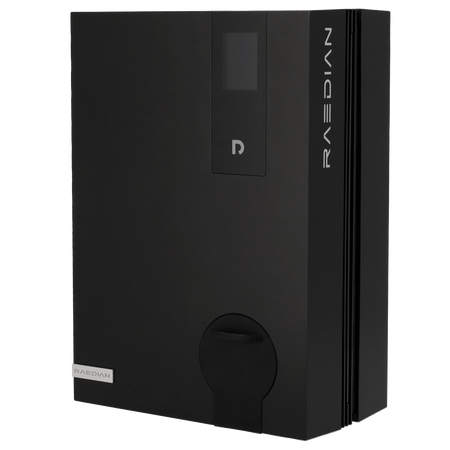

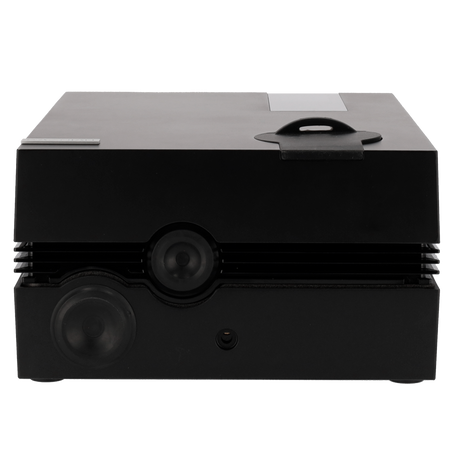

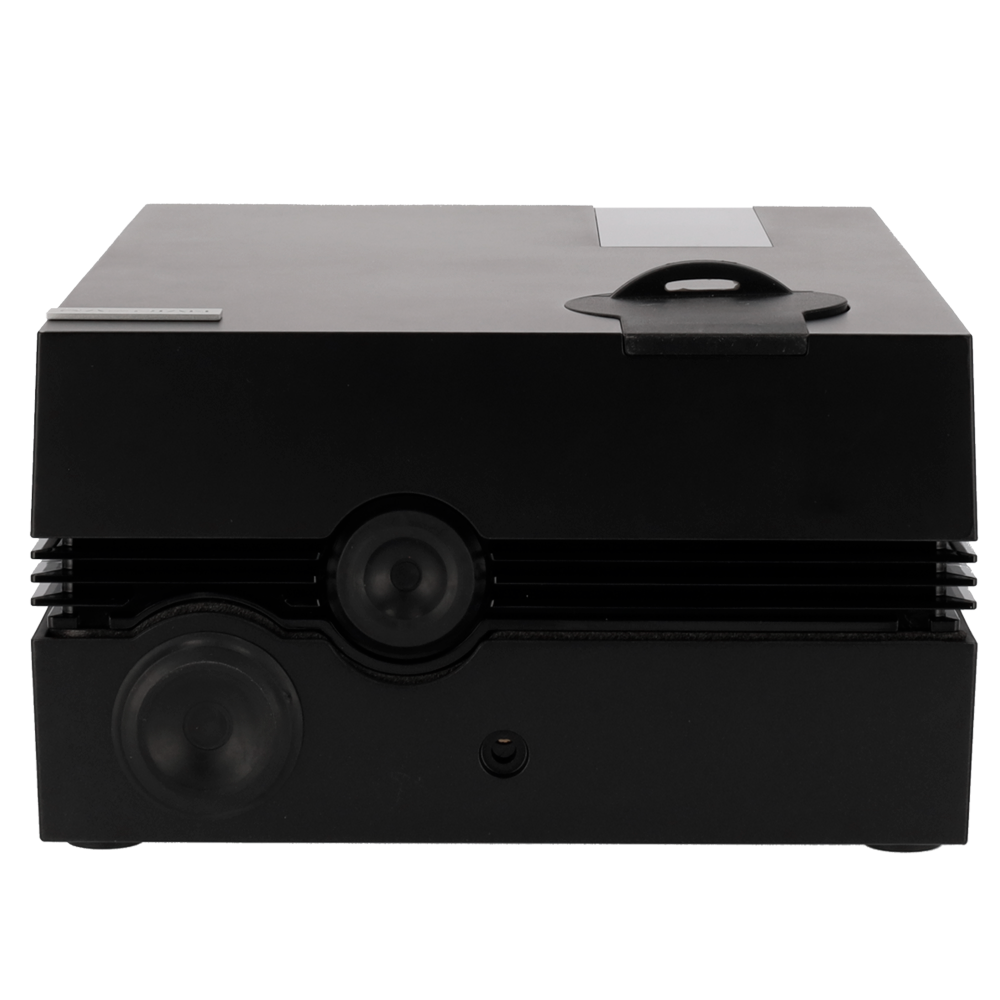

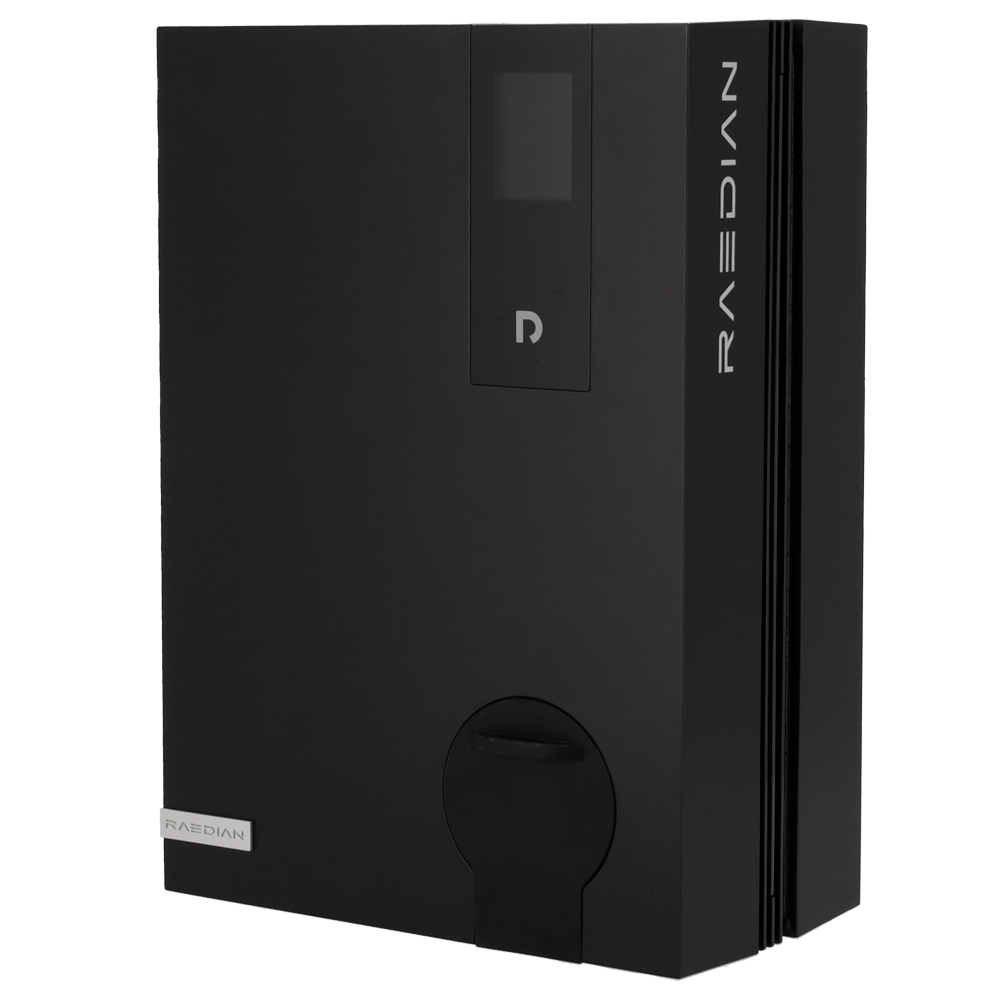

Raedian EV charging station - Power 22kW / 32A / Three-phase - Grey S
Raedian EV charging station - Power 22kW / 32A / Three-phase - Grey S
Regular price
€807,03
Final price
Regular price
-5%
€850,00
Sale price
€807,03
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Electric vehicle charging station - Power 22kW / 32A / Three-phase - Type 2 connector - IP55, IK10 protection - APP monitoring - Dark gray color
📋 SPECIFICATIONS:
• Brand: Raedian

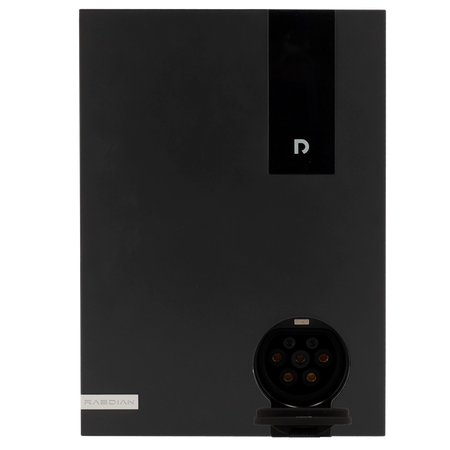

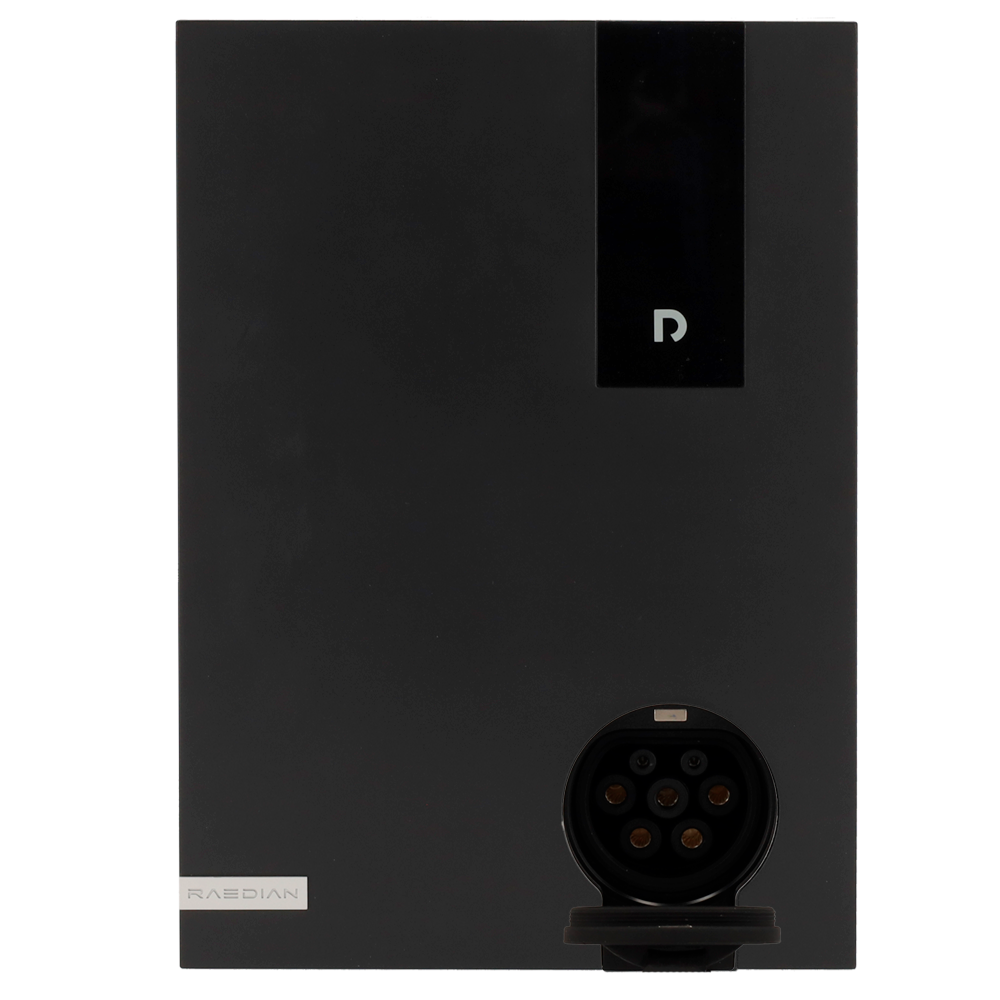

• Connector: Type 2
• Connection type: Three-phase
• Maximum power: 22 kW
• Maximum current: 32 A
• Voltage range: 230 - 400V
• Input frequency: 47 ~ 63Hz
• Connectivity: WiFi, BLE, RFID
• RFID protocol: ISO 14443-A, ISO 14443-B
• Charging interface: IEC 62196-2
• Third-party RFID: MiFare Classic 1K; MiFare 1K; M1 Card; Fundan S50
• Installation: Wall or pedestal mounted
• Included cable: No
• Operating temperature: -40℃ ~ +60℃
• Relative humidity: 0-95% non-condensing
• Cooling: Air cooling
• Standby consumption: < 8W
• Protection rating: IP55, IK10
• Dimensions: 297 (H) x 210 (W) x 110 (D) mm
• Weight: 3.2kg
• Color: Gray

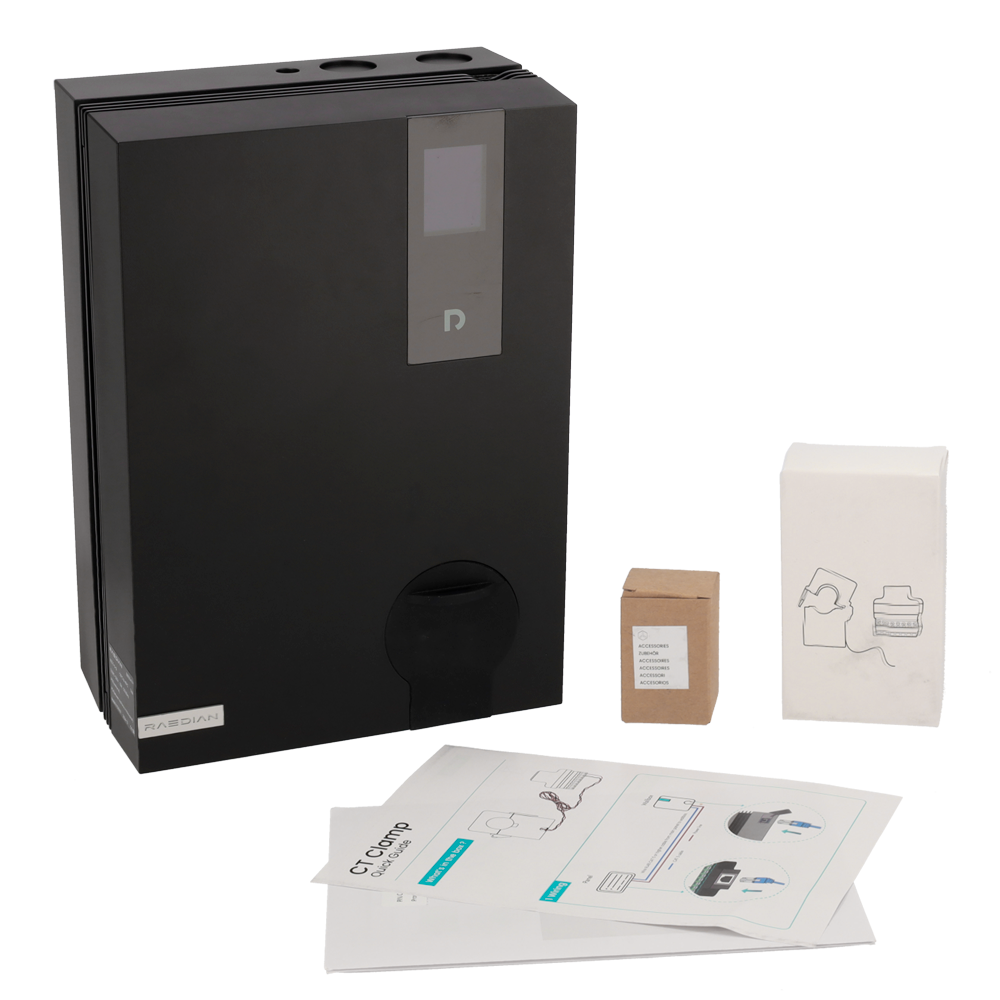

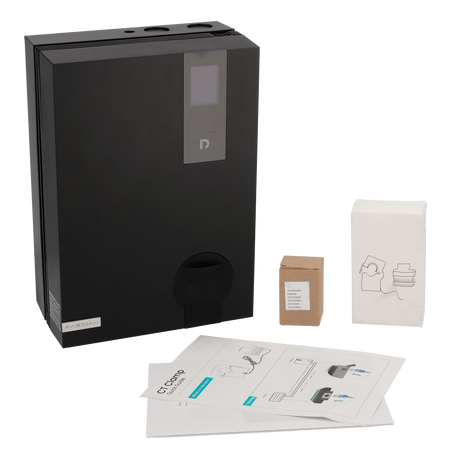

📦 INCLUDED:
• Electric vehicle charging station• 3x CT clamp• CT connector• 2x RFID cards• Installation material• Instruction manual
| Connector | Type 2 |
|---|---|
| Connection type | Three-phase |
| Maximum power | 22 kW |
| Maximum current | 32 A |
| Voltage range | 230 - 400V |
| Input frequency | 47 ~ 63Hz |
| Connectivity | WiFi, BLE, RFID |
| RFID protocol | ISO 14443-A, ISO 14443-B |
| Charging interface | IEC 62196-2 |
| Third-party RFID | MiFare Classic 1K MiFare 1K M1 Card Fundan S50 |
| Installation | Wall-mounted or pedestal |
| Cable included | No |
| Operating temperature | -40℃ ~ +60℃ |
| Relative humidity | 0-95% non-condensing |
| Cooling | Air cooled |
| Standby consumption | < 8W |
| Protection rating | IP55, IK10 |
| Dimensions | 297 (H) x 210 (W) x 110 (D) mm |
| Weight | 3.2kg |
| Color | Gray |
