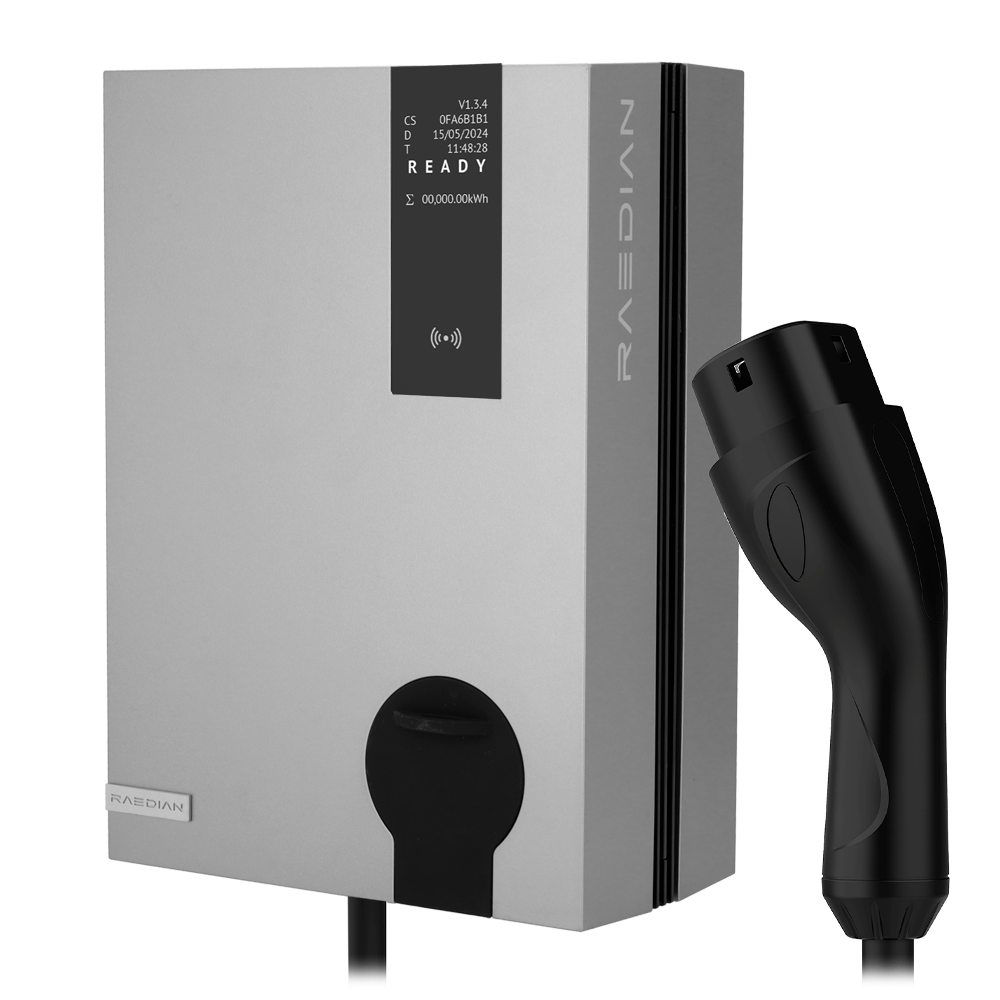

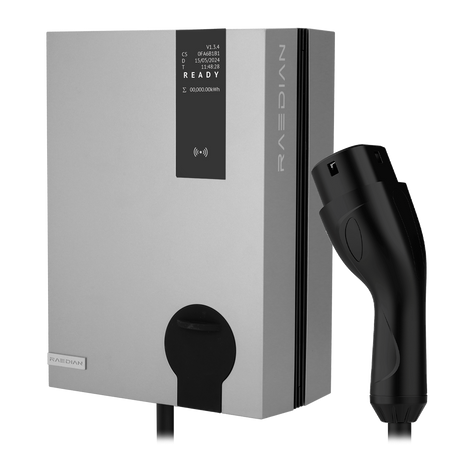

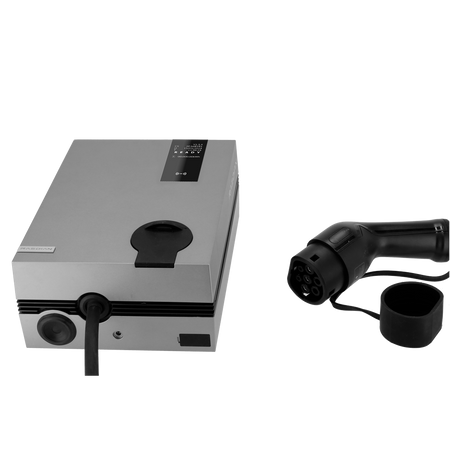

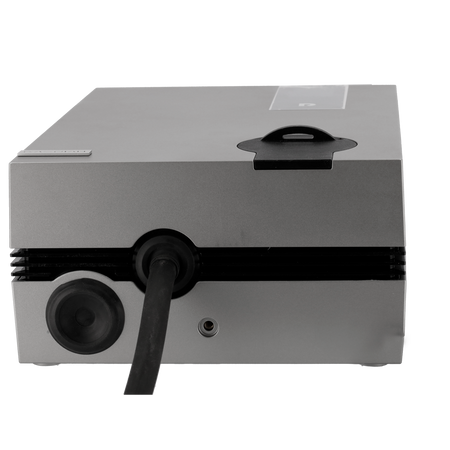

Raedian electric vehicle charging station - 22kW / 32A / Three-phase power - C5 SILVER

Electric vehicle charging station - Power 22kW / 32A / Three-phase - Type 2 connector - IP55, IK10 protection - App monitoring - Metallic silver color | 5m cable

📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2
• Connection type: Three-phase
• Maximum power: 22 kW
• Maximum current: 32 A
• Voltage range: 230-400V
• Input frequency: 47 ~ 63Hz
• Connectivity: WiFi, BLE, RFID
• RFID protocol: ISO 14443-A, ISO 14443-B
• Third-party RFID: MiFare Classic 1K; MiFare 1K; M1 card; Fundan S50
• Charging interface: IEC 62196-2
• Installation: Wall-mounted or pedestal
• Included cable: Yes
• Cable length: 5 m
• Operating temperature: -40℃ ~ +60℃
• Relative humidity: 0-95% non-condensing
• Cooling: Air-cooled
• Standby consumption: < 8W
• Protection rating: IP55, IK10
• Dimensions: 297 (H) x 210 (W) x 110 (D) mm
• Weight: 5.8kg
• Color: Metallic silver

📦 INCLUDED:

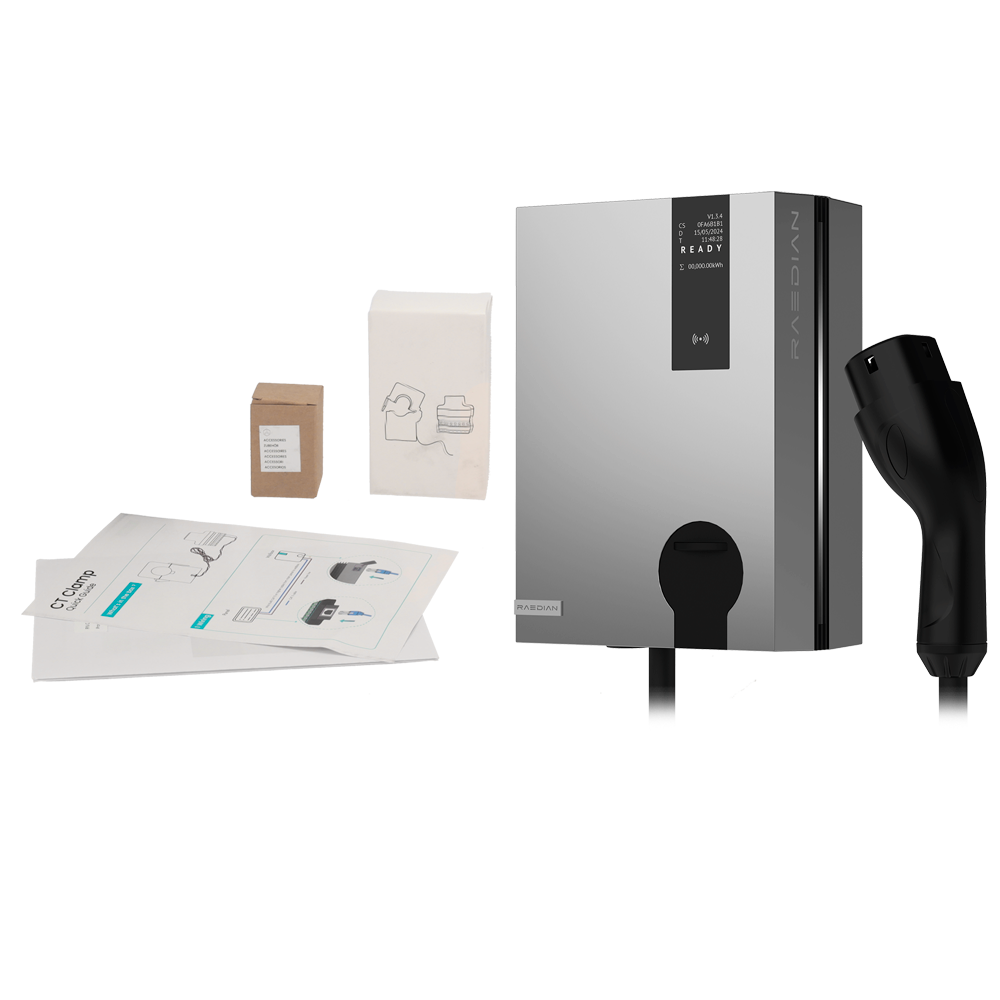

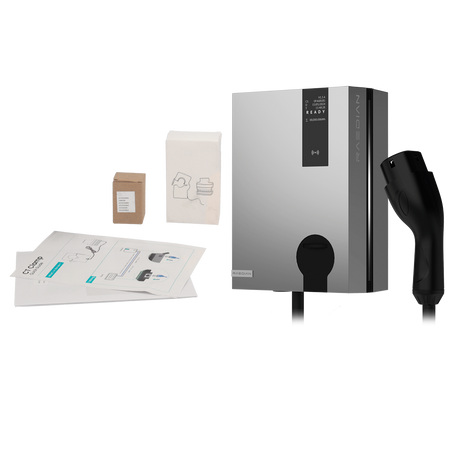

• Electric vehicle charging station with integrated 5m Type 2 cable • 3x CT clamp • CT connector • 2x RFID cards • Installation hardware • Instruction manual
