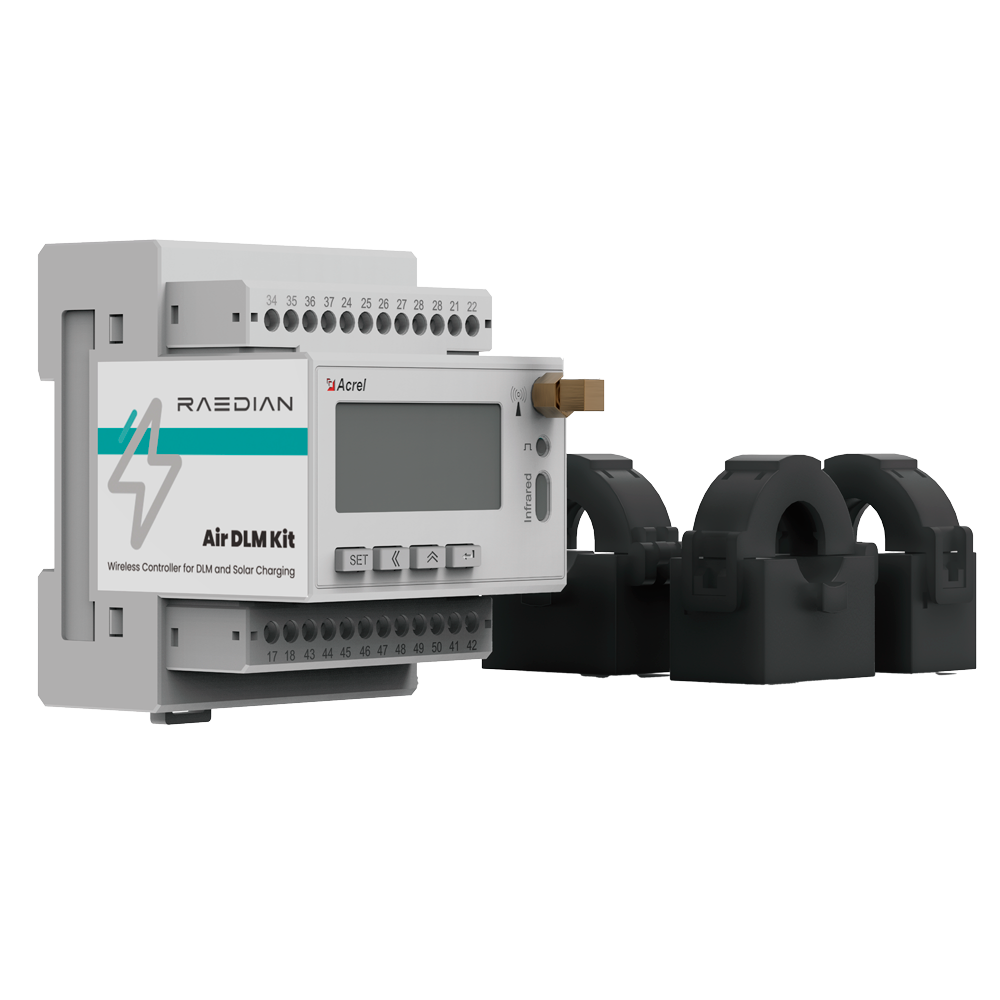

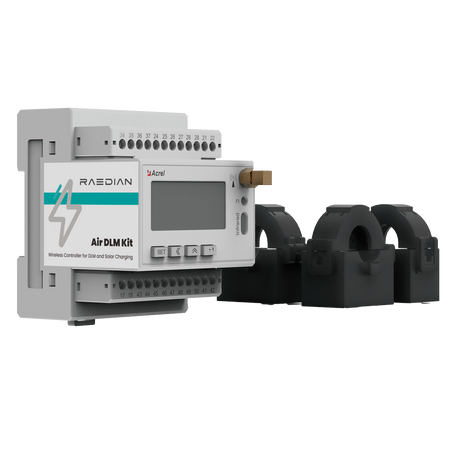

Raedian Smart Meter Compatible with NEX and GEMINI
Raedian Smart Meter Compatible with NEX and GEMINI
Regular price
€546,48
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Raedian Smart Meter - Compatible with NEX and GEMINI - Single-phase and three-phase | Up to 100A - LORA communication - DIN rail mounting - Class B accuracy
📋 SPECIFICATIONS:
• Brand: RAEDIAN
• Device type: Smart Meter without wiring

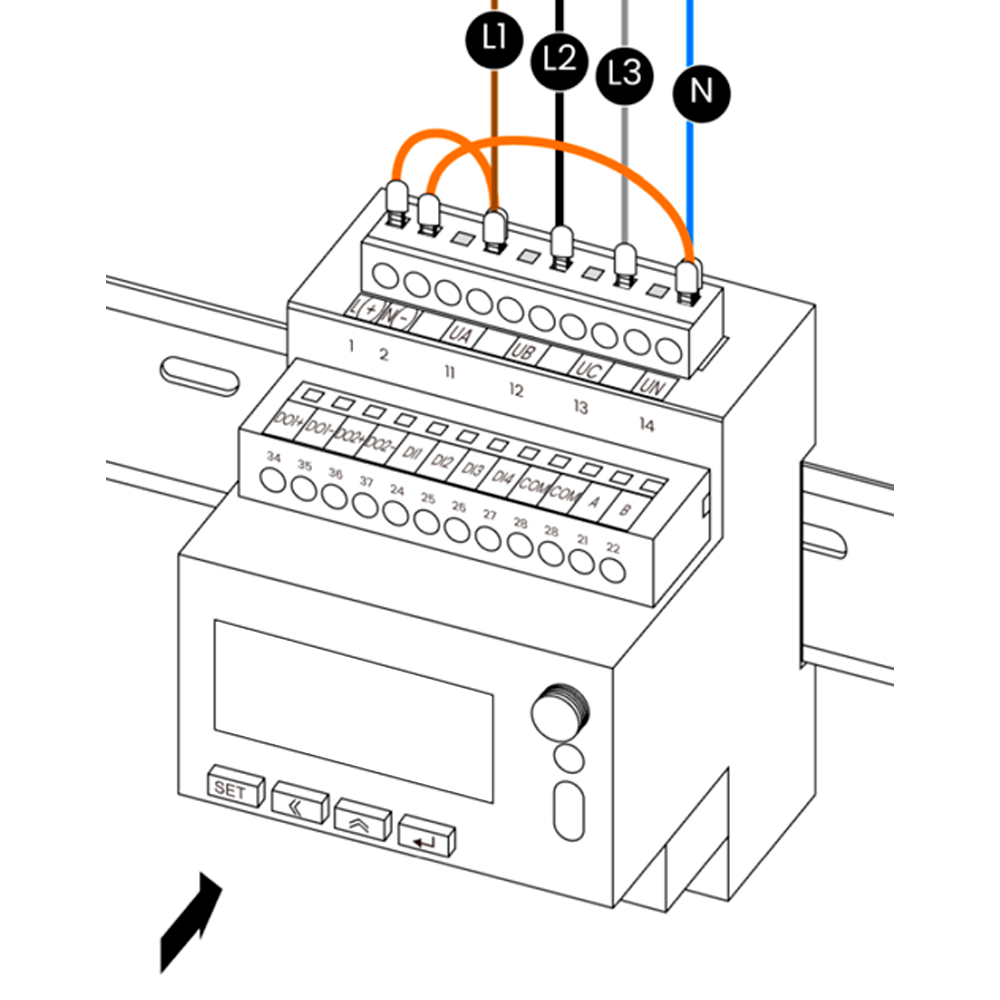

• Rated voltage: Single-phase 230Vac; Three-phase 230/400Vac
• Consumption: <2 W

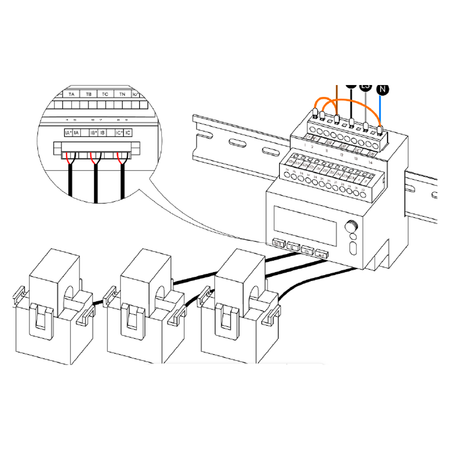

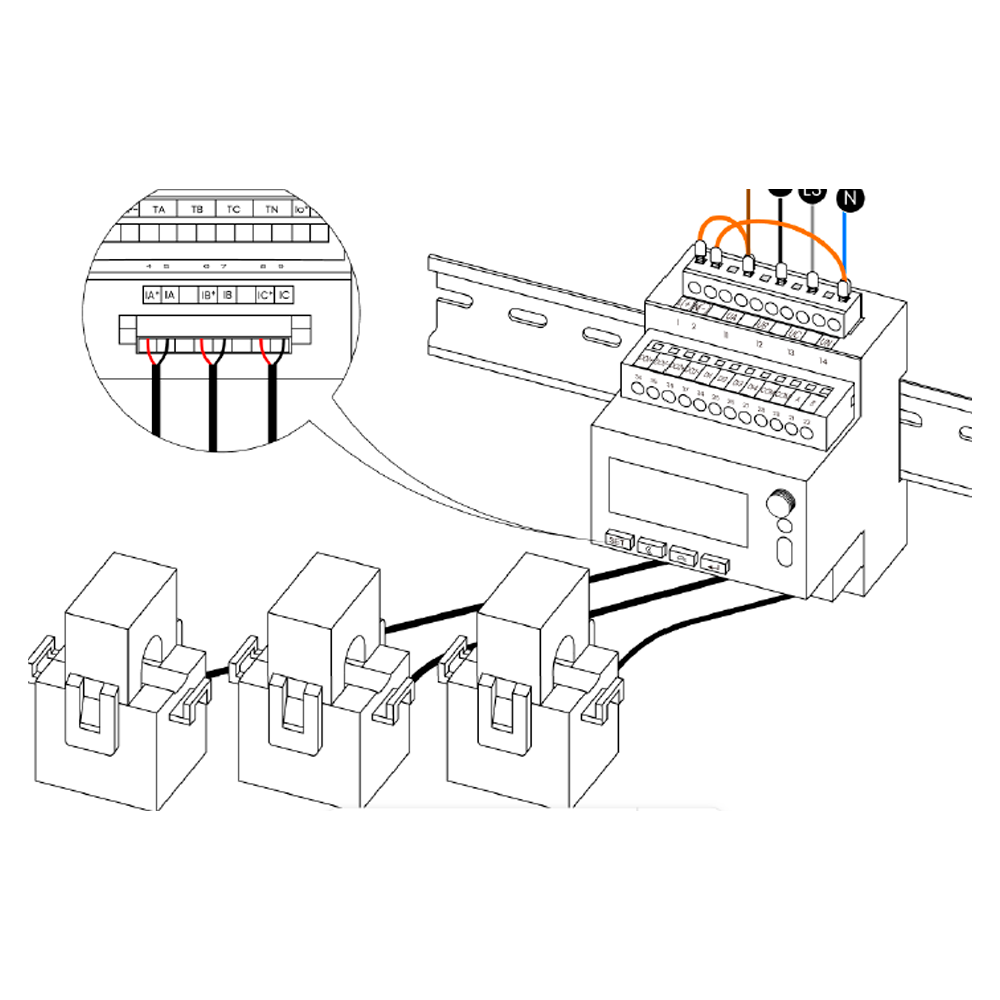

• Input current: 100A with included 100A clamps
• Grid frequency: 50Hz
• Mounting: DIN rail
• Measurement: Class B (split-core current transformer)
• Operating temperature: -25 ~ 55ºC
• Communication between Smart Meter and master charger: Wireless LoRa (470Mhz); RS485 (ModBus RT)
• Communication between chargers: Wireless LoRa (470Mhz)
• Baud rate: 1200mbps
• Compatibility: NEX and GEMINI chargers
• Color: White
• Dimensions: 92.6 (H) x 72 (W) x 71.5 (D) mm
• CT hole size: 10 mm
• Pulse constant: 400imp/kWh
• Maximum number of devices: 25 NEX/GEMINI chargers
• Antenna range: 40m between Smart Meter and master charger; 60m between master charger and last slave charger; 100m total
📦 INCLUDED:
• Smart Meter• 3x 100A CT clamp• RJ45 adapter• Internal antenna• External antenna
| Device type | Wireless Smart Meter |
|---|---|
| Rated voltage | Single-phase 230Vac Three-phase 230/400Vac |
| Power consumption | <2 W |
| Input current | 100A with 100A clamps included |
| Mains frequency | 50Hz |
| Mounting | DIN rail |
| Measurement | Class B (split-core current transformer) |
| Operating temperature | -25 ~ 55ºC |
| Communication between Smart Meter and master charger | Wireless LoRa (470Mhz) RS485 (ModBus RT) |
| Communication between chargers | Wireless LoRa (470Mhz) |
| Baud rate | 1200mbps |
| Compatibility | NEX and GEMINI chargers |
| Color | White |
| Dimensions | 92.6 (H) x 72 (W) x 71.5 (D) mm |
| CT aperture size | 10 mm |
| Pulse constant | 400imp/kWh |
| Maximum number of devices | 25 NEX/GEMINI chargers |
| Antenna range | 40m between Smart Meter and master charger 60m between master charger and last slave charger 100m in total |
